IPC-B132-AF28-DL-ECO - Uniarch Dual Light 2MP Bullet IP Camera 2.8mm

IPC-B132-AF28-DL-ECO - Uniarch Dual Light 2MP Bullet IP Camera 2.8mm

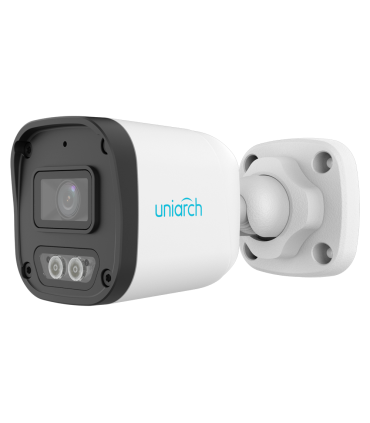

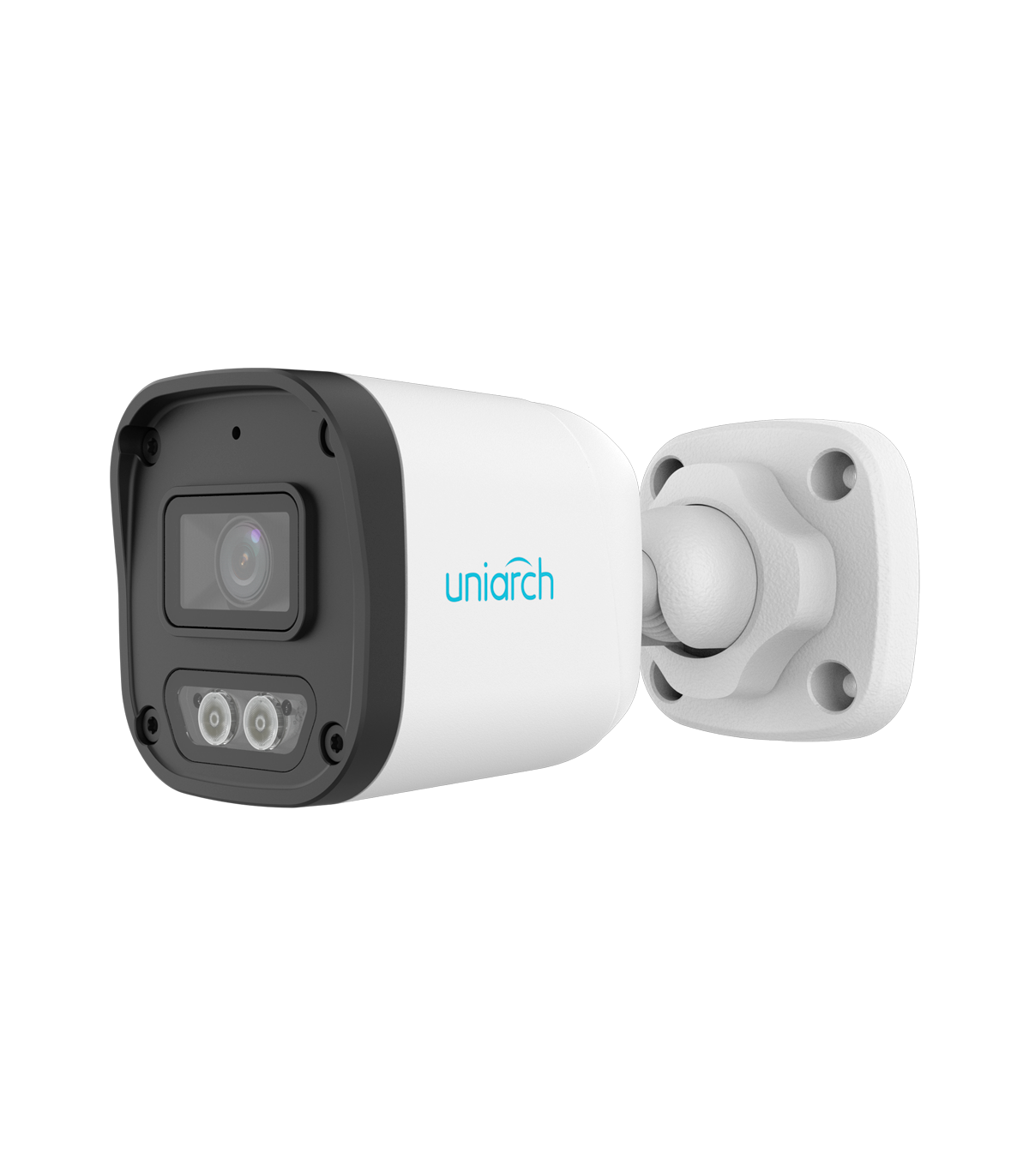

The IPC-B132-AF28-DL-ECO is a 2MP Uniarch Bullet IP camera designed for professional video surveillance systems. It combines Smart Dual Light technology, human body detection, a built-in microphone and PoE power. Its IP67 protection makes it suitable for both indoor and outdoor installations, providing a versatile solution for different security projects.

Equipped with a 1/3" CMOS sensor, the camera provides a maximum resolution of 2MP (1920 × 1080). The main stream supports Full HD video at up to 30 fps. This combination provides smooth video and a suitable level of detail for monitoring entrances, perimeters, façades and other areas of interest.

IPC-B132-AF28-DL-ECO with 2.8mm F1.6 lens

The IPC-B132-AF28-DL-ECO uses a fixed 2.8mm F1.6 lens. Its field of view is approximately 85.1° horizontally, 46.6° vertically and 95.5° diagonally. This coverage allows a wide area to be monitored and is suitable for different professional IP video surveillance applications.

The DORI distances specified for this lens are 51.4 m for detection, 20.6 m for observation, 10.3 m for recognition and 5.1 m for identification. These values provide a technical reference for evaluating the level of detail available according to the distance from the target.

Smart Dual Light with IR up to 30 m and warm light up to 15 m

One of the main features of the IPC-B132-AF28-DL-ECO is Smart Dual Light technology. The camera combines infrared illumination with warm light to adapt the lighting to the conditions of the monitored area. The IR range reaches up to 30 m, while the warm light reaches up to 15 m.

Minimum illumination is 0.005 Lux in colour mode. The camera also features an ICR filter for day and night operation. DWDR helps improve visibility in areas with different lighting levels. In addition, 2D/3D DNR digital noise reduction helps optimize image quality under different video surveillance conditions.

IPC-B132-AF28-DL-ECO with Human Body Detection 2.0

The IPC-B132-AF28-DL-ECO integrates Human Body Detection 2.0, allowing events associated with the presence of people to be identified. This function adds analysis capabilities to the video surveillance system and helps focus detection on events involving human targets.

The camera also supports ROI, allowing selected regions of the image to receive greater priority during encoding. Ultra 265, H.265 and H.264 video compression helps optimize bandwidth usage and the storage resources available within the surveillance system.

Built-in microphone and network connection

The IPC-B132-AF28-DL-ECO features a built-in microphone for capturing audio together with video surveillance footage. Network connectivity is provided through an RJ45 10/100 Mbps interface, allowing the camera to be integrated into a compatible IP video surveillance infrastructure.

This model does not feature WiFi, a built-in speaker, audio inputs or outputs, or alarm inputs or outputs. Its structure supports 3-axis adjustment, making it easier to position the camera according to the area that needs to be monitored.

IPC-B132-AF28-DL-ECO with PoE and IP67 protection

The IPC-B132-AF28-DL-ECO is powered through PoE IEEE 802.3af. Electrical power and data transmission can therefore use the same compatible network connection, helping simplify the installation. Maximum power consumption is 3.5W.

The IP67 protection rating provides protection against dust and weather conditions, allowing the camera to be installed outdoors. With 2MP resolution, a 2.8mm lens, Smart Dual Light, IR up to 30 m, warm light up to 15 m, Human Body Detection 2.0, a built-in microphone and PoE, the IPC-B132-AF28-DL-ECO provides useful features for different professional IP video surveillance projects.
