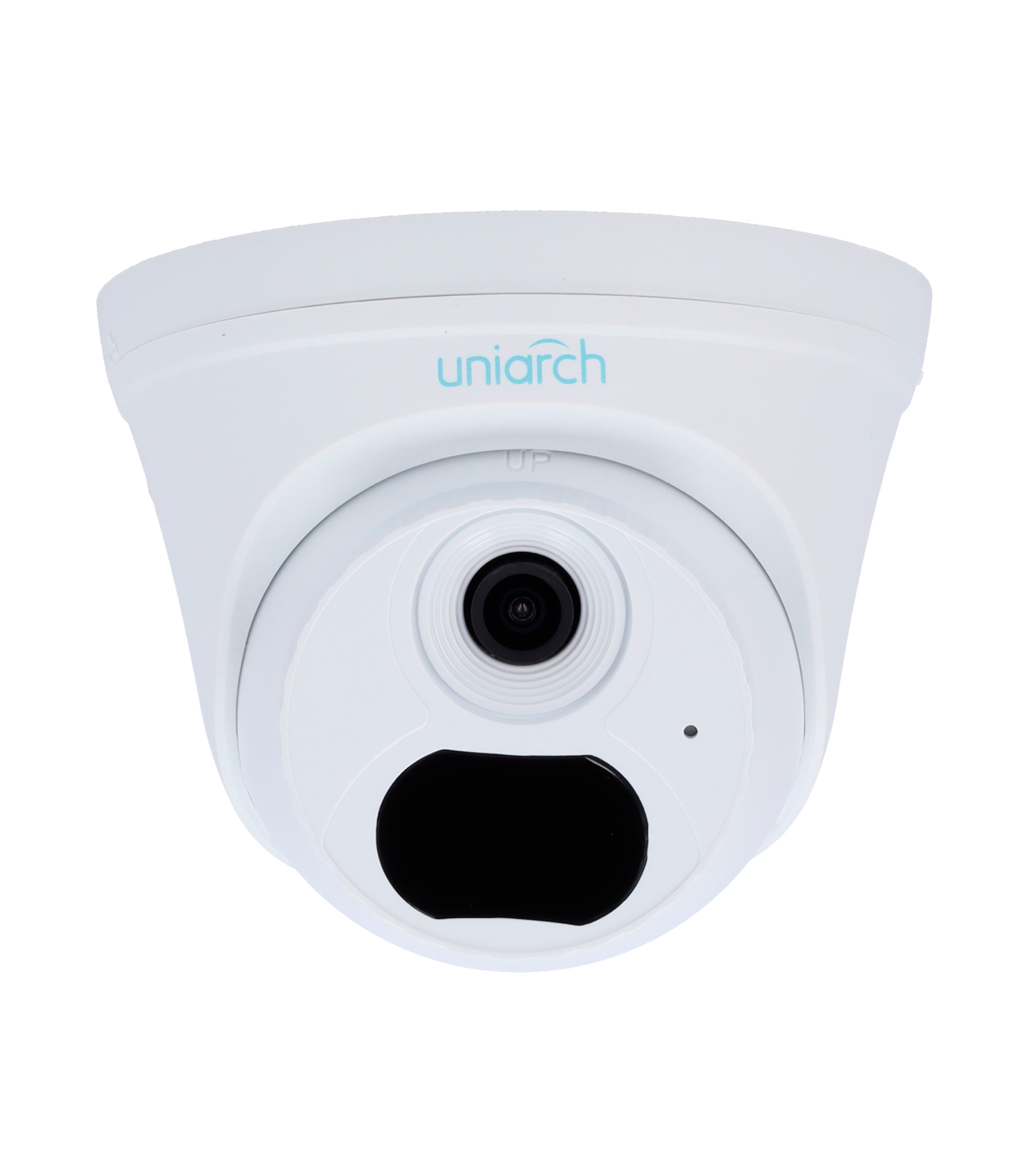

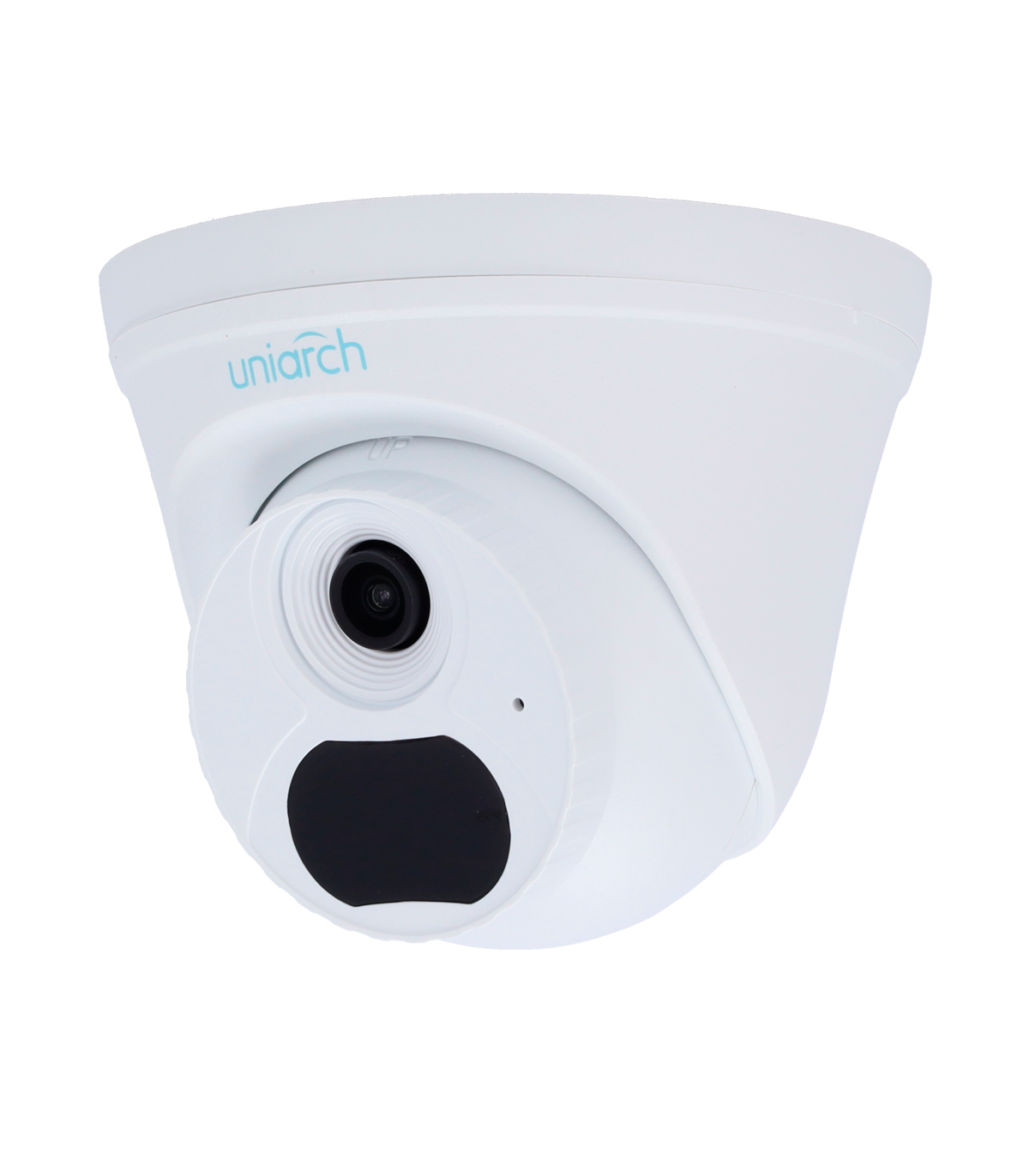

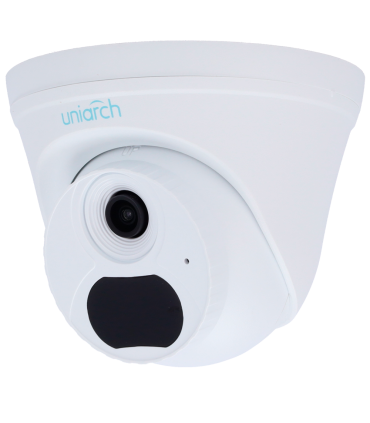

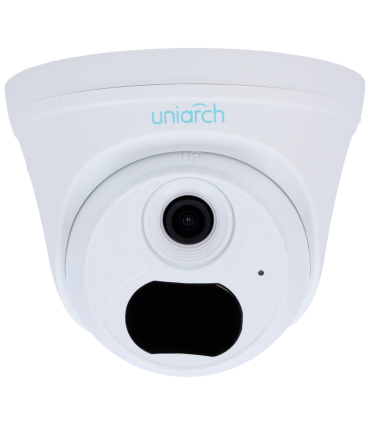

IPC-T134-AF28-ECO - Uniarch 4MP Turret IP Camera 2.8mm

IPC-T134-AF28-ECO - Uniarch 4MP Turret IP Camera 2.8mm

The IPC-T134-AF28-ECO is a 4MP Uniarch Turret IP camera designed for professional video surveillance systems. It combines high image resolution, a fixed 2.8mm lens, Smart IR illumination and detection functions intended for monitoring people. Its Turret design also enables discreet installation and flexible adjustment of the monitored area.

Equipped with a 1/3.0" CMOS sensor, the camera provides a maximum resolution of 4MP (2560 × 1440). This resolution delivers detailed images for a variety of security applications. The fixed 2.8mm F2.0 lens provides a wide field of view, making the camera suitable for general surveillance of indoor or outdoor areas.

IPC-T134-AF28-ECO with 4MP resolution and 2.8mm lens

The IPC-T134-AF28-ECO provides a horizontal field of view of 97°, a vertical field of view of 54.9° and a diagonal field of view of 111.9°. This coverage makes it possible to monitor a wide area without requiring a motorized lens. The camera also features a 3-axis design, allowing its orientation to be adjusted during installation.

With the 2.8mm lens, the DORI distances are approximately 63 m for detection and 25.2 m for observation. Recognition reaches 12.6 m, while identification reaches 6.3 m. These values provide a technical reference for evaluating the level of detail available according to the distance from the target.

Smart IR up to 30 m and low-light operation

The IPC-T134-AF28-ECO is designed to maintain video surveillance during both day and night. Minimum illumination in colour mode is 0.003 Lux. When ambient lighting becomes insufficient, the Smart IR system provides infrared illumination with a range of up to 30 m.

The mechanical ICR filter enables switching between day and night operation. DWDR technology helps balance areas with different levels of illumination. In addition, 2D/3D DNR digital noise reduction contributes to image optimization under different recording conditions.

IPC-T134-AF28-ECO with Human Body Detection 2.0

The IPC-T134-AF28-ECO integrates Human Body Detection 2.0, a function specifically designed for human body detection. This feature adds a dedicated analysis capability to the video surveillance functions supported by the camera.

The device also supports ROI (Region of Interest). This function allows selected areas of the image to receive greater priority during encoding. The camera uses two video streams, helping adapt video transmission to different viewing and network requirements.

Ultra 265 compression and efficient IP transmission

The IPC-T134-AF28-ECO supports Ultra 265, H.265 and H.264 video compression formats. Ultra 265 technology is designed to optimize bandwidth usage. It also helps make efficient use of storage resources within IP video surveillance systems.

The network interface allows the camera to be integrated into a compatible video surveillance infrastructure. The device also includes a built-in microphone. This enables audio to be captured together with video without requiring the installation of an external microphone.

IPC-T134-AF28-ECO with PoE power supply

The IPC-T134-AF28-ECO is powered through PoE IEEE 802.3af. Power and data can therefore be transmitted through a compatible network connection. This simplifies the cabling required for installation. The specified maximum power consumption is only 2.5W.

With 4MP resolution, a 2.8mm lens, Smart IR up to 30 m and Human Body Detection 2.0, this camera provides essential functions for IP video surveillance. DWDR, 2D/3D DNR, ROI, a built-in microphone and PoE power further extend its capabilities. The IPC-T134-AF28-ECO is therefore suitable for different professional security projects.
