KIT114-D42W - Uniview Wi-Fi Surveillance Kit 4-Channel NVR + 2MP IP Cameras

KIT114-D42W - Uniview Wi-Fi Surveillance Kit 4-Channel NVR + 2MP IP Cameras

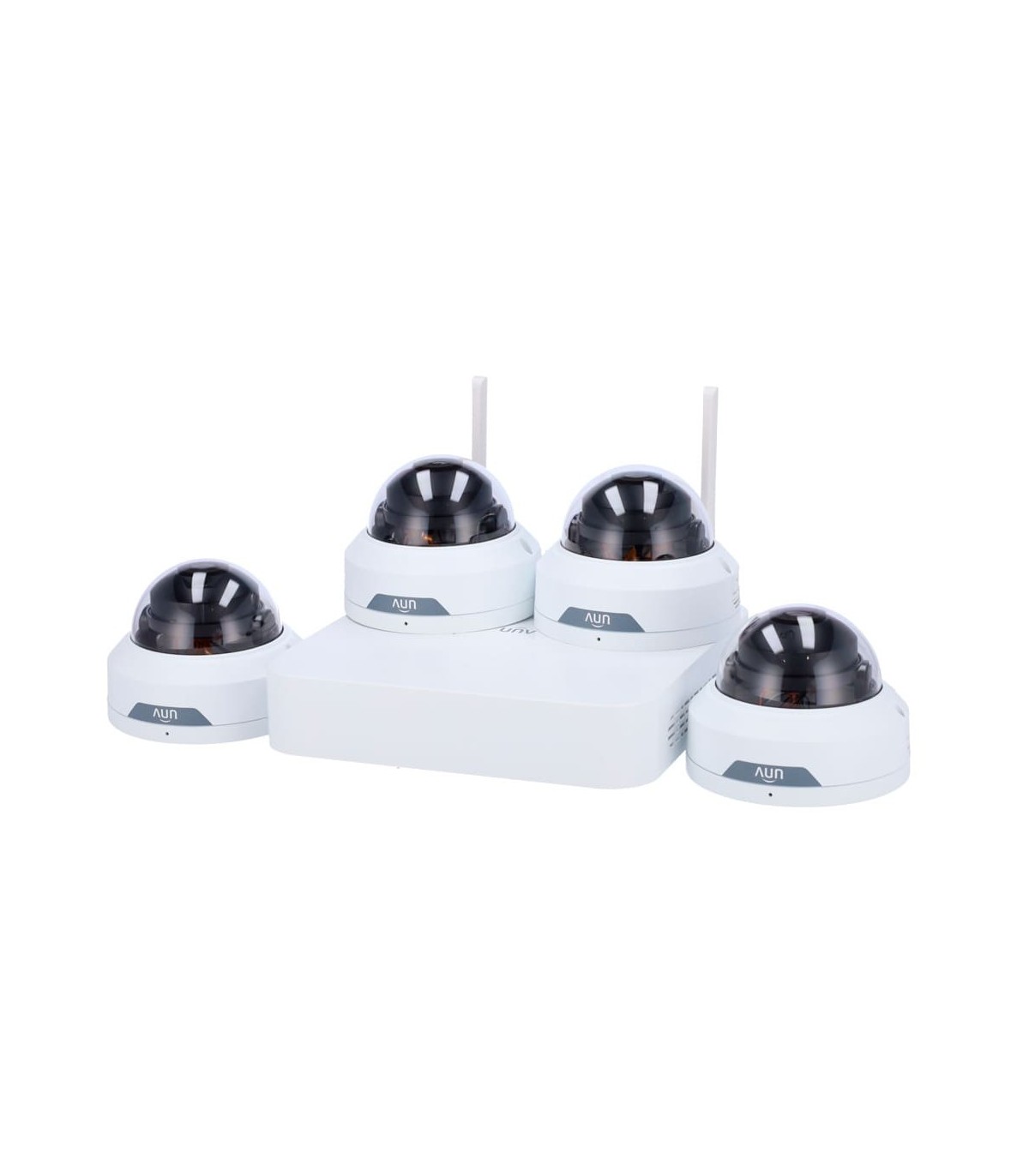

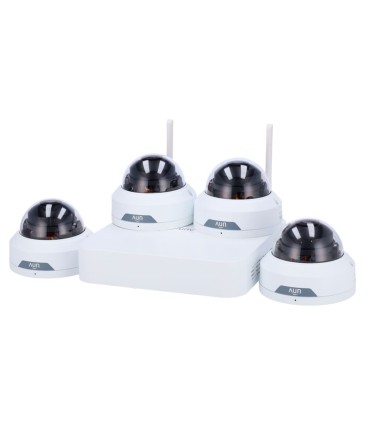

The KIT114-D42W is a Uniview Wi-Fi video surveillance kit based on a 4-channel network video recorder and IP cameras with 2MP Full HD resolution. The system enables video transmission over a compatible wireless network, providing a solution for monitoring residential and commercial environments.

The kit uses the NVR301-04LS3-W recorder and IPC322LB-AF28WK-G cameras, combining Ultra H.265 compression, IEEE 802.11b/g/n Wi-Fi connectivity, motion detection recording, remote access and storage through a SATA hard drive with a capacity of up to 6TB.

Uniview 4-Channel NVR with Wi-Fi

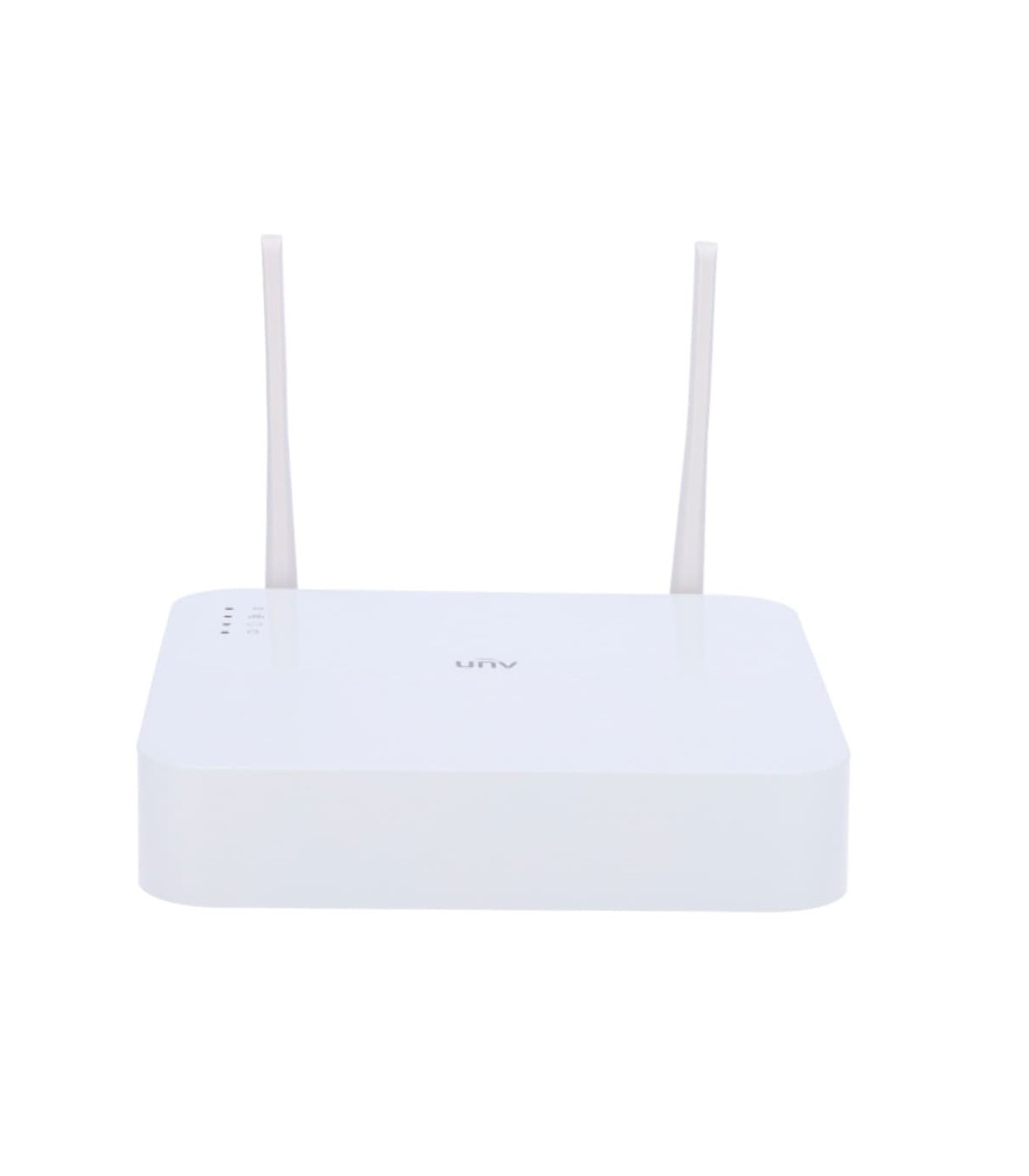

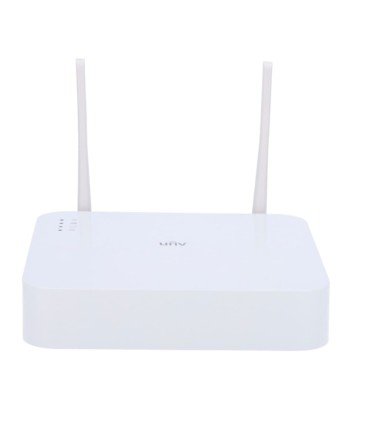

The NVR301-04LS3-W is a network video recorder capable of managing up to 4 IP channels. It features Wi-Fi connectivity and a LAN interface, allowing compatible cameras to be integrated into the video surveillance infrastructure.

The recorder provides a Full HD HDMI output and a VGA output, with display resolutions of 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720 and 1024 × 768. It supports recording at 1080p, 960p and 720p.

Wi-Fi Connectivity and Plug & Play Installation

The IPC322LB-AF28WK-G cameras feature IEEE 802.11b/g/n Wi-Fi connectivity, as well as a 10/100 Base-T Ethernet interface, providing different options for connecting to the network.

The system includes Plug & Play functionality, with automatic detection and addition of compatible cameras. The technical specifications also indicate support for cascading Wi-Fi connections, making it easier to organise wireless connectivity according to installation conditions.

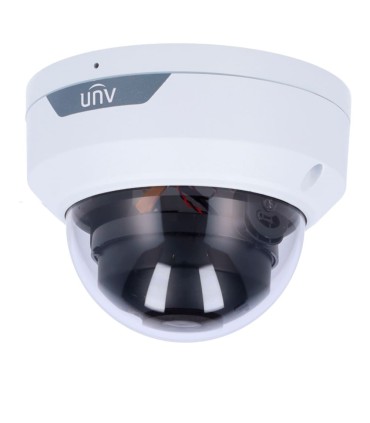

2MP Full HD IP Cameras

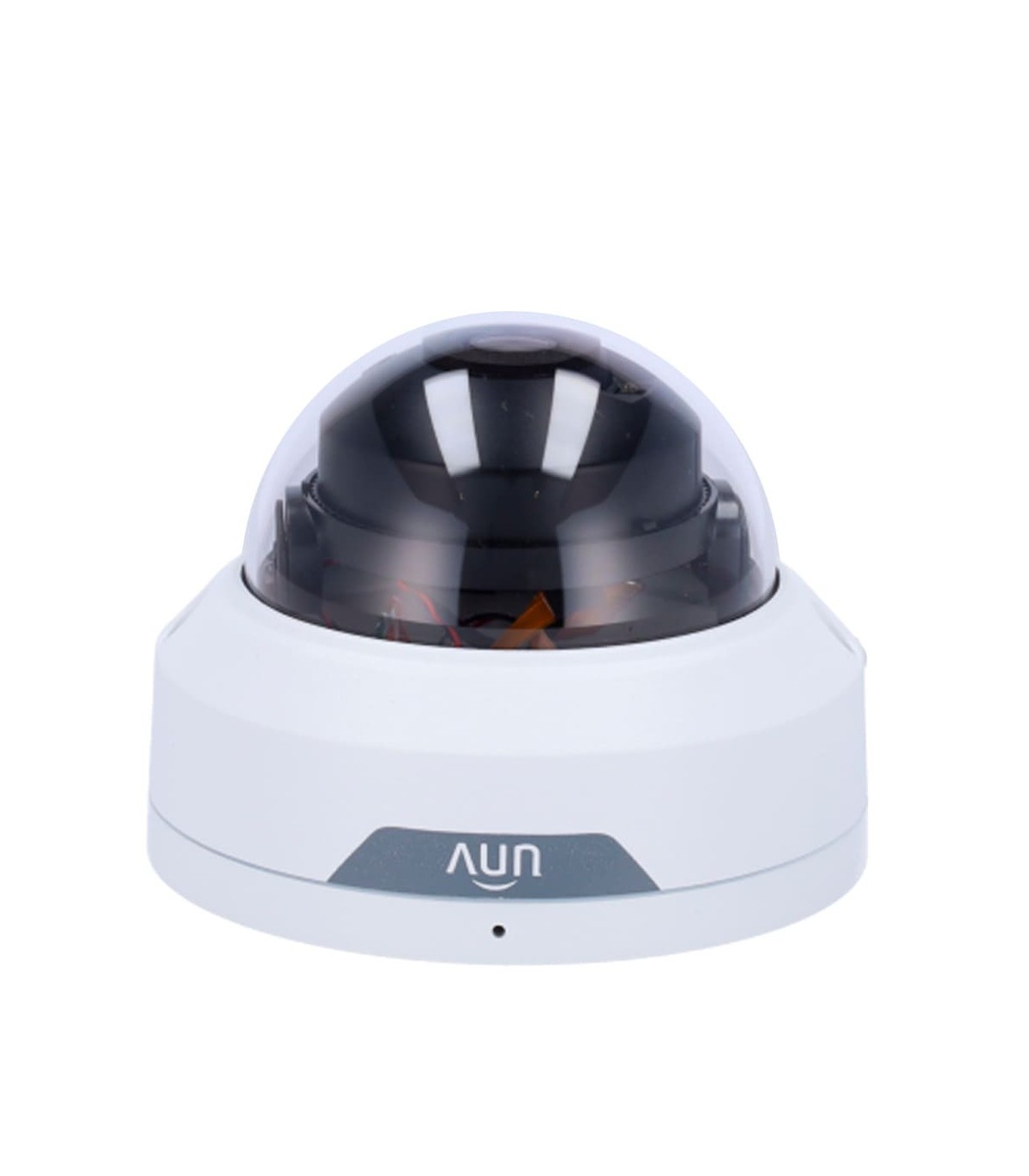

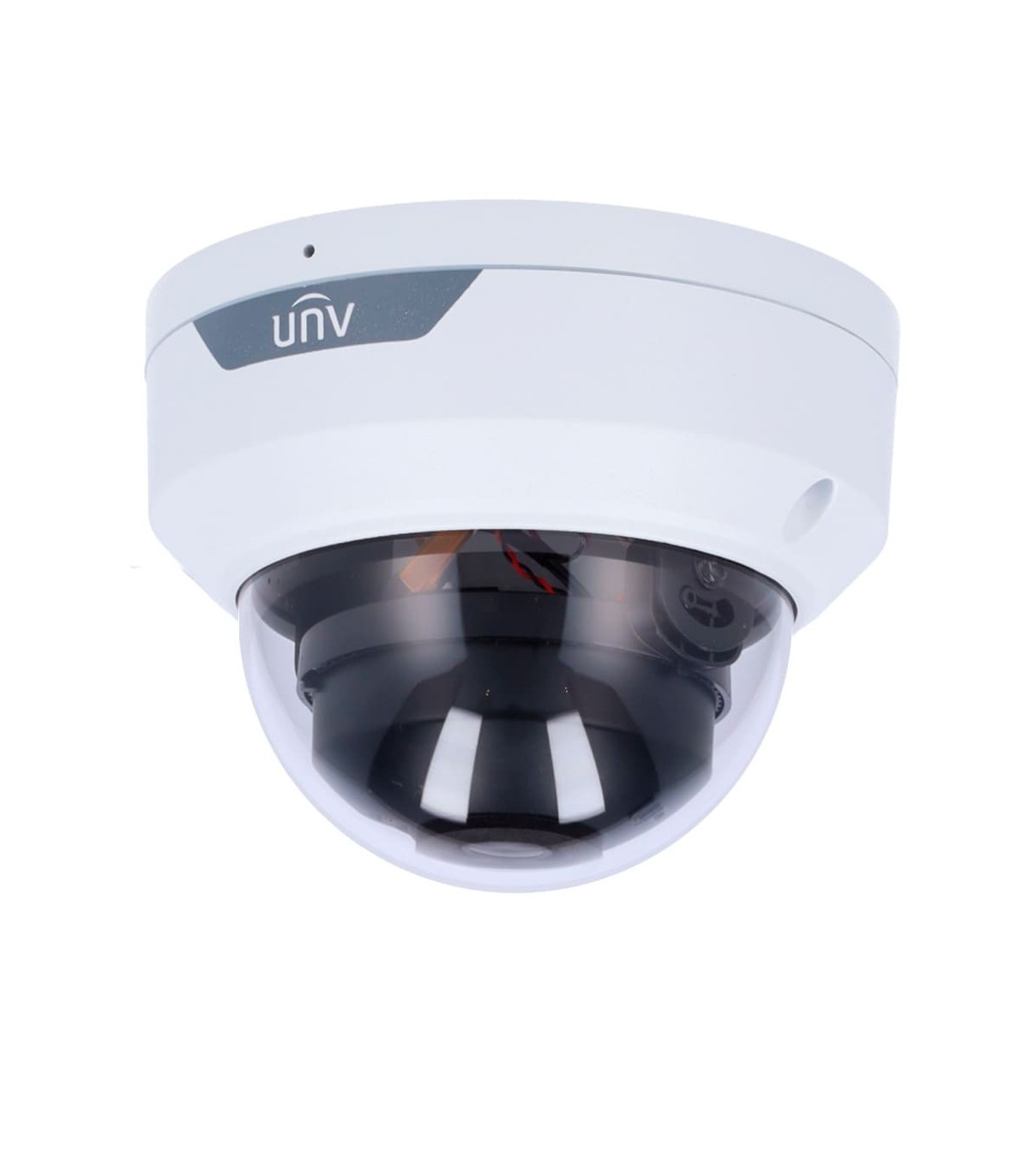

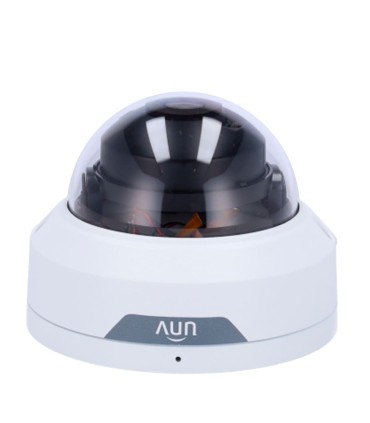

The IPC322LB-AF28WK-G cameras use a 1/2.9" Progressive Scan image sensor, with a maximum resolution of 2MP (1920 × 1080) and a 2.8mm lens.

They support video transmission at up to 30fps and Ultra H.265, H.265, Ultra H.264 and H.264 compression, providing different video encoding options for recording and transmission over the network.

Image Capture in Low-Light Conditions

The cameras feature a minimum illumination of 0.01Lux in colour mode and 0Lux in black-and-white mode, under the conditions specified in the technical documentation.

They incorporate image processing functions such as 3D-NR, HLC, BLC, OSD, privacy masking, ROI and motion detection, allowing video capture and analysis to be adapted to monitoring requirements.

Built-in Microphone and MicroSD Storage

The cameras feature a built-in microphone, enabling audio capture alongside video surveillance images, depending on the system configuration.

In addition to centralised recording through the NVR, they support local storage via a MicroSD card up to 128GB, providing an additional storage option directly on the camera.

NVR Recording and Storage up to 6TB

The NVR301-04LS3-W recorder supports the installation of 1 SATA 3.5" hard drive up to 6TB, allowing images captured by the system cameras to be stored. The technical specifications do not confirm whether a hard drive is included.

Available recording modes include manual, scheduled and motion detection recording. The NVR also supports Pentaplex operation, allowing live viewing, recording, playback, backup and remote access.

Remote Access and System Management

The system supports remote access through a web browser, EZStation management software and EZView / EZLive smartphone applications, depending on device compatibility and configuration.

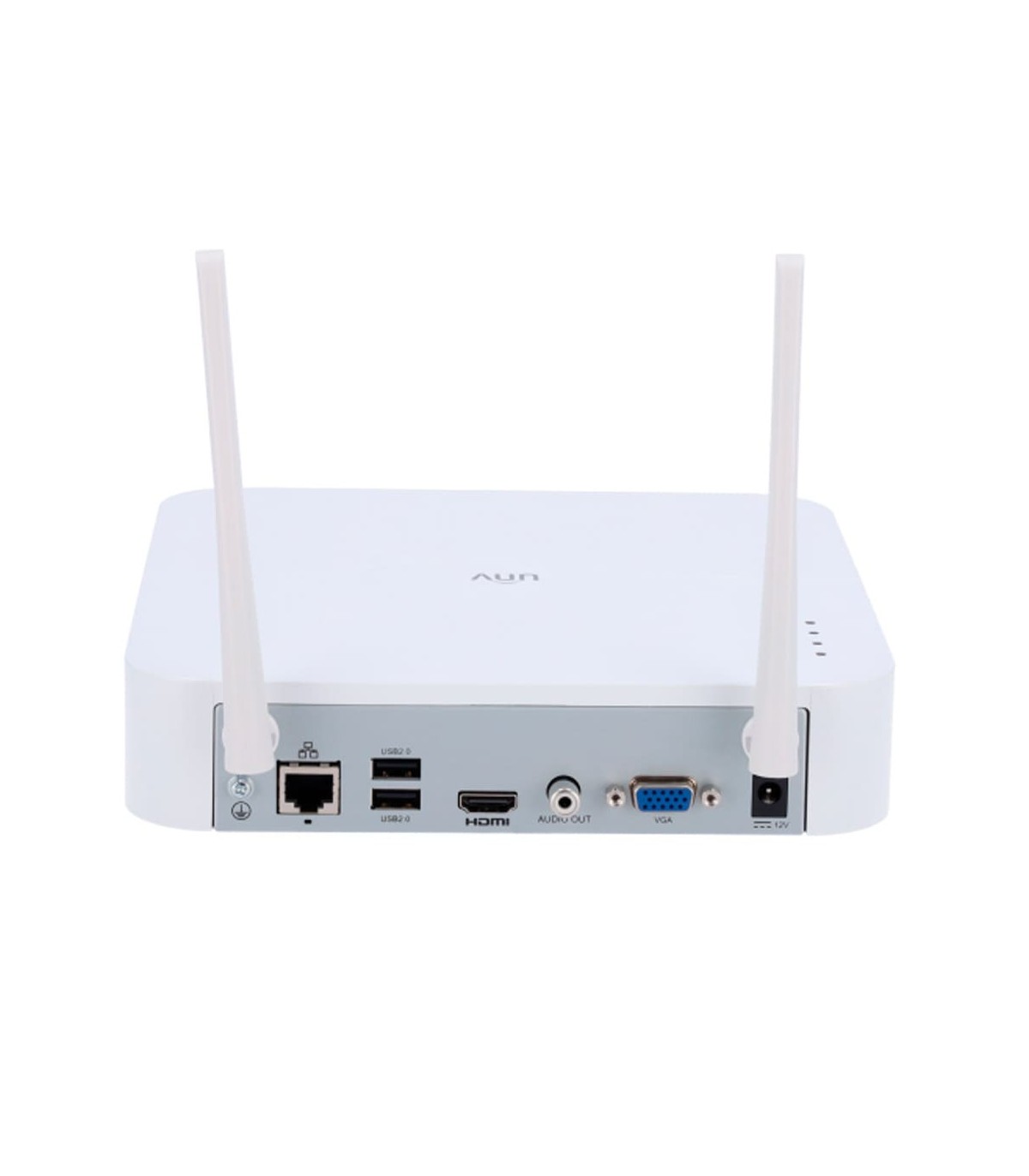

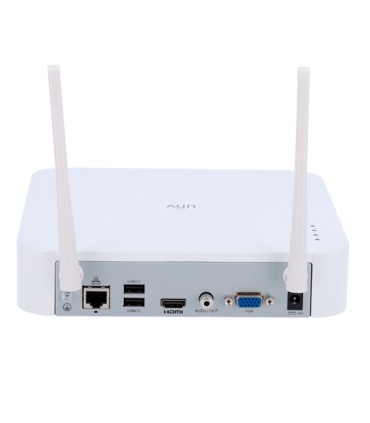

The recorder includes USB interfaces for a mouse and backups, an RJ45 Ethernet connection and Wi-Fi communication, providing the main connections required for video surveillance management.

IP67 Protection for Outdoor Use

The Uniview cameras feature an IP67 protection rating, making them suitable for outdoor installation when the manufacturer's mounting and power supply requirements are followed.

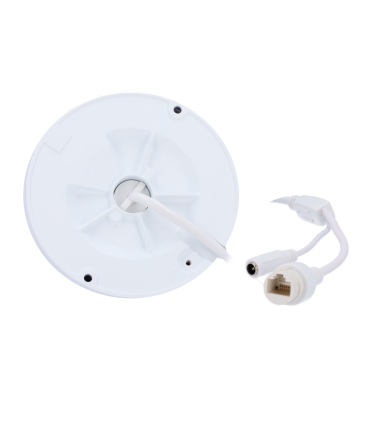

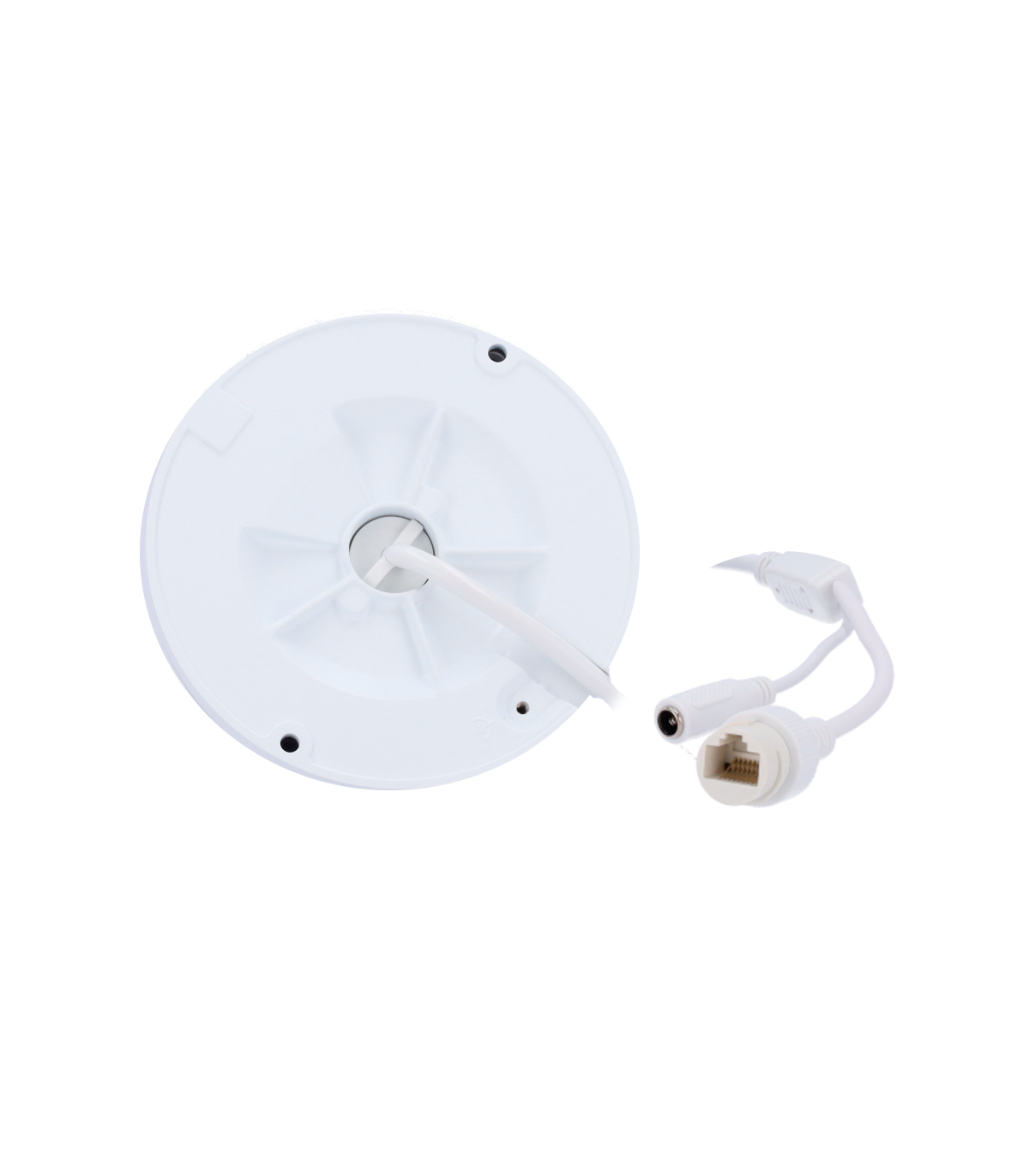

Each camera uses a DC 12V / 4W power supply and measures 172 × 76 × 72mm, with an approximate weight of 250g.

Wireless IP Video Surveillance Solution

The KIT114-D42W combines a Uniview 4-channel Wi-Fi recorder with 2MP Full HD IP cameras, allowing the implementation of a video surveillance system with wireless transmission and centralised recording.

The combination of Wi-Fi connectivity, automatic Plug & Play detection, Ultra H.265 compression, storage up to 6TB, a built-in microphone and IP67 protection makes this kit a versatile solution for IP video surveillance applications.
