STARTERKIT-01 - Uniview 8-Channel PoE NVR Kit + 4 IP Cameras 4MP

STARTERKIT-01 - Uniview 8-Channel PoE NVR Kit + 4 IP Cameras 4MP

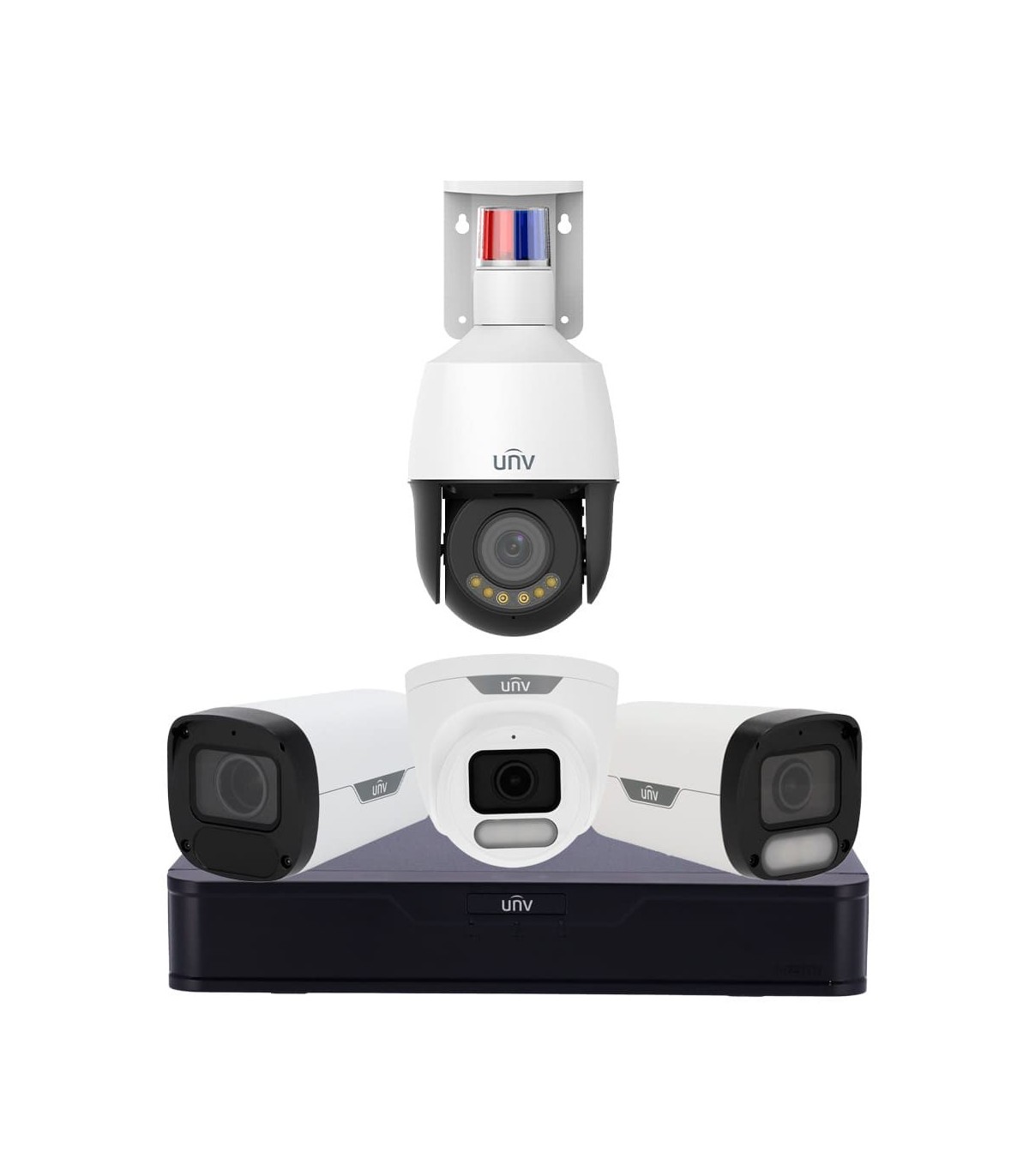

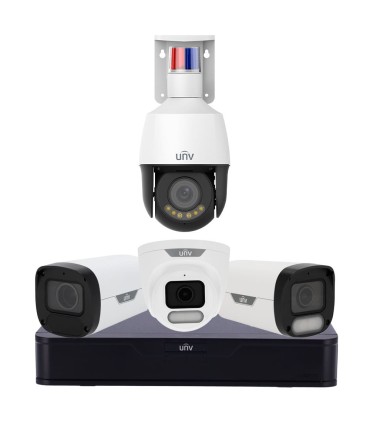

The STARTERKIT-01 is a Uniview video surveillance kit consisting of an 8-channel NVR recorder with 8 PoE ports and four 4MP IP cameras, including Bullet, Turret and PTZ models. The kit combines different image capture solutions, allowing video surveillance to be adapted to the specific characteristics of each area.

The kit includes cameras with ColorHunter and Wise-ISP technology, SIP and UMD intelligent detection, a motorised lens and a PTZ camera with 5× optical zoom. The NVR supports recording resolutions up to 12MP, Ultra 265 / H.265 / H.264 compression and internal storage up to 6TB.

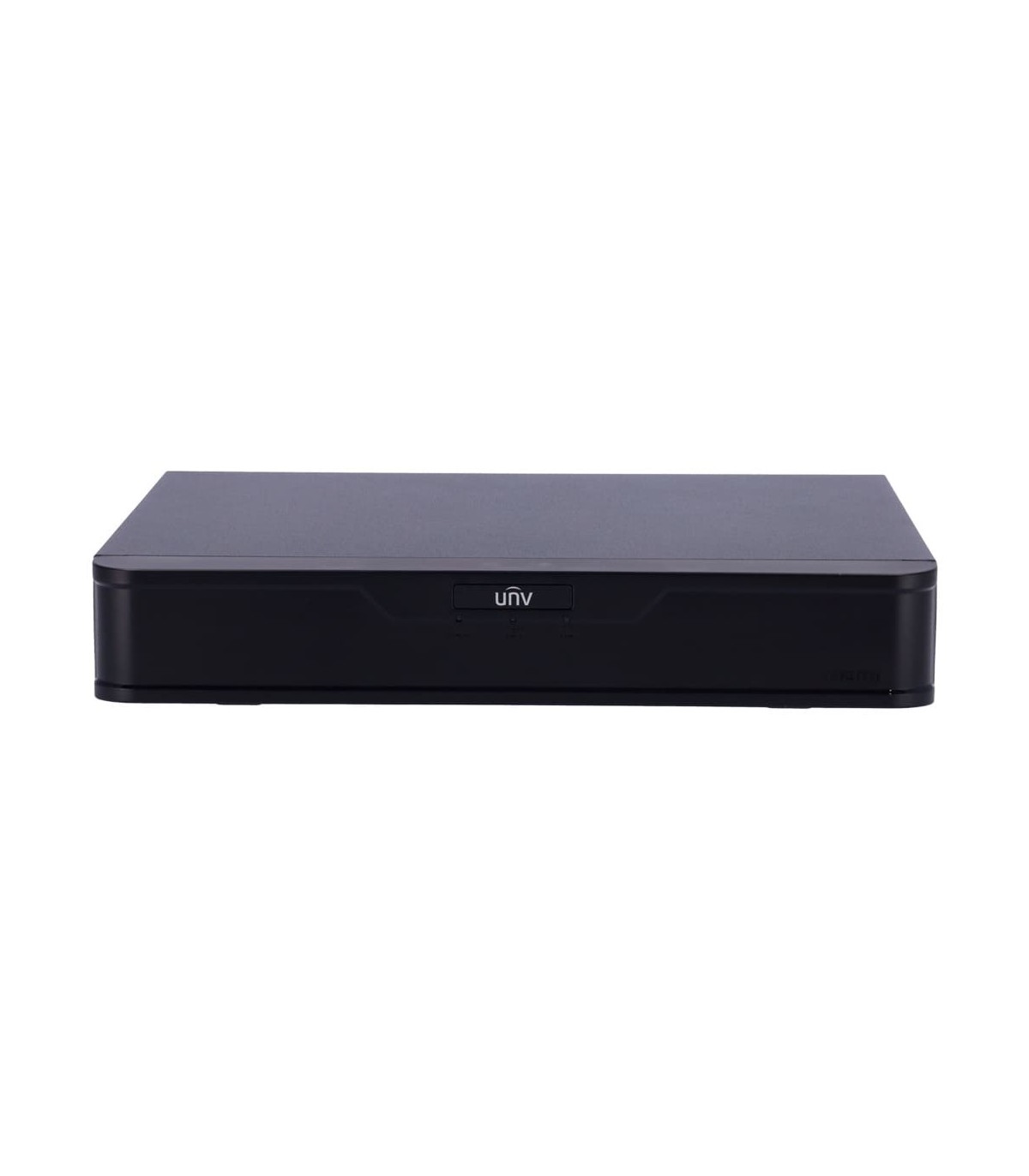

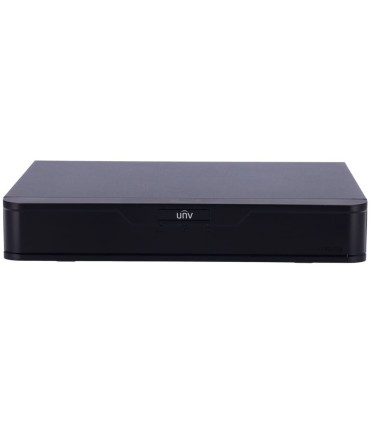

Uniview 8-channel NVR with 8 PoE ports

The NVR301-08B-P8-IQ recorder features 8 video channels and 8 PoE ports, allowing compatible IP cameras to be connected through the network infrastructure.

It supports bandwidth up to 80 Mbps, a 4K HDMI output and simultaneous VGA output. Video compression uses Ultra 265, H.265 and H.264 formats, with a maximum recording resolution of up to 12MP.

SATA storage up to 6TB and intelligent recording

The NVR supports the installation of a 3.5" SATA hard drive up to 6TB, which is not included in the kit. Available recording modes include manual, scheduled and motion detection recording.

The device features USB, RJ45 Ethernet and RS485 interfaces, allowing compatible peripherals and devices required for system operation to be connected.

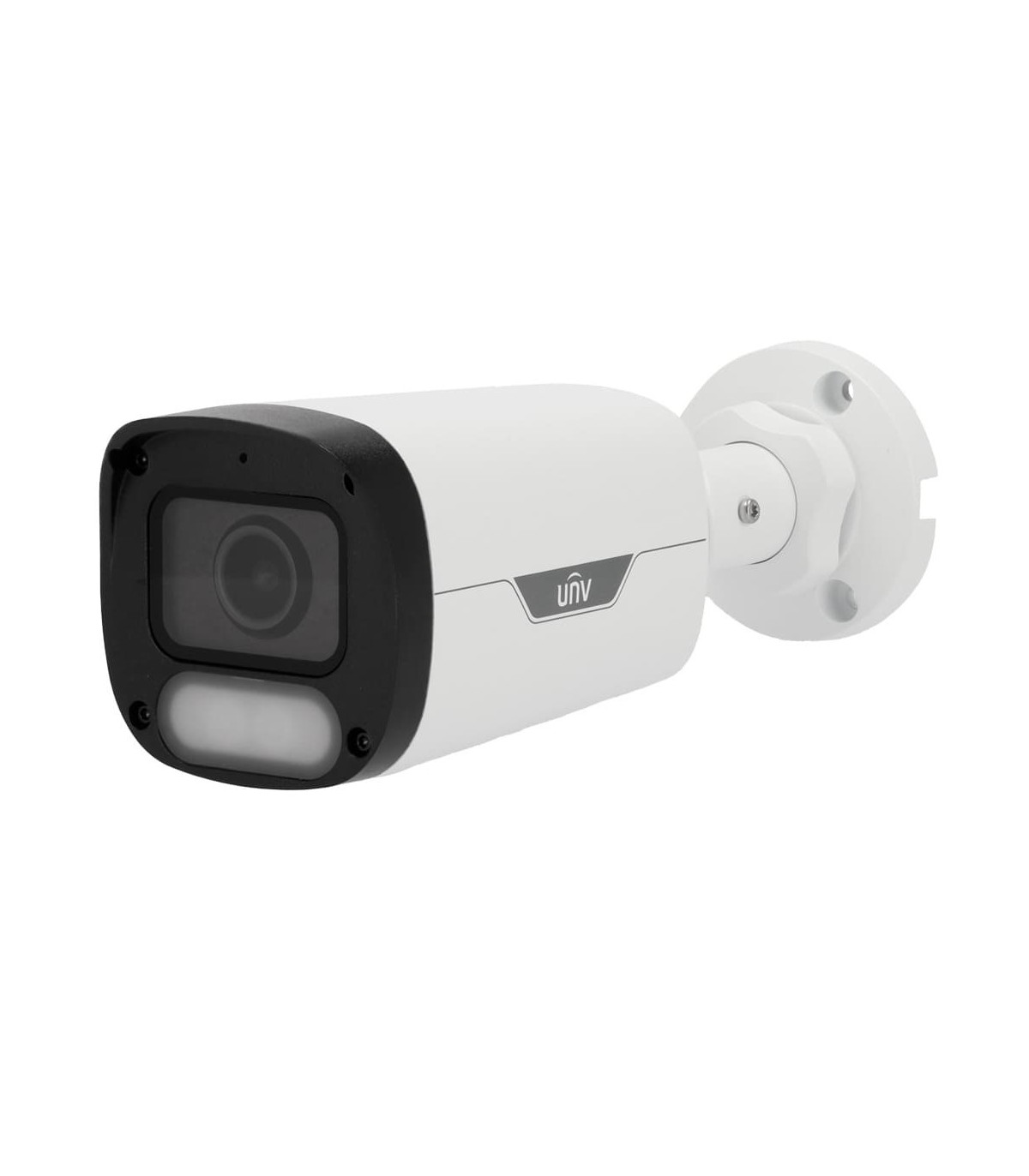

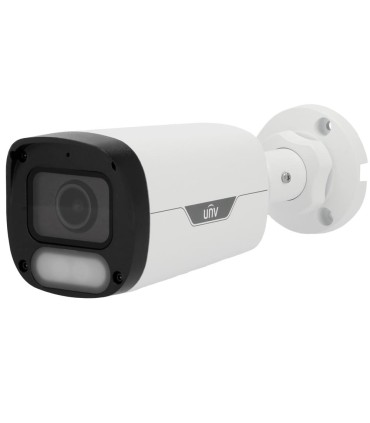

4MP Bullet ColorHunter camera with Wise-ISP

The IPC2314LE-ADF28KM-WP is a Bullet IP camera equipped with a 1/1.8" Progressive Scan CMOS sensor, 4MP (2688 × 1520) resolution and a fixed 2.8mm lens.

ColorHunter with Wise-ISP technology enables colour images to be captured in extremely low-light conditions. The camera features illumination up to 30m, a built-in microphone and IP67 protection.

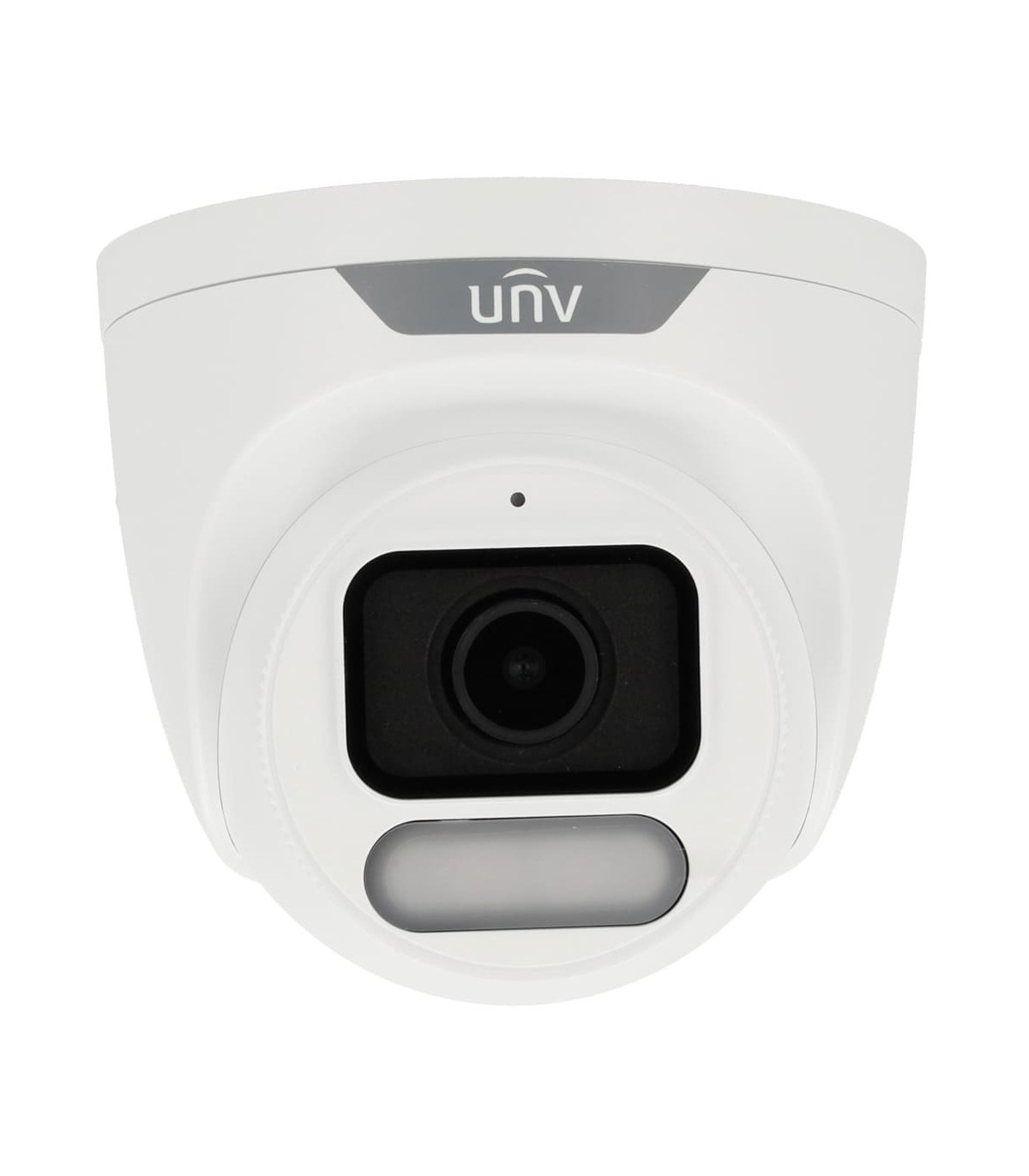

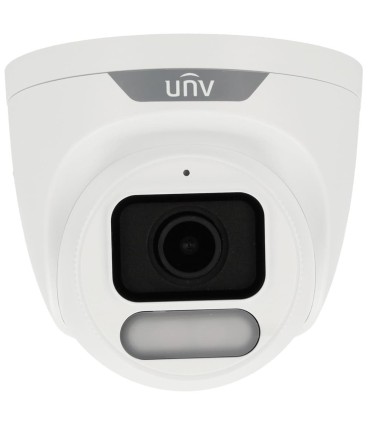

4MP Turret ColorHunter camera with Wise-ISP

The IPC3624LE-ADF28K-WP is a 4MP Turret IP camera with a 1/1.8" Progressive Scan CMOS sensor and a fixed 2.8mm lens, providing a horizontal viewing angle of 110.4°.

It incorporates ColorHunter with Wise-ISP technology, a built-in microphone with G.711 codec, SIP Lite and UMD intelligent video analytics, and IP67 protection for outdoor installation.

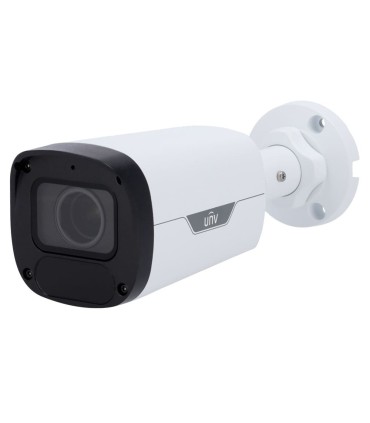

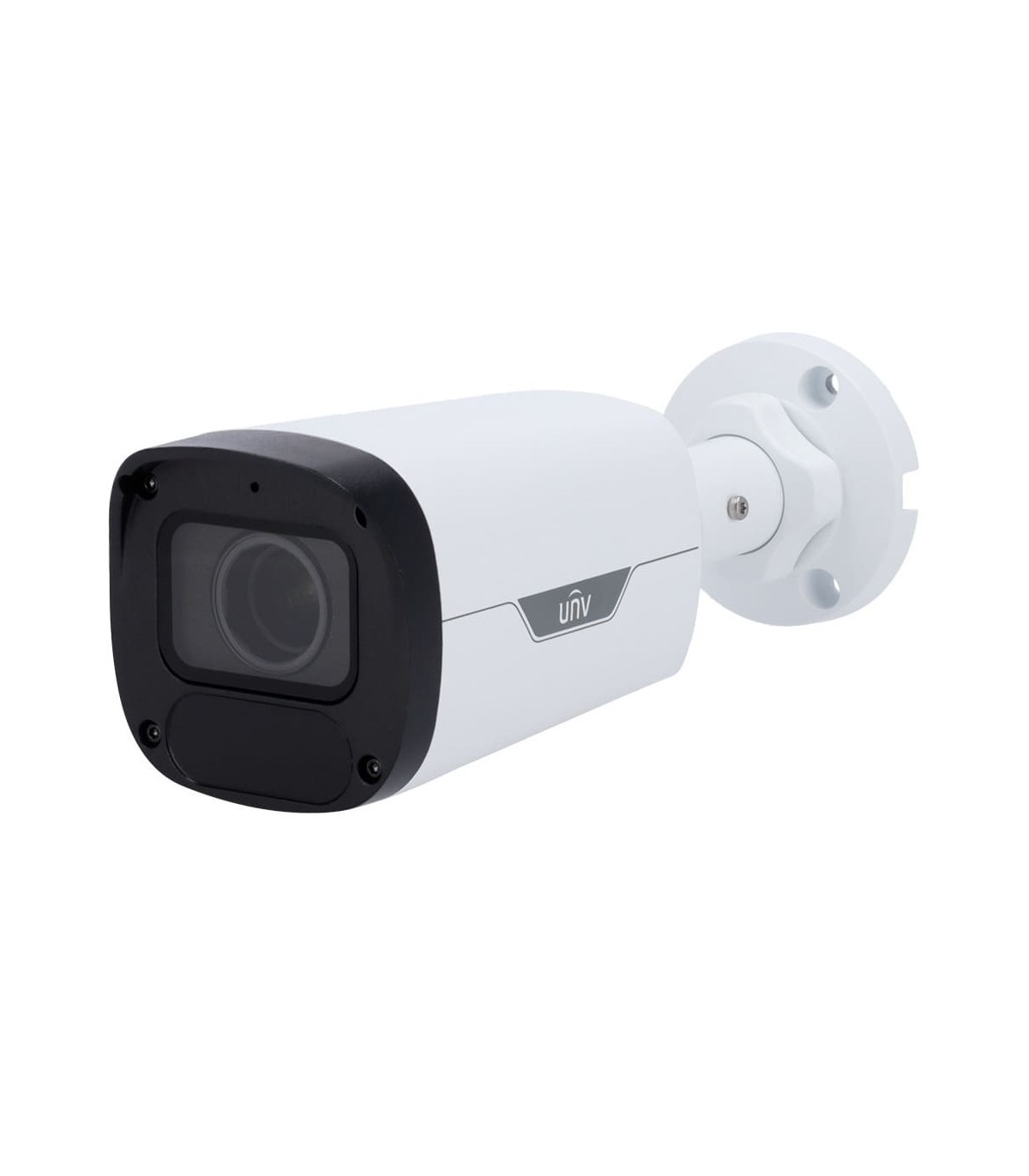

4MP Bullet camera with 2.8-12mm motorised lens

The IPC2324LB-ADZK-H is a Bullet IP camera offering 4MP (2688 × 1520) resolution and a 2.8-12mm motorised lens, allowing the field of view to be adjusted according to the area being monitored.

It includes a built-in microphone, SIP Lite and UMD intelligent functions for detecting people and vehicles, PoE IEEE 802.3af power supply and IP67 protection.

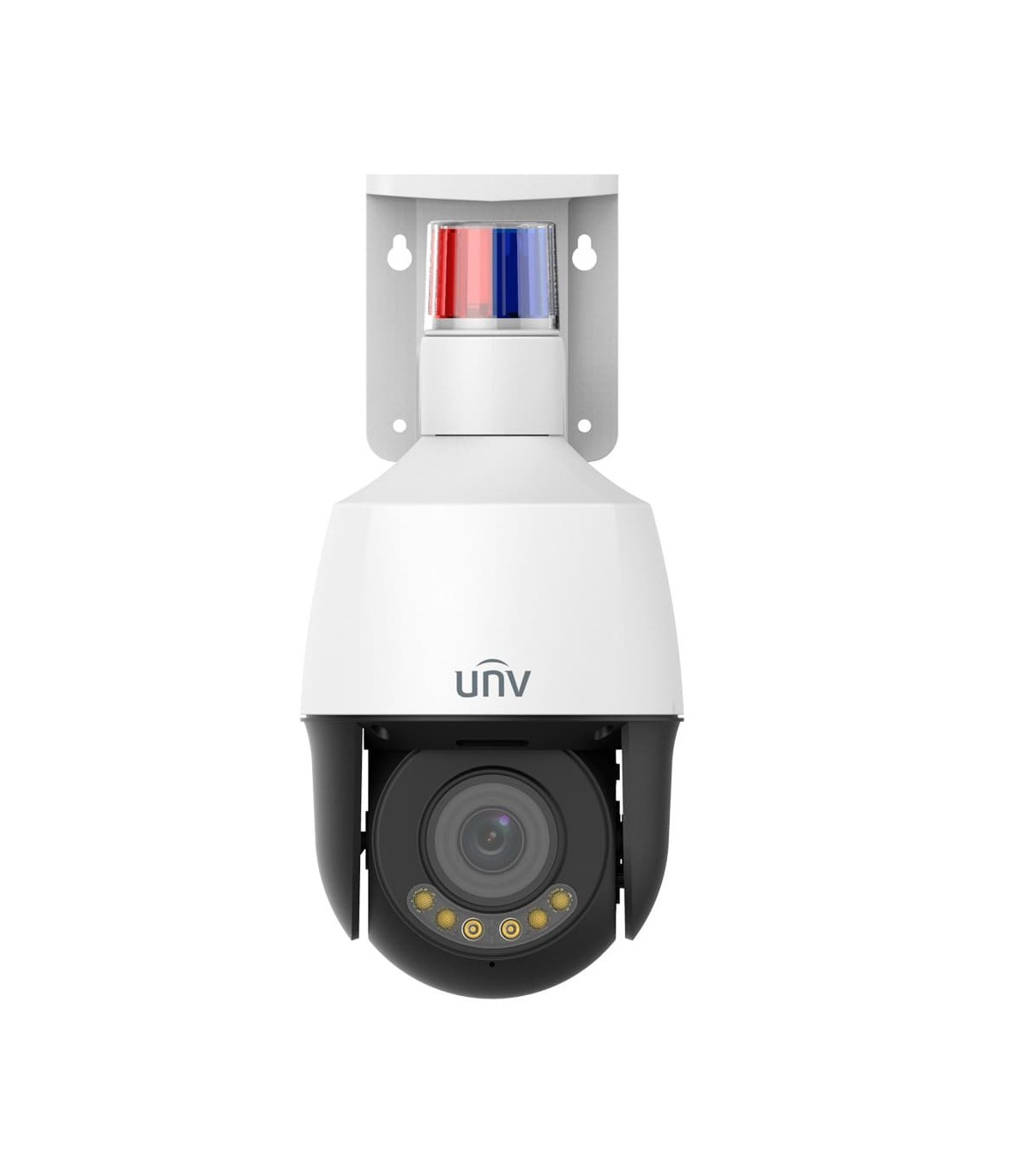

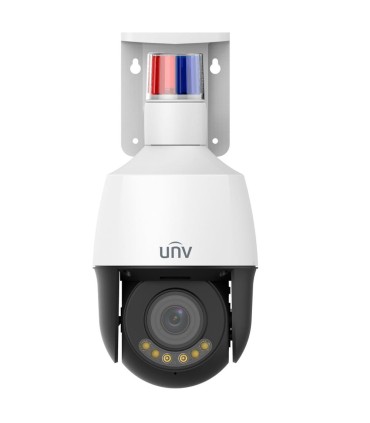

4MP PTZ camera with 5× optical zoom

The IPC6314LWH-AX5C-VG2 is a PTZ camera with 4MP (2560 × 1440) resolution, equipped with a 2.7-13.5mm varifocal lens and 5× optical zoom.

It features white light illumination, a built-in microphone and speaker, audio input and output, SIP and UMD intelligent video analytics, PoE IEEE 802.3at power supply and IP66 protection.

SIP and UMD intelligent detection

The cameras included in the kit feature intelligent video analytics, including SIP (Smart Intrusion Prevention) and UMD (Ultra Motion Detection).

These technologies enable people and vehicles to be identified during intrusion events, perimeter crossing and motion detection, helping to reduce false alarms caused by natural movement, such as leaves or pets.

Outdoor protection and installation versatility

The Bullet and Turret cameras feature IP67 protection, while the PTZ camera provides IP66 protection. PoE power allows data and electricity to be transmitted through compatible network cabling.

With an 8-channel PoE NVR, four 4MP IP cameras of different types, ColorHunter technology, Wise-ISP, SIP/UMD intelligent detection and 5× optical zoom, the STARTERKIT-01 provides a versatile solution for IP video surveillance systems.
