NVRKIT108B-2W - Ajax 8-Channel NVR Surveillance Kit + 4 Uniarch 2MP Wi-Fi Cameras

NVRKIT108B-2W - Ajax 8-Channel NVR Surveillance Kit + 4 Uniarch 2MP Wi-Fi Cameras

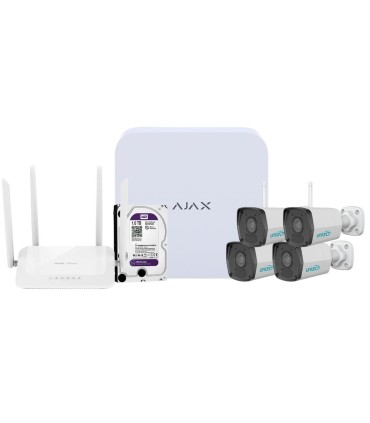

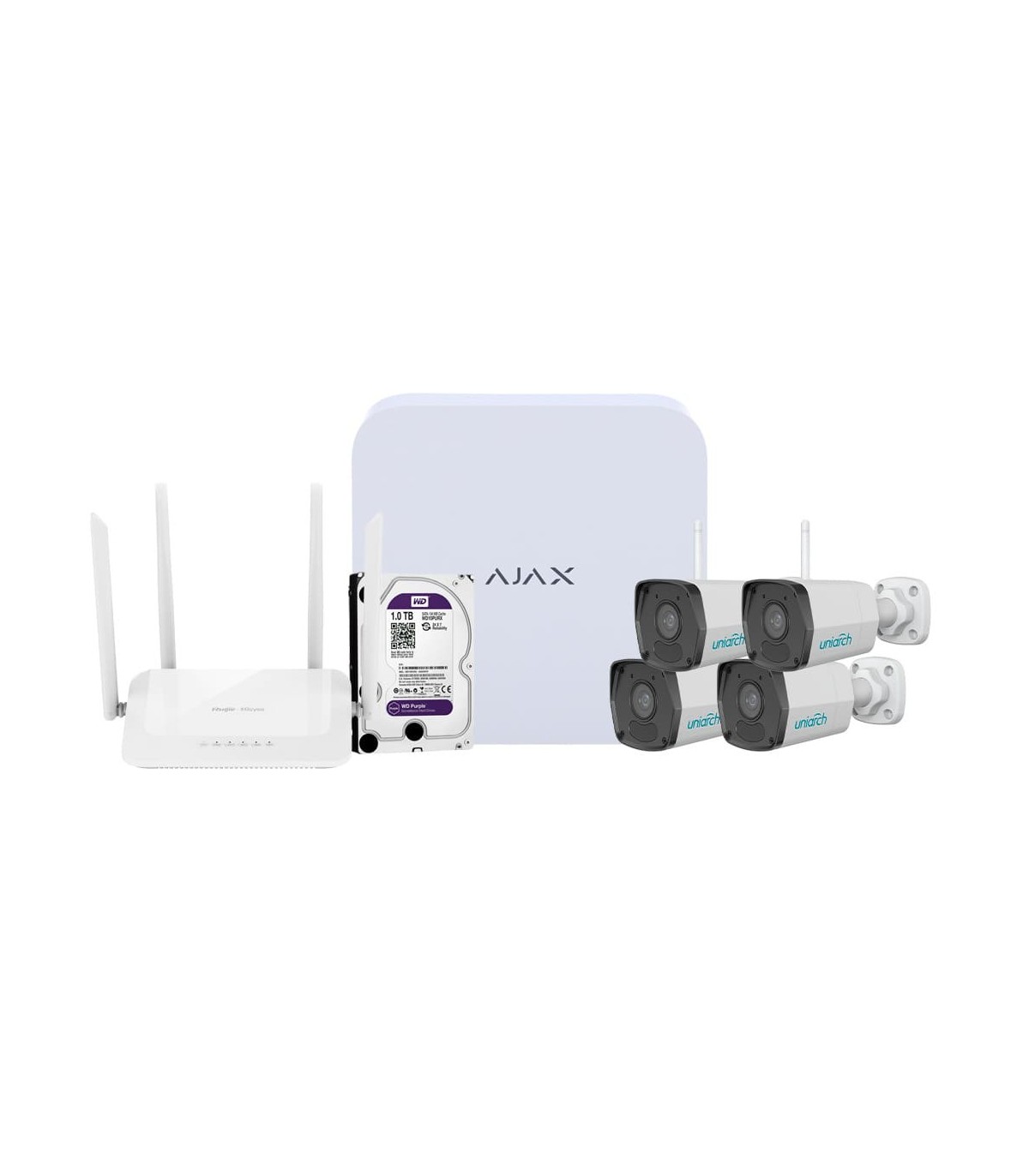

The NVRKIT108B-2W is a video surveillance kit combining an 8-channel Ajax network video recorder, four Uniarch 2MP Wi-Fi IP cameras, a Reyee Dual-Band Wi-Fi router and a 1TB Western Digital hard drive. This solution brings together the main equipment required to implement an IP video surveillance system with local recording and remote access.

The kit includes the NVR108-W recorder, four Uniarch UHO-B1R-M2F3-A Bullet cameras, the RG-EW1200 router and a WD10PURZ hard drive. It offers recording up to 4K on the NVR, Full HD cameras with infrared illumination up to 30m, human body detection and Wi-Fi connectivity.

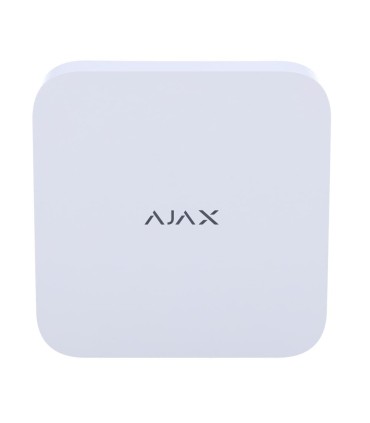

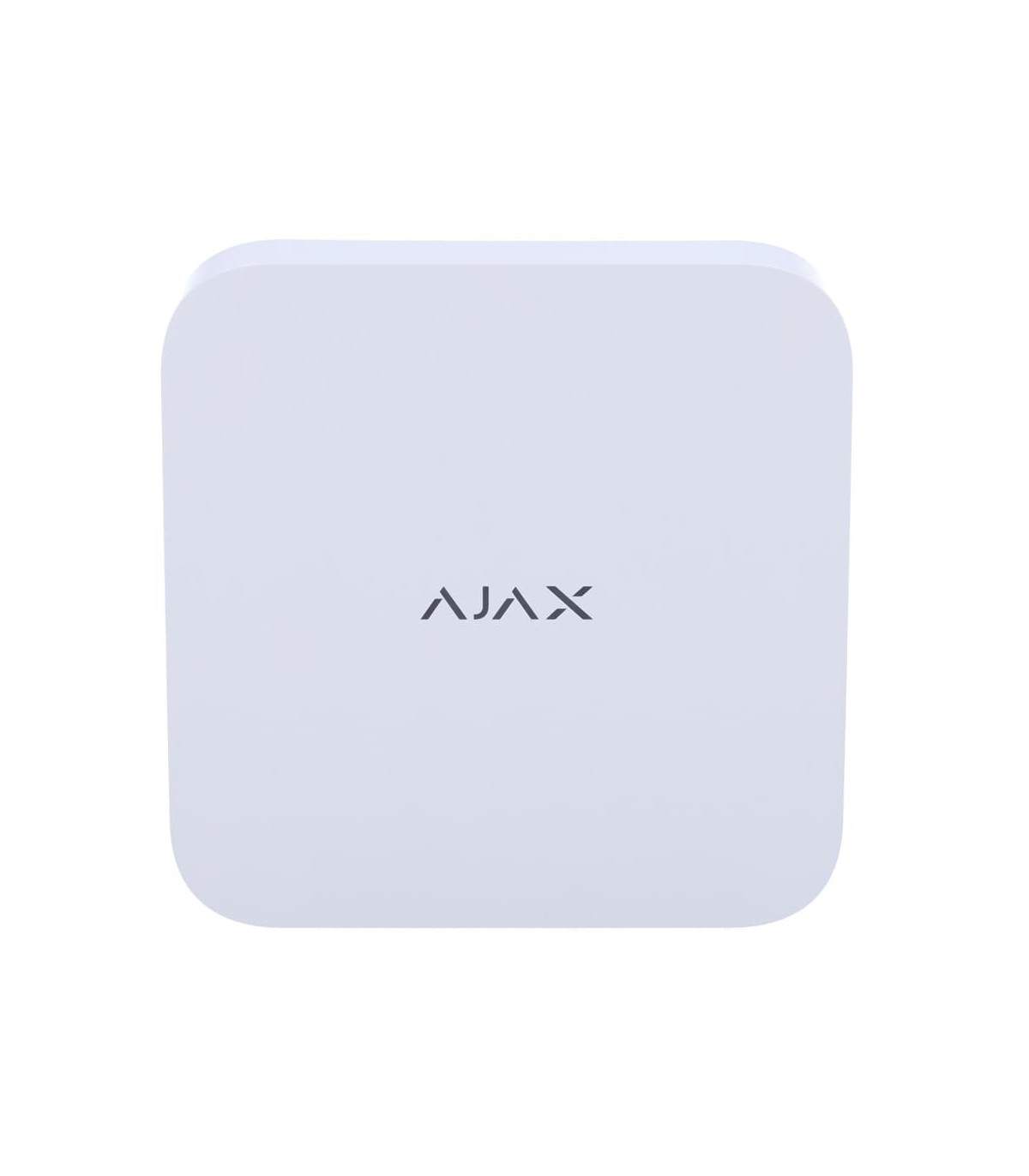

Ajax NVR108-W 8-Channel Network Video Recorder

The NVR108-W is an Ajax network video recorder capable of managing up to 8 channels. It supports cameras compatible with the ONVIF and RTSP protocols, allowing the integration of IP video surveillance equipment from different manufacturers.

The recorder supports resolutions up to 4K at 25/30fps, H.265 / H.264 video compression and a total bandwidth of up to 100 Mbps. Recording modes include scheduled recording and motion detection recording.

Ajax Integration and Remote Access

The NVR provides remote access through the Ajax smartphone application, making it easier to access the video surveillance system from compatible mobile devices.

It features an RJ45 Ethernet connection and supports remote OTA (Over-the-air) firmware updates. The device has a white finish and compact dimensions of 200 × 200 × 45mm.

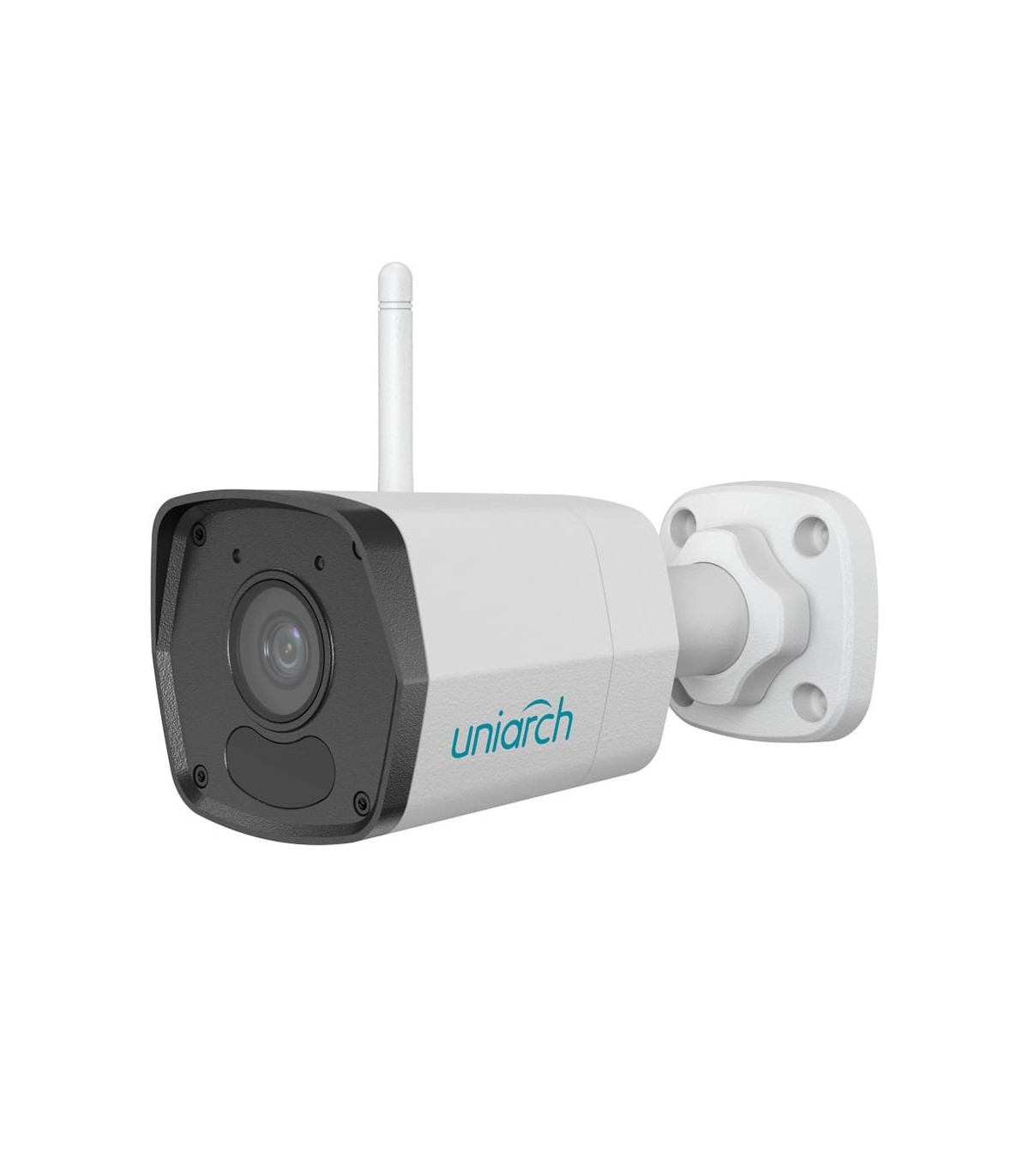

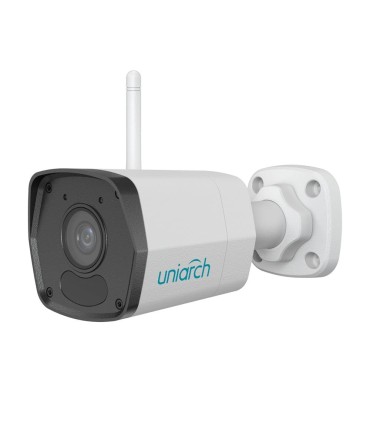

Four Uniarch Full HD Wi-Fi Bullet Cameras

The kit includes 4 Uniarch UHO-B1R-M2F3-A Wi-Fi Bullet cameras with 2MP (1920 × 1080) resolution. The technical specifications for the UHO-B1R-M2F3 camera family indicate a 1/2.9" Progressive Scan CMOS sensor and a 2.8mm lens.

The cameras support Full HD video transmission at up to 30fps, using Ultra 265, H.265, H.264 and MJPEG compression. IEEE 802.11b/g/n Wi-Fi connectivity operates on the 2.4GHz band.

Infrared Night Vision up to 30m

The Uniarch cameras feature infrared illumination with a range of up to 30m, allowing images to be captured in environments without visible lighting. The day/night system uses a mechanical ICR filter to adapt to changing lighting conditions.

They include image enhancement functions such as DWDR, BLC, HLC, AGC, 2D/3D-NR noise reduction, ROI and privacy masking, helping provide video capture suitable for different surveillance environments.

Human Body Detection and Built-in Microphone

The cameras incorporate human body detection, motion detection, audio detection and tampering alarms, providing additional monitoring and event identification capabilities.

The built-in microphone enables audio capture. The cameras also support local storage through a MicroSD card up to 128GB, according to the technical specifications.

IP67 Protection for Outdoor Installation

With an IP67 protection rating and an operating temperature range of -30°C to +60°C, the Uniarch Bullet cameras are suitable for outdoor video surveillance installations, provided that the manufacturer's installation and power supply requirements are followed.

Remote access to the cameras is available through a web browser, EZStation software and EZView / EZLive mobile applications, depending on system compatibility and configuration.

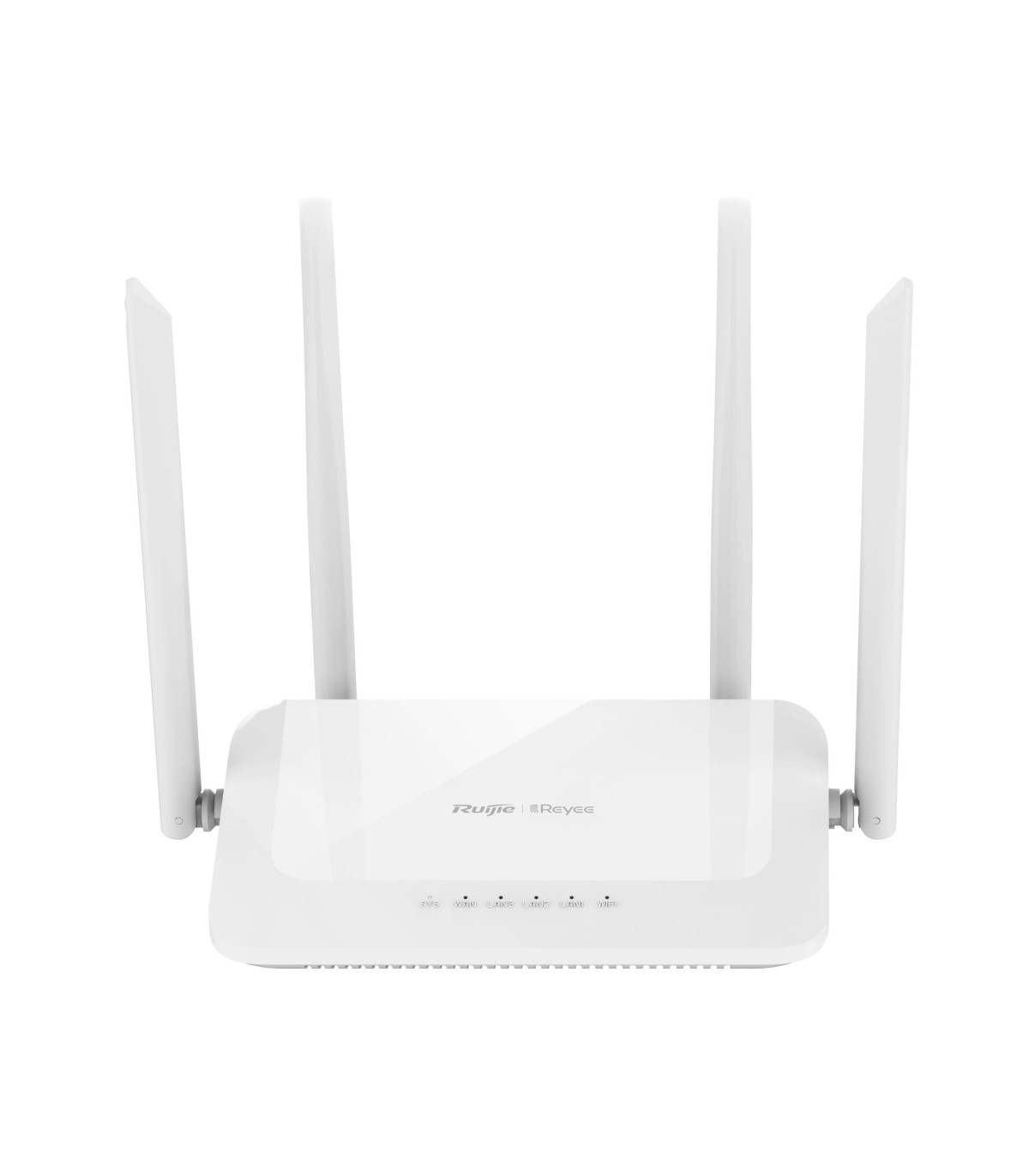

Reyee RG-EW1200 Dual-Band Wi-Fi Router

The RG-EW1200 is a Reyee Dual-Band router operating on the 2.4GHz and 5GHz frequency bands, with combined wireless speeds of up to 1167 Mbps, comprising 300 Mbps on 2.4GHz and 867 Mbps on 5GHz.

It features 4 external antennas, one 10/100 Mbps WAN port and three 10/100 Mbps LAN ports. It supports 2 × 2 MIMO technology, Reyee Mesh 3.0 and Router, Repeater, WISP and Access Point operating modes.

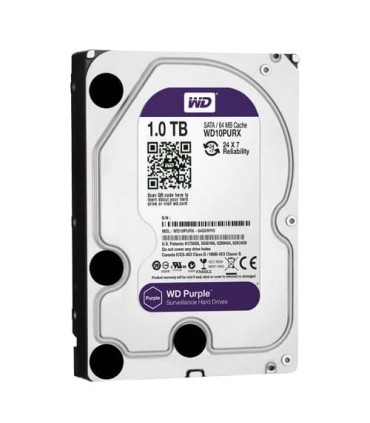

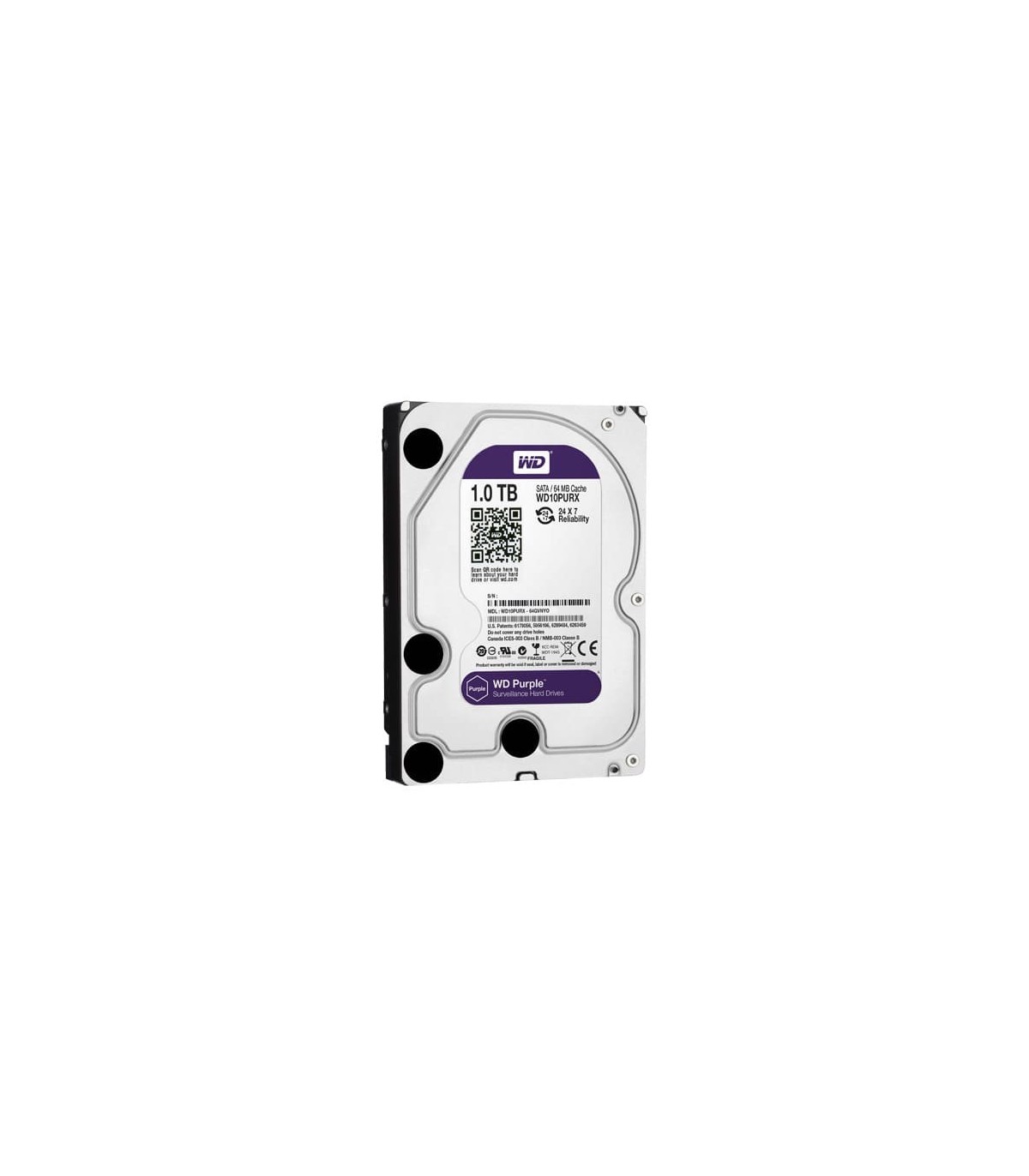

1TB Western Digital Purple Hard Drive Included

The kit includes a 1TB Western Digital WD10PURZ hard drive featuring a SATA interface, 3.5" form factor, 5400 RPM rotational speed and 64MB cache memory.

The drive supports a workload of up to 180TB per year and transfer speeds of up to 110 MB/s. It is designed for storing video surveillance recordings.

Integrated IP Video Surveillance Solution

The NVRKIT108B-2W combines an 8-channel Ajax recorder, four Uniarch Full HD Wi-Fi cameras, a Reyee Dual-Band router and a 1TB hard drive, providing an integrated solution for video monitoring and recording.

The recorder's ONVIF / RTSP compatibility, the cameras' IP67 protection, human body detection and remote access capabilities make this kit suitable for various residential and commercial video surveillance applications.
