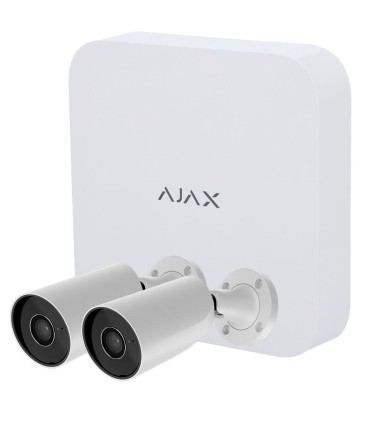

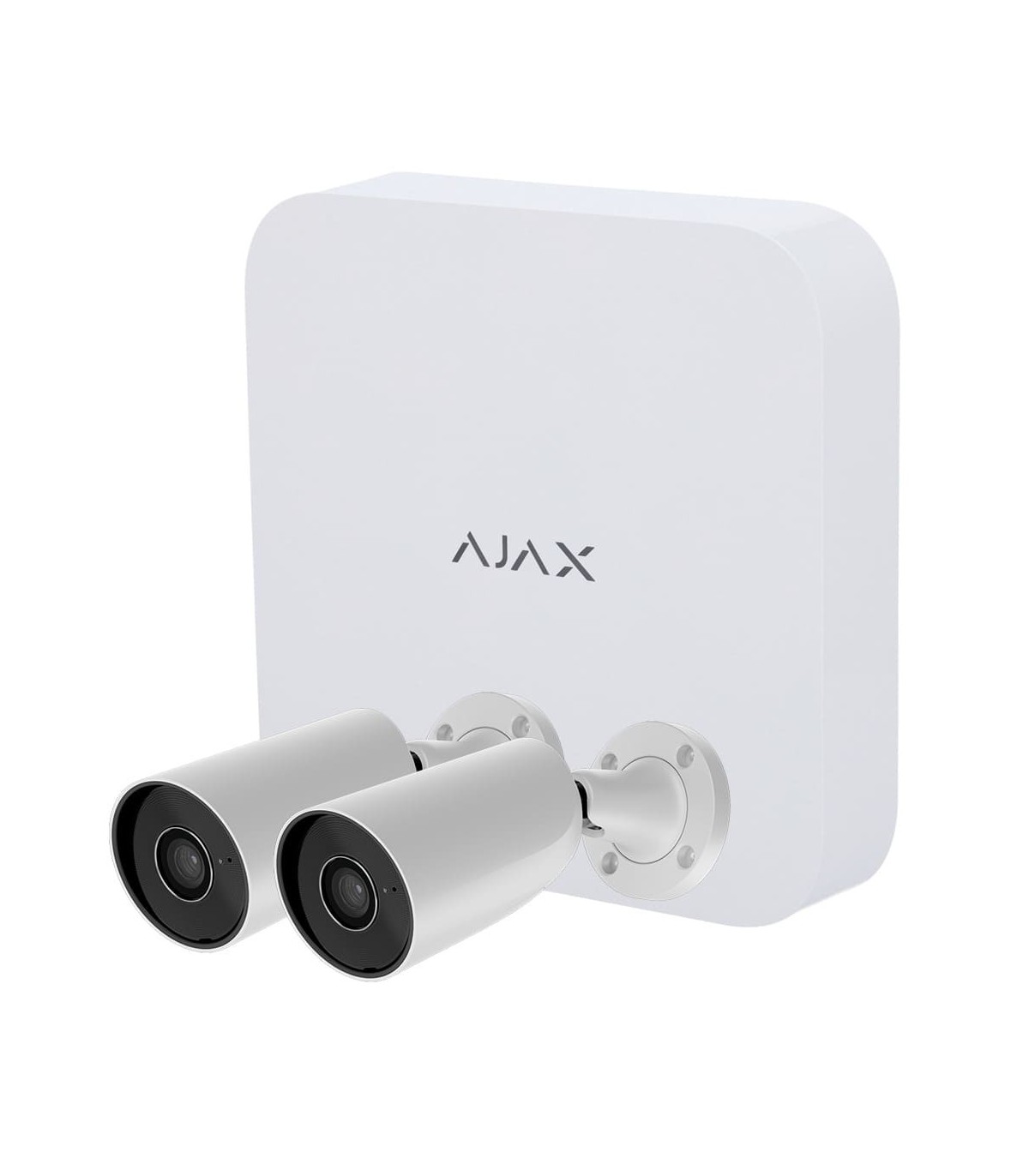

NVRKIT108-2XBULLET-W - Ajax 8-Channel NVR Kit + 2 BulletCam 5MP

NVRKIT108-2XBULLET-W - Ajax 8-Channel NVR Kit + 2 BulletCam 5MP

The NVRKIT108-2XBULLET-W is an Ajax video surveillance kit consisting of an NVR108-W 8-channel recorder and two BULLETCAM-5-W 5MP Bullet IP cameras. The kit combines centralised recording, remote access and high-resolution cameras in a complete Ajax IP video surveillance solution.

The NVR supports resolution up to 4K (25/30 FPS), H.265 / H.264 compression and ONVIF / RTSP compatible cameras. The two BulletCam cameras offer a maximum resolution of 5MP (2880 × 1620), a fixed 2.8mm lens, infrared illumination up to 50m and true WDR/HDR.

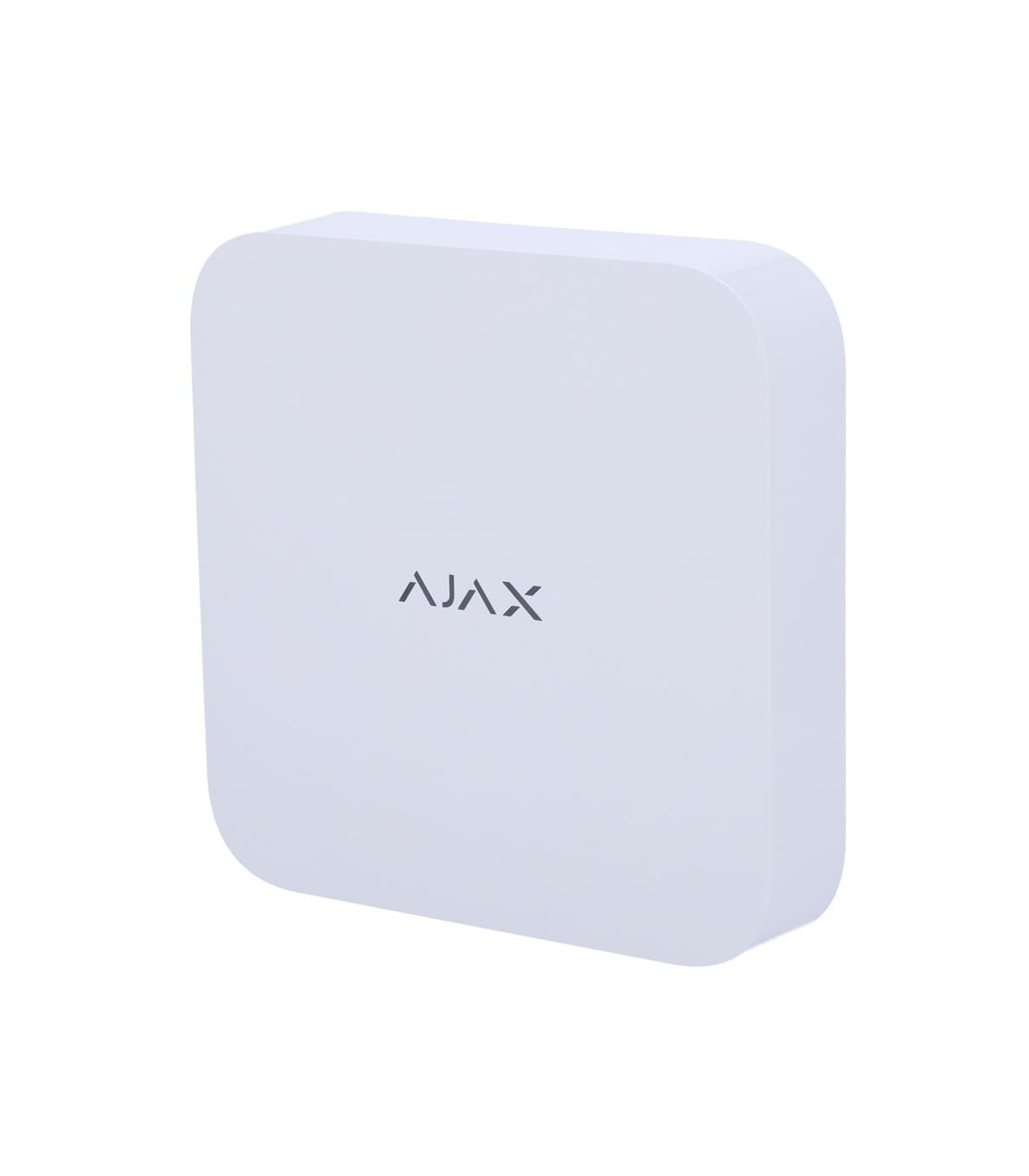

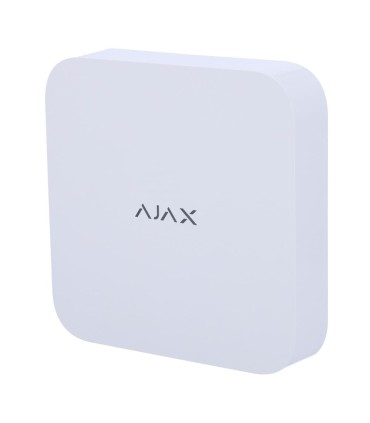

Ajax 8-channel NVR with resolution up to 4K

The NVR108-W features 8 channels and supports cameras compatible with ONVIF / RTSP. Supported resolution reaches 4K at 25/30 FPS, while video compression is provided through H.265 and H.264 formats.

Total bandwidth can reach 100 Mbps. The device supports scheduled recording or motion detection recording, allowing video recording to be adapted to the requirements of the surveillance system.

SATA storage up to 16TB and remote access

The recorder supports the installation of a 3.5" SATA hard drive up to 16TB. The hard drive is not included. Network connectivity is provided via RJ45 Ethernet.

Remote access to the NVR is available through the Ajax application for smartphones. The device also supports remote OTA (Over-the-air) firmware updates.

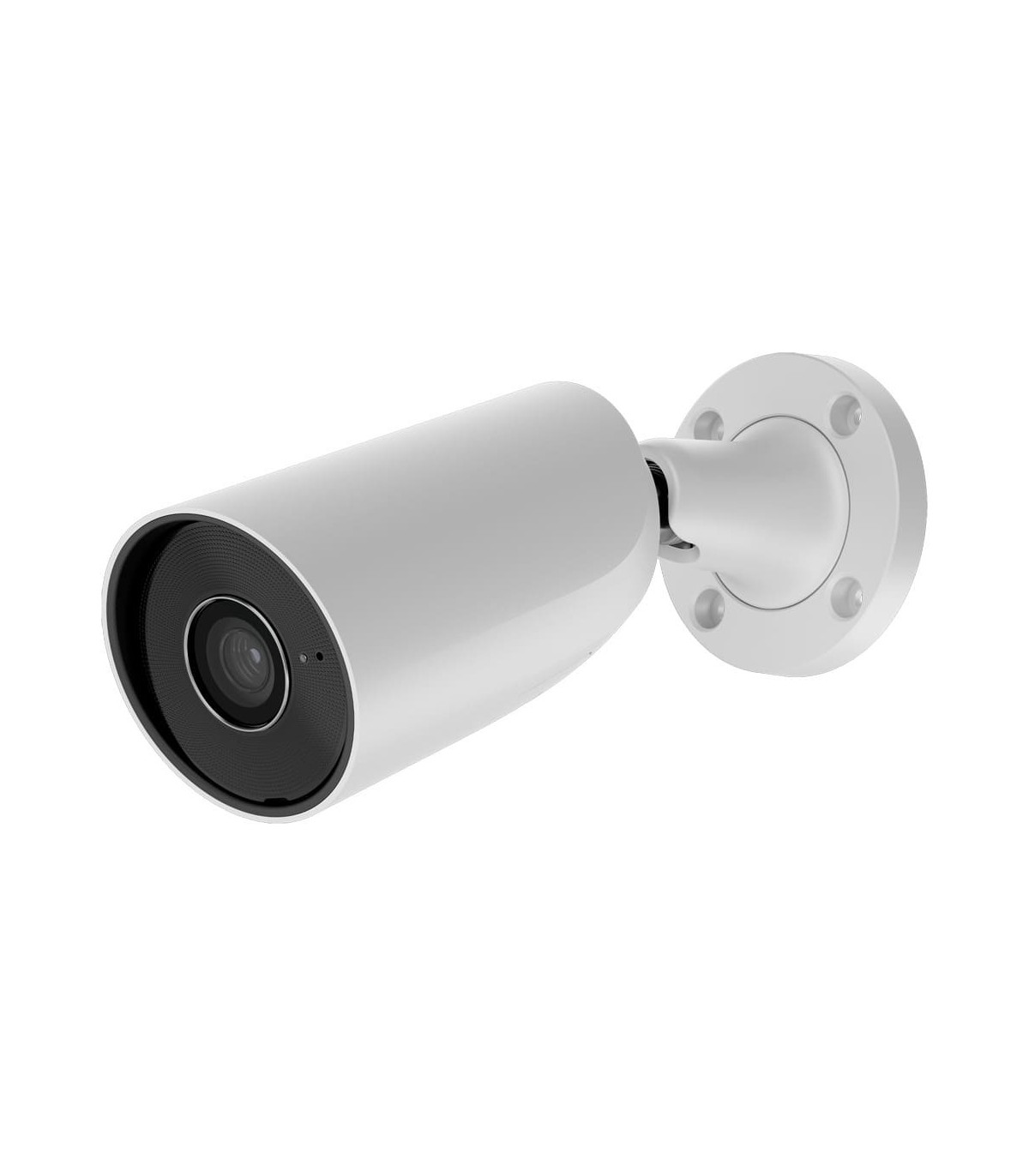

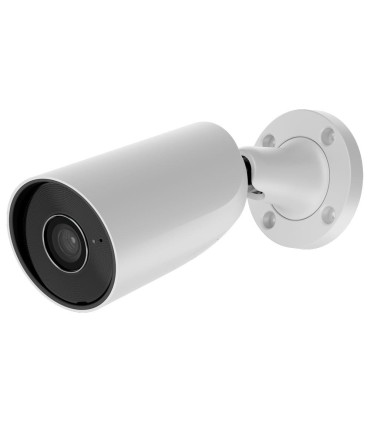

5MP BulletCam with 2.8mm lens

The two BULLETCAM-5-W cameras use a Progressive Scan CMOS sensor and offer a maximum resolution of 5MP (2880 × 1620). The Main Stream operates at 5MP from 1 to 25 FPS.

The fixed 2.8mm lens provides a viewing angle between 100° and 110°. This combination provides a wide viewing area with the level of detail offered by 5MP resolution.

50m IR night vision and true WDR/HDR

For video surveillance in low-light conditions, the cameras feature infrared illumination with a range of up to 50m. This allows image capture to be maintained at night or in areas with reduced lighting.

Image processing includes true WDR/HDR, helping improve visibility in scenes with significant differences between bright and dark areas.

Microphone, 256GB MicroSD and JetSparrow

Each BulletCam features a built-in microphone with G722 audio codec. For local storage, the cameras include a slot for a MicroSD card up to 256GB.

Video transmission uses the JetSparrow protocol. The network interface is 100 Mbps Ethernet and mTLS encryption is used. The cameras also support remote OTA firmware updates.

PoE 802.3at and Artificial Intelligence

The cameras support 12V power and PoE 802.3at. PoE allows power and data to be transmitted through compatible network infrastructure, simplifying camera installation and connectivity.

The BULLETCAM-5-W cameras also support Artificial Intelligence, complementing the system's video surveillance capabilities.

IP65 protection for outdoor installation

The cameras feature IP65 protection and are designed to operate at temperatures between -30°C and +60°C and humidity levels up to 95%.

With an 8-channel NVR, resolution up to 4K and two 5MP BulletCam cameras with 2.8mm lens, 50m IR, true WDR/HDR, 256GB MicroSD, PoE and IP65, the NVRKIT108-2XBULLET-W provides a complete Ajax solution for IP video surveillance systems.
