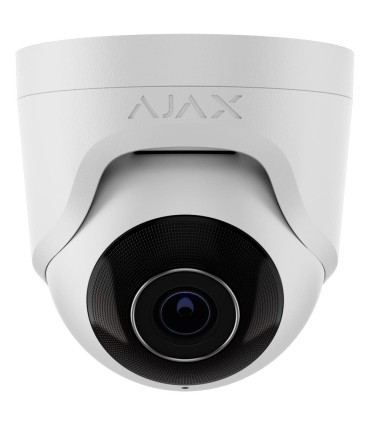

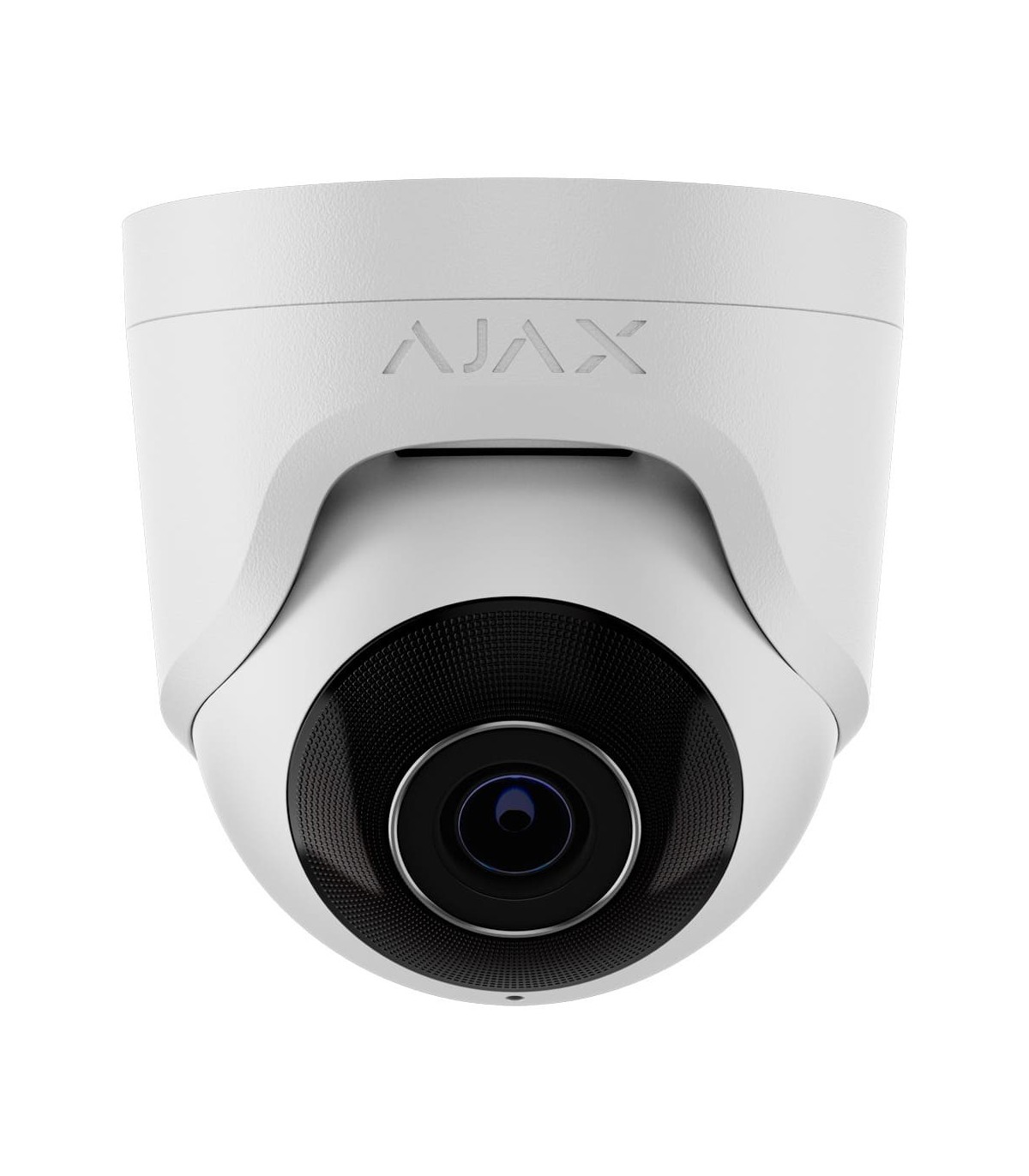

The Ajax TurretCam (8 Mp/2.8 mm) White combines 4K Ultra HD resolution, cutting-edge smart object analytics, and an adjustable turret enclosure engineered for effortless positioning and seamless architectural integration. Powered by an 8 MP CMOS sensor (3840 × 2160 px) paired with a fixed 2.8 mm lens featuring an f/1.6 aperture, this camera provides a broad 100°–110° field of view, making it the ideal solution for monitoring wide rooms or building perimeters with maximum detail clarity. The hardware operates standalone with local MicroSD storage or seamlessly linked to the range of Ajax recorders for centralized video archive management.
This camera deploys native **Artificial Intelligence (AI)** algorithms embedded directly at the processor level, accurately distinguishing humans, moving vehicles, and pets in real time to prevent false triggers. Video transmission is handled by the proprietary **JetSparrow** P2P protocol, delivering instant timeline navigation across 4K streams with zero buffering lag. To maintain image clarity in high-contrast or backlit environments, it uses hardware-driven **True WDR (120 dB)** technology.
Night vision is backed by smart IR LEDs adjusting intensity in real time up to 35 meters to prevent overexposure. It features an integrated high-sensitivity microphone for audio capture. Encased in a reinforced metal body rated **IP65** (weatherproof) and **IK08** (vandal-resistant), it supports **PoE (802.3af/at)** or a 12 V⎓ line. For additional engineering information, visit the official product page for the Ajax TurretCam by Ajax Systems.
| Technical Parameter | Detailed Specification |
|---|---|
| Device Model | TurretCam (8 Mp/2.8 mm) — White |
| Image Sensor | 8 MP CMOS (4K), 1/2.8″ Progressive Scan |
| Max Resolution | 8 MP / 4K Ultra HD (3840 × 2160 pixels) at up to 20 FPS |
| Lens & Aperture | 2.8 mm focal length | f/1.6 max aperture (Fixed iris) |
| Field of View (FOV) | Horizontal: 100°–110° | Vertical: 56°–60° | Diagonal: 115°–125° |
| Night Vision IR | Smart IR LED up to 35 meters (auto-intensity adjustment) |
| Image Processing | True WDR / HDR (120 dB), automatic Day/Night filter switch |
| Video Codecs & Protocol | H.265, H.264 | High-speed JetSparrow video protocol |
| Chip-Level Object AI | Integrated analytical tracking sorting Humans, Vehicles, and Pets |
| Integrated Audio | Built-in microphone (Audio codecs: G.711, G.722, G.726) |
| Storage Support | MicroSD slot up to 256 GB (Class V30+) and/or Ajax NVR sync |
| Network Interface | 1 × RJ-45 Ethernet port (10/100 Mbps) |

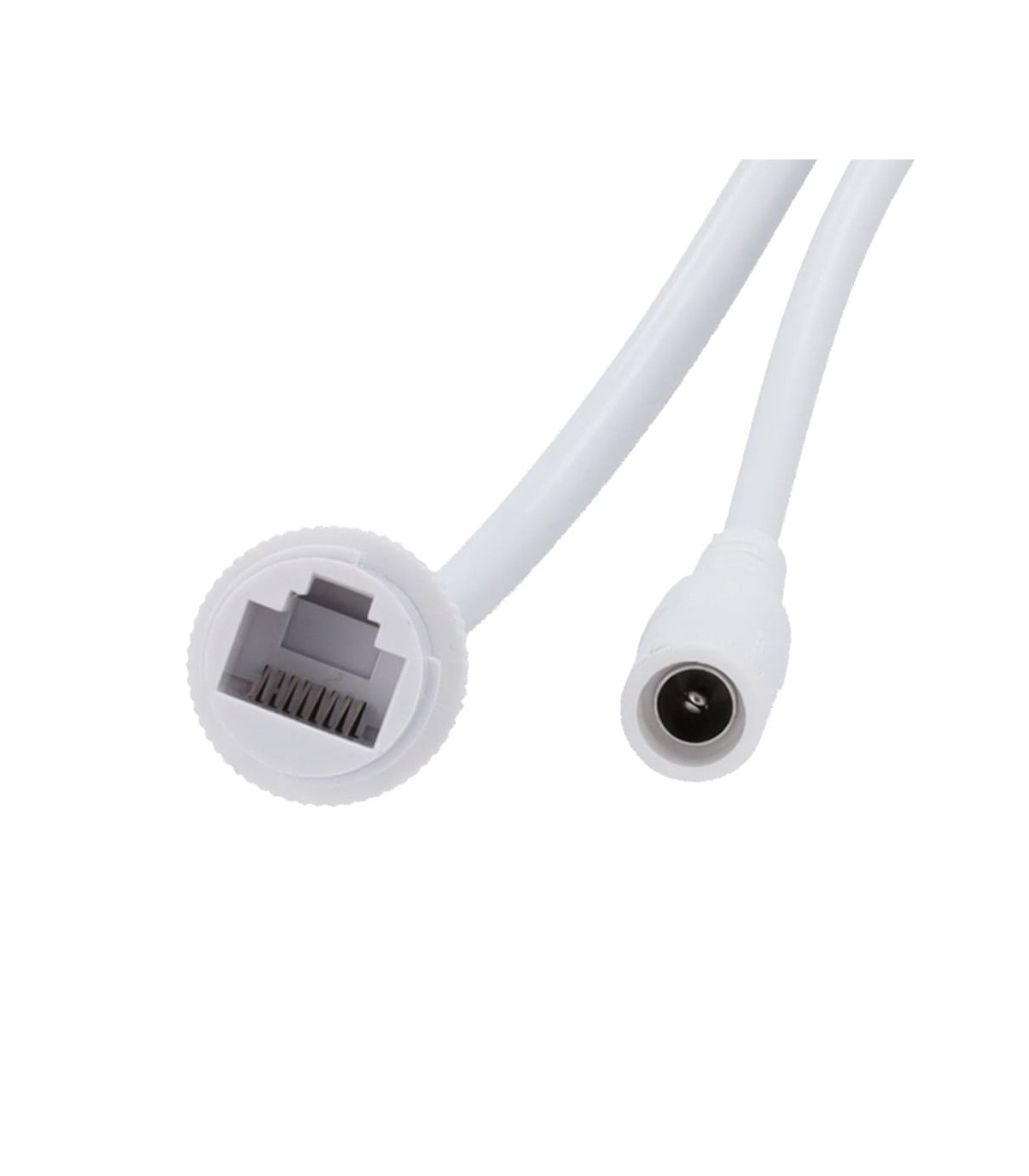

| Power Options | PoE 802.3af/at (Class 3) or 12 V⎓ ± 20% (1 A) line |
| Power Consumption | Max power draw up to 7.5 W |
| Cybersecurity Protection | mTLS encryption, TLS, ONVIF (Profile S/T), Cloud authentication |
| Ingress & Impact Ratings | IP65 (Weatherproof) | IK08 (Vandal-resistant body) |
| Dimensions & Weight | 103 × 103 × 98 mm (4.06″ × 4.06″ × 3.86″) | Weight: 496 g (17.5 oz) |
| Environmental Operating Limits | Operating thermal range: -25 °C to +60 °C | Max humidity: 90% |
