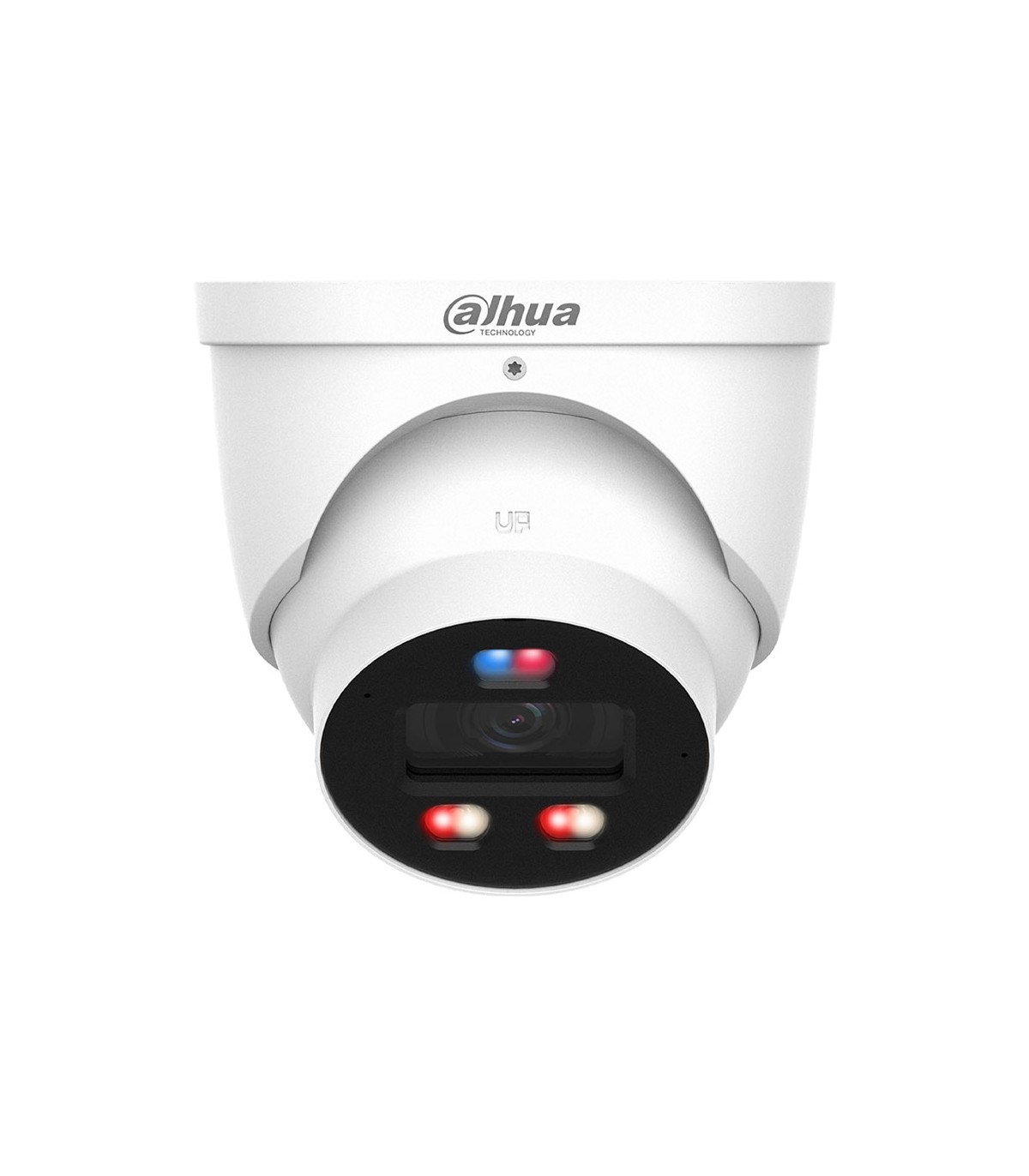

IPC-HDW3649H-AS-PV-PRO - 6MP TiOC PRO Turret IP Camera 2.8mm

IPC-HDW3649H-AS-PV-PRO - 6MP TiOC PRO WizColor Turret IP Camera 2.8mm

The IPC-HDW3649H-AS-PV-PRO is a Dahua 6MP TiOC PRO WizColor Turret IP camera with a fixed 2.8mm F1.0 lens, designed for professional video surveillance systems requiring high image quality, intelligent analytics and active deterrence. It integrates WizColor, Smart Dual Light, Artificial Intelligence, SMD 4.0, AcuPick, face detection, AI SSA, two-way audio, Micro SD storage up to 512 GB, PoE and IP67 protection.

IPC-HDW3649H-AS-PV-PRO with 6MP resolution

The IPC-HDW3649H-AS-PV-PRO uses a 1/1.8" CMOS sensor and provides a maximum resolution of 3288 × 1850. Its 6MP resolution delivers a high level of detail for professional video surveillance applications and allows accurate monitoring of people, vehicles, entrances and perimeters.

WizColor with F1.0 aperture

WizColor technology, combined with the large F1.0 aperture, is designed to provide high image quality in low-light environments. The camera offers minimum illumination of only 0.0002 lux in color and 0.0001 lux in black and white, both at F1.0 and 30 IRE.

Fixed 2.8mm lens with 109° field of view

The fixed 2.8mm lens provides a wide 109° horizontal, 59° vertical and 131° diagonal field of view. The minimum focus distance is 3.2 m, making this variant suitable for entrances, façades, commercial areas, car parks and other areas requiring wide coverage.

TiOC PRO with active deterrence

TiOC PRO combines intelligent analytics, advanced imaging and active deterrence mechanisms. The IPC-HDW3649H-AS-PV-PRO features red and blue warning lights and an audible alarm, enabling visual and acoustic responses to configured security events.

Smart Dual Light with IR 30m and warm light 30m

Smart Dual Light combines infrared illumination and visible light. The camera provides IR up to 30m and warm light up to 30m, allowing illumination to adapt to scene conditions and providing additional visual information during nighttime events.

Artificial Intelligence for people and vehicles

The IPC-HDW3649H-AS-PV-PRO uses Deep Learning algorithms to improve the detection and classification of people and vehicles. IVS perimeter protection includes intrusion and tripwire with accurate human and vehicle classification and detection, as well as stay detection and loitering detection.

SMD 4.0

SMD 4.0 provides intelligent motion detection, helping to identify relevant targets more effectively and improve the management of video surveillance events.

AcuPick for intelligent search

AcuPick uses Deep Learning algorithms and works with compatible back-end devices to quickly identify and locate people and vehicles in live video and recordings.

Face detection

The IPC-HDW3649H-AS-PV-PRO supports full-frame face detection, including capture, snapshot optimisation, best face image selection, face enhancement, angle filtering and different capture strategies.

AI SSA

AI SSA uses Deep Learning algorithms to automatically adjust image parameters according to scene conditions, helping optimise image quality across different environments.

120 dB WDR

120 dB WDR helps balance bright and dark areas present simultaneously in the image. The camera also supports BLC, HLC, 3D NR, Defog, SSA, ROI, LDC, Smart Illumination and privacy masking for up to 8 areas.

Two-way audio with two microphones and speaker

The IPC-HDW3649H-AS-PV-PRO integrates two built-in microphones and a speaker, enabling real-time two-way audio communication. It also includes one RCA audio input and one RCA audio output for integration with external devices.

H.265, Smart H.265+ and AI Coding

The camera supports H.265, H.264, H.264H, H.264B and MJPEG, together with AI H.265 and AI H.264. Smart H.265+ and Smart H.264+ are also supported to optimise bandwidth and storage usage.

Three video streams

The IPC-HDW3649H-AS-PV-PRO supports 3 video streams. The Main Stream can transmit 3288 × 1850 at up to 25/30 fps, while the Sub Stream and Third Stream can reach 1920 × 1080 at up to 25/30 fps.

Micro SD up to 512 GB

The camera supports Micro SD cards up to 512 GB, as well as storage via FTP, SFTP and NAS. Local storage can be used directly on the camera or as a complement to an NVR recording system.

ONVIF for professional integration

The IPC-HDW3649H-AS-PV-PRO supports ONVIF Profile S, Profile G, Profile T and Profile M, together with CGI, facilitating integration with compatible recorders, platforms and other video surveillance systems.

Audio and alarm inputs and outputs

The camera includes 1 RCA audio input and 1 RCA audio output, together with 1 alarm input and 1 alarm output, allowing integration with sensors and other external devices.

12 VDC or PoE power supply

The IPC-HDW3649H-AS-PV-PRO can be powered by 12 VDC or PoE. It also supports Dual Power Backup: when both the power adapter and PoE are supplying the camera, removing one power source allows the device to continue operating without restarting.

IP67 protection and metal housing

The IPC-HDW3649H-AS-PV-PRO features a metal housing with IP67 protection and operates from -40 °C to +60 °C, making it suitable for professional indoor and outdoor installations.
