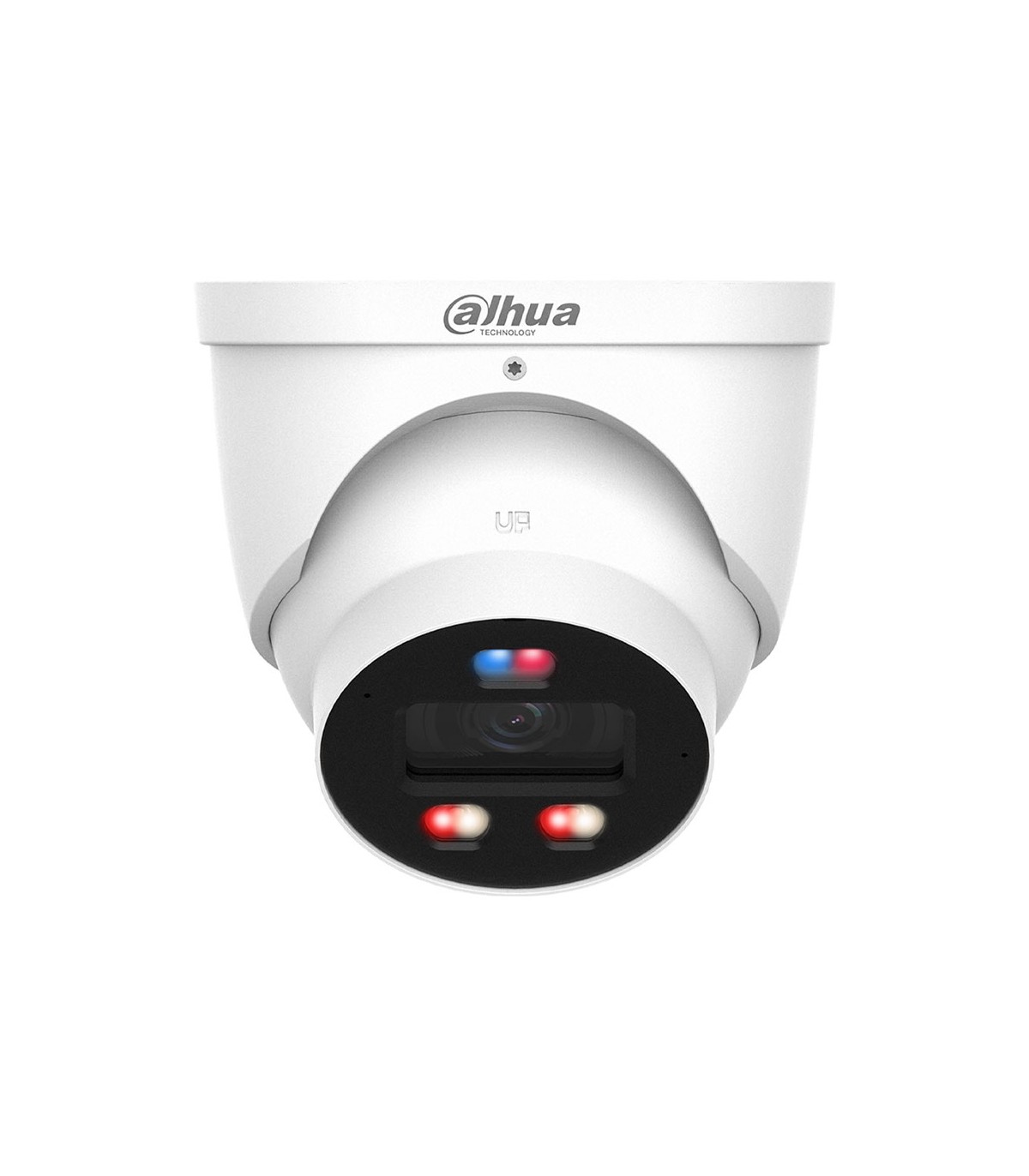

IPC-HDW3449H-AS-PV-PRO - Dahua 4MP TiOC PRO WizColor Turret IP Camera 2.8mm:
The IPC-HDW3449H-AS-PV-PRO is a Dahua 4MP TiOC PRO WizColor Turret IP camera with a fixed 2.8mm F1.0 lens, designed for professional video surveillance systems requiring high image quality, intelligent analytics and active deterrence. It integrates WizColor, Smart Dual Light, Artificial Intelligence, SMD 4.0, AcuPick, face detection, two-way audio, Micro SD storage up to 512 GB, PoE and IP67 protection.
The IPC-HDW3449H-AS-PV-PRO uses a 1/1.8" CMOS sensor and provides a maximum resolution of 2688 × 1520. Its 4MP resolution delivers detailed images for professional video surveillance applications such as entrances, façades, commercial areas, car parks, perimeters and other areas of interest.
WizColor technology, combined with the large F1.0 aperture, is designed to provide high image quality in low-light environments. The IPC-HDW3449H-AS-PV-PRO reaches a minimum illumination of only 0.0001 lux @ F1.0 in colour mode.
The fixed 2.8mm lens provides a wide 111° horizontal, 60° vertical and 135° diagonal field of view. The minimum focus distance is 2.0m, making this version suitable for covering wide areas.
TiOC PRO combines intelligent analytics, advanced imaging and active deterrence mechanisms. The IPC-HDW3449H-AS-PV-PRO features red and blue warning lights and an audible alarm, enabling visual and acoustic responses to configured security events.
Smart Dual Light combines infrared illumination and visible light. The camera provides IR up to 30m and warm light up to 30m, allowing illumination to adapt to scene conditions and improving the visual information available at night.
The IPC-HDW3449H-AS-PV-PRO uses Deep Learning algorithms to improve human and vehicle classification. IVS perimeter protection includes intrusion and tripwire with accurate human and vehicle classification and detection, as well as stay detection and loitering detection.
The camera integrates SMD 4.0, an intelligent motion detection technology designed to improve the identification of relevant targets and make video surveillance event management more efficient.
AcuPick uses Deep Learning algorithms and works with compatible back-end devices to quickly locate people and vehicles in live video and recordings.
The IPC-HDW3449H-AS-PV-PRO supports full-frame face detection, including capture, snapshot optimisation, face enhancement, angle filtering and different capture strategies for professional video surveillance applications.
AI SSA uses Deep Learning algorithms to adjust image parameters according to scene conditions, contributing to more consistent image quality across different environments.
120 dB WDR helps balance bright and dark areas present simultaneously in the image. The camera also supports BLC, HLC, 3D NR, Defog, SSA, ROI, LDC and privacy masking for up to 8 areas.
The IPC-HDW3449H-AS-PV-PRO integrates two built-in microphones and a speaker, enabling real-time two-way audio communication. It also includes one RCA audio input and one RCA audio output for integration with external equipment.
The camera supports H.265, H.264, H.264H, H.264B and MJPEG, together with AI H.265 and AI H.264. It also supports Smart H.265+ and Smart H.264+ to optimise bandwidth and storage usage.
The IPC-HDW3449H-AS-PV-PRO supports 3 video streams. The Main Stream can transmit 2688 × 1520 at up to 25/30 fps, while the Sub Stream and Third Stream can reach 1920 × 1080 at up to 25/30 fps.
The camera supports a Micro SD card up to 512 GB, as well as storage via FTP, SFTP and NAS. Local storage can be used directly on the camera or as a complement to an NVR system.
The IPC-HDW3449H-AS-PV-PRO supports ONVIF Profile S, Profile G, Profile T and Profile M, together with CGI, facilitating integration with compatible recorders, platforms and professional video surveillance systems.
The camera includes 1 RCA audio input and 1 RCA audio output, together with 1 alarm input and 1 alarm output, enabling integration with sensors, external devices and active response systems.
The IPC-HDW3449H-AS-PV-PRO can be powered by 12 VDC or PoE. It also supports Dual Power Backup, allowing the device to continue operating when one of the two power sources is disconnected while both were active.
The IPC-HDW3449H-AS-PV-PRO features IP67 protection against water and dust and has a metal construction. It operates from -40 °C to +60 °C and is suitable for professional indoor and outdoor installations.
