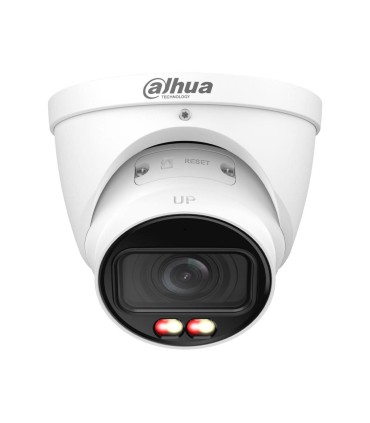

IPC-HDW2249T-ZS-IL - 2MP WizSense IP Turret Camera 2.7-13.5 mm

IPC-HDW2249T-ZS-IL - 2MP WizSense IP Turret Camera 2.7-13.5 mm

The IPC-HDW2249T-ZS-IL is a 2MP IP Turret camera from Dahua, belonging to the WizSense series. Equipped with Smart Dual Light technology, a 2.7-13.5 mm motorized varifocal lens, Deep Learning-based intelligence, SMD Plus and a built-in microphone, it provides a professional and versatile solution for advanced video surveillance systems.

High-quality 2MP imaging

The IPC-HDW2249T-ZS-IL uses a 1/2.9" CMOS sensor and provides a maximum resolution of 1920 × 1080 (2MP), delivering detailed images for professional security and video surveillance applications.

2.7-13.5 mm motorized varifocal lens

The 2.7-13.5 mm motorized lens, with a maximum aperture of F1.5, allows the field of view to be adjusted according to installation requirements. It provides a field of view of 104°–29° horizontal, 54°–16° vertical and 125°–34° diagonal, offering high flexibility when configuring the monitored area.

Smart Dual Light with IR 40 m and warm light 40 m

Smart Dual Light technology combines infrared illumination and warm light, allowing the lighting mode to adapt to scene conditions. The IPC-HDW2249T-ZS-IL provides IR up to 40 m and warm light up to 40 m through 2 multi-core illuminators combining IR and warm light.

WizSense AI with people and vehicle classification

WizSense technology uses Deep Learning algorithms to classify people and vehicles, improving intelligent analysis accuracy and helping distinguish security-relevant targets.

SMD Plus and intelligent perimeter protection

The IPC-HDW2249T-ZS-IL integrates SMD Plus and perimeter protection functions. Intrusion and tripwire functions support accurate people and vehicle classification and detection, helping reduce false alarms and improve video surveillance system efficiency.

120 dB WDR and image processing

120 dB WDR improves visibility in scenes with significant differences between bright and dark areas. The camera also features 3D NR, BLC and HLC, helping optimise image quality under different lighting conditions.

Built-in microphone

The IPC-HDW2249T-ZS-IL features a built-in microphone for real-time audio capture. It supports G.711a, G.711Mu, PCM and G.726 audio compression formats.

Micro SD up to 512 GB

The IPC-HDW2249T-ZS-IL supports Micro SD cards up to 512 GB for local recording storage. It also supports storage via FTP and SFTP.

Smart H.265+ and Smart H.264+

The camera supports H.265, H.264, Smart H.265+ and Smart H.264+, enabling more efficient use of bandwidth and storage space. It also supports AI H.265 and AI H.264 through Super AI Coding technology.

3 video streams

The IPC-HDW2249T-ZS-IL supports 3 video streams. The main stream supports 1920 × 1080 up to 25/30 fps, offering flexibility for viewing, recording and network transmission.

PoE and ONVIF compatibility

The IPC-HDW2249T-ZS-IL can be powered via 12 VDC or PoE 802.3af, simplifying installation. ONVIF Profile S, Profile G and Profile T compatibility facilitates integration with different professional video surveillance platforms and systems.

IP67 protection and metal housing

The IPC-HDW2249T-ZS-IL features a metal housing and IP67 protection against water and dust. It is designed to operate between -30 °C and +60 °C, making it suitable for demanding indoor and outdoor installations.
