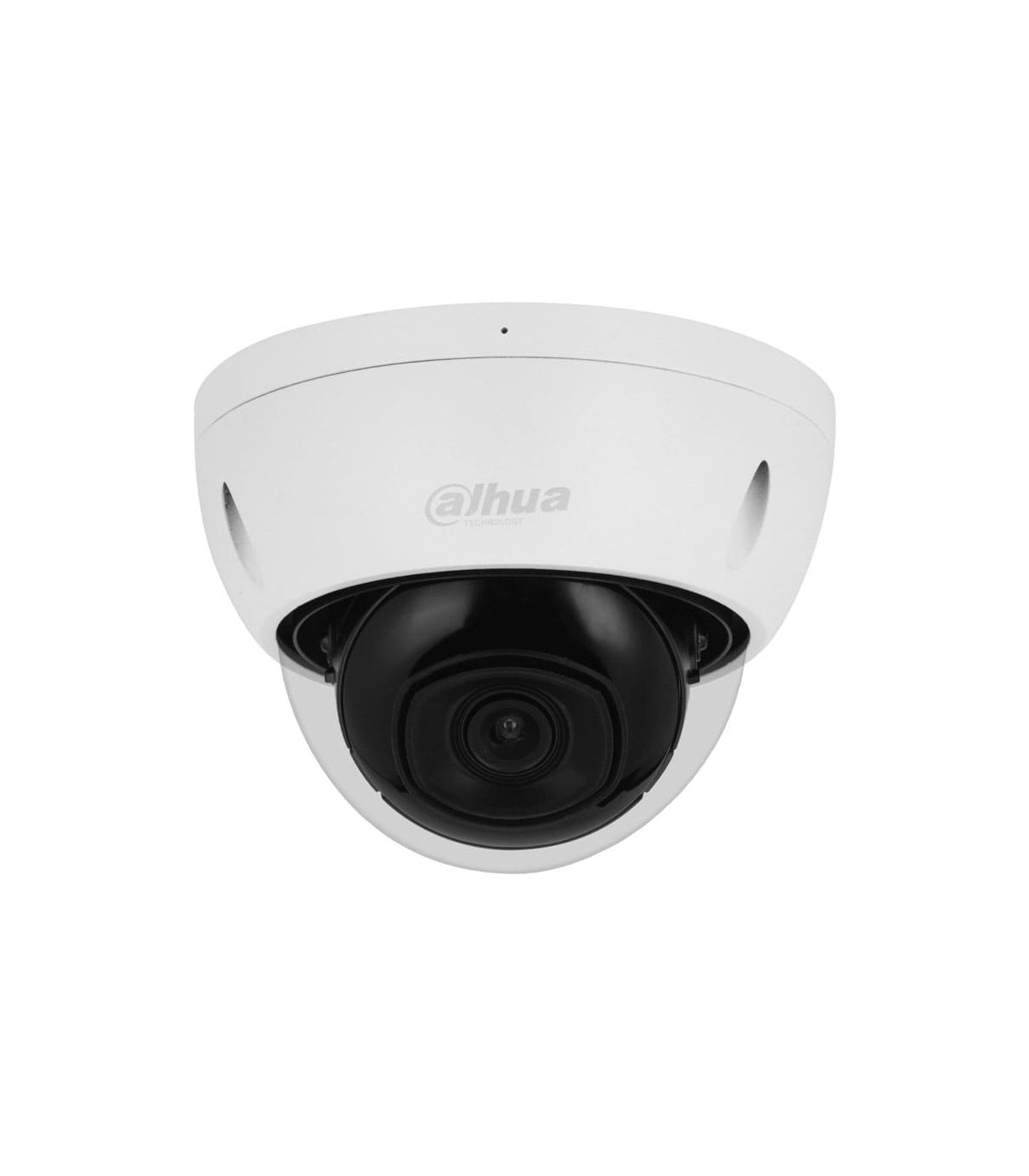

IPC-HDBW2541E-S - 5MP WizSense IP Dome Camera 2.8 mm

IPC-HDBW2541E-S - 5MP WizSense IP Dome Camera 2.8 mm

The IPC-HDBW2541E-S is a 5MP IP Dome camera from Dahua, belonging to the WizSense series. Equipped with a fixed 2.8 mm lens, IR 30m illumination, Deep Learning-based Artificial Intelligence, perimeter protection and a built-in microphone, it provides a professional solution for video surveillance systems requiring high image quality and intelligent detection.

High-quality 5MP imaging

The IPC-HDBW2541E-S uses a 1/2.7" CMOS sensor and provides a maximum resolution of 2960 × 1668 (5MP). The camera supports up to 20 fps at maximum resolution and up to 25/30 fps at 2688 × 1520, delivering detailed images for professional security applications.

2.8mm fixed lens with wide field of view

The fixed 2.8mm lens, with a maximum aperture of F1.6, provides a wide field of view of 111° horizontal, 58° vertical and 132° diagonal. This configuration makes the IPC-HDBW2541E-S suitable for monitoring entrances, corridors, commercial spaces, offices and other areas requiring wide coverage.

IR 30m night vision

The IPC-HDBW2541E-S integrates 3 IR LEDs with infrared illumination up to IR 30m. Smart Illumination automatically optimises scene lighting, helping provide effective surveillance during both day and night.

WizSense AI with people and vehicle classification

WizSense technology uses AI and Deep Learning algorithms to distinguish people and vehicles. This intelligent analysis focuses detection on security-relevant targets and improves the effectiveness of the video surveillance system.

SMD and intelligent perimeter protection

The IPC-HDBW2541E-S features SMD and intelligent perimeter protection functions. Intrusion and tripwire functions support accurate people and vehicle classification and detection, contributing to more efficient security event analysis.

120 dB WDR and advanced image processing

120 dB WDR provides greater detail in scenes with significant differences between bright and dark areas. The camera also features 3D NR, BLC and HLC, improving image quality under different lighting conditions.

Built-in microphone and audio

The IPC-HDBW2541E-S features a built-in microphone for real-time audio capture. It supports G.711a, G.711Mu, PCM and G.726 audio compression formats, adding sound information to video surveillance footage.

Micro SD up to 256 GB

The camera supports Micro SD cards up to 256 GB for local storage. The IPC-HDBW2541E-S also supports storage via FTP, SFTP and NAS, providing different options for recording management.

Smart H.265+ and Smart H.264+

The IPC-HDBW2541E-S supports H.265, H.264, Smart H.265+ and Smart H.264+, helping reduce bandwidth usage and storage requirements without compromising image quality.

PoE and ONVIF compatibility

Power can be supplied via 12 VDC or PoE 802.3af, simplifying installation by allowing data and power to be transmitted through the same network cable. ONVIF Profile S, Profile G and Profile T compatibility facilitates integration with different professional video surveillance systems.

IP67 and IK10 protection

The IPC-HDBW2541E-S features a metal housing with IP67 and IK10 protection, providing resistance against water, dust and impacts. With an operating temperature from -40 °C to +60 °C, it is suitable for demanding indoor and outdoor installations.
