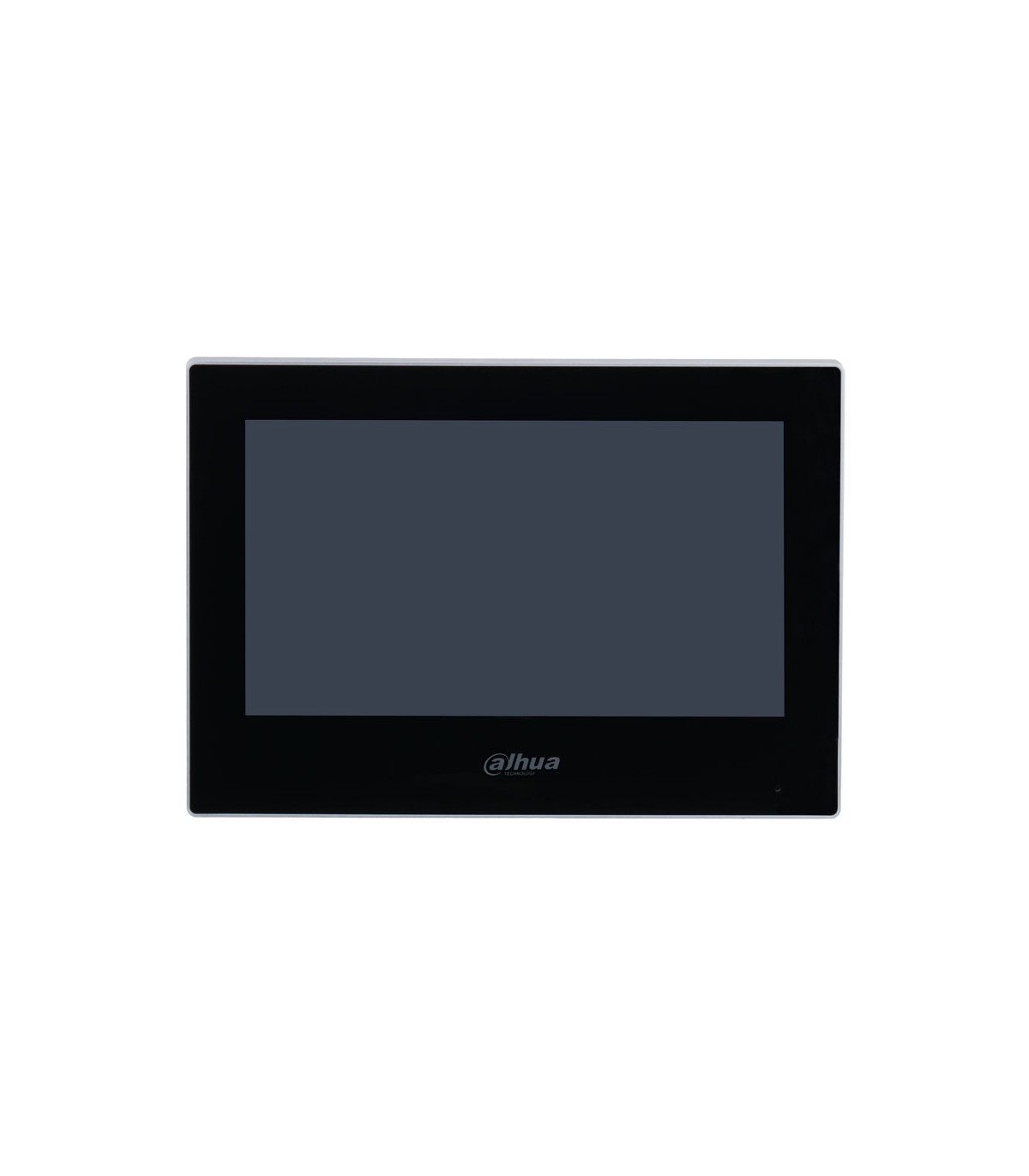

VTH2621GB-P – 7" IP indoor monitor black Dahua:
The VTH2621GB-P is a Dahua IP indoor monitor designed for residential and professional video intercom applications. Its 7-inch capacitive TFT display with 1024 × 600 resolution provides a clear and practical interface for managing calls and system functions.
The capacitive touchscreen enables intuitive operation, while two-way audio allows communication with compatible outdoor stations in the video intercom system.
The VTH2621GB-P features Ethernet connectivity and supports PoE, allowing both data and power to be transmitted through a single network cable. This simplifies cabling and makes installation particularly suitable for IP systems.
With its slim design and black finish, the monitor integrates easily into homes, offices and other professional environments. Surface mounting provides a neat and discreet video intercom installation.
The Dahua VTH2621GB-P is a practical solution for completing a Dahua IP video intercom system with a 7" touchscreen, two-way communication and PoE power supply.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand | Dahua |
| Model | VTH2621GB-P |
| Product type | IP indoor monitor |
| Main processor | Embedded processor |
| CPU | Dual-core 1.2 GHz |
| Operating system | Embedded Linux |
| ROM | 128 MB |
| RAM | 128 MB |
| Interoperability | ONVIF; SDK |
| Network protocols | RTSP; RTP; SIP; DNS; SSH |
| Screen type | Capacitive touchscreen |
| Display | 7" TFT |
| Resolution | 1024 × 600 |
| Audio compression | G.711a; G.711u; PCM |
| Audio input | 1 |
| Audio output | Built-in speaker |
| Audio mode | Two-way audio |
| Audio enhancement | Echo cancellation |
| Audio specification | 16 kHz; 16 bit |
| Communication mode | Full Digital |
| Information release | Receives and displays text information sent by the management centre |
| Leave Videos | Yes; requires an SD card installed in the VTO |
| Do Not Disturb mode | Configurable DND period and mode |
| Number of extensions | Villa: 9; Apartment: 4 |
| Housing material | PC + ABS |
| Alarm inputs | 6 |
| Alarm output | 1 |
| Doorbell | Yes, using any alarm input |
| Network | 1 × 10/100 Mbps Ethernet port |
| Storage | Micro SD card up to 64GB, reserved for software |
| Colour | Black |
| Power supply | 12 VDC / 1 A; standard PoE (36–57 V, 0.35 A) |
| Installation | Surface mounting |
| Certifications | CE; FCC |
| Dimensions | 189.6 × 134.6 × 26.0 mm |
| Operating temperature | -10 °C to +55 °C |
| Operating humidity | 10%–95% RH, non-condensing |
| Operating altitude | Below 3000 m |
| Power consumption | Standby ≤2 W; operating ≤6 W |
| Net weight | 0.34 kg |
| Gross weight | 0.58 kg |
| Compatible accessory | VTM59D – desktop stand |
