VTO2211G-WP-S2 - 2MP WiFi PoE IP Door Station Dahua

VTO2211G-WP-S2 – 2MP WiFi PoE IP Door Station Dahua

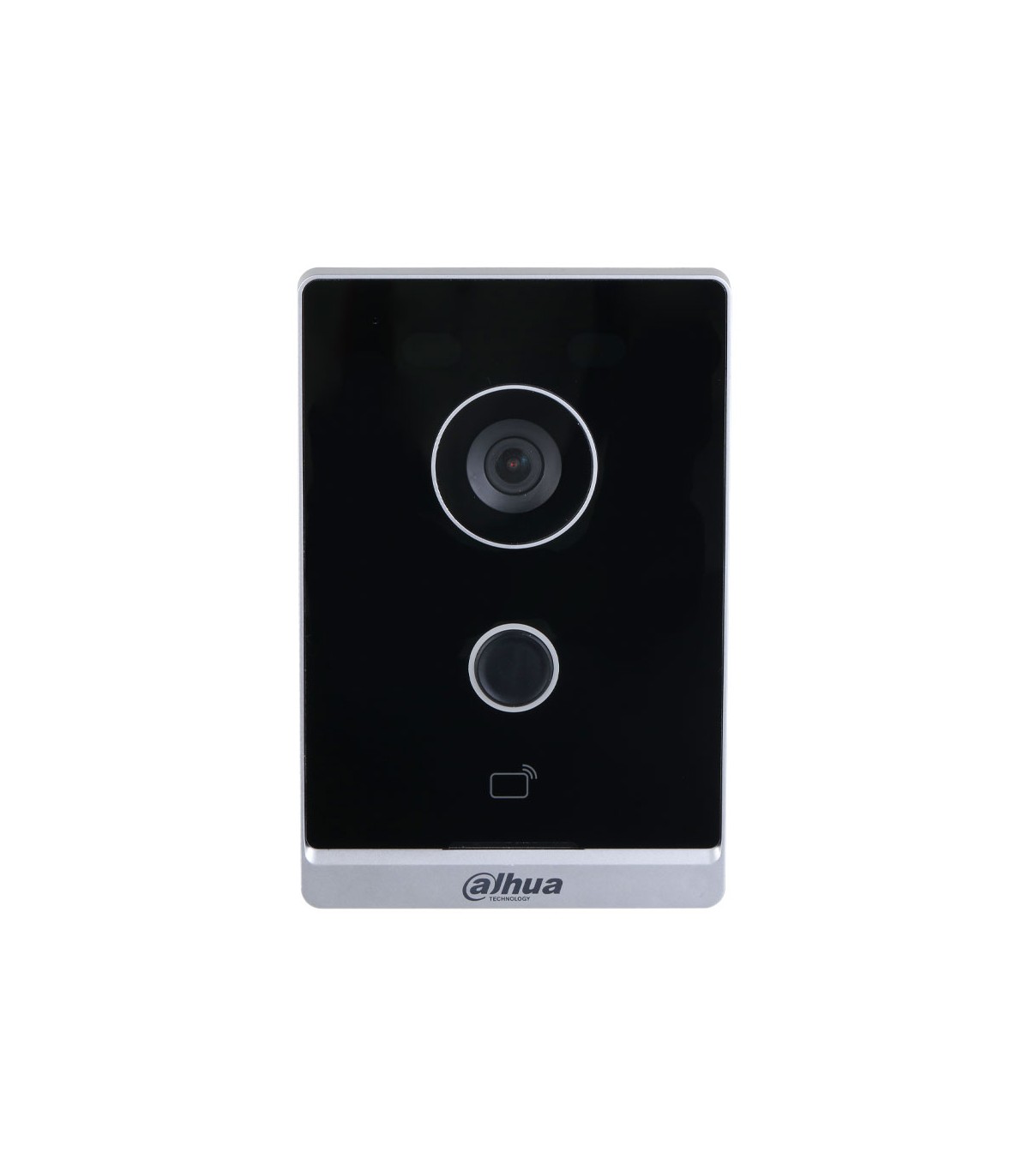

The VTO2211G-WP-S2 is a compact Dahua IP door station from the Pro Series, designed for residential video intercom and access control systems. It integrates a 2MP CMOS camera with 120 dB WDR, infrared illumination and 3D noise reduction for clear visitor identification under different lighting conditions.

This model supports a 10/100 Mbps Ethernet connection and 2.4GHz WiFi IEEE 802.11b/g/n, providing greater flexibility for network connectivity. Power can be supplied through standard PoE or 12 VDC.

Access Control for 10,000 IC Cards

The VTO2211G-WP-S2 allows door unlocking by IC card, app or indoor monitor. The integrated reader supports up to 10,000 cards and allows local card issuance, providing a practical solution for residential access control.

2MP Camera with H.265 and Two-Way Audio

The 2MP camera features 120 dB WDR, automatic IR illumination and a 125° horizontal field of view. Support for H.264 and H.265 video compression helps optimise bandwidth and storage usage.

The system supports two-way audio through the built-in speaker, with echo suppression and digital noise reduction to improve communication between the visitor and the user.

WiFi, ONVIF, CGI and Micro SD Storage

The door station supports WiFi, ONVIF and CGI, as well as network protocols including IPv4, RTSP, UDP, DNS, P2P, RTP, TCP and SIP. It also provides RS485, alarm input and output, exit button, door status detection and lock control interfaces.

The VTO2211G-WP-S2 supports a Micro SD card up to 256 GB and allows video messages to be stored when an SD card is installed in the indoor monitor or in the outdoor station itself.

IP65 Protection for Outdoor Installation

With a PC and acrylic housing, the VTO2211G-WP-S2 features IP65 protection and a tamper alarm. It supports operating temperatures from -30 °C to +60 °C and is designed for surface mounting in outdoor environments.

The Dahua VTO2211G-WP-S2 combines IP video intercom, WiFi, PoE, access control, local storage and ONVIF integration in a compact solution for residential installations.
