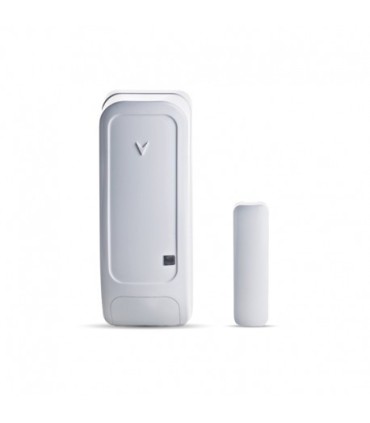

MC-302E PG2 PowerG Wireless Door Window Contact with Wired Input

The MC-302E PG2 is a two-way wireless PowerG magnetic contact device. The device includes a
built-in reed switch (that opens upon removal of a magnet placed near it) and an auxiliary hard-wired
input, programmable as either N.O., N.C. or E.O.L., for use with additional sensors – pushbuttons
detectors, door contacts, etc.
The MC-302E PG2 can be configured through the PowerMaster control panel to allow the installer to
disable the magnet-operated reed switch if only the auxiliary input is needed. The reed switch and the
auxiliary input behave as separate transmitters, although they trigger the same RF transmitter. The
MC-302E PG2 sends the parameters of the specific alarm to the control panel using PowerG two-way
communications protocol.
The MC-302E PG2 tamper switch is activated when the cover is removed.
A periodic supervision message is transmitted automatically. The control panel is thus informed, at
regular intervals, of the unit’s active participation in the system.
An LED lights whenever alarm or tamper events are reported. The LED does not light while a
supervision message is being transmitted.
Operating power is obtained from an on-board 3 V Lithium battery. When the battery voltage is low, a
“low battery” message is sent to the receiver.
