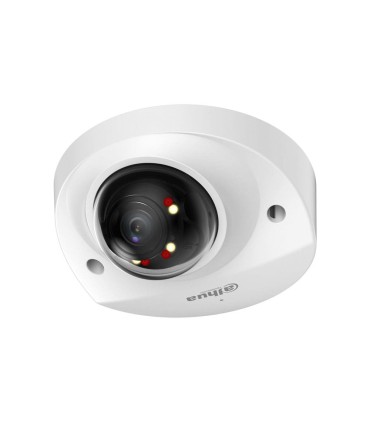

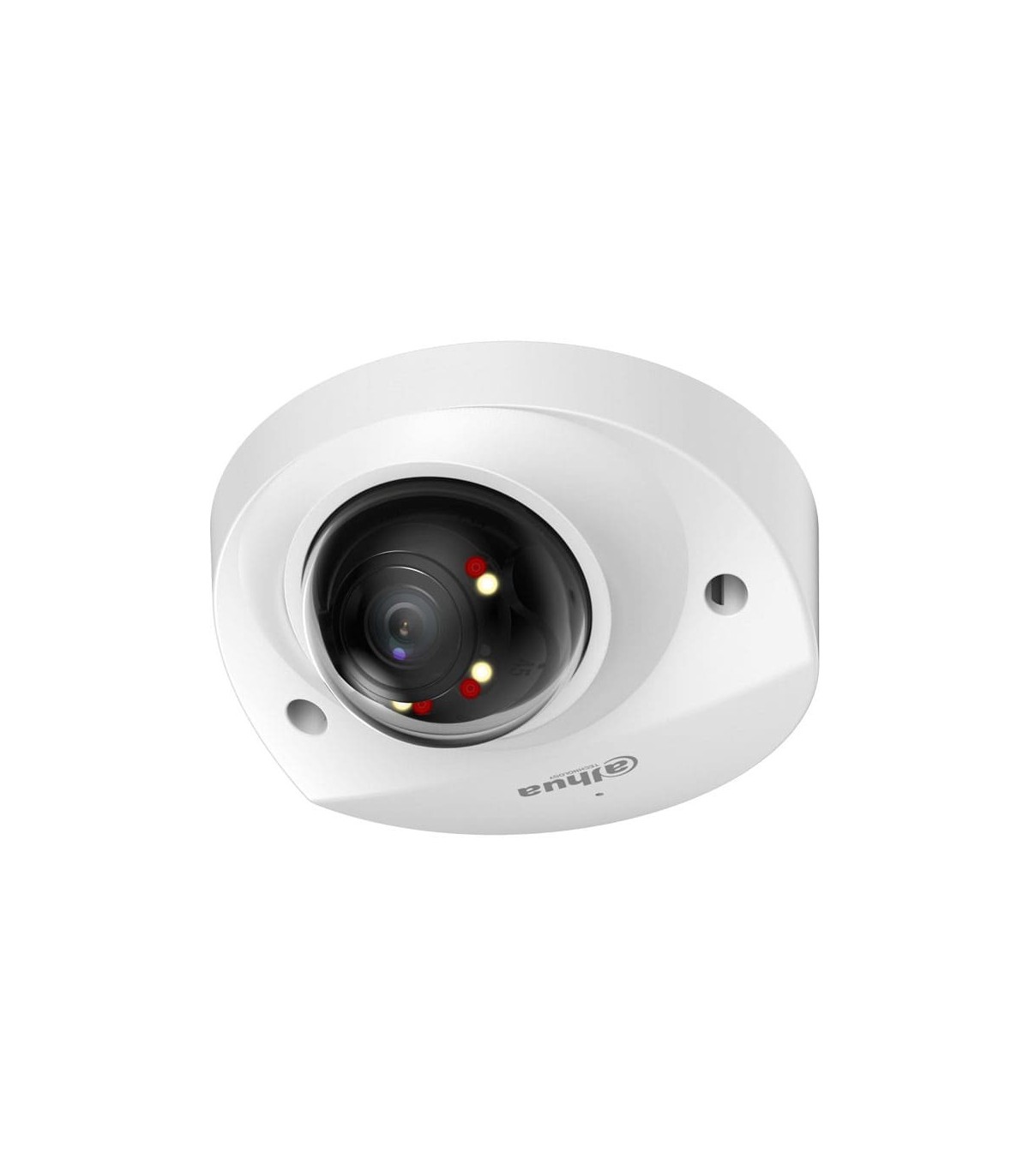

IPC-HDBW2449F-AS-IL - 4MP WizSense IP Dome Camera 2.8 mm

IPC-HDBW2449F-AS-IL - 4MP WizSense IP Dome Camera 2.8 mm

The IPC-HDBW2449F-AS-IL is a 4MP IP Dome camera from Dahua, belonging to the WizSense series. Equipped with Smart Dual Light technology, a 2.8 mm fixed lens, Deep Learning-based intelligence, SMD Plus and a built-in microphone, it provides a professional and versatile solution for advanced video surveillance systems.

High-resolution 4MP imaging

The IPC-HDBW2449F-AS-IL uses a 1/2.9" CMOS sensor and provides a maximum resolution of 2688 × 1520 (4MP), delivering detailed images for professional security and video surveillance applications.

2.8 mm fixed lens with wide field of view

The 2.8 mm fixed lens, with a maximum aperture of F1.6, provides a field of view of 101° horizontal, 54° vertical and 120° diagonal. This configuration allows wide visual coverage of the monitored area.

Smart Dual Light with IR 30 m and warm light 30 m

Smart Dual Light technology combines infrared illumination and warm light, allowing the lighting mode to adapt to scene conditions. The IPC-HDBW2449F-AS-IL provides IR up to 30 m and warm light up to 30 m, using 4 multi-core illuminators that combine IR and warm light.

WizSense AI with people and vehicle classification

WizSense technology uses Deep Learning algorithms to classify people and vehicles, improving intelligent analysis accuracy and helping distinguish security-relevant targets.

SMD Plus and intelligent perimeter protection

The IPC-HDBW2449F-AS-IL integrates SMD Plus and perimeter protection functions. Intrusion and tripwire functions support accurate people and vehicle classification and detection, improving the effectiveness of professional video surveillance systems.

120 dB WDR and image processing

120 dB WDR improves visibility in scenes with significant differences between bright and dark areas. The camera also features 3D NR, BLC and HLC, helping optimise image quality under different lighting conditions.

Built-in microphone and audio interfaces

The IPC-HDBW2449F-AS-IL features a built-in microphone for real-time audio capture. It also provides 1 audio input and 1 audio output via RCA ports, offering greater flexibility for integration with external audio equipment.

Alarm input and output

The camera provides 1 alarm input and 1 alarm output, allowing integration with sensors, alarm systems and other external devices in professional security installations.

Micro SD up to 256 GB

The IPC-HDBW2449F-AS-IL supports Micro SD cards up to 256 GB for local recording storage. It also supports storage via FTP and SFTP.

Smart H.265+ and Smart H.264+

The camera supports H.265, H.264, Smart H.265+ and Smart H.264+, enabling more efficient use of bandwidth and storage capacity in professional video surveillance systems.

PoE and ONVIF compatibility

The IPC-HDBW2449F-AS-IL can be powered via 12 VDC or PoE 802.3af, simplifying installation. ONVIF Profile S, Profile G and Profile T compatibility facilitates integration with different platforms and professional video surveillance systems.

IP67 and IK10 protection with metal housing

The IPC-HDBW2449F-AS-IL features a metal housing, IP67 protection against water and dust, and IK10 vandal resistance. These characteristics make the Dome camera suitable for demanding indoor and outdoor installations.
