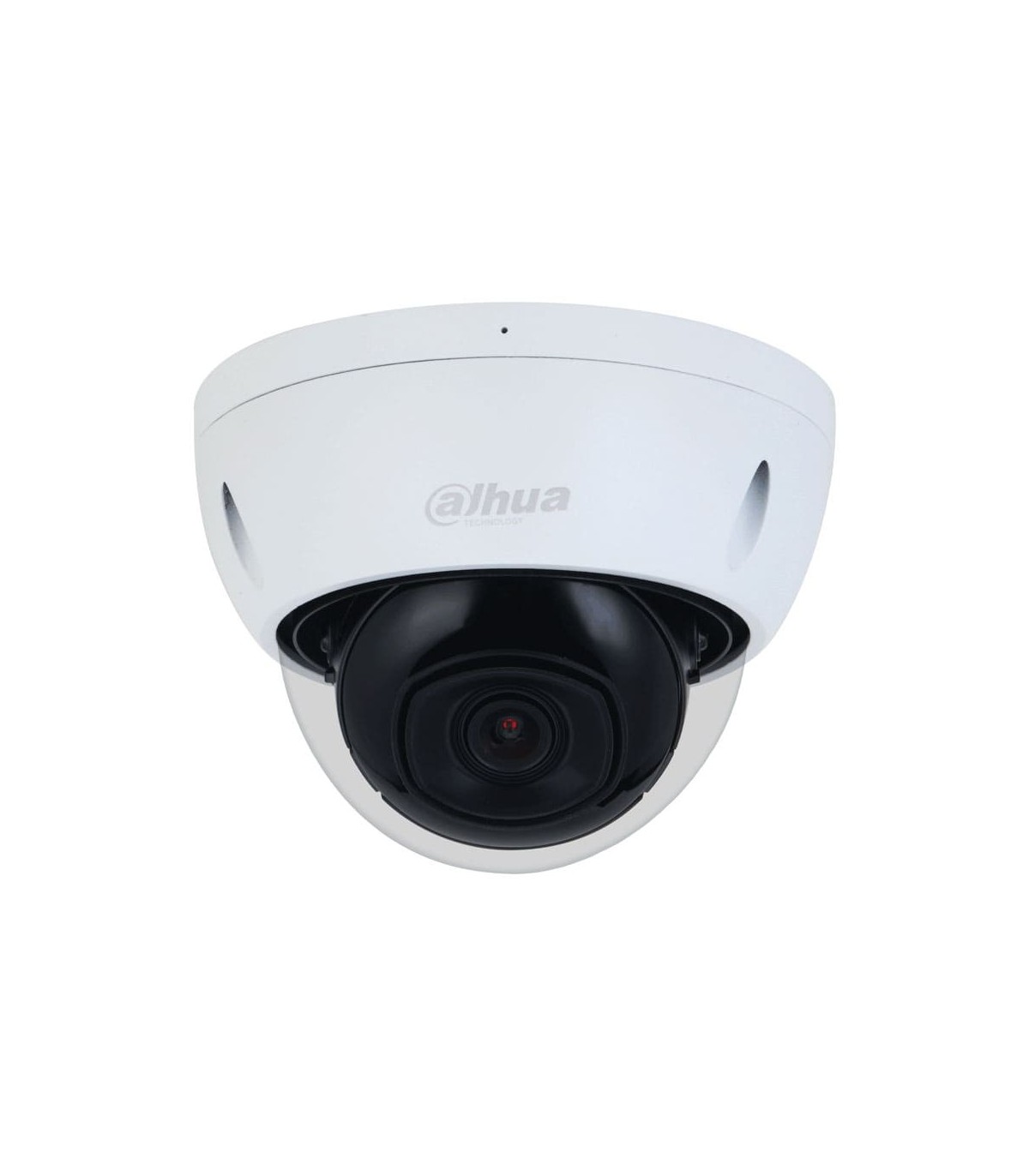

IPC-HDBW2241E-S - 2MP WizSense IP Dome Camera 2.8 mm

IPC-HDBW2241E-S - 2MP WizSense IP Dome Camera 2.8 mm

The IPC-HDBW2241E-S is a 2MP IP Dome camera from Dahua, belonging to the WizSense series. Equipped with a 2.8 mm fixed lens, infrared illumination, built-in microphone and Deep Learning-based intelligence, it provides a professional solution for video surveillance systems requiring high reliability, intelligent detection and resistance in demanding environments.

Full HD 2MP imaging

The IPC-HDBW2241E-S uses a 1/2.8" CMOS sensor and provides a maximum resolution of 2MP (1920 × 1080) at 25/30 fps, delivering detailed and smooth images for professional security applications.

2.8 mm fixed lens with wide field of view

The 2.8 mm fixed lens, with a maximum aperture of F1.6, provides a field of view of 106° horizontal, 56° vertical and 127° diagonal. This configuration allows wide visual coverage of the monitored area.

IR night vision up to 30 m

The IPC-HDBW2241E-S integrates 3 IR LEDs with a maximum range of 30 m, enabling video surveillance in low-light or completely dark environments. The Smart Illumination function helps optimise infrared illumination during night surveillance.

WizSense AI with people and vehicle classification

WizSense technology uses Deep Learning algorithms to provide more accurate classification of people and vehicles, improving event analysis and helping reduce alarms caused by non-relevant targets.

Intelligent perimeter protection

The IPC-HDBW2241E-S supports intelligent intrusion and tripwire functions, both with accurate people and vehicle classification and detection. These features make the camera suitable for protecting perimeters and predefined areas.

120 dB WDR and image processing

120 dB WDR improves visibility in scenes with significant differences between bright and dark areas. The camera also features 3D NR, BLC and HLC, helping optimise image quality under different lighting conditions.

Built-in microphone

The IPC-HDBW2241E-S features a built-in microphone for real-time audio capture, complementing video information in professional security installations.

Micro SD up to 256 GB

The camera supports Micro SD cards up to 256 GB for local recording storage. It also supports storage via FTP and SFTP.

Smart H.265+ and Smart H.264+

The IPC-HDBW2241E-S supports H.265 and H.264 formats, as well as Smart H.265+ and Smart H.264+, improving compression efficiency and reducing bandwidth and storage requirements.

PoE and ONVIF compatibility

Power can be supplied via 12 VDC or PoE, simplifying installation by using a single network cable for power and data transmission. ONVIF Profile S, Profile G and Profile T compatibility facilitates integration into professional video surveillance systems.

IP67 and IK10 protection with metal housing

The IPC-HDBW2241E-S features a metal housing with IP67 protection against water and dust and IK10 vandal resistance. This construction makes the Dome camera particularly suitable for professional indoor and outdoor installations where there is a higher risk of impact or tampering.
