EASY-P EP-IPT230ZA-8-DL - 8MP IP Turret Camera with Artificial Intelligence:
- 1/2.8" CMOS Sensor and 8 MP: 4K resolution (3840x2160) for high-definition and highly detailed images.
- Motorized 2.7~13.5 mm Lens: Motorized varifocal lens for flexible framing according to installation requirements.
- Artificial Intelligence: Supports Motion Detect 2.0 and UMD for intelligent detection based on people and/or vehicles.
- Dual Illumination and Audio: Up to 50 m IR, up to 40 m white light and integrated microphone.

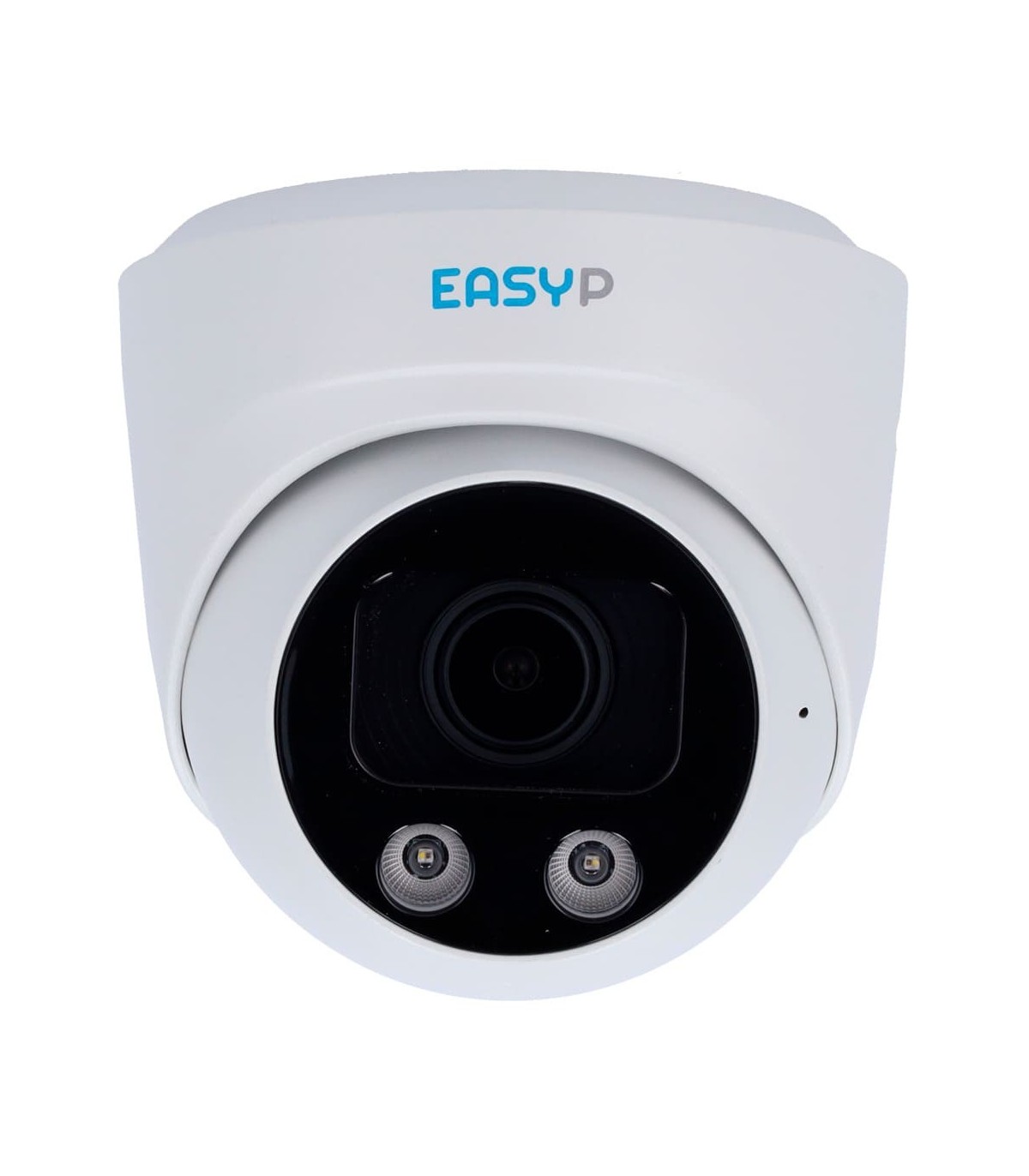

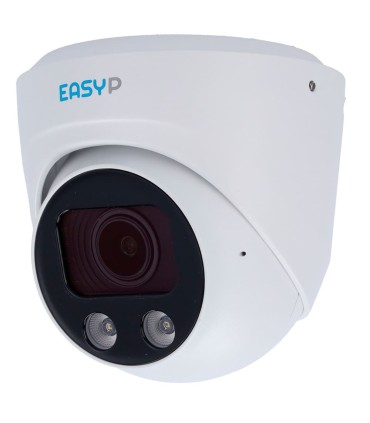

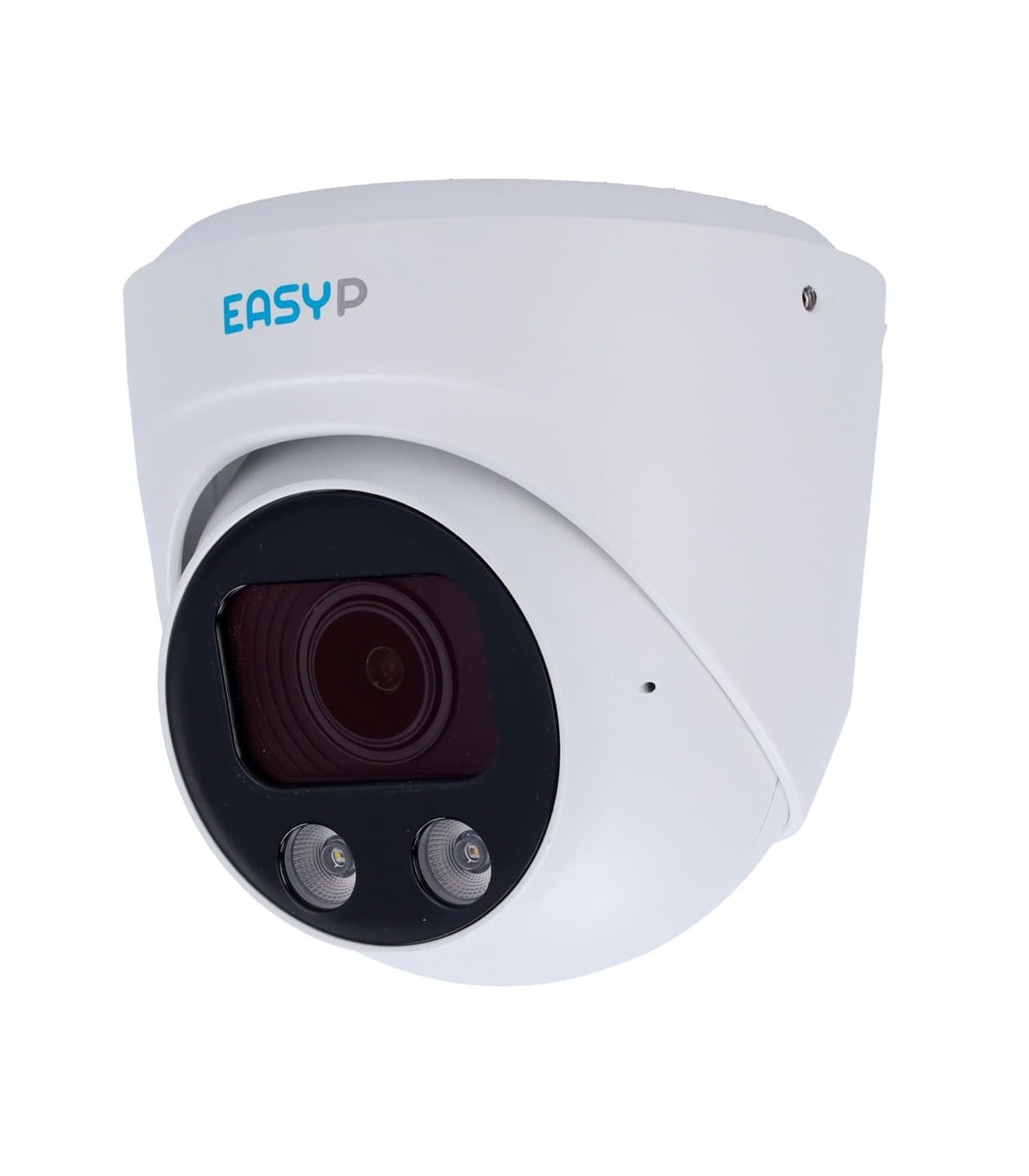

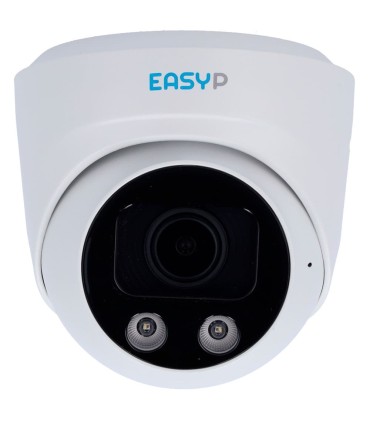

EASY-P EP-IPT230ZA-8-DL 8MP IP Turret Camera with AI and Motorized Lens
The EASY-P EP-IPT230ZA-8-DL is a professional 8-megapixel IP Turret Camera designed for video surveillance systems requiring high resolution, optical flexibility and intelligent functions. This EASY-P camera features a 1/2.8" CMOS sensor and delivers 4K resolution (3840x2160).
EP-IPT230ZA-8-DL with Artificial Intelligence
The EP-IPT230ZA-8-DL supports Motion Detect 2.0 and UMD for intelligent event analysis. These AI functions provide detection based on people and/or vehicles and help reduce false alarms.
8MP IP Turret Camera with Motorized Lens
This IP Camera features a 2.7~13.5 mm motorized varifocal lens, allowing the framing to be adjusted according to the installation requirements. The viewing angle ranges from H: 103~29°, V: 54~16° and D: 124~33°.
Night Vision, White Light and Audio
The EASY-P EP-IPT230ZA-8-DL provides infrared illumination up to 50 metres and white light up to 40 metres. The camera also features an integrated microphone for audio capture.
With IP67 protection, metallic construction, PoE power and ONVIF, Uniview and Hikvision compatibility, this camera is designed for professional CCTV installations.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand / Manufacturer | EASY-P |
| Model / Reference | EP-IPT230ZA-8-DL |
| Camera Type | IP Turret Camera with Artificial Intelligence |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixels (3840x2160) |
| Minimum Illumination | Colour: 0.05 Lux @(F1.6, AGC ON) |
| Illumination Range | IR up to 50 m; white light up to 40 m |
| Day/Night Switching | Removable mechanical ICR filter |
| Electronic Shutter | 1/3~1/100000 s |
| Lens / Optics | Motorized 2.7~13.5 mm |
| Viewing Angle (FOV) | H: 103~29°, V: 54~16°, D: 124~33° |
| Main Stream | 3840x2160@20fps; 2560x1440@20fps; 1920x1080@20fps; 1280x720@20fps |
| Extra Stream | 1280x720@20fps; 720x480@20fps |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / JPEG / AVI / MJPEG |
| Bit Rate | 64 Kbps ~ 6 Mbps |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask |
| Motion Detection and UMD | Supports both functions |
| Intelligent Functions | Motion Detection 2.0 and UMD |
| Audio Capture | Built-in microphone |
| Audio Compression | G711A / U, AAC |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Mobile Application (APP) |
| Interoperability | ONVIF, Plug & Play with Uniview and Hikvision |
| P2P Technology | Yes |

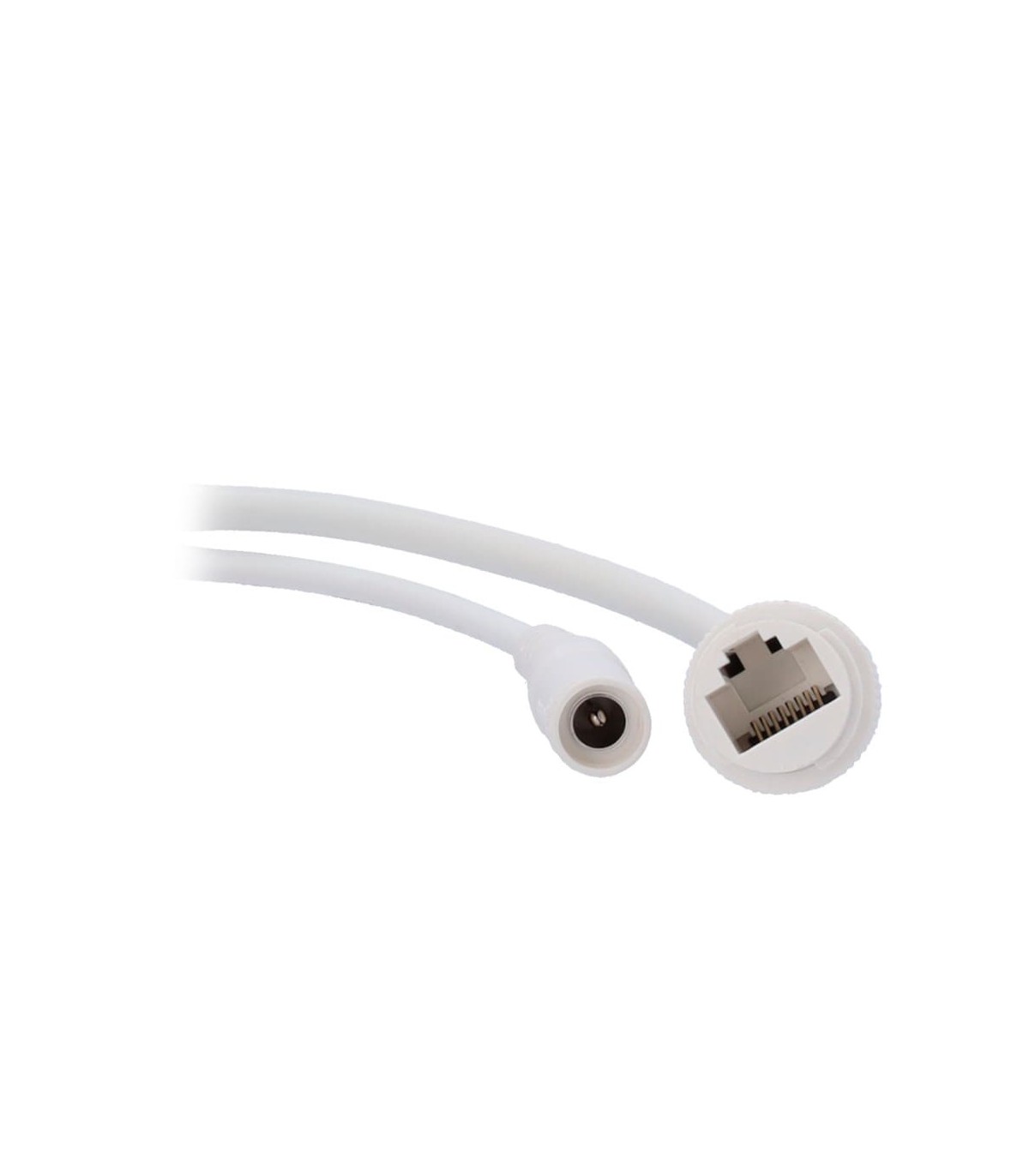

| Power Supply | DC 12 V / 12 W max. / PoE IEEE 802.3af |
| Protection Rating | IP67 |
| Construction Material | Metal |
| Operating Temperature | -20 ºC to +60 ºC |
| Dimensions | Ø115 x 113 mm |
| Weight | 600 g |
