EASY-P EP-IPT220A-4 - 4MP IP Turret Camera with 2.8mm Lens, AI and Night Vision:
- 1/3" CMOS Sensor and 4MP: The EASY-P EP-IPT220A-4 delivers 2688x1512 resolution for sharp and detailed images in professional video surveillance systems.
- Fixed 2.8mm Lens: Provides a wide field of view (H: 95°, V: 55°, D: 114°), ideal for monitoring large areas.
- Artificial Intelligence AI: Intelligent motion detection and UMD with person and/or vehicle classification, significantly reducing false alarms.
- IR Night Vision and Audio: Infrared illumination with a range of up to 25 metres and integrated microphone for audio capture.
- PoE and IP67 Protection: PoE power supply, metal housing and IP67 protection for professional indoor and outdoor installations.

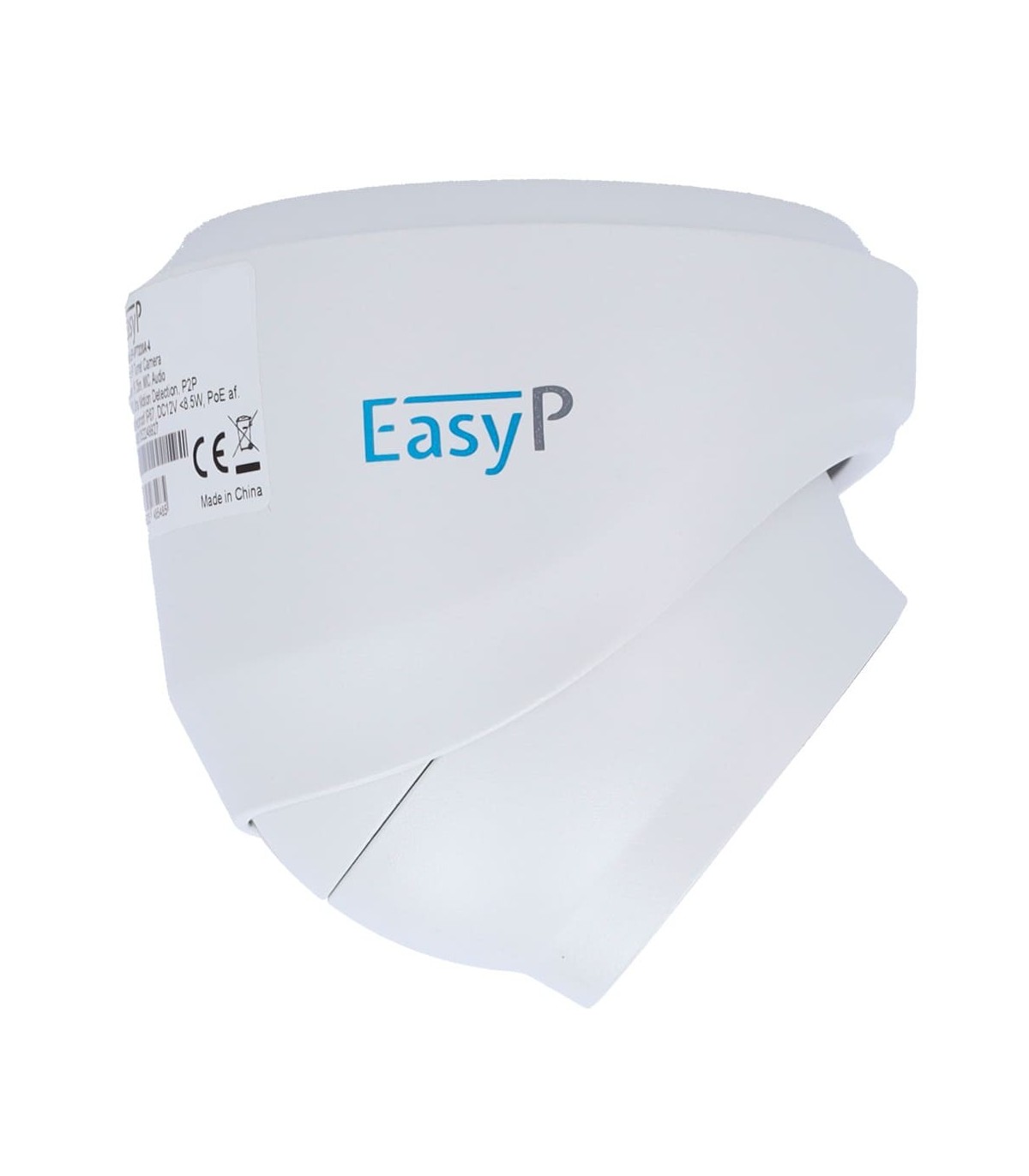

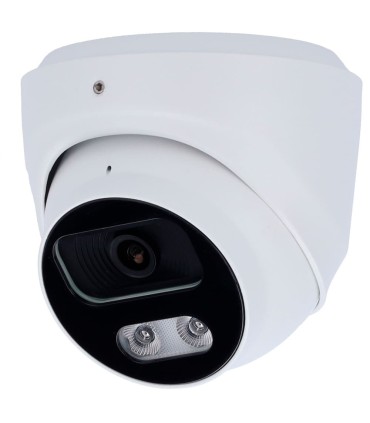

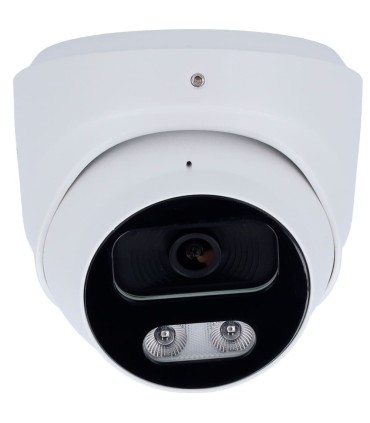

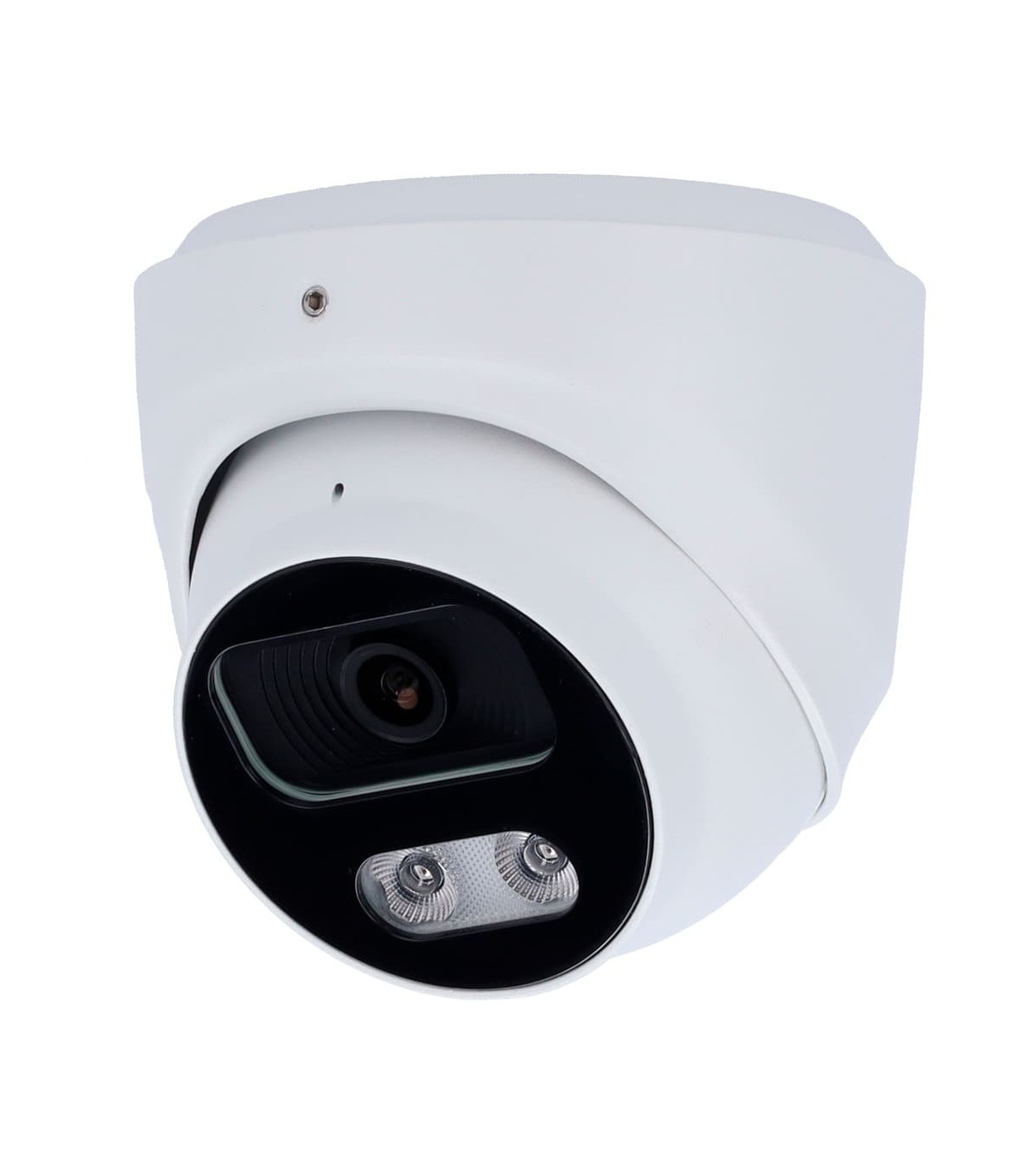

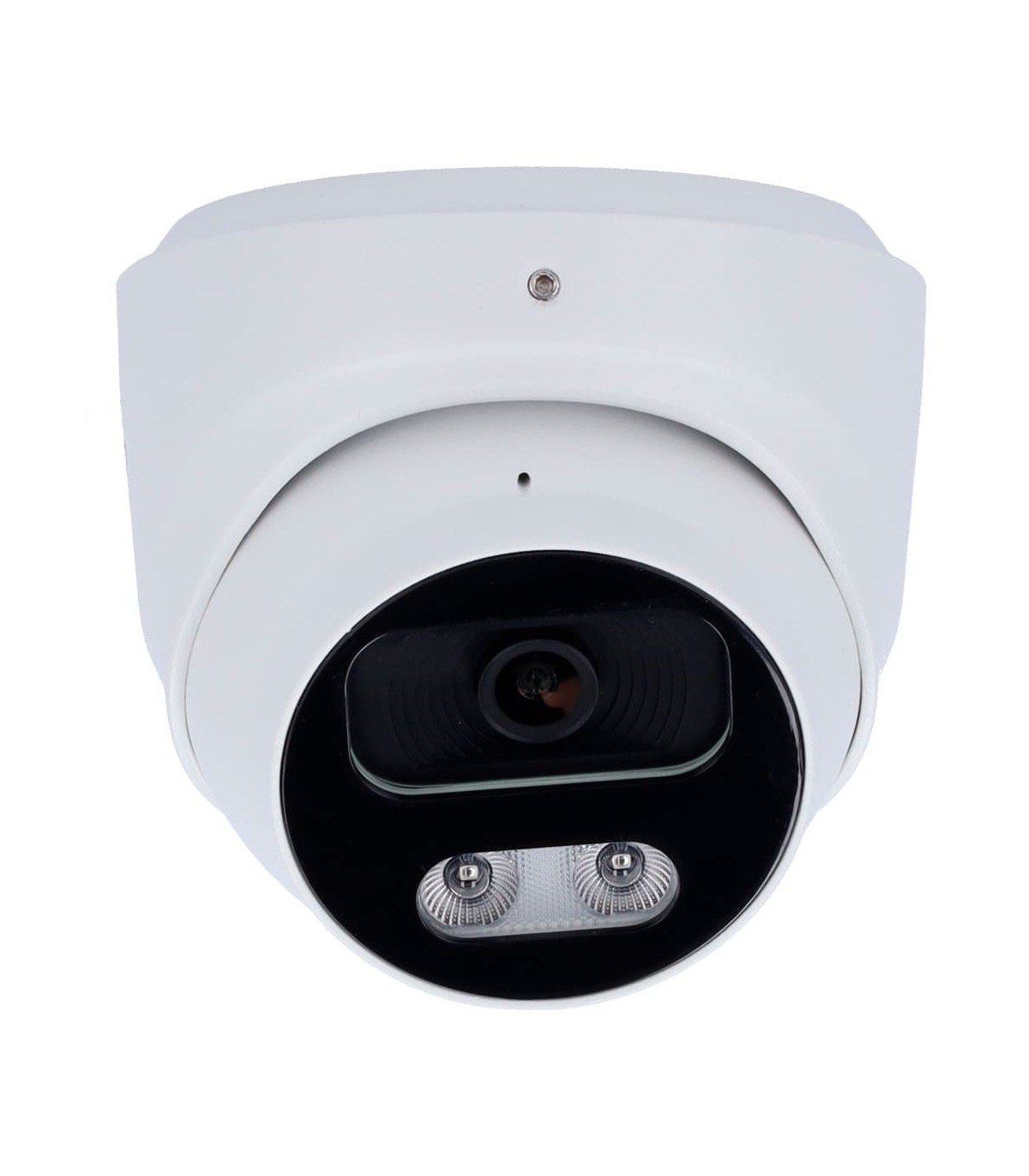

EASY-P EP-IPT220A-4 4MP 2.8mm IP Turret Camera with AI
The EASY-P EP-IPT220A-4 is a professional 4MP IP Turret camera designed for video surveillance systems requiring high image quality, intelligent analysis and reliable operation in different environments. The EASY-P technology provides a professional solution for IP video surveillance installations.
EASY-P EP-IPT220A-4 with 4MP Image and 2.8mm Lens
Equipped with a 1/3" CMOS sensor and a maximum resolution of 4MP (2688x1512), the EASY-P EP-IPT220A-4 delivers sharp and detailed images. Its fixed 2.8mm lens provides a wide field of view of H: 95°, V: 55° and D: 114°, making it suitable for monitoring large areas.
AI for Intelligent Detection and False Alarm Reduction
The integrated AI technology enables intelligent motion detection and UMD, with classification based on people and/or vehicles. This function significantly reduces false alarms and improves the efficiency of video analysis.
4MP and Night Vision for Professional Video Surveillance
The EASY-P EP-IPT220A-4 features infrared illumination with a range of up to 25 metres, providing effective surveillance in low-light conditions. The removable mechanical ICR filter ensures automatic switching between day and night modes.
PoE, Audio and IP67 Protection

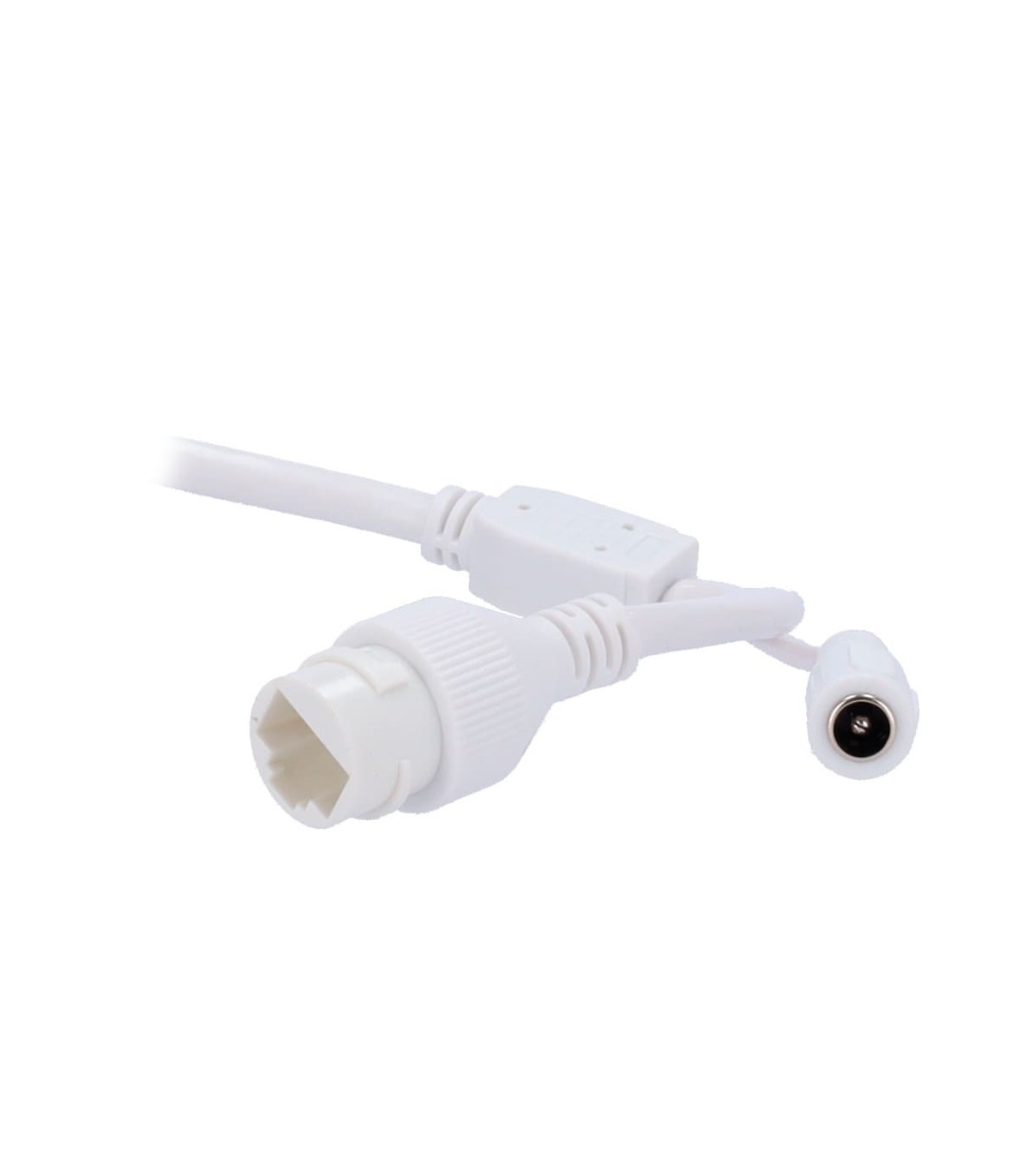

The camera features an integrated microphone for audio capture and supports PoE power, simplifying installation and integration into professional systems. PoE allows data and power to be transmitted through a single network cable, making camera deployment easier. Its metal housing with IP67 protection provides resistance to water and dust, allowing installation both indoors and outdoors with PoE.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand / Manufacturer | EASY-P |
| Model / Reference | EP-IPT220A-4 |
| Camera Type | IP Turret Camera with Artificial Intelligence |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixels (2688x1512) |
| Minimum Illumination | Colour: 0.03 Lux @(F1.6, AGC ON); 0 Lux with IR |
| Illumination Range | IR up to 25 m |
| Day / Night | Removable mechanical ICR filter |
| Electronic Shutter | 1/3 ~ 1/100000 s |
| Main Stream | 2688x1512@25fps, 2560x1440@30fps, 1920x1080@30fps, 1280x720@30fps |
| Extra Stream | 1280x720@30fps, 720x480@30fps |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / JPEG / AVI / MJPEG |
| Bitrate | 64 Kbps ~ 6 Mbps |
| Optics / Lens | Fixed 2.8 mm lens |
| Field of View (FOV) | H: 95°, V: 55°, D: 114° |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, mirror function, privacy mask |
| Motion Detection and UMD | Supports both functions |
| Intelligent Functions | Native support for Motion Detection 2.0 and UMD |
| Audio | Integrated microphone |
| Audio Compression | G711A / U, AAC |
| Network Interface | Ethernet 10 / 100M BaseT |
| Remote Access | Web Browser, APP |
| Interoperability | ONVIF, Plug & Play with Uniview and Hikvision |
| P2P Technology | Yes |
| Power Supply | DC 12 V / 9 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 |
| Material | Metal |
| Operating Temperature | -20 ºC ~ +60 ºC |
| Dimensions | 96 (Ø) x 90 (Height) mm |
| Weight | 800 g |
