EASY-P EP-IPT230ZA-5-DL - 5 MP Turret IP Camera with Motorized Lens, AI and Dual Illumination:
- 1/2.8" CMOS Sensor and 5 MP: Resolution up to 2616x1964 for detailed images and professional surveillance.
- 2.7 to 13.5 mm Motorized Lens: Allows remote adjustment of the viewing angle according to surveillance requirements.
- Artificial Intelligence: Intelligent person and vehicle detection for effective false alarm reduction.
- Dual Illumination and Audio: Up to 40 m IR, 30 m white light and integrated microphone.

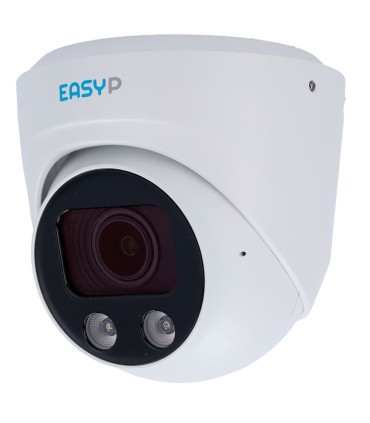

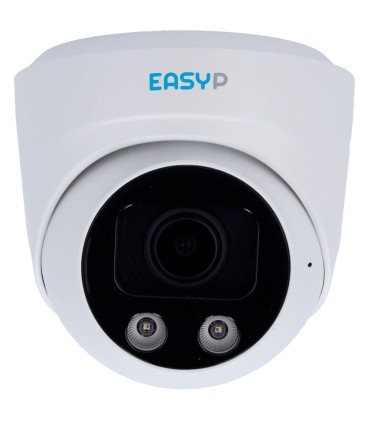

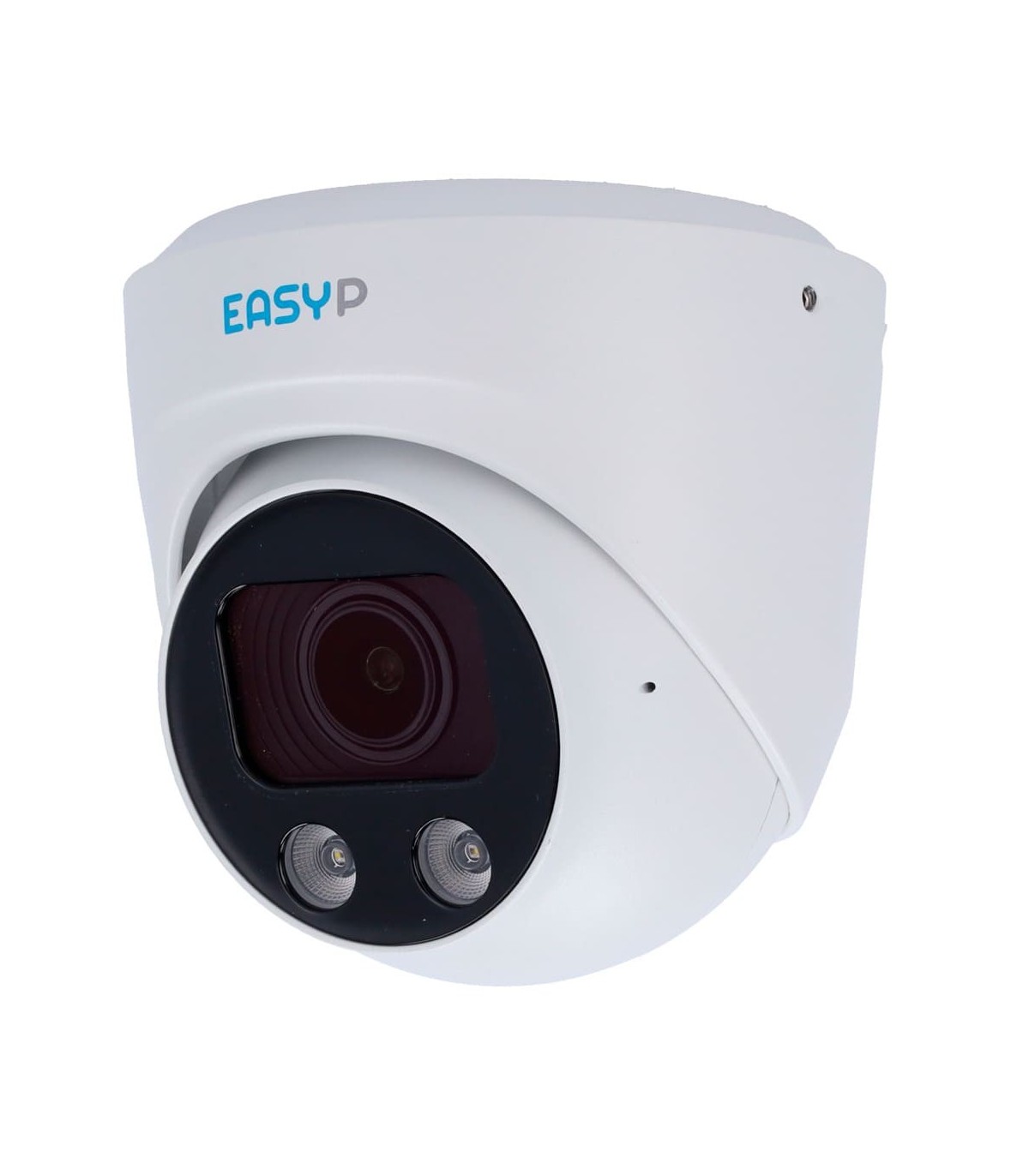

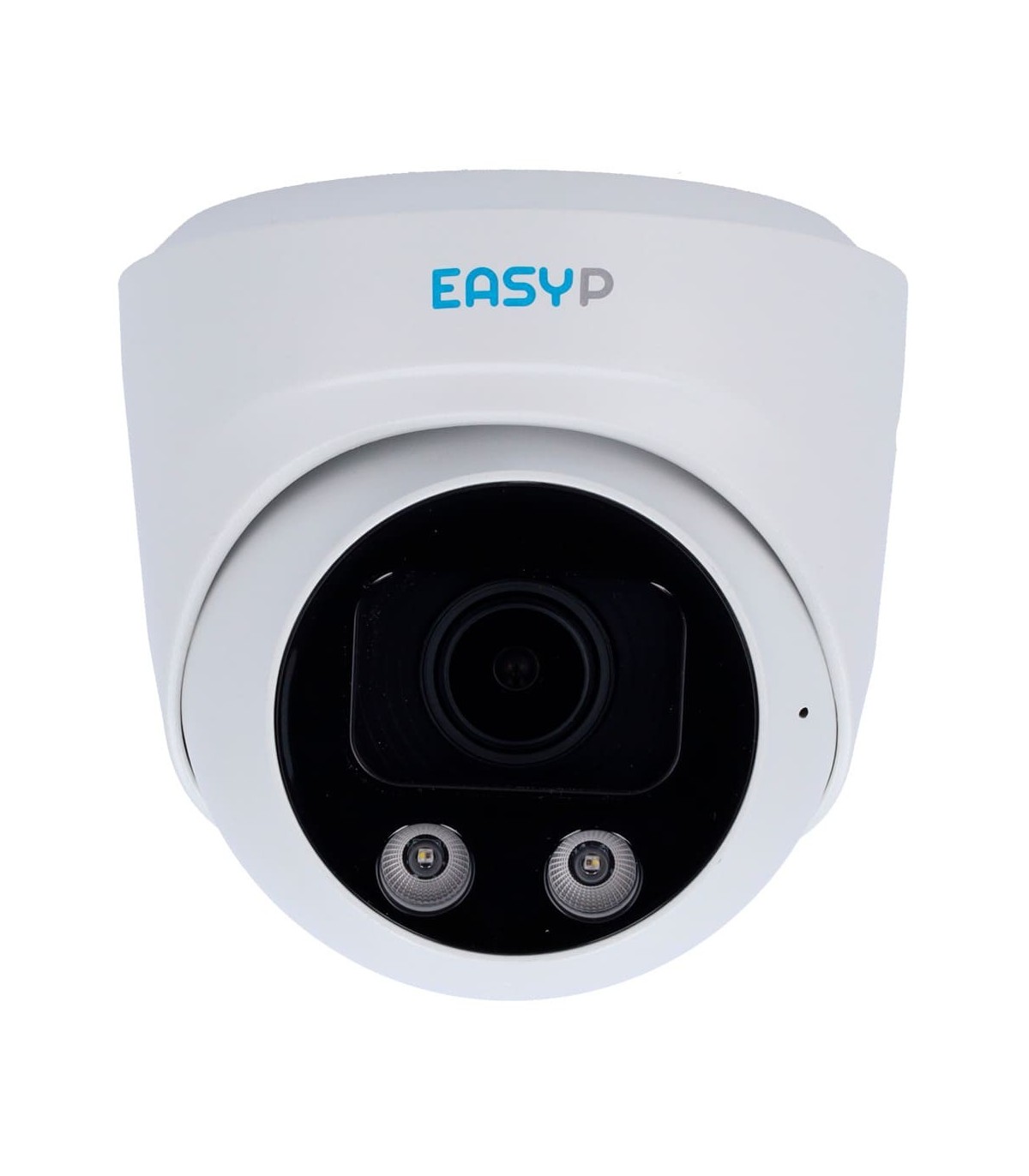

EASY-P EP-IPT230ZA-5-DL 5MP Turret IP Camera with Motorized Lens and AI
The EASY-P EP-IPT230ZA-5-DL is a professional 5-megapixel Turret IP camera designed for video surveillance applications requiring high image quality, installation flexibility and intelligent detection.
Motorized Lens and Flexible Framing
The camera features a 2.7 to 13.5 mm motorized varifocal lens, allowing the viewing angle to be adjusted remotely according to the surveillance area.
Artificial Intelligence and False Alarm Reduction
The EASY-P EP-IPT230ZA-5-DL incorporates Artificial Intelligence functions for identifying people and vehicles, effectively reducing false alarms.
Dual Illumination and Night Vision
The illumination technology combines up to 40 metres of infrared with up to 30 metres of white light. The mechanical ICR filter provides automatic day/night switching.
Robust Construction and Connectivity
Its IP67-rated metal housing provides resistance for outdoor installations. The camera also features an integrated microphone, ONVIF, P2P and IEEE 802.3af PoE power.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand / Manufacturer | EASY-P |
| Model / Reference | EP-IPT230ZA-5-DL |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 5 Megapixel (2616x1964) |
| Minimum Illumination | Colour: 0.03 Lux @(F1.6, AGC ON); 0 Lux with IR |
| Lens | Motorized varifocal 2.7 to 13.5 mm |
| Viewing Angle (FOV) | H: 103~29°, V: 54~16°, D: 124~33° |
| IR Range | Up to 40 m |
| White Light Range | Up to 30 m |
| Day / Night | Removable mechanical ICR filter |
| Electronic Shutter | 1/3~1/100000 s |
| Main Stream Rate | 2592x1944@30fps; 2560x1440@30fps; 1920x1080@30fps; 1280x720@30fps |
| Extra Stream Rate | 1280x720@30fps; 720x480@30fps |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / JPEG / AVI / MJPEG |
| Bitrate | 64 Kbps ~ 6 Mbps |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask |
| Motion Detection and UMD | Supports both functions |
| Smart Features | Native support for Motion Detect 2.0 and UMD |
| Artificial Intelligence | Person and/or vehicle detection; intrusion and motion detection |
| Audio | Integrated microphone |
| Audio Compression | G711A / U, AAC |
| Network Interface | Ethernet 10 / 100M BaseT |
| Remote Access | Web Browser, APP |
| Interoperability | ONVIF, Plug & Play with Uniview and Hikvision |
| P2P Technology | Yes |
| Power Supply | DC 12 V / 12 W max. / IEEE802.3af PoE |
| Protection Rating | IP67 |
| Material | Metal |
| Operating Temperature | -20 ºC ~ +60 ºC |
| Dimensions / Weight | 268 x 95 x 88 mm / 600 g |
