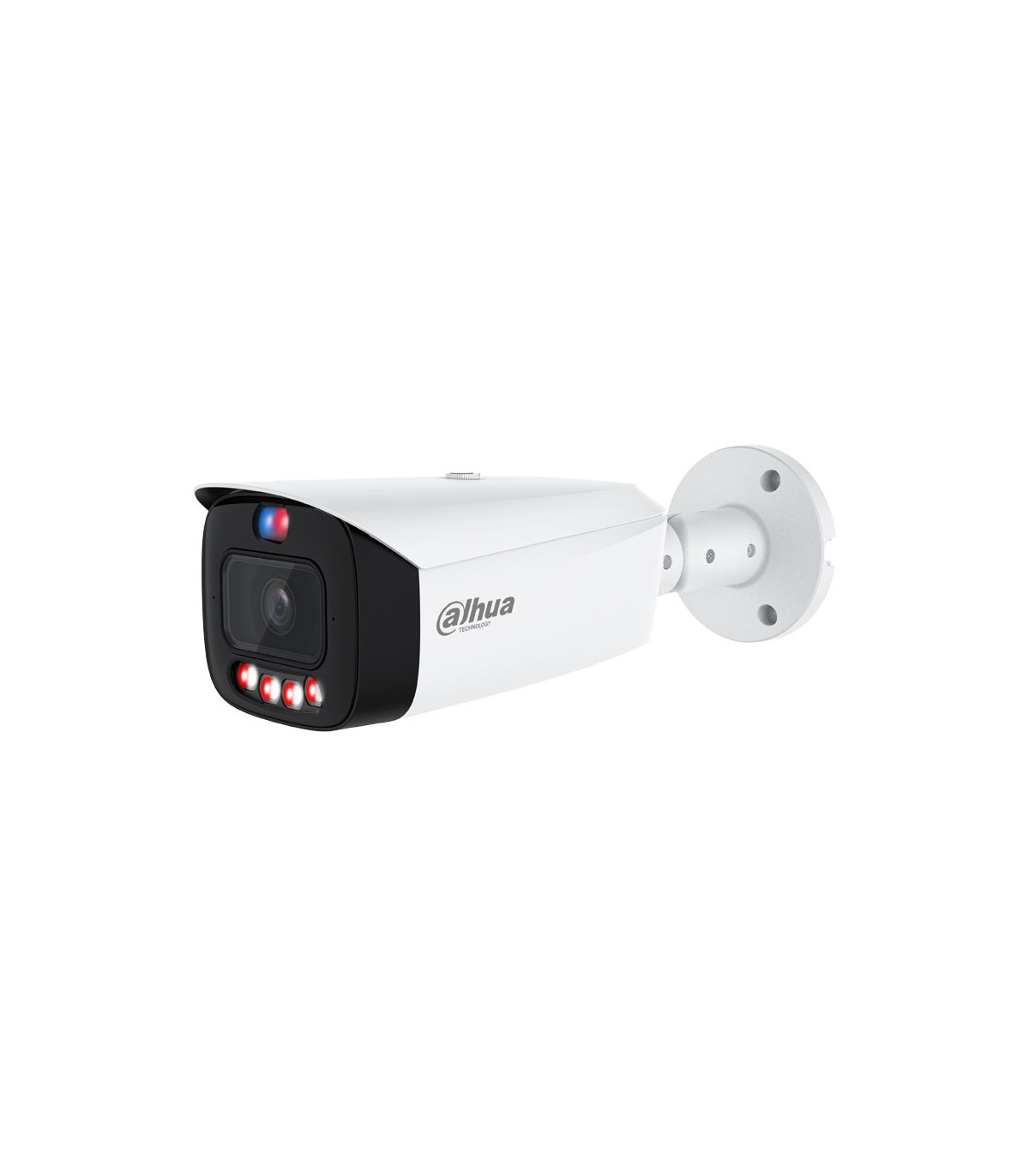

IPC-HFW3649T1-AS-PV-PRO - 6MP TiOC PRO Bullet IP Camera 2.8mm

IPC-HFW3649T1-AS-PV-PRO - 6MP TiOC PRO WizColor Bullet IP Camera 2.8mm

The IPC-HFW3649T1-AS-PV-PRO is a Dahua 6MP TiOC PRO WizColor Bullet IP camera with a fixed 2.8mm F1.0 lens, designed for professional video surveillance systems requiring high resolution, intelligent analytics and active deterrence. It integrates WizColor, Smart Dual Light, Artificial Intelligence, SMD 4.0, AcuPick, face detection, two-way audio, Micro SD storage up to 512 GB, PoE+ and IP67 protection.

IPC-HFW3649T1-AS-PV-PRO with 6MP resolution

The IPC-HFW3649T1-AS-PV-PRO uses a 1/1.8" CMOS sensor and provides a maximum resolution of 3288 × 1850. Its 6MP resolution delivers a higher level of detail and is suitable for applications requiring more precise monitoring of people, vehicles, entrances, perimeters and other areas of interest.

WizColor with F1.0 aperture

WizColor technology, combined with the large F1.0 aperture, allows more light to reach the sensor and improves image quality in low-light conditions. The camera can therefore maintain clear and detailed images in challenging lighting environments.

Fixed 2.8mm lens with 109° field of view

The fixed 2.8mm lens provides a 109° horizontal, 59° vertical and 131° diagonal field of view. The minimum focus distance is 3.2 m, making this version suitable for entrances, façades, car parks, perimeters and other wide areas.

TiOC PRO with active deterrence

TiOC PRO combines intelligent analysis with active deterrence mechanisms. The IPC-HFW3649T1-AS-PV-PRO features red and blue warning lights and an audible alarm, enabling visual and acoustic responses to configured security events.

Smart Dual Light with IR 60m and warm light 50m

Smart Dual Light combines infrared illumination and visible light. The camera provides IR up to 60m and warm light up to 50m, allowing illumination to adapt to the situation and providing more complete visual information at night.

Artificial Intelligence for people and vehicles

The IPC-HFW3649T1-AS-PV-PRO uses Deep Learning algorithms to improve human and vehicle classification. IVS perimeter protection includes intrusion and tripwire functions with accurate human and vehicle classification, as well as stay detection and loitering detection.

SMD 4.0

The camera integrates SMD 4.0, an intelligent motion detection technology that helps distinguish relevant targets and enables more efficient management of video surveillance events.

AcuPick for intelligent search

AcuPick uses Deep Learning and works with compatible Dahua devices to quickly locate targets such as people and vehicles in live video and recordings.

Face detection

The IPC-HFW3649T1-AS-PV-PRO supports full-frame face detection, including capture, snapshot optimisation, face enhancement, angle filtering and different capture strategies for professional video surveillance applications.

AI SSA

AI SSA uses Deep Learning algorithms to automatically adjust image parameters according to scene conditions, helping maintain more consistent image quality across different environments.

120 dB WDR

120 dB WDR helps balance bright and dark areas within the same image. The camera also supports BLC, HLC, 3D NR, Defog, SSA, ROI, LDC and privacy masking for up to 8 areas.

Two-way audio with two microphones and speaker

The IPC-HFW3649T1-AS-PV-PRO integrates two built-in microphones and a speaker, enabling real-time two-way audio communication. It also includes one RCA audio input and one RCA audio output for integration with external devices.

H.265, Smart H.265+ and AI Coding

The camera supports H.265, H.264, H.264H, H.264B and MJPEG, together with AI H.265 and AI H.264. It also includes Smart H.265+ and Smart H.264+ to optimise bandwidth and storage use.

Three video streams

The IPC-HFW3649T1-AS-PV-PRO supports 3 video streams. The Main Stream can transmit the maximum 3288 × 1850 resolution at up to 25/30 fps, while the secondary streams can reach 1920 × 1080 at up to 25/30 fps.

Micro SD up to 512 GB

The camera supports a Micro SD card up to 512 GB, as well as storage via FTP, SFTP and NAS. Local storage can be used directly on the camera or as a complement to an NVR system.

ONVIF for professional integration

The IPC-HFW3649T1-AS-PV-PRO supports ONVIF Profile S, Profile G, Profile T and Profile M, together with CGI, facilitating integration with compatible recorders, platforms and video surveillance systems.

Audio and alarm inputs and outputs

The camera includes 1 RCA audio input and 1 RCA audio output, together with 1 alarm input and 1 alarm output, enabling integration with sensors, external devices and active response systems.

PoE+ or 12 VDC power supply

The IPC-HFW3649T1-AS-PV-PRO can be powered by 12 VDC or PoE+ IEEE 802.3at. It also supports Dual Power Backup, allowing operation to continue when one of the two power sources is disconnected while both were active.

IP67 protection

The IPC-HFW3649T1-AS-PV-PRO features IP67 protection against water and dust and operates from -40 °C to +60 °C, making it suitable for professional indoor and outdoor installations.
