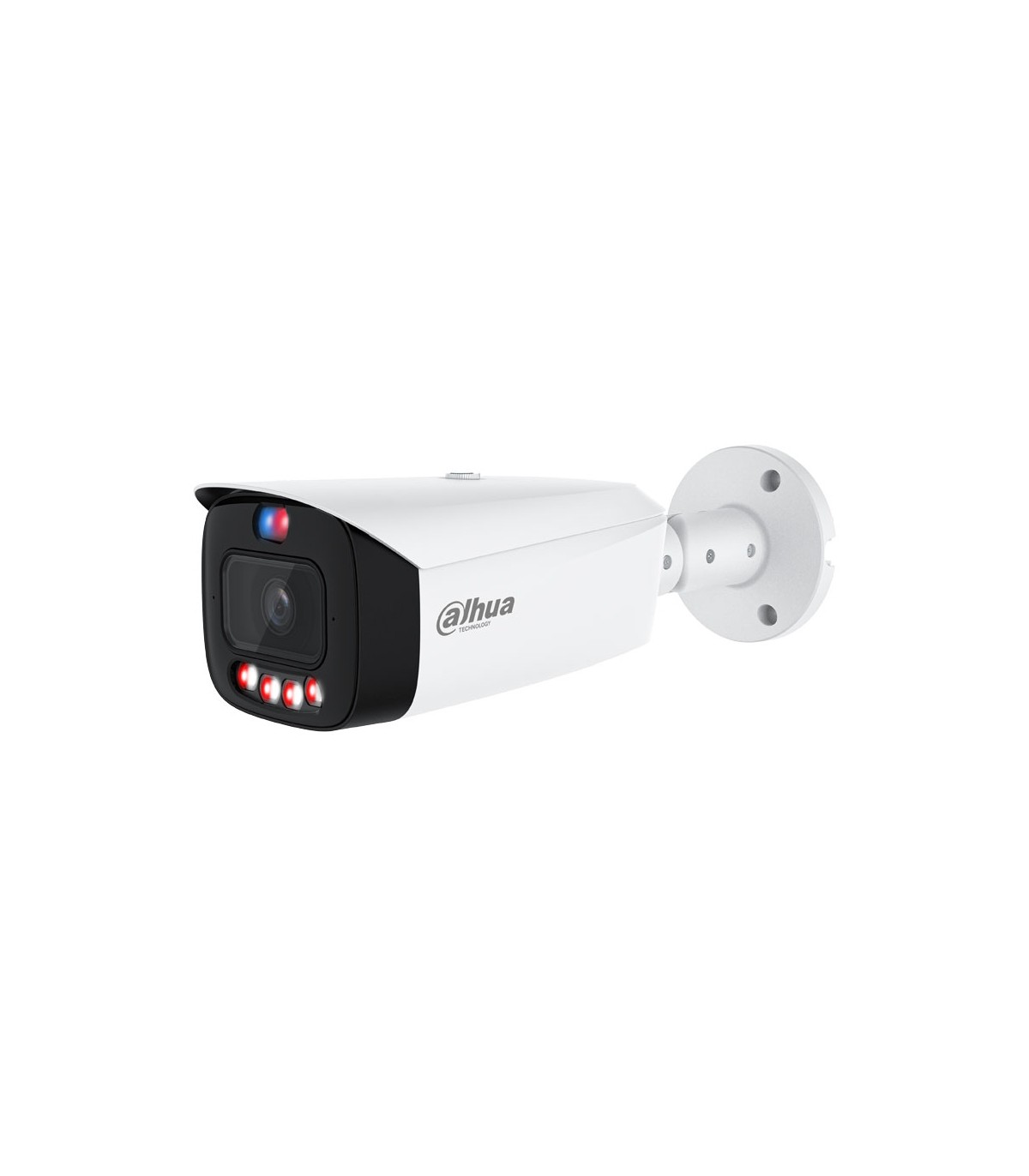

IPC-HFW3449T1-AS-PV-PRO - 4MP TiOC PRO Bullet IP Camera 2.8mm

IPC-HFW3449T1-AS-PV-PRO - 4MP TiOC PRO WizColor Bullet IP Camera 2.8mm

The IPC-HFW3449T1-AS-PV-PRO is a Dahua 4MP TiOC PRO WizColor Bullet IP camera with a fixed 2.8mm F1.0 lens, designed for professional video surveillance systems that require high image quality, intelligent analytics and active deterrence. It integrates WizColor, Smart Dual Light, Artificial Intelligence, SMD 4.0, AcuPick, face detection, two-way audio, Micro SD storage up to 512 GB, PoE+ and IP67 protection.

IPC-HFW3449T1-AS-PV-PRO with 4MP resolution

The IPC-HFW3449T1-AS-PV-PRO uses a 1/1.8" CMOS sensor and provides a maximum resolution of 2688 × 1520. The combination of the large sensor and F1.0 aperture helps deliver detailed, high-quality images even in low-light environments.

WizColor with F1.0 aperture

WizColor technology is designed to provide high image quality in low-light conditions. The large F1.0 aperture allows more light to reach the sensor, helping produce clearer and more detailed images in challenging lighting environments.

Fixed 2.8mm lens with 111° field of view

The fixed 2.8mm lens provides a wide 111° horizontal, 60° vertical and 135° diagonal field of view. The minimum focus distance is 2.0 m, making this variant suitable for monitoring entrances, façades, car parks, perimeters and other wide areas.

TiOC PRO with active deterrence

TiOC PRO combines intelligent video analysis with active deterrence functions. The IPC-HFW3449T1-AS-PV-PRO includes red and blue warning lights and an audible alarm, providing visual and acoustic responses to configured security events.

Smart Dual Light with IR 60m and warm light 50m

Smart Dual Light provides intelligent illumination using both infrared and visible light. The camera offers IR up to 60m and warm light up to 50m, allowing the lighting mode to adapt to the scene and provide more complete visual information at night.

Artificial Intelligence for people and vehicles

The IPC-HFW3449T1-AS-PV-PRO uses Deep Learning algorithms to improve the classification of people and vehicles. IVS perimeter protection includes intrusion and tripwire functions with accurate human and vehicle classification, as well as stay detection and loitering detection.

SMD 4.0

The camera integrates SMD 4.0, an intelligent motion detection technology that complements the analytical capabilities of the IPC-HFW3449T1-AS-PV-PRO and enables more efficient management of video surveillance events.

AcuPick for intelligent search

AcuPick uses Deep Learning algorithms and works with compatible Dahua back-end devices to quickly locate targets such as people and vehicles in live video and recordings. This functionality significantly simplifies the search for relevant events.

Face detection

The IPC-HFW3449T1-AS-PV-PRO supports full-frame face detection, including capture, snapshot optimisation, face enhancement, angle filtering and multiple capture strategies, providing additional functionality for professional video surveillance applications.

Xinghan Vision Models

The IPC-HFW3449T1-AS-PV-PRO integrates Xinghan Vision Models, technology designed to improve overall target detection and image processing capabilities, strengthening the performance of the camera's intelligent functions.

120 dB WDR for high-contrast scenes

120 dB WDR helps balance bright and dark areas within the same image. The camera also supports BLC, HLC, 3D NR noise reduction, Defog, SSA and gain control to adapt image performance to different lighting conditions.

Two-way audio with two microphones and speaker

The IPC-HFW3449T1-AS-PV-PRO integrates two built-in microphones and a speaker, enabling real-time two-way audio communication. It also includes one RCA audio input and one RCA audio output for integration with external equipment.

H.265, Smart H.265+ and AI Coding

The camera supports H.265, H.264, H.264H, H.264B and MJPEG video compression, as well as AI H.265 and AI H.264. Smart H.265+ and Smart H.264+ are also supported to optimise bandwidth and storage usage.

Three video streams

The IPC-HFW3449T1-AS-PV-PRO supports 3 video streams. The Main Stream can transmit the maximum 2688 × 1520 resolution at up to 25/30 fps, while the additional streams allow resolution and transmission settings to be adapted to system requirements.

Micro SD up to 512 GB

The camera supports a Micro SD card up to 512 GB, as well as storage via FTP, SFTP and NAS. Local storage allows recordings to be kept directly on the camera or used as a complement to an NVR system.

ONVIF for professional integration

The IPC-HFW3449T1-AS-PV-PRO supports ONVIF Profile S, Profile G, Profile T and Profile M, together with CGI, facilitating integration with compatible recorders, platforms and professional video surveillance solutions.

Alarm input and output

The camera includes 1 alarm input and 1 alarm output, allowing integration with external sensors and devices. This capability complements the TiOC PRO functions and enables more complete security system configurations.

PoE+ or 12 VDC power supply

The IPC-HFW3449T1-AS-PV-PRO can be powered by 12 VDC or PoE+ IEEE 802.3at. It also supports Dual Power Backup, maintaining operation when one of the two power sources is disconnected while both were active.

IP67 protection for outdoor environments

The IPC-HFW3449T1-AS-PV-PRO features IP67 protection and operates from -40 °C to +60 °C. Its metal and plastic construction provides suitable durability for professional indoor and outdoor installations.
