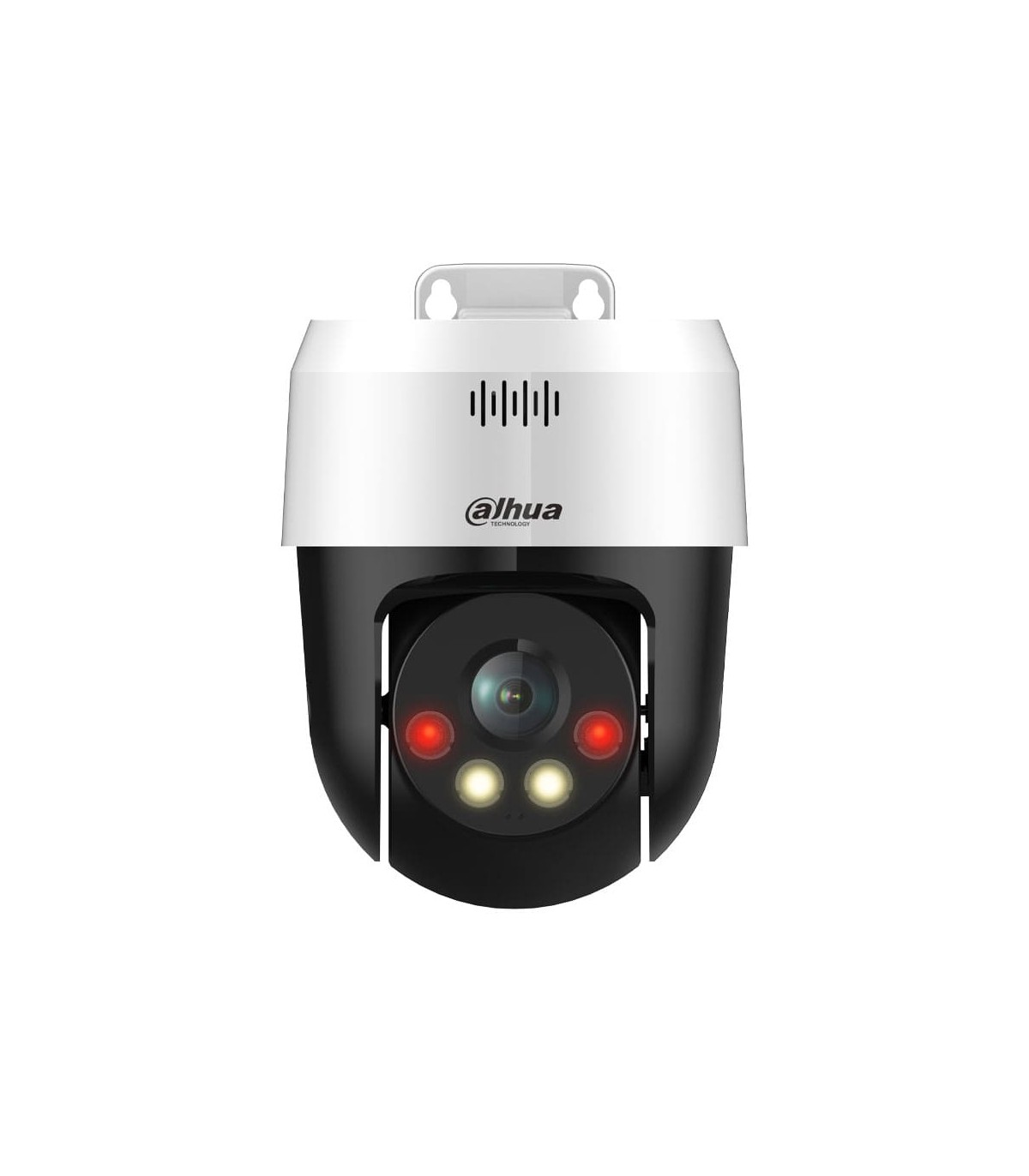

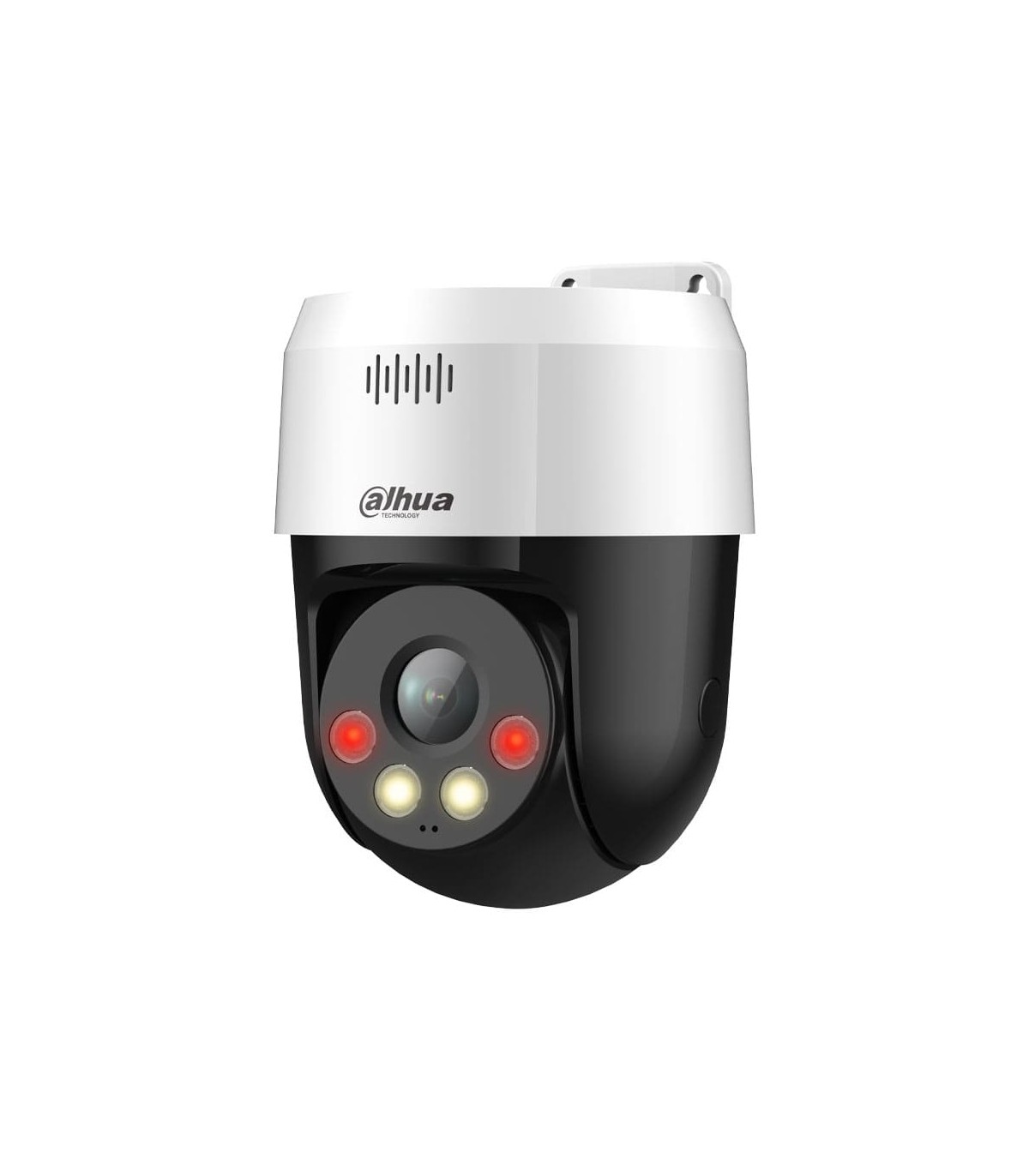

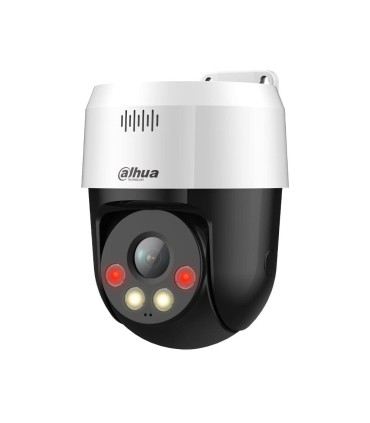

SD2A500NB-GNY-A-PV - 5MP Pan&Tilt IP Dome for outdoor use

1/2.8" Sony Starvis™ 5-megapixel CMOS image sensor

Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG video compression

Resolution: 5MP (2560x1920), 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)

Stream 1: 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P (1~25/30 ips)

Stream 2: D1, VGA, CIF (1~25/30 fps)

Day/Night mode with removable mechanical filter

0.05 lux F1.6 (color), 0.005 lux F1.6 (B/W), 0 lux IR On

Smart Light: 2 IR leds + 2 white light leds, up to 30 meters

4 mm fixed optics

Angle of view: 80.4°(H), 58.1°(V), 104.8°(D)

Imaging modes: BLC, HLC, digital WDR, 2D/3D-NR, electronic Defog

White balance with 8 modes

Automatic and manual gain control

Supports videosensor and regions of interest

Cross-line and intrusion detection

People detection

SMD 3.0

Horizontal positioner: 0° ~ 345°.

Vertical positioner: 0° ~ 80°

Manual speed: 0.1° ~ 74°/sec (H), 0.1° ~ 36.4°/sec (V)

Preset speed: 62°/sec (H), 36.3°/sec (V)

300 presets

Built-in microphone and speaker

Built-in active deterrent with white light flash and voice alarm siren

MicroSD card slot up to 256GB (card not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: UDP, FTP, RTMP, IPv6, IPv4, IP Filter, DNS, RTCP, HTTP, NTP, SSL, DHCP, RTP, SMTP, HTTPS, TCP/IP, RTSP, DDNS, ARP

ONVIF S/T, CGI, SDK support

Compatible with IOS and Android devices

Compatible with IE, Chrome, Firefox, Safari browsers

Up to 20 users

Management software Player, Smart Player, DMSS, ConfigTool, NVR, Smart PSS

Power: 12V DC (±10%), 1.5A / PoE (802.3af)

Power consumption: 3.5W (basic), 9W (maximum)

Operating Temperature: -30°C ~ +55°C

Operating relative humidity ≤95%.

Degree of protection IP66

Dimensions: Ø111 x 140.5 mm

Net weight: 500 g

Gross weight: 1 kg
