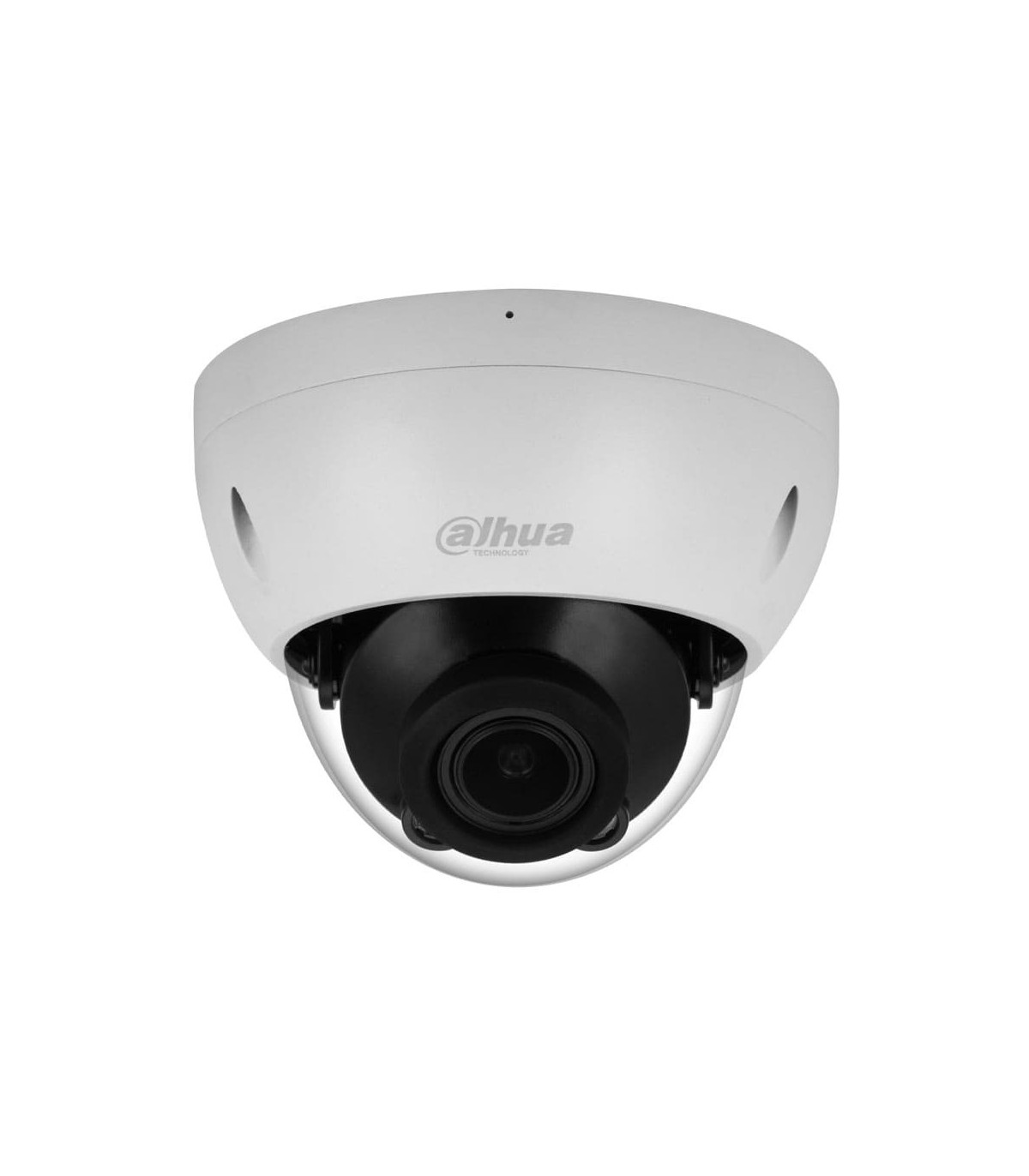

IPC-HDBW2441R-ZS - 4MP WizSense IP Dome Camera 2.7–13.5 mm

IPC-HDBW2441R-ZS - 4MP WizSense IP Dome Camera 2.7–13.5 mm IR 40 m

The IPC-HDBW2441R-ZS is a professional 4MP IP Dome camera from Dahua, belonging to the WizSense series. Equipped with a 2.7–13.5 mm motorized varifocal lens, IR illumination up to 40 m and Deep Learning-based artificial intelligence, it provides a robust solution for professional video surveillance systems.

High-resolution 4MP imaging

The IPC-HDBW2441R-ZS uses a 1/2.9" CMOS sensor and provides a maximum resolution of 4MP (2688 × 1520) at up to 20 fps. It also supports 2560 × 1440 at up to 25/30 fps, delivering detailed images for different security scenarios.

2.7–13.5 mm motorized varifocal lens

The 2.7–13.5 mm motorized varifocal lens allows the framing to be adjusted remotely according to installation requirements. It features a maximum aperture of F1.5 and provides an adjustable field of view of 104°–29° horizontal, 54°–16° vertical and 125°–34° diagonal.

IR night vision up to 40 m

The IPC-HDBW2441R-ZS integrates 2 IR LEDs with a maximum infrared illumination range of 40 m, helping maintain effective surveillance in low-light or dark environments.

WizSense AI with people and vehicle classification

WizSense technology uses Deep Learning algorithms for accurate classification and detection of people and vehicles. This capability helps focus analysis on relevant targets and improves the efficiency of the video surveillance system.

Intelligent perimeter protection

The IPC-HDBW2441R-ZS supports intelligent intrusion and tripwire functions with accurate people and vehicle classification and detection, making it suitable for perimeter security and controlled access areas.

120 dB WDR and image processing

120 dB WDR improves visibility in environments with strong differences between bright and dark areas. The camera also incorporates 3D NR, BLC and HLC, helping provide more balanced and detailed images.

Built-in microphone

The IPC-HDBW2441R-ZS features a built-in microphone for real-time audio capture, complementing video information in professional security systems.

Micro SD storage up to 256 GB

The camera supports Micro SD cards up to 256 GB, allowing local recording storage. It also supports storage via FTP and SFTP.

PoE and ONVIF compatibility

Power can be supplied through 12 VDC or IEEE 802.3af PoE, simplifying installation by using a single network cable for both power and data transmission. ONVIF Profile S, G and T compatibility facilitates integration of the IPC-HDBW2441R-ZS into professional video surveillance systems.

IP67 and IK10 protection

The metal construction of the IPC-HDBW2441R-ZS provides IP67 protection against water and dust together with IK10 vandal resistance, making the camera particularly suitable for professional indoor and outdoor installations requiring increased durability.
