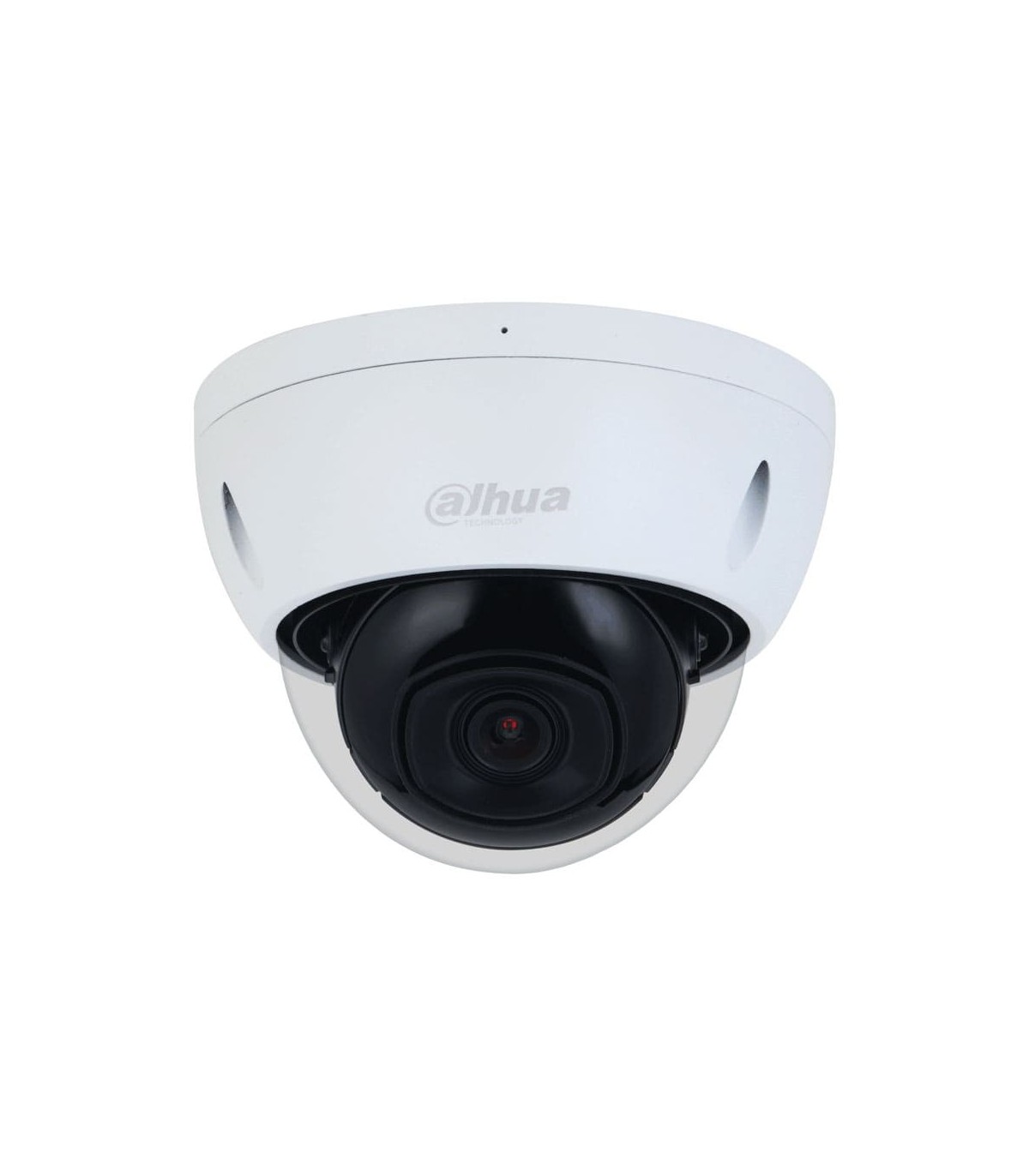

IPC-HDBW2841E-S - 8MP WizSense IP Dome Camera 2.8 mm IR 30 m

IPC-HDBW2841E-S - 8MP WizSense IP Dome Camera 2.8 mm IR 30 m

The IPC-HDBW2841E-S is a professional 8MP IP Dome camera from Dahua, belonging to the WizSense series. It combines high image resolution, a 2.8 mm fixed lens, infrared illumination, intelligent Deep Learning functions and high physical protection, making it suitable for professional video surveillance systems.

8MP Ultra HD imaging

The IPC-HDBW2841E-S uses a 1/2.7" CMOS sensor and provides a maximum resolution of 8MP (3840 × 2160) at up to 20 fps. It also supports 2688 × 1520 at up to 25/30 fps, delivering detailed images for different security scenarios.

2.8 mm fixed lens with wide field of view

This version of the IPC-HDBW2841E-S is equipped with a 2.8 mm fixed lens and F2.0 maximum aperture. It provides a field of view of 106° horizontal, 56° vertical and 125° diagonal, allowing wide coverage of the monitored area.

IR night vision up to 30 m

The IPC-HDBW2841E-S integrates 3 IR LEDs with a maximum range of 30 m. Infrared illumination helps maintain effective surveillance at night and in low-light environments.

WizSense AI with people and vehicle classification

WizSense technology uses Deep Learning-based functions to improve security event analysis. Within perimeter protection functions, the IPC-HDBW2841E-S supports accurate classification and detection of people and vehicles, helping identify relevant targets.

Intelligent perimeter protection

Intelligent functions include intrusion and tripwire, both supporting accurate classification and detection of people and vehicles. This capability improves surveillance efficiency in professional installations.

120 dB WDR and advanced image processing

120 dB WDR helps balance bright and dark areas in scenes with strong lighting contrasts. The camera also incorporates 3D NR, HLC and BLC, helping improve image quality and visibility.

Built-in microphone

The IPC-HDBW2841E-S features a built-in microphone for real-time audio capture, complementing video information in professional surveillance systems.

Micro SD storage up to 256 GB

The camera supports local storage via a Micro SD card up to 256 GB, as well as FTP, SFTP and NAS storage options.

PoE and ONVIF compatibility

Power can be supplied through 12 VDC or IEEE 802.3af PoE. Compatibility with ONVIF Profile S, Profile G and Profile T facilitates integration with different professional video surveillance systems.

IP67 protection and IK10 impact resistance

The IPC-HDBW2841E-S features IP67 and IK10 protection ratings, providing resistance against water and dust as well as high impact resistance.
