KTD01L(F) - Dahua 2-Wire IP Video Intercom Kit 2MP 7" Flush Mount

KTD01L(F) - Dahua 2-Wire IP Video Intercom Kit 2MP 7" Flush Mount

The KTD01L(F) is a Dahua 2-wire IP video intercom kit for residential and professional installations. This version uses the VTM114 box for flush mounting the outdoor station.

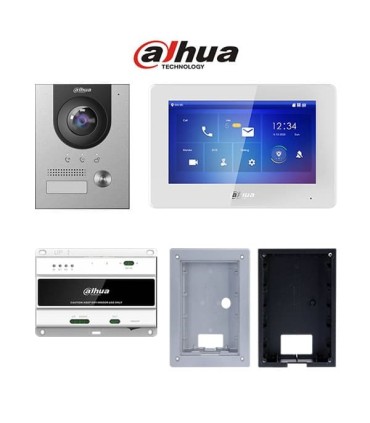

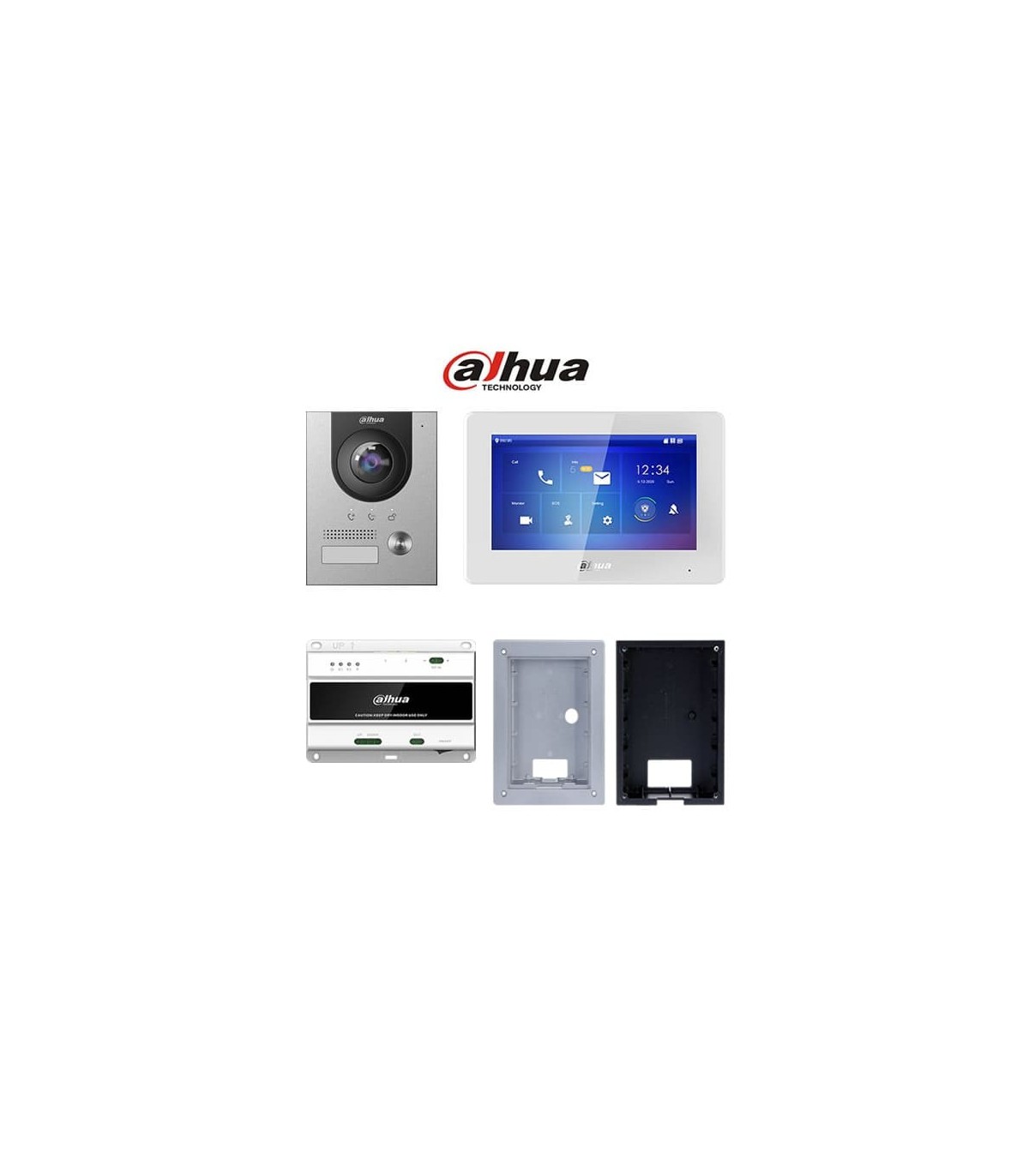

The kit includes the VTO2202F-P-S2, the VTH5422HW indoor monitor and the VTNS1001B-2 network device. It also includes the VTM114 for recessed installation of the VTO.

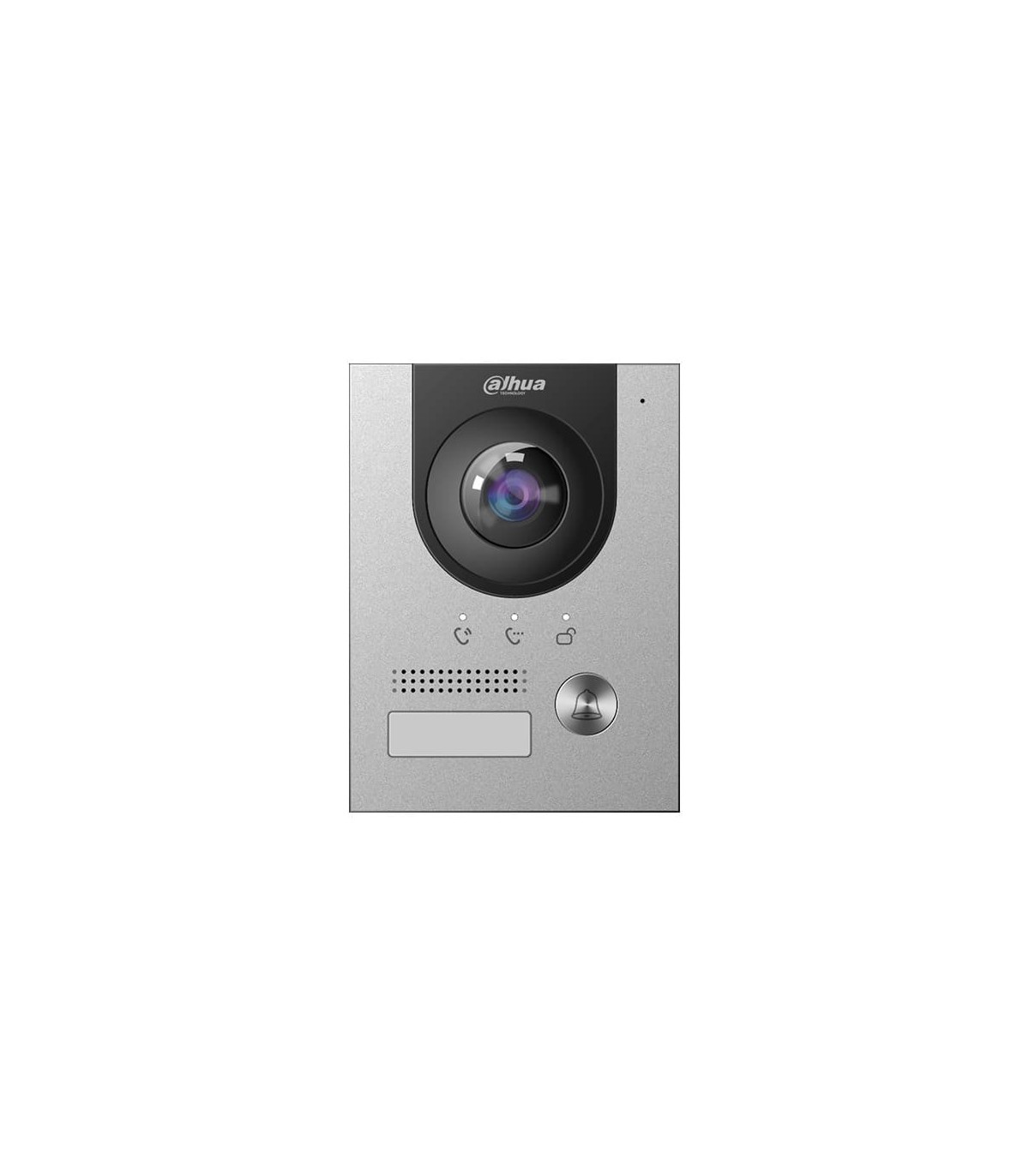

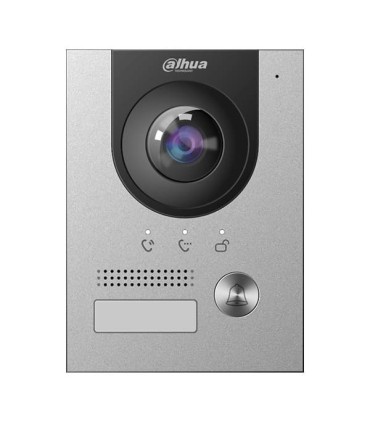

VTO2202F-P-S2 outdoor station with 2MP camera

The outdoor station features a 2MP CMOS camera with a wide field of view. It provides 168.6° horizontal, 87.1° vertical and 176.7° diagonal viewing angles.

120 dB WDR improves image performance in scenes with strong differences in lighting. 3D noise reduction and automatic IR help maintain suitable image quality during both day and night.

H.265/H.264 compression optimises video transmission over the network. The VTO also supports ONVIF and CGI for integration with compatible systems.

Digital 2-wire IP communication

The KTD01L(F) uses digital 2-wire communication. This technology simplifies installation and can be particularly useful when upgrading existing systems.

The system combines a 2-wire connection with IP connectivity. This allows the video intercom functions to be integrated into a compatible network infrastructure.

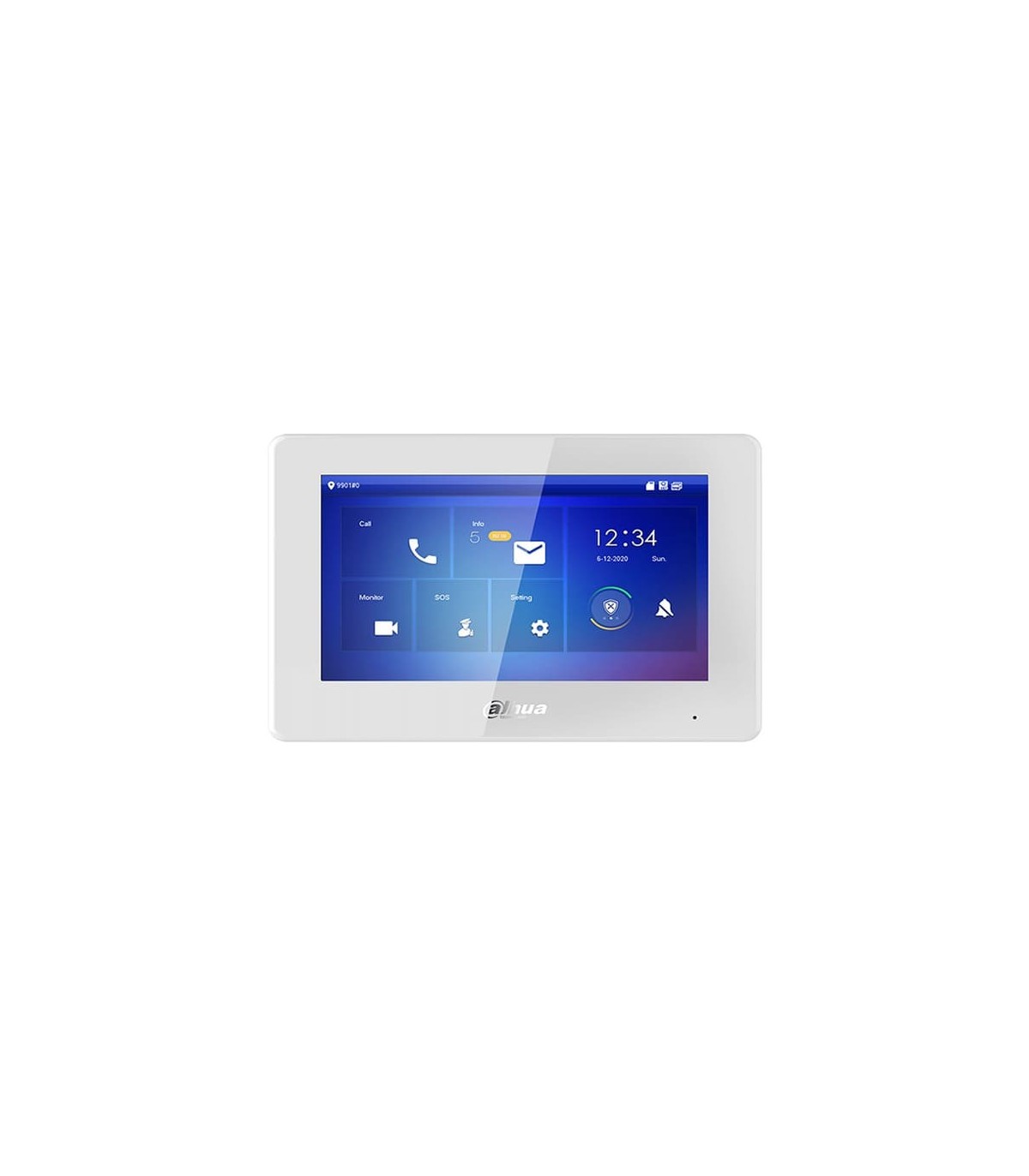

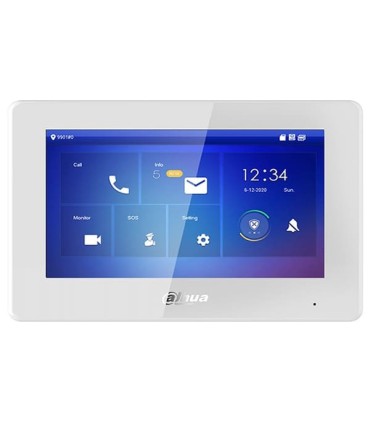

7" VTH5422HW touchscreen monitor

The VTH5422HW indoor monitor features a 7" TFT capacitive touchscreen. Its 1024 × 600 resolution provides a clear view of visitors.

The monitor supports two-way audio communication and video intercom control. It can also receive and display text information sent from the management centre.

For villa installations, it supports up to 4 extensions. For apartment installations, it supports up to 3 extensions.

VTNS1001B-2 for 2-wire connection

The system includes the VTNS1001B-2, designed for Dahua digital 2-wire infrastructure. This device allows the video intercom system to be connected to the network.

The VTNS1001B-2 provides a 2-wire connection and an Ethernet interface. Its integration completes the communication architecture of the kit.

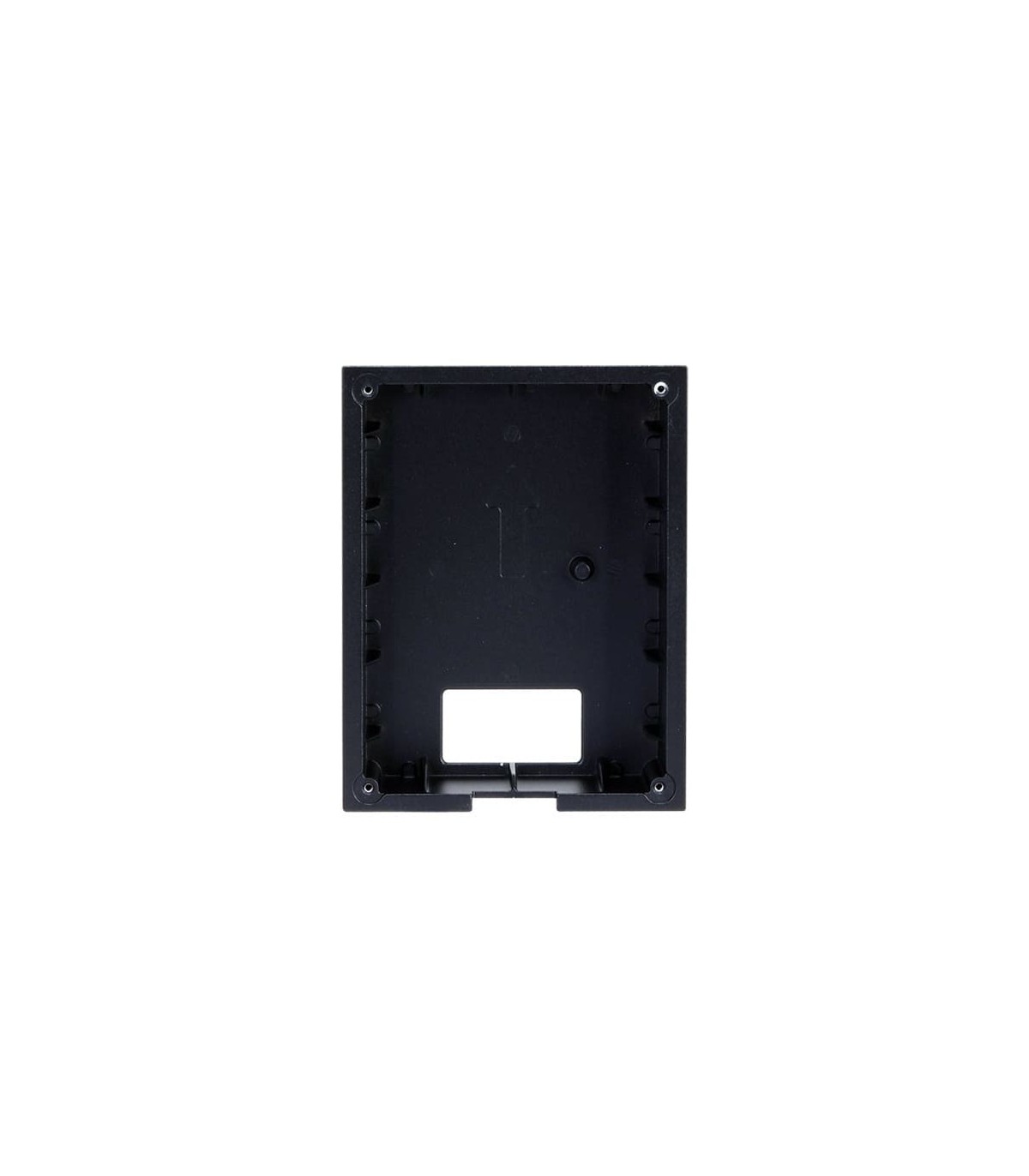

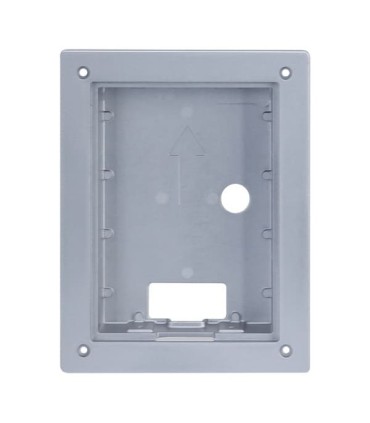

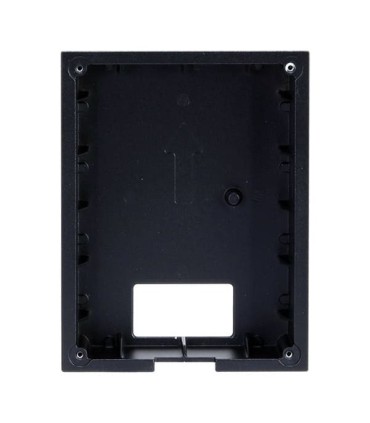

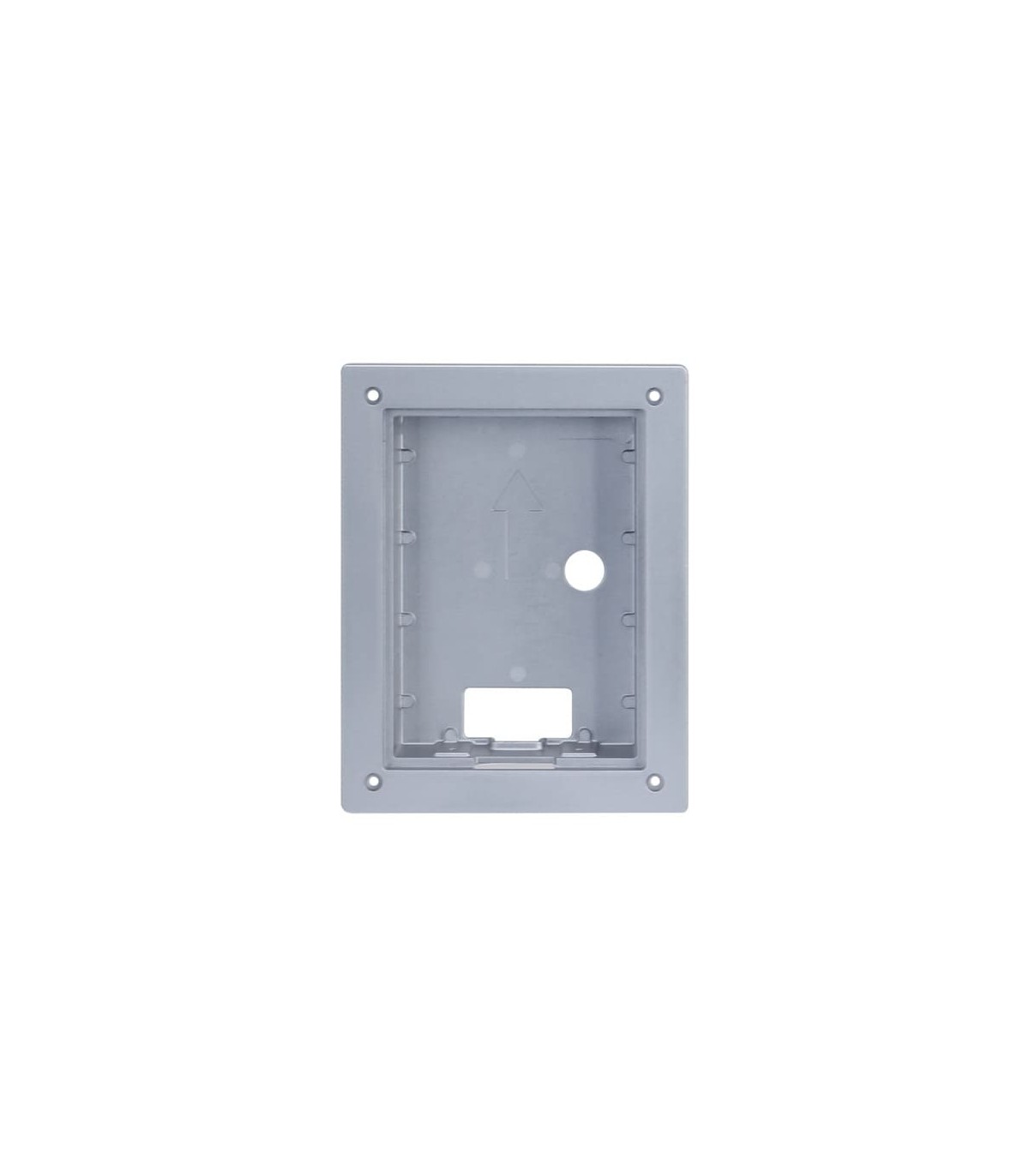

VTM114 for flush mounting

The KTD01L(F) version includes the VTM114 box for flush mounting the outdoor station. The VTM114 is manufactured from ADC12 and is designed for recessed installation in the wall.

The front section measures 128.9 × 162.9 × 34.5 mm. The rear section measures 123 × 157 × 35 mm.

The wall opening must be larger than 113 × 149 × 35 mm and smaller than 123 × 157 × 35 mm.

Two-way audio and App management

The system provides two-way audio communication between the outdoor station and indoor monitor. Echo suppression and digital noise reduction help improve communication quality.

App management adds greater flexibility to the video intercom system. Users can access compatible system functions from a mobile device.

Micro SD storage

The outdoor station supports Micro SD cards up to 256 GB. The VTH5422HW indoor monitor also supports Micro SD storage up to 64 GB.

IP65 and IK07 protection

The VTO2202F-P-S2 features a metal housing and is designed for outdoor use. Its IP65 and IK07 ratings provide suitable protection for this type of installation.

The outdoor station operates between -30 °C and +60 °C. On the KTD01L(F) version, installation is carried out as a flush mount using the VTM114 box.

Complete 2-wire IP video intercom solution

The KTD01L(F) combines a 2MP camera, 7" touchscreen monitor and digital 2-wire communication. It also provides two-way audio, IP connectivity, App management and VTM114 flush mounting.
