The KTD01L(S) is a Dahua 2-wire IP video intercom kit for residential and professional installations. This version uses the VTM115 box for surface mounting the outdoor station.

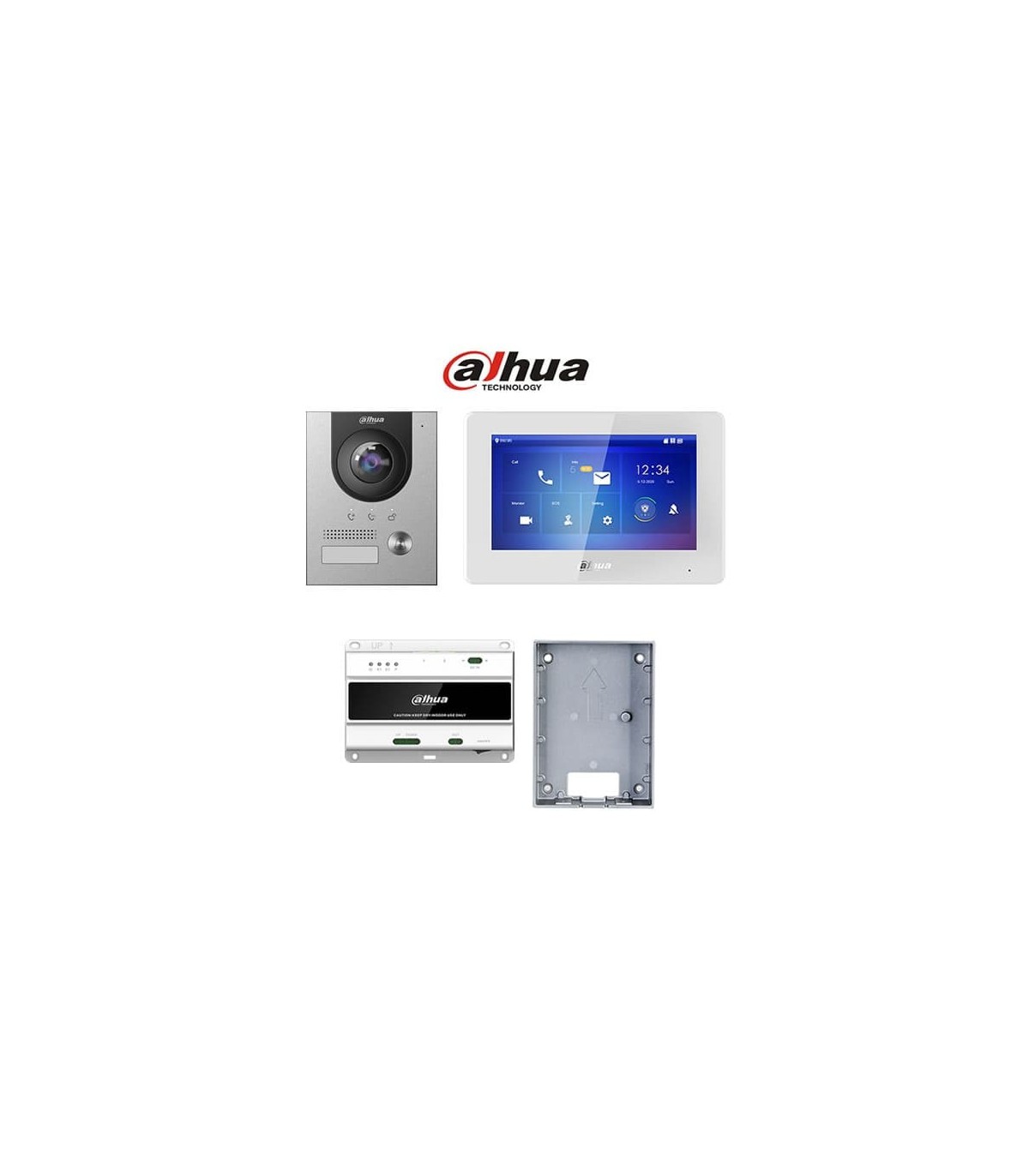

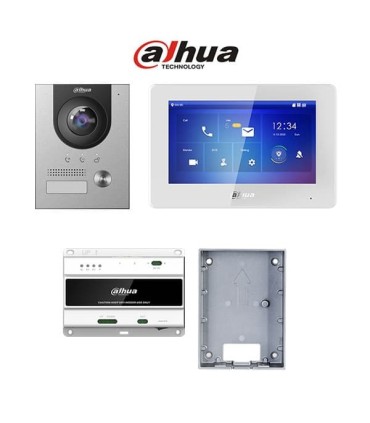

The kit includes the VTO2202F-P-S2, VTH5422HW monitor and VTNS1001B-2 network device. It also includes the VTM115 for surface installation of the VTO.

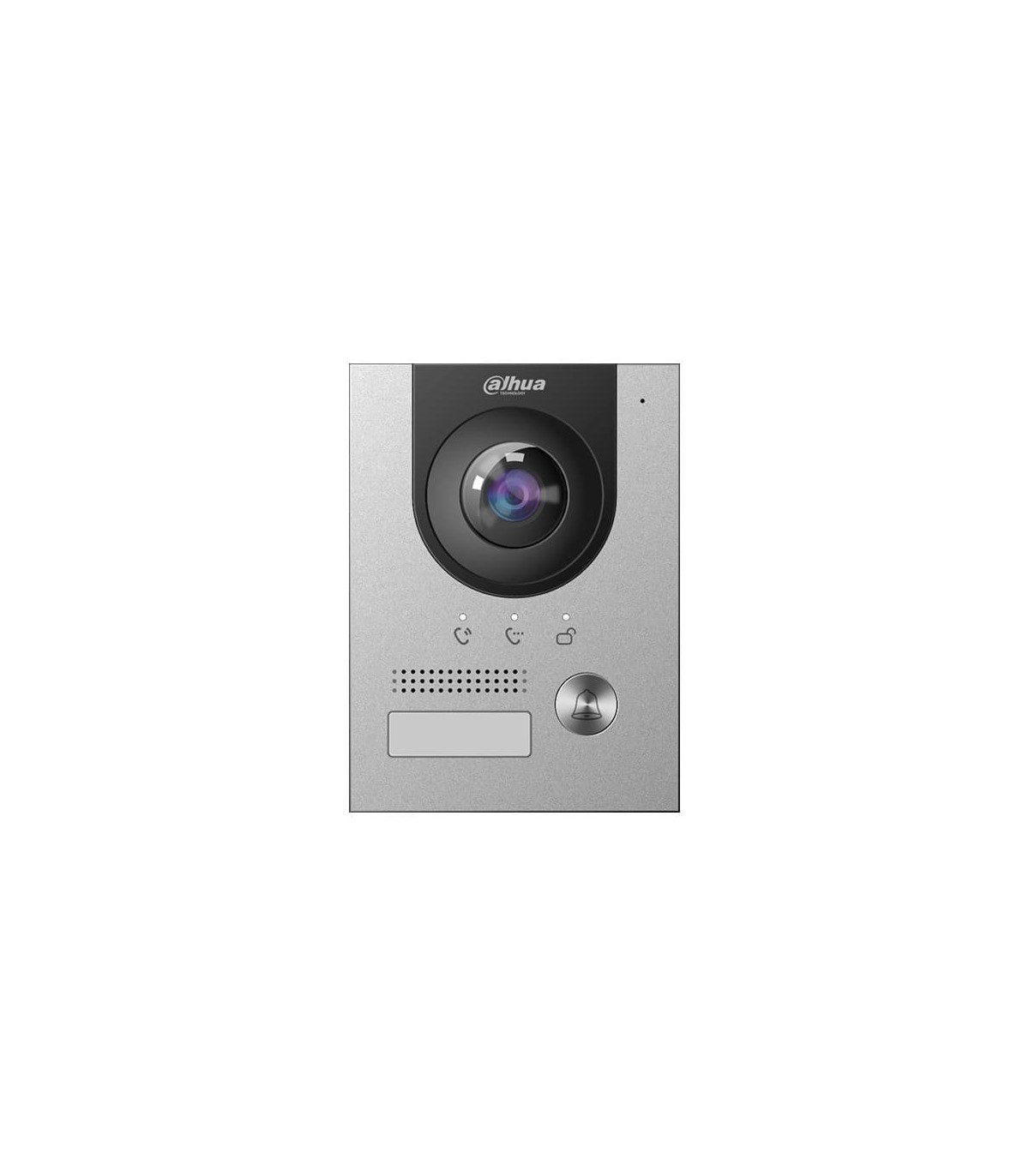

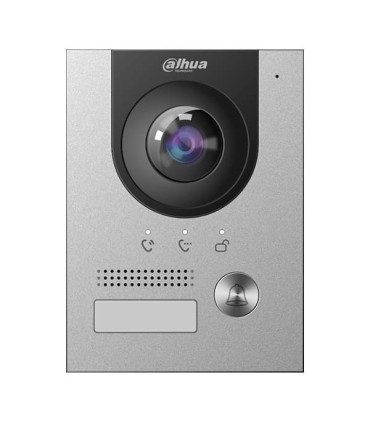

VTO2202F-P-S2 outdoor station with 2MP camera

The outdoor station features a 2MP CMOS camera with a wide field of view. It provides 168.6° horizontal, 87.1° vertical and 176.7° diagonal viewing angles.

120 dB WDR improves image performance in scenes with strong differences in lighting. 3D noise reduction and automatic IR help provide suitable images during both day and night.

H.265/H.264 compression optimises video transmission over the network. The VTO also supports ONVIF and CGI for integration with compatible systems.

Digital 2-wire IP communication

The KTD01L(S) uses digital 2-wire communication. This technology simplifies installation and can be particularly useful when upgrading existing systems.

The system combines a 2-wire connection with IP connectivity. This allows the video intercom functions to be integrated into a compatible network infrastructure.

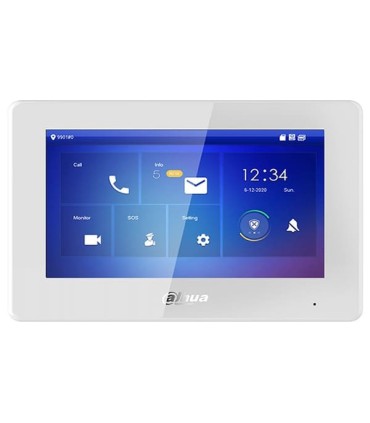

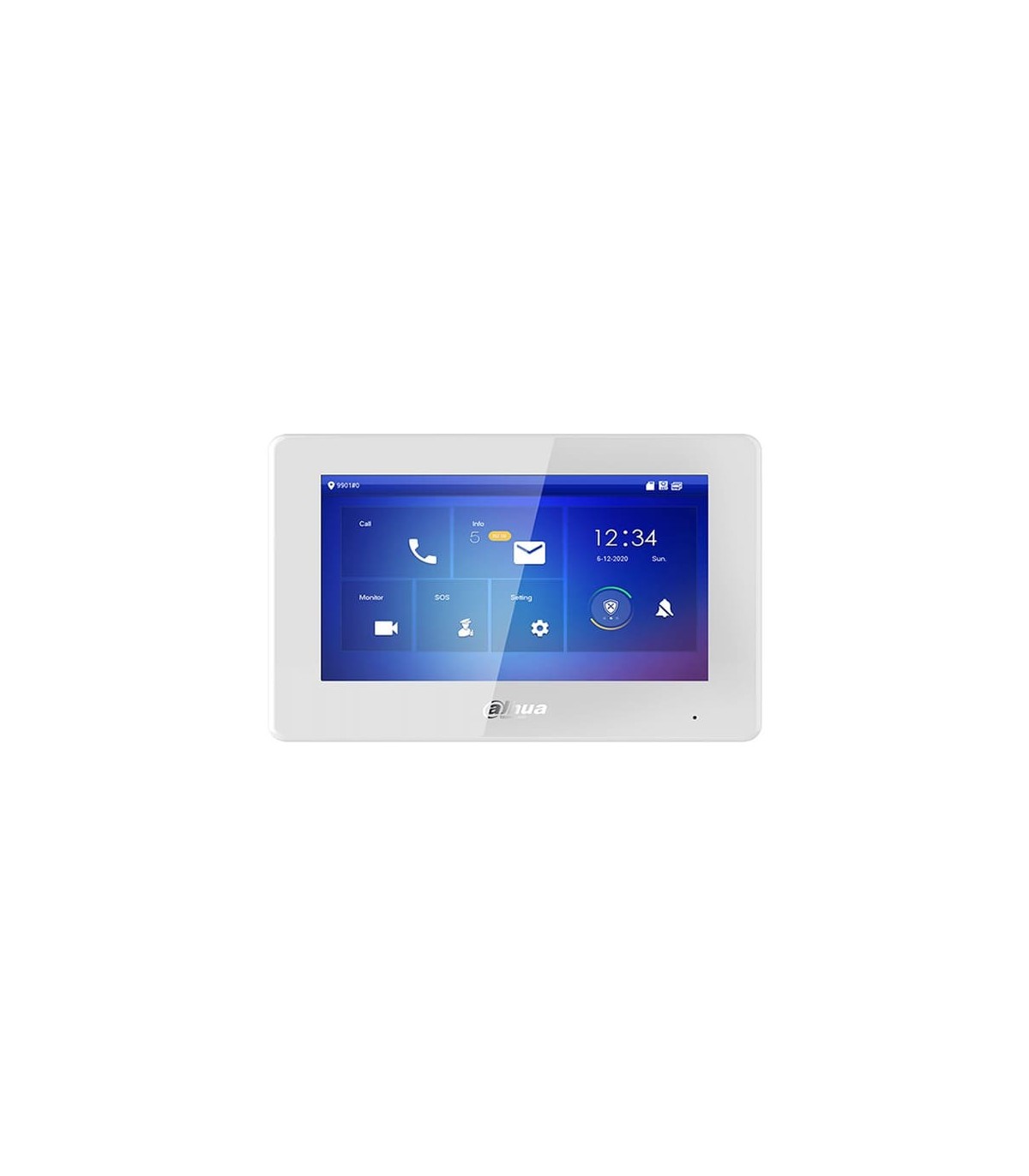

7" VTH5422HW touchscreen monitor

The VTH5422HW indoor monitor features a 7" TFT capacitive touchscreen. Its 1024 × 600 resolution provides a clear view of visitors.

The monitor supports two-way audio communication and video intercom control. It can also receive and display text information sent from the management centre.

For villa installations, it supports up to 4 extensions. For apartment installations, it supports up to 3 extensions.

VTNS1001B-2 for 2-wire connection

The system includes the VTNS1001B-2, designed for Dahua digital 2-wire infrastructure. This device allows the video intercom system to be connected to the network.

The VTNS1001B-2 provides a 2-wire connection and an Ethernet interface. Its integration completes the communication architecture of the kit.

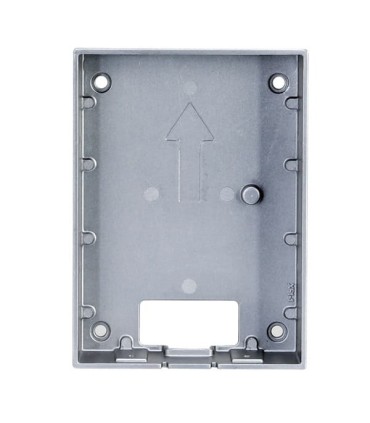

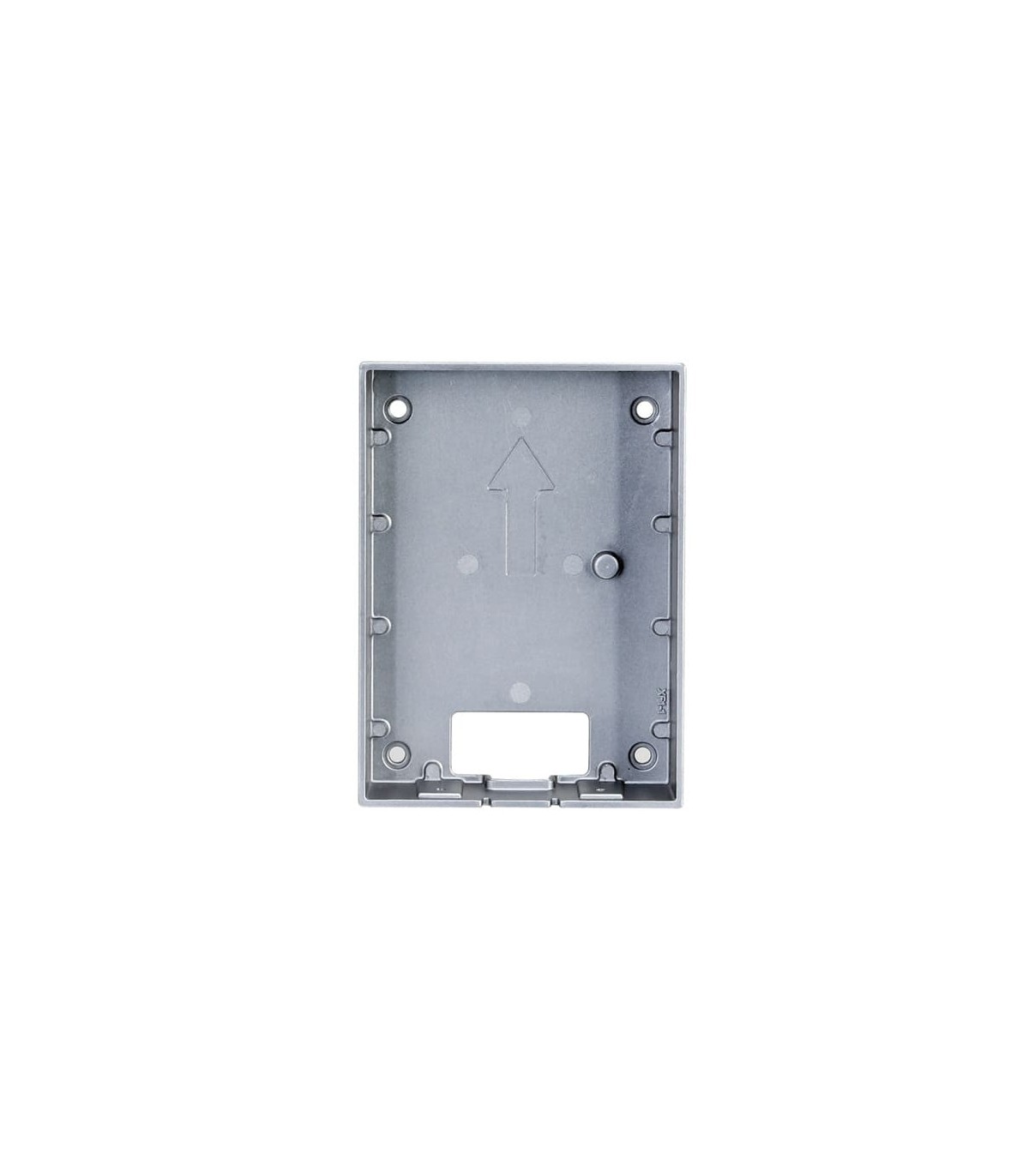

VTM115 for surface mounting

The KTD01L(S) version includes the VTM115 box for surface mounting the outdoor station. This accessory is manufactured from AL5052 aluminium with a thickness of 2.0 mm.

The VTM115 measures 129 × 95 × 28.5 mm. It allows the VTO2202F-P-S2 to be installed directly onto the wall surface.

Two-way audio and App management

The system provides two-way audio communication between the outdoor station and indoor monitor. Echo suppression and digital noise reduction help improve communication quality.

App management adds greater flexibility to the video intercom system. Users can access compatible system functions from a mobile device.

Micro SD storage

The outdoor station supports Micro SD cards up to 256 GB. Video recording can be used with compatible storage installed in the system.

The VTH5422HW monitor also supports Micro SD storage. The maximum supported capacity is 64 GB.

IP65 and IK07 protection

The VTO2202F-P-S2 features a metal housing and is designed for outdoor use. Its IP65 and IK07 ratings provide suitable protection for this type of installation.

The outdoor station operates between -30 °C and +60 °C. On the KTD01L(S) version, surface installation is carried out using the VTM115 box.

Complete 2-wire IP video intercom solution

The KTD01L(S) combines a 2MP camera, 7" touchscreen monitor and digital 2-wire communication. It also provides two-way audio, IP connectivity, App management and VTM115 surface mounting.
