VTO2202F-P-S3 - 2-Wire IP 2MP PoE Door Station Dahua

VTO2202F-P-S3 – 2-Wire IP 2MP PoE Door Station Dahua

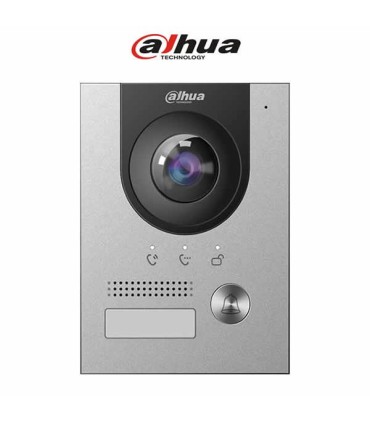

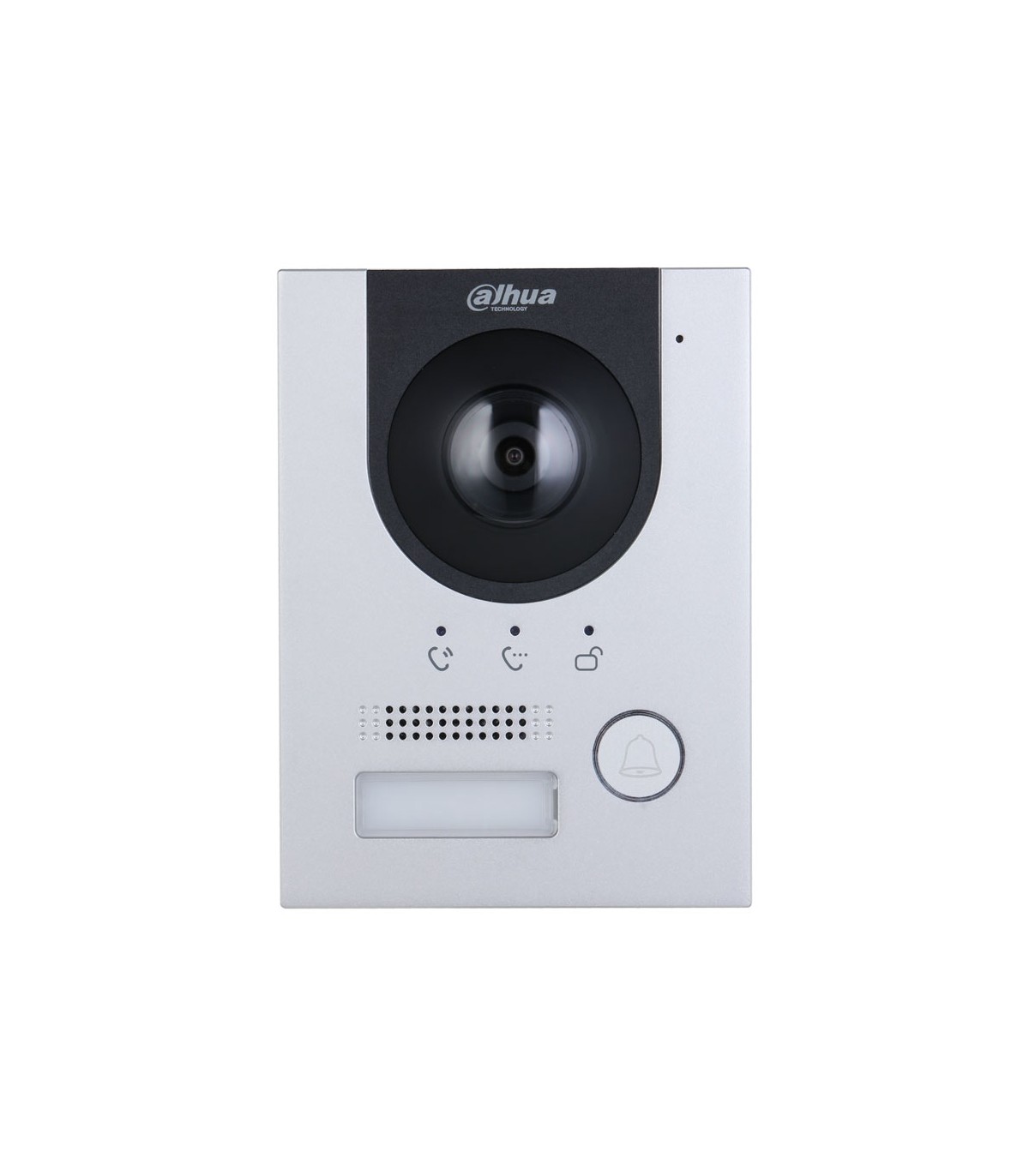

The VTO2202F-P-S3 is a Dahua 2-wire IP door station from the Pro Series, designed for residential video intercom systems. This door station integrates a 2MP CMOS camera with 120 dB WDR, automatic IR illumination and an ultra-wide 168.6° horizontal field of view, providing extensive coverage of the entrance area.

The system uses digital 2-wire communication, making it suitable for both new installations and upgrading existing video intercom systems. Power can be supplied through a Dahua 2-wire switch, 48 VDC or PoE 802.3af/at.

2MP Camera with Ultra-Wide Field of View

The 2MP camera provides a field of view of 168.6° horizontally, 87.1° vertically and 176.7° diagonally. The 120 dB WDR and 3D digital noise reduction help provide balanced images in environments with significant differences in lighting.

H.265, Two-Way Audio and Micro SD Storage

The VTO2202F-P-S3 supports H.265 and H.264 video compression, with a configurable bitrate from 256 kbps to 8 Mbps. The system features two-way audio, a built-in speaker, echo suppression and digital noise reduction.

The device supports a Micro SD card up to 256 GB and allows video messages when an SD card is installed in the indoor monitor or in the door station itself.

ONVIF, CGI and Access Control Integration

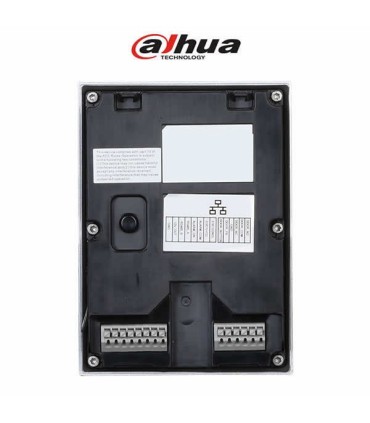

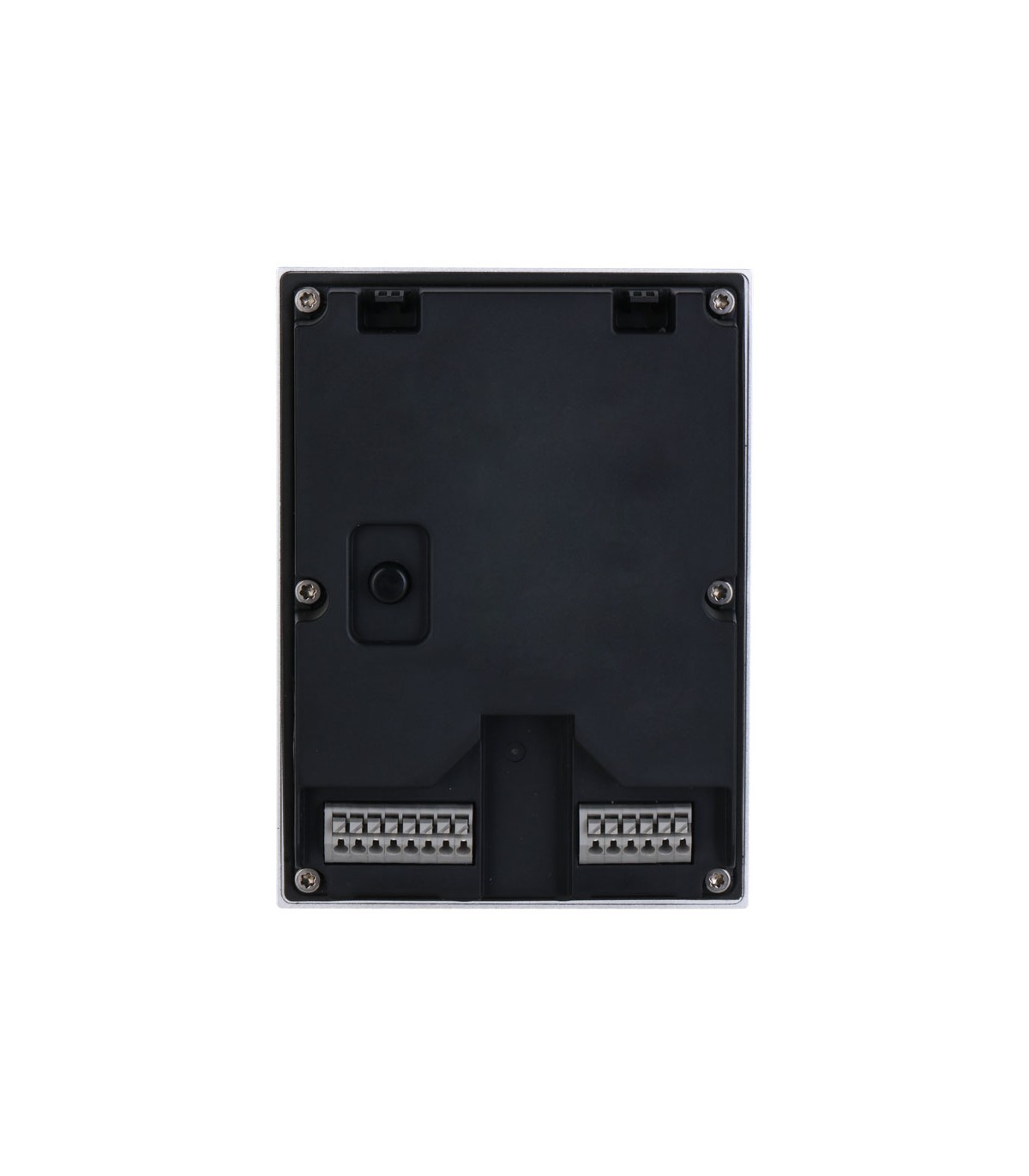

The door station supports ONVIF, CGI and multiple IP protocols, including IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP and SIP. It also provides RS485, alarm output, exit button, door status detection and lock control.

IP65 and IK07 Protection for Outdoor Installation

With an aluminium housing, the VTO2202F-P-S3 features IP65 and IK07 protection and is suitable for outdoor use. It supports operating temperatures from -30 °C to +60 °C and can be installed using flush or surface mounting.

The Dahua VTO2202F-P-S3 combines 2-wire IP technology, 2MP video, PoE, local storage and network integration in a compact solution for modern residential video intercom systems.
