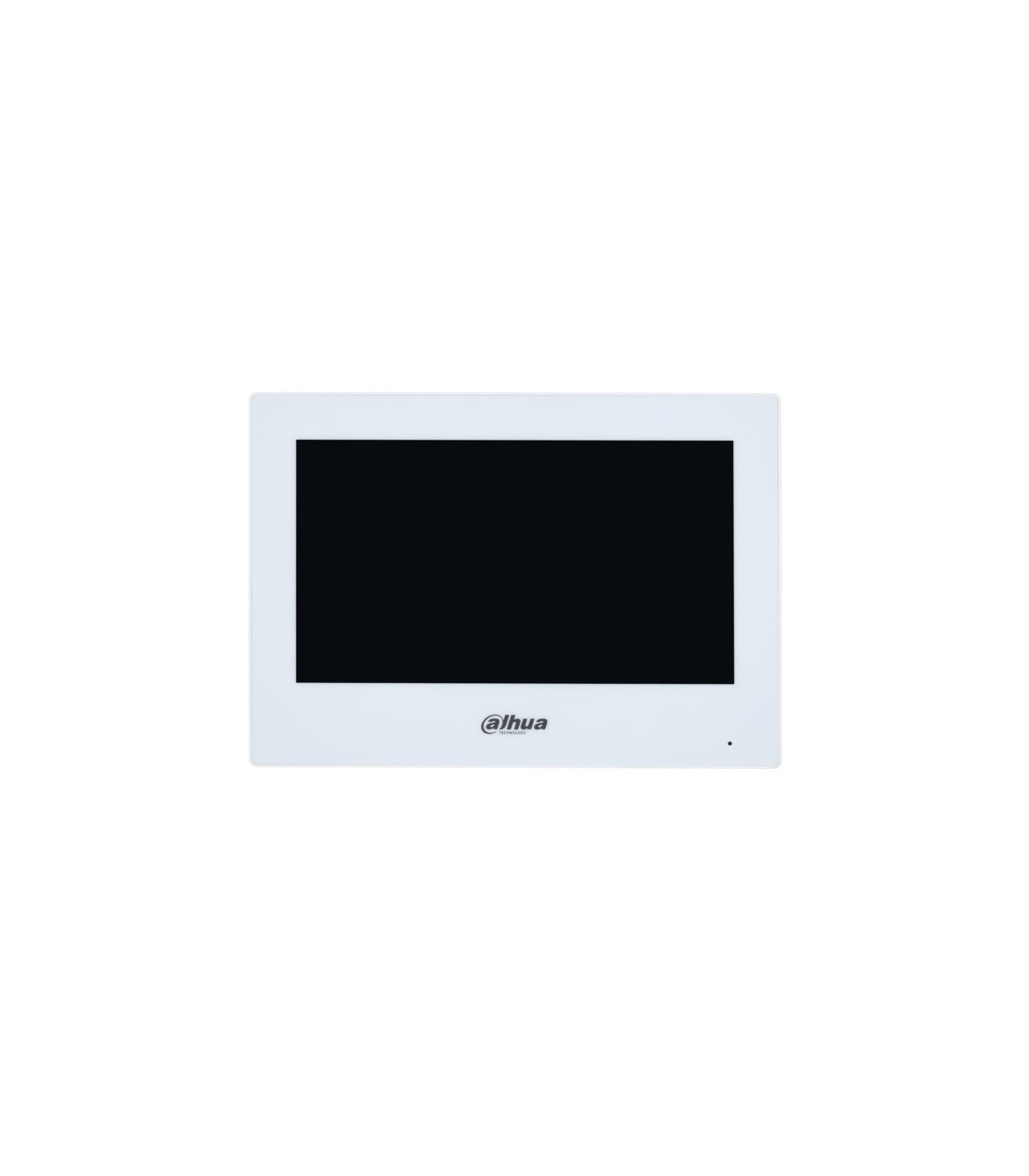

VTH2621GW-WP - Dahua 7" IP Indoor Monitor WiFi PoE White

VTH2621GW-WP - Dahua 7" IP Indoor Monitor WiFi PoE White

The VTH2621GW-WP is a Dahua IP indoor monitor designed for fully digital video intercom systems. It features a white finish and integrates a 7" touchscreen, WiFi, Ethernet and PoE power supply.

The Full Digital system enables communication over an IP network. The monitor can be integrated with compatible door stations and IP cameras, providing a flexible solution for residential and professional installations.

7" touchscreen with 1024 × 600 resolution

The VTH2621GW-WP features a 7" TFT display with a resolution of 1024 × 600. The capacitive touchscreen provides direct control of the functions available on the monitor.

The 7" format provides a suitable viewing area for visitor identification and operation of the video intercom system.

Full Digital IP system

The monitor uses Full Digital communication over an IP network. The 10/100 Mbps Ethernet interface provides connectivity with other compatible devices in the installation.

The device supports RTSP, RTP, SIP, DNS and SSH network protocols, as well as ONVIF and SDK interoperability.

Built-in WiFi

The VTH2621GW-WP features IEEE 802.11b/g/n WiFi and operates within the 2,412–2,472 MHz frequency range.

It supports WPA/WPA2 and WPA-PSK/WPA2-PSK security, providing an additional option for network connectivity.

Standard PoE or 12 VDC power supply

The monitor supports standard PoE, allowing the device to receive power through compatible network infrastructure. This solution can simplify installation and reduce additional cabling requirements.

Alternatively, the VTH2621GW-WP can be powered by 12 VDC / 1 A.

Two-way audio

The monitor supports two-way audio communication with compatible devices in the system. It integrates an audio input and a built-in speaker.

The system also features echo suppression to improve communication during video intercom calls.

H.265 and H.264 decoding

The VTH2621GW-WP supports H.265 and H.264 video decoding. It also allows monitoring of compatible door stations and IP cameras.

For audio, the device supports G.711a, G.711u and PCM formats.

Micro SD up to 64GB

The monitor supports a Micro SD card up to 64GB. According to Dahua specifications, this storage is reserved for software.

6 alarm inputs and 1 alarm output

The VTH2621GW-WP integrates 6 alarm inputs and 1 alarm output. These interfaces provide additional integration options with other devices in the installation.

Any alarm input can also be used for the doorbell function.

Video intercom system expansion

The monitor supports up to 9 extensions in Villa installations and up to 4 extensions in Apartment installations.

For WiFi intercom, the system supports 1 main monitor and 2 extension monitors.

Do Not Disturb mode and information release

The VTH2621GW-WP allows users to configure a Do Not Disturb (DND) period and mode. It can also receive and display text information released by the management center.

Embedded Linux operating system

The device uses an embedded processor with an embedded Linux operating system. Its 1.2 GHz dual-core CPU manages the monitor's communication and control functions.

Surface mounting and white finish

The VTH2621GW-WP features a white finish and is designed for surface mounting.

Its dimensions are 189.6 × 134.6 × 26.0 mm. The VTM59D desktop stand is available as an accessory.

Dahua IP WiFi and PoE monitor for video intercom systems

The VTH2621GW-WP combines Full Digital IP communication, a 7" touchscreen, WiFi, Ethernet and standard PoE. It also provides two-way audio, alarm interfaces and expansion functions for compatible Dahua video intercom systems.
