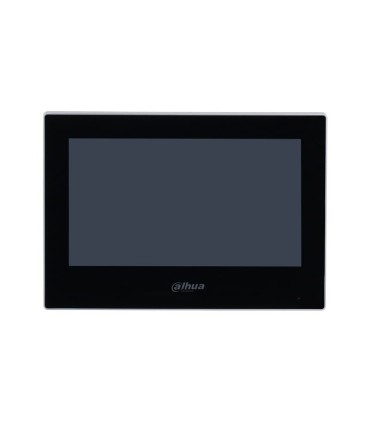

VTH2621GB-WP – Dahua 7" IP Indoor Monitor WiFi PoE Black:
The VTH2621GB-WP is a Dahua IP indoor monitor designed for fully digital video intercom systems. It features a black finish and integrates a 7" touchscreen, WiFi, Ethernet and PoE power supply.
The Full Digital system enables communication over an IP network. The monitor can be integrated with compatible door stations and IP cameras, providing a flexible solution for residential and professional installations.
The VTH2621GB-WP features a 7" TFT display with a resolution of 1024 × 600. The capacitive touchscreen provides direct control of the functions available on the monitor.
The 7" format provides a suitable viewing area for visitor identification and operation of the video intercom system.
The monitor uses Full Digital communication over an IP network. The 10/100 Mbps Ethernet interface provides connectivity with other compatible devices in the installation.
The device supports RTSP, RTP, SIP, DNS and SSH network protocols, as well as ONVIF and SDK interoperability.
The VTH2621GB-WP features IEEE 802.11b/g/n WiFi and operates within the 2,412–2,472 MHz frequency range.
It supports WPA/WPA2 and WPA-PSK/WPA2-PSK security, providing an additional option for network connectivity.
The monitor supports standard PoE, allowing the device to receive power through compatible network infrastructure. This solution can simplify installation and reduce additional cabling requirements.
Alternatively, the VTH2621GB-WP can be powered by 12 VDC / 1 A.
The monitor supports two-way audio communication with compatible devices in the system. It integrates an audio input and a built-in speaker.
The system also features echo suppression to improve communication during video intercom calls.
The VTH2621GB-WP supports H.265 and H.264 video decoding. It also allows monitoring of compatible door stations and IP cameras.
For audio, the device supports G.711a, G.711u and PCM formats.
The monitor supports a Micro SD card up to 64GB. According to Dahua specifications, this storage is reserved for software.
The VTH2621GB-WP integrates 6 alarm inputs and 1 alarm output. These interfaces provide additional integration options with other devices in the installation.
Any alarm input can also be used for the doorbell function.
The monitor supports up to 9 extensions in Villa installations and up to 4 extensions in Apartment installations.
For WiFi intercom, the system supports 1 main monitor and 2 extension monitors.
The VTH2621GB-WP allows users to configure a Do Not Disturb (DND) period and mode. It can also receive and display text information released by the management center.
The device uses an embedded processor with an embedded Linux operating system. Its 1.2 GHz dual-core CPU manages the monitor's communication and control functions.
The VTH2621GB-WP features a black finish and is designed for surface mounting.
Its dimensions are 189.6 × 134.6 × 26.0 mm. The VTM59D desktop stand is available as an accessory.
The VTH2621GB-WP combines Full Digital IP communication, a 7" touchscreen, WiFi, Ethernet and standard PoE. It also provides two-way audio, alarm interfaces and expansion functions for compatible Dahua video intercom systems.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand | Dahua |
| Model | VTH2621GB-WP |
| Product Type | IP and WiFi indoor monitor |
| Main Processor | Embedded processor |
| CPU | 1.2 GHz dual core |
| Operating System | Embedded Linux operating system |
| ROM | 128 MB |
| RAM | 128 MB |
| Interoperability | ONVIF; SDK |
| Network Protocols | RTSP; RTP; SIP; DNS; SSH |
| Screen Type | Capacitive touchscreen |
| Display | 7" TFT |
| Resolution | 1024 × 600 |
| Video Decoding | H.265; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 bit* |
| Communication Mode | Full Digital |
| Information Release | Receive and view text information released by the management center |
| DND Mode | Configurable Do Not Disturb period and mode |
| Number of Extensions | Villa: 9; Apartment: 4; WiFi intercom: 1 main monitor + 2 extension monitors |
| WiFi | Yes |
| Wireless Standard | IEEE 802.11b/g/n |
| WiFi Frequency | 2,412–2,472 MHz |
| WiFi Security | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Casing Material | PC + ABS |
| Alarm Inputs | 6 |
| Alarm Output | 1 |
| Doorbell | Yes, using any alarm input port |
| Network | 1 × 10/100 Mbps Ethernet port |
| Storage | Micro SD card up to 64GB, reserved for software |
| Color | Black |
| Power Supply | 12 VDC / 1 A; standard PoE (36–57 V, 0.35 A) |
| Installation | Surface mount |
| Certifications | CE; FCC |
| Dimensions | 189.6 × 134.6 × 26.0 mm |
| Operating Temperature | -10 °C to +55 °C |
| Operating Humidity | 10%–95% RH, non-condensing |
| Operating Altitude | Below 3000 m |
| Power Consumption | Standby ≤2 W; working ≤6 W |
| Net Weight | 0.34 kg |
| Gross Weight | 0.58 kg |
| Compatible Accessory | VTM59D – desktop stand |
