KTW01 - Dahua IP WiFi Video Intercom Kit 2MP 7" PoE

KTW01 - Dahua IP WiFi Video Intercom Kit 2MP 7" PoE

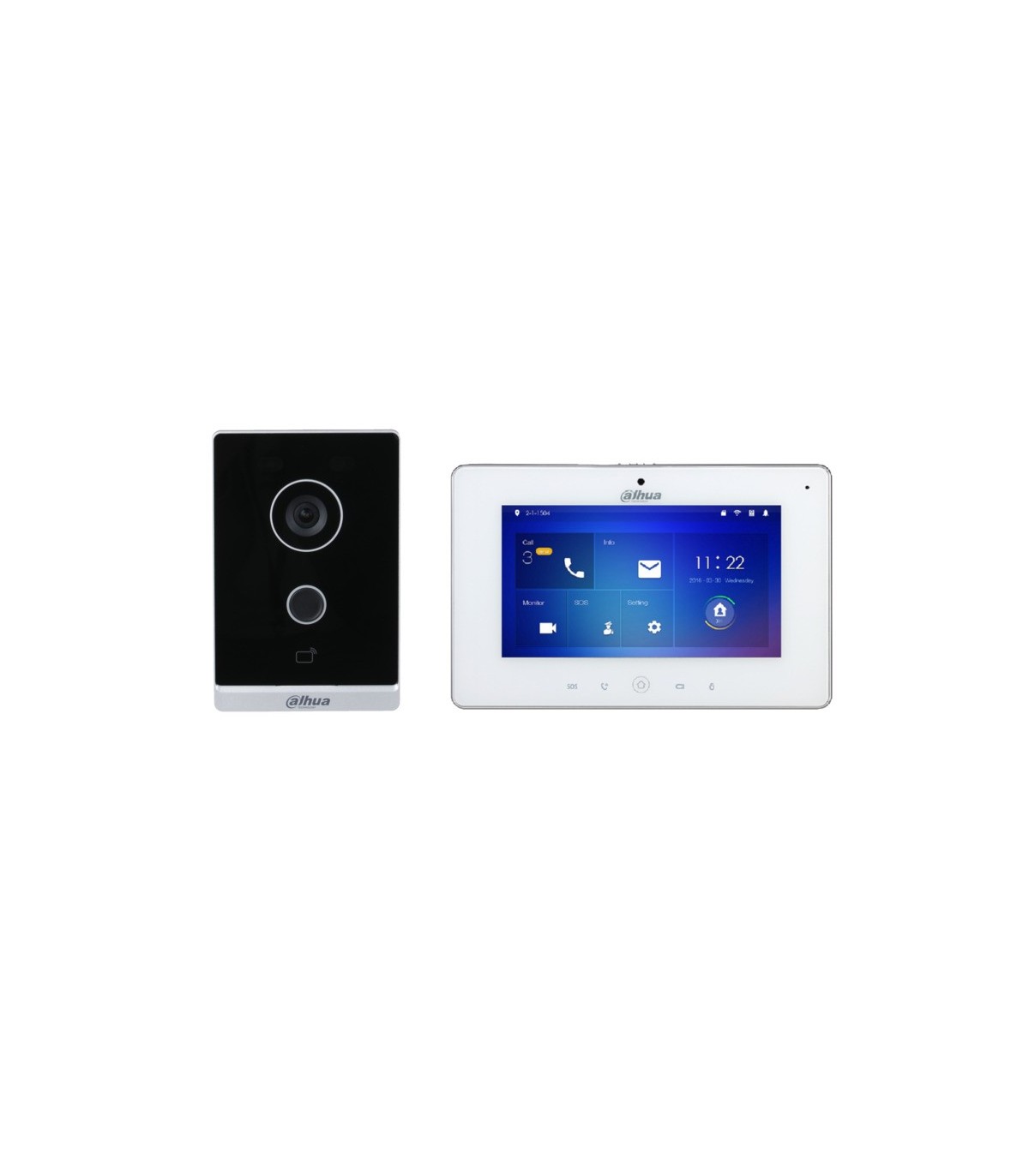

The KTW01 is a Dahua IP WiFi video intercom kit for residential and professional installations. The kit includes the VTO2211G-WP-S2 outdoor station and the VTH5221DW-S2 indoor monitor.

The system combines IP communication, WiFi 2.4 GHz and PoE power. It also includes card-based access control and management through the App.

VTO2211G-WP-S2 outdoor station with 2MP camera

The outdoor station features a 2MP CMOS camera with a wide field of view. It provides 125° horizontal, 71° vertical and 142° diagonal coverage.

120 dB WDR improves image quality in scenes with strong differences in lighting. 3D noise reduction and automatic IR help maintain a clear image during the day and at night.

H.265/H.264 compression optimizes video transmission over the IP network. The VTO also supports ONVIF and CGI for integration with compatible systems.

WiFi 2.4 GHz and IP connection

The outdoor station and indoor monitor both feature WiFi connectivity. Both devices support IEEE 802.11b/g/n on the 2.4 GHz frequency.

The system also includes a 10/100 Mbps Ethernet connection and supports standard PoE power. This allows the installation to be adapted to the available network infrastructure.

IC card access control

The VTO2211G-WP-S2 includes an IC card reader with capacity for up to 10,000 cards. Door unlocking can be performed by card, App or indoor monitor.

The card reading distance can reach approximately 4.3 cm. The device also supports local card issuing.

7" VTH5221DW-S2 touchscreen monitor

The VTH5221DW-S2 indoor monitor features a 7" TFT capacitive touchscreen. Its 1024 × 600 resolution provides a clear view of visitors.

The monitor allows two-way audio communication and door unlocking control. It can also receive and display text information sent from the management center.

In villa installations, the system supports up to 9 extensions. In apartment installations, it supports up to 4 extensions. For WiFi intercom, it supports 1 main monitor and 2 extension monitors.

Two-way audio and App management

The KTW01 provides two-way audio communication between the outdoor station and the indoor monitor. Echo suppression and digital noise reduction help improve communication quality.

Management through the App allows selected system functions to be used remotely. These functions include door unlocking.

Micro SD storage

The outdoor station supports Micro SD cards up to 256 GB. It also supports automatic image capture and video recording.

The indoor monitor also supports a Micro SD card. The maximum supported capacity is 64 GB.

IP65 protection for outdoor use

The VTO2211G-WP-S2 outdoor station has an IP65 protection rating and is designed for outdoor use. Its operating temperature ranges from -30 °C to +60 °C.

The VTO is designed for surface mounting. The KTW01 combines WiFi, PoE, a 2MP camera, IC card reader and two-way audio. App management completes this IP video intercom and access control solution.
