KTP04(S) - Dahua IP Video Intercom Kit 2MP 7" PoE Surface Mount

KTP04(S) - Dahua IP Video Intercom Kit 2MP 7" PoE

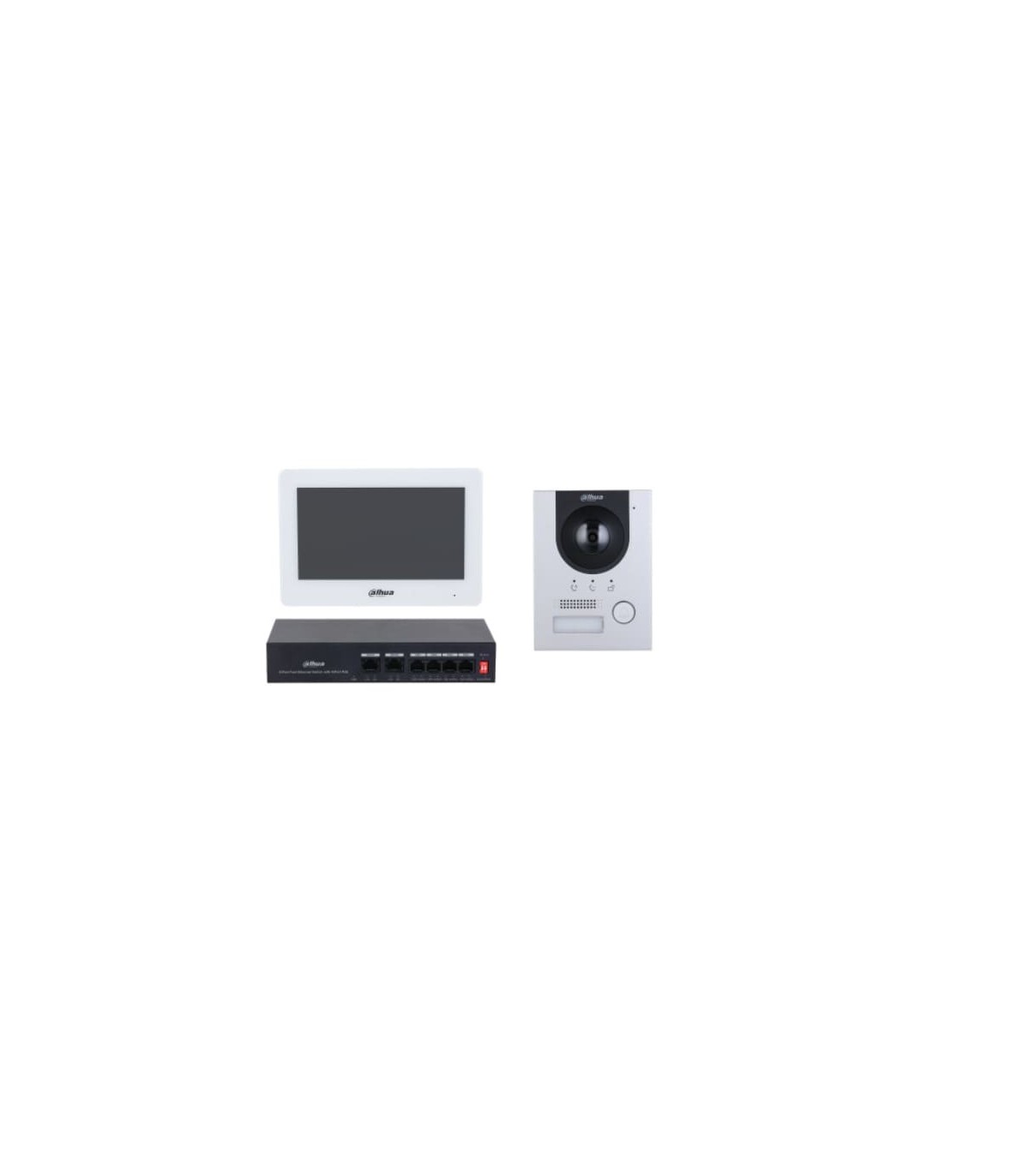

The KTP04(S) is a complete Dahua IP video intercom kit designed for residential and professional installations. It consists of the VTO2201F-P outdoor station, the VTH5421HW indoor monitor and the PFS3006-4ET-36 PoE switch. This version uses the outdoor station with surface mounting.

VTO2201F-P outdoor station with 2MP camera

The outdoor station features a 2MP CMOS camera with a wide field of view of 168.6° horizontal, 87.1° vertical and 176.7° diagonal. 120 dB WDR, 3D noise reduction and automatic IR help provide suitable images under different lighting conditions.

H.265/H.264 video compression optimizes transmission over the IP network. The device also supports ONVIF and CGI, making integration with compatible systems easier.

7" VTH5421HW touchscreen monitor

The VTH5421HW indoor monitor features a 7" TFT capacitive touchscreen with a resolution of 1024 × 600. It allows users to view visitors, establish two-way audio communication and remotely control door unlocking.

The system supports Do Not Disturb (DND) mode, messages from the management center and video recording using a Micro SD card. The monitor supports Micro SD cards up to 64 GB and allows up to 9 extensions in villa installations and 4 in apartment installations.

Two-way audio and remote control

The KTP04(S) provides two-way audio communication between the outdoor station and the indoor monitor. Echo suppression and digital noise reduction on the VTO help improve communication clarity.

The door can be unlocked remotely, while management through the App provides greater flexibility when using the IP video intercom system.

PoE connection and included switch

PoE simplifies installation by allowing both data and power to be transmitted through the Ethernet infrastructure. The kit includes the PFS3006-4ET-36 switch, equipped with 4 PoE 10/100 Mbps ports and 2 uplink 10/100 Mbps ports.

The outdoor station can be powered by 12 VDC or PoE 802.3af/at, while the indoor monitor supports 12 VDC or standard PoE.

IP65 and IK07 protection

The metal VTO2201F-P outdoor station has an IP65 protection rating against dust and water and IK07 vandal resistance. It is designed for outdoor use, with an operating temperature range from -30 °C to +60 °C.

Storage and integration

The VTO supports Micro SD cards up to 256 GB and configuration through a Web interface. ONVIF support, IP network protocols and fully digital communication make the KTP04(S) a flexible solution for modern access control and video intercom systems.
