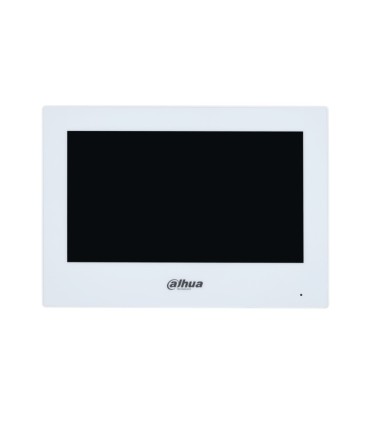

VTH2622GW-W – Dahua 2-Wire IP 7" WiFi Indoor Monitor White:
The VTH2622GW-W is a Dahua 2-wire IP indoor monitor designed for video intercom systems. It features a white finish and integrates a 7" touchscreen, WiFi and two-way audio communication.
The 2-wire IP technology allows the monitor to be integrated into compatible Dahua systems using a two-conductor infrastructure. The device also features an Ethernet interface for network connectivity.
The VTH2622GW-W features a 7" TFT display with a resolution of 1024 × 600. The capacitive touchscreen provides direct control of the functions available on the indoor monitor.
The 7" format provides a suitable viewing area for visitor identification and operation of the video intercom system.
This indoor monitor belongs to Dahua's 2-Wire IP range. The technology enables digital communication through a 2-wire connection.
The device features a 2-wire port and a 10/100 Mbps Ethernet interface. One of these interfaces can be selected for network connection according to the installation configuration.
The VTH2622GW-W supports IEEE 802.11b/g/n WiFi. This connectivity provides additional options for integrating the indoor monitor into the network.
The device also supports multiple network protocols for communication with compatible devices in Dahua IP video intercom systems.
The indoor monitor supports two-way audio communication with compatible devices in the system. It features an audio input and a built-in speaker.
This function allows users to communicate directly with visitors through the indoor monitor.
The VTH2622GW-W supports H.265 and H.264 video decoding. These formats provide video management within the IP system.
For audio, the device supports G.711a, G.711u and PCM formats.
The indoor monitor features a Micro SD card slot supporting up to 64GB. The storage is reserved for compatible software functions supported by the system.
The VTH2622GW-W integrates 6 alarm inputs and 1 alarm output. These interfaces provide additional integration options with other devices in the installation.
One alarm input can also be used for the doorbell function.
The device uses an embedded processor and Linux operating system. Its 1.2 GHz dual-core CPU manages the communication and control functions of the indoor monitor.
The VTH2622GW-W features a white finish and is designed for surface mounting.
The monitor measures 189.6 × 134.6 × 26.0 mm. Its compact format facilitates integration into residential and professional installations.
The VTH2622GW-W combines 2-wire IP technology, a 7" touchscreen, WiFi and Ethernet connectivity. It also provides two-way audio, Micro SD storage and alarm interfaces for compatible Dahua video intercom systems.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand | Dahua |
| Model | VTH2622GW-W |
| Product Type | 2-wire IP and WiFi indoor monitor |
| Main Processor | Embedded processor |
| CPU | 1.2 GHz dual core |
| Operating System | Embedded Linux operating system |
| ROM | 128 MB |
| RAM | 128 MB |
| Interoperability | ONVIF; SDK |
| Network Protocols | RTSP; RTP; SIP; DNS; SSH |
| Video Decoding | H.265; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 kHz; 16 bit |
| Display | 7" TFT |
| Resolution | 1024 × 600 |
| Screen Type | Capacitive touchscreen |
| Communication Mode | Digital 2-wire |
| WiFi | Yes |
| Wireless Standard | IEEE 802.11b/g/n |
| WiFi Frequency | 2,412–2,472 MHz |
| WiFi Security | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Network | One 2-wire port and one 10/100 Mbps Ethernet port; one can be selected |
| Storage | Micro SD card, max. 64GB, reserved for software |
| Alarm Inputs | 6 |
| Alarm Output | 1 |
| Doorbell | Yes, using any alarm input port |
| Casing Material | PC + ABS |
| Power Supply | 48 VDC / 1.25 A |
| Power Consumption | Standby ≤2 W; working ≤6 W |
| Installation | Surface mount |
| Color | White |
| Certifications | CE; FCC |
| Operating Temperature | -10 °C to +55 °C |
| Operating Humidity | 10%–95% RH, non-condensing |
| Operating Altitude | Below 3000 m |
| Dimensions | 189.6 × 134.6 × 26.0 mm |
| Net Weight | 0.34 kg |
| Gross Weight | 0.58 kg |
