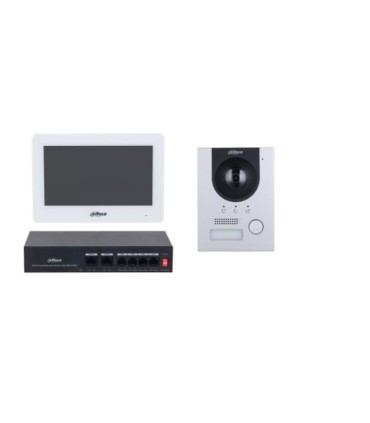

KTP04(F) – Dahua IP Video Intercom Kit 2MP 7" PoE Flush Mount:
The KTP04(F) is a complete Dahua IP video intercom kit designed for residential and professional installations. It consists of the VTO2201F-P outdoor station, the VTH5421HW indoor monitor and the PFS3006-4ET-36 PoE switch. This version uses the outdoor station with flush mounting, providing discreet integration into the installation surface.
The outdoor station features a 2MP CMOS camera with a wide field of view of 168.6° horizontal, 87.1° vertical and 176.7° diagonal. 120 dB WDR, 3D noise reduction and automatic IR help provide suitable images under different lighting conditions.
H.265/H.264 video compression optimizes transmission over the IP network. The device also supports ONVIF and CGI, making integration with compatible systems easier.
The VTH5421HW indoor monitor features a 7" TFT capacitive touchscreen with a resolution of 1024 × 600. It allows users to view visitors, establish two-way audio communication and remotely control door unlocking.
The system supports Do Not Disturb (DND) mode, messages from the management center and video recording using a Micro SD card. The monitor supports Micro SD cards up to 64 GB and allows up to 9 extensions in villa installations and 4 in apartment installations.
The KTP04(F) provides two-way audio communication between the outdoor station and the indoor monitor. Echo suppression and digital noise reduction on the VTO help improve communication clarity.
The door can be unlocked remotely, while management through the App provides greater flexibility when using the IP video intercom system.
PoE simplifies installation by allowing both data and power to be transmitted through the Ethernet infrastructure. The kit includes the PFS3006-4ET-36 switch, equipped with 4 PoE 10/100 Mbps ports and 2 uplink 10/100 Mbps ports.
The outdoor station can be powered by 12 VDC or PoE 802.3af/at, while the indoor monitor supports 12 VDC or standard PoE.
The metal VTO2201F-P outdoor station has an IP65 protection rating against dust and water and IK07 vandal resistance. It is designed for outdoor use, with an operating temperature range from -30 °C to +60 °C.
The VTO supports Micro SD cards up to 256 GB and configuration through a Web interface. ONVIF support, IP network protocols and fully digital communication make the KTP04(F) a flexible solution for modern access control and video intercom systems.
| Parameter | Detailed technical specifications |
|---|---|
| Brand | Dahua |
| Model | KTP04(F) |
| Product type | IP Video Intercom Kit |
| Kit composition | VTO2201F-P + VTH5421HW + PFS3006-4ET-36 |
| Outdoor station | VTO2201F-P, aluminium housing, mechanical button and flush mounting |
| VTO processor | Embedded processor |
| VTO operating system | Embedded Linux |
| Camera | 1/2.9" 2MP CMOS |
| Field of view | Horizontal: 168.6°; Vertical: 87.1°; Diagonal: 176.7° |
| WDR | 120 dB |
| Noise reduction | 3D NR |
| Video compression | H.265 / H.264 |
| Video resolution | Main stream: 720p / WVGA / D1 / CIF; Sub stream: 1080p / WVGA / D1 / QVGA / CIF |
| Frame rate | 25 fps |
| Video bitrate | 256 kbps to 8 Mbps |
| Illumination | Automatic IR |
| Day/Night | Auto (ICR) / Color / B&W |
| Audio compression | G.711a / G.711u / PCM |
| Audio | Two-way audio, built-in speaker, echo suppression and digital noise reduction |
| Communication mode | Fully digital |
| Unlocking | Remote |
| VTO storage | Micro SD card up to 256 GB |
| Web configuration | Yes |
| Interoperability | ONVIF / CGI |
| Network protocols | SIP / TCP / RTP / UPnP / P2P / DNS / UDP / RTSP / IPv4 |
| VTO interfaces | 1 × RS-485; 1 × alarm output; 1 × 12 V / 600 mA power output; 1 × exit button; 1 × door status detection; 1 × lock control |
| VTO network port | 1 × RJ-45 10/100 Mbps |
| Tamper alarm | Yes |
| VTO power supply | 12 VDC, 2 A / PoE 802.3af/at |
| VTO installation | Flush mounting |
| VTO protection | IP65 / IK07 |
| VTO dimensions | 130 × 96 × 28.5 mm |
| VTO operating temperature | -30 °C to +60 °C |
| VTO operating humidity | 10%–90% RH, non-condensing |
| VTO power consumption | ≤4 W standby; ≤5 W operating |
| Indoor monitor | VTH5421HW |
| Display | 7" TFT capacitive touchscreen |
| Display resolution | 1024 × 600 |
| VTH audio | G.711a / G.711u / PCM; two-way audio; built-in speaker; echo suppression |
| Do Not Disturb mode | Configurable DND period and mode |
| Number of extensions | Villa: up to 9; apartment: up to 4 |
| VTH storage | Micro SD card up to 64 GB |
| VTH interfaces | 1 × RS-485; 6 × alarm inputs; 1 × alarm output; 1 × 12 V / 100 mA power output; doorbell function through one alarm input |
| VTH network port | 1 × Ethernet 10/100 Mbps |
| VTH power supply | 12 VDC, 1 A / Standard PoE |
| VTH installation | Surface mounting |
| VTH dimensions | 189 × 130 × 26.9 mm |
| VTH operating temperature | -10 °C to +55 °C |
| VTH power consumption | ≤2 W standby; ≤6 W operating |
| PoE switch | PFS3006-4ET-36 |
| Switch ports | 4 × PoE 10/100 Mbps Base-TX ports + 2 × uplink 10/100 Mbps Base-TX ports |
| Switch power supply | Built-in power supply, 100–240 VAC |
| Switch dimensions | 194 × 108.1 × 35 mm |
| Switch operating temperature | -10 °C to +55 °C |
| Switch power consumption | 0.5 W without load; 36 W at full load |
| App management | Yes |
| Certifications | VTO: CE; VTH: CE / FCC / UL; Switch: CE / FCC |
