VTO6521F-S2 - 2MP PoE IP Door Station Dahua

VTO6521F-S2 – 2MP PoE IP Door Station Dahua

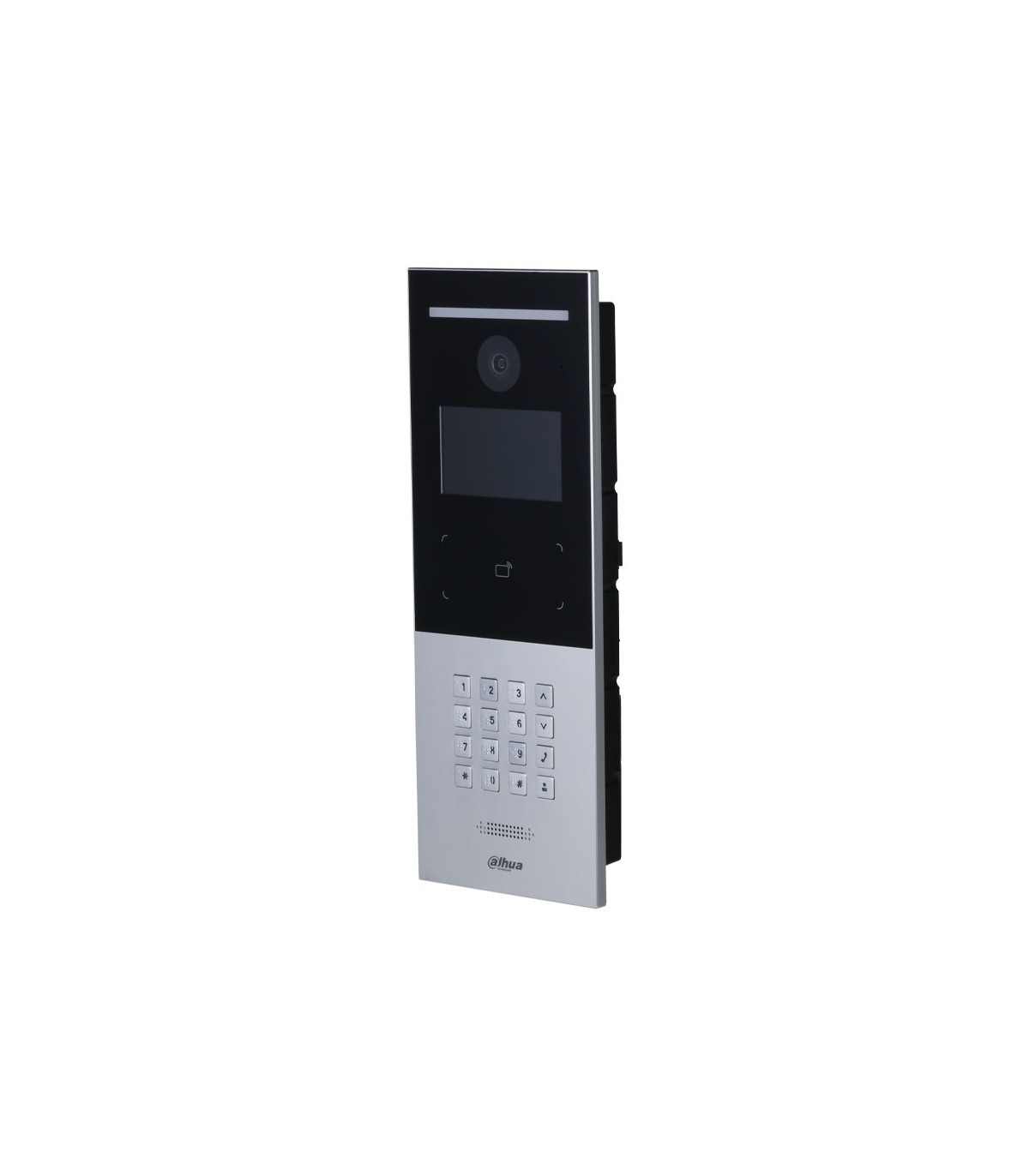

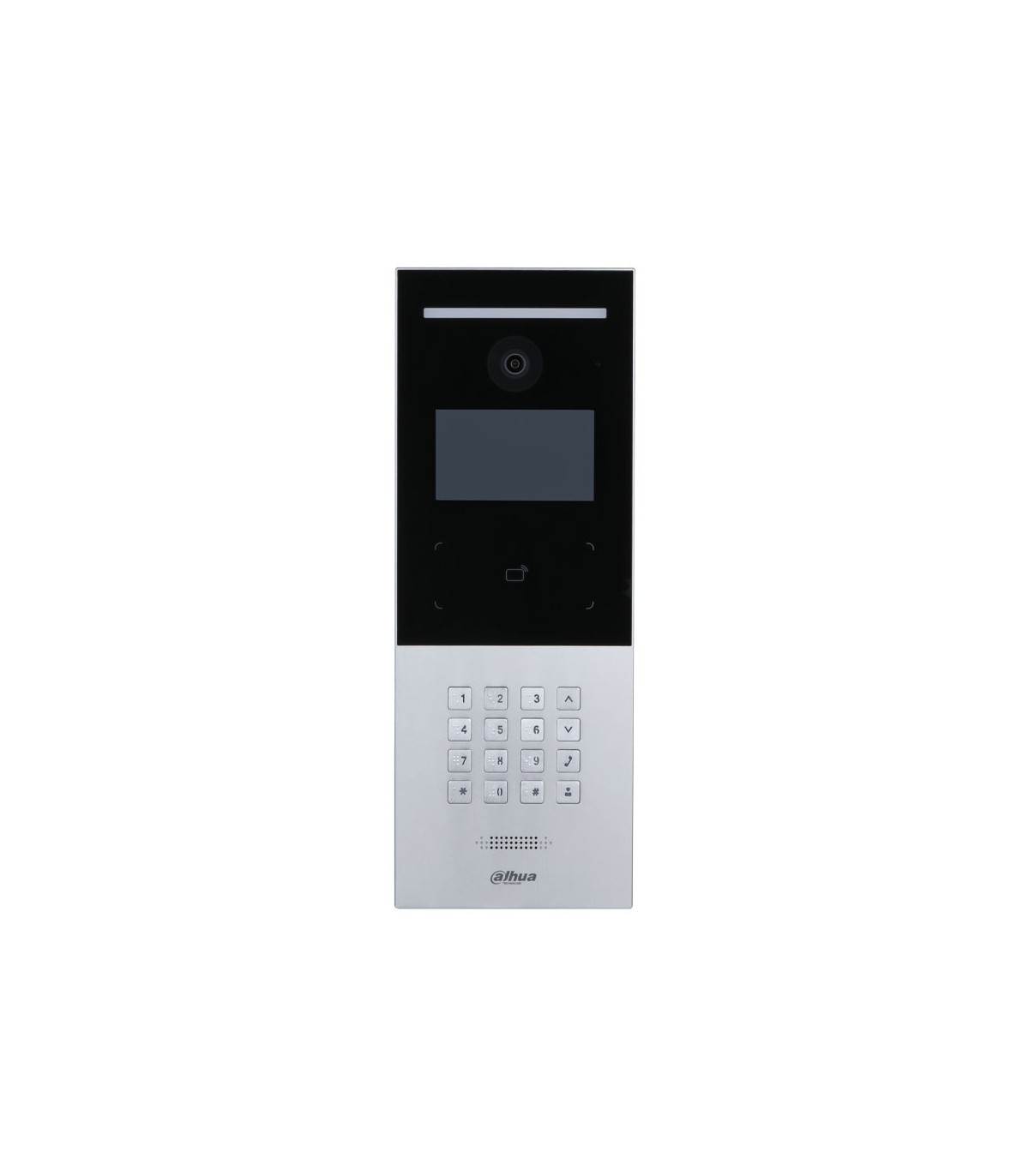

The VTO6521F-S2 is a Dahua IP door station from the Lite Series, designed for professional video intercom and access control systems in residential buildings, apartment complexes and professional installations. It integrates a 4.3" LCD display with 800 × 480 resolution and a 2MP CMOS camera with 120 dB WDR.

Communication is fully digital and the door station supports network protocols including ONVIF, RTSP, SIP, HTTP/HTTPS and FTP. The 10/100 Mbps Ethernet connection and standard PoE power supply allow flexible integration into professional IP infrastructures.

Access Control with Capacity for 20,000 Cards

The VTO6521F-S2 supports authentication by IC card, password or remote unlocking. Its capacity of up to 20,000 cards makes it especially suitable for buildings with a large number of users. It also supports local card enrolment and user, public and duress passwords.

2MP Camera and Two-Way Audio

The 2MP camera features 120 dB WDR, 3D noise reduction and H.264/H.265 video compression. The system supports two-way audio through the built-in speaker, with echo suppression and digital noise reduction to improve communication between visitors and users.

ONVIF, Wiegand and RS485 Integration

For professional system integration, the door station supports ONVIF, CGI, RS485 and Wiegand, as well as two alarm inputs, two alarm outputs, an exit button, door status detection and lock control.

IP65 and IK07 Protection for Outdoor Use

Built with an aluminium alloy housing, the VTO6521F-S2 provides IP65 protection and IK07 resistance. It supports surface or flush mounting and operates at temperatures from -30 °C to +60 °C, making it suitable for outdoor use when installed according to Dahua recommendations.

The Dahua VTO6521F-S2 combines IP video intercom, access control, PoE and security-system integration in a solution suitable for apartment complexes, residential buildings and professional installations.
