NVR4216-16P-4KS3 - Dahua 16-Channel 16 PoE 12MP SMD Plus NVR 2 HDD

NVR4216-16P-4KS3 - Dahua 16-Channel 16 PoE 12MP SMD Plus NVR

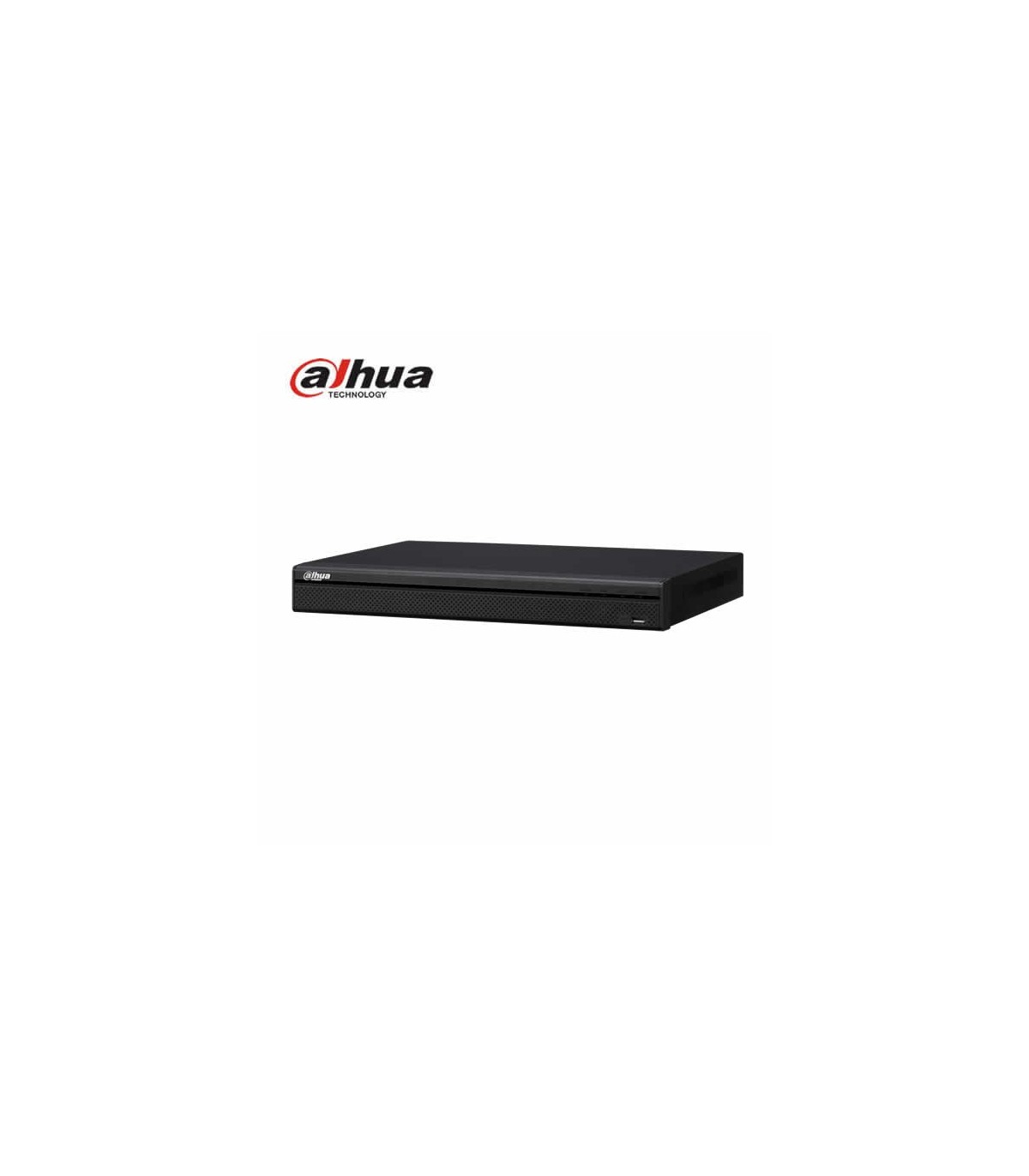

The NVR4216-16P-4KS3 is a Dahua Lite 16-channel NVR with 16 PoE ports, designed for professional IP video surveillance systems. It supports cameras with resolutions up to 12MP, provides SMD Plus on 4 channels through the recorder itself and features 2 SATA ports for HDDs with capacities up to 20TB each.

NVR4216-16P-4KS3 with 16 IP channels and 16 PoE ports

The NVR4216-16P-4KS3 allows connection and management of up to 16 IP cameras and features 16 × 10/100 Mbps PoE ports compliant with IEEE 802.3af/at. Compatible IP cameras can therefore receive both data and power through the same network cable, simplifying the installation of the video surveillance system.

16 PoE ports with a total 130 W power budget

The 16 PoE ports provide a total PoE power budget of up to 130 W, with a maximum power of 25.5 W per port. This allows compatible PoE cameras to be connected and powered directly from the NVR while respecting the total available power budget.

Resolution up to 12MP

The NVR4216-16P-4KS3 supports IP cameras with resolutions of 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, 960p, D1, CIF and QCIF, providing flexibility when configuring professional systems with different types of cameras.

SMD Plus built into the NVR4216-16P-4KS3

The NVR4216-16P-4KS3 provides SMD Plus on 4 channels using the recorder's built-in AI. SMD Plus performs secondary filtering of people and motor vehicles, helping to reduce false alarms caused by elements such as leaves, rain and changes in lighting conditions.

SMD Plus and SMD through compatible cameras

In addition to the 4 SMD Plus channels processed by the recorder, the NVR supports SMD through compatible cameras on all channels, with processing of up to 12 targets per second. SMD Plus and the intelligent functions of compatible cameras allow video surveillance solutions to be configured according to the requirements of each installation.

AI functions through compatible cameras

The NVR4216-16P-4KS3 supports AI functions from compatible cameras, including face detection, face recognition, perimeter protection, SMD, people counting, stereo analysis and heat map. These functions depend on the capabilities of the cameras used in the system.

Perimeter protection through compatible cameras

When used with compatible intelligent cameras, the NVR4216-16P-4KS3 supports perimeter protection on up to 6 channels, allowing camera-based intelligent analytics to be used for monitoring protected areas.

Face detection and face recognition

The recorder supports face detection and face recognition through compatible cameras on all channels, with processing of up to 6 targets per second. Supported facial attributes include gender, age group, glasses, expressions, face mask and beard.

Bandwidth up to 160 Mbps

With AI disabled, the NVR4216-16P-4KS3 provides up to 160 Mbps incoming bandwidth, 160 Mbps recording bandwidth and 80 Mbps outgoing bandwidth. With AI enabled, it provides up to 80 Mbps incoming bandwidth, 80 Mbps recording bandwidth and 60 Mbps outgoing bandwidth.

Video decoding up to 12MP

With AI disabled, the NVR supports decoding of up to 1 channel 12MP@30 fps, 2 channels 8MP@30 fps, 2 channels 6MP@30 fps, 3 channels 5MP@30 fps, 4 channels 4MP@30 fps or 8 channels 1080p@30 fps.

Decoding with AI enabled

With AI enabled, the NVR4216-16P-4KS3 supports up to 1 channel 12MP@30 fps, 1 channel 8MP@30 fps, 2 channels 6MP@30 fps, 2 channels 5MP@30 fps, 3 channels 4MP@30 fps or 7 channels 1080p@30 fps.

Smart H.265+ for storage optimisation

The NVR4216-16P-4KS3 supports Smart H.265+, H.265, Smart H.264+ and H.264 video compression. Smart H.265+ helps optimise bandwidth and storage usage in IP video surveillance systems with multiple cameras.

2 SATA HDDs with up to 20TB per disk

The NVR4216-16P-4KS3 features 2 SATA ports, allowing the installation of two hard drives with capacities up to 20TB per HDD. The actual supported capacity may vary according to the environmental conditions specified by the manufacturer.

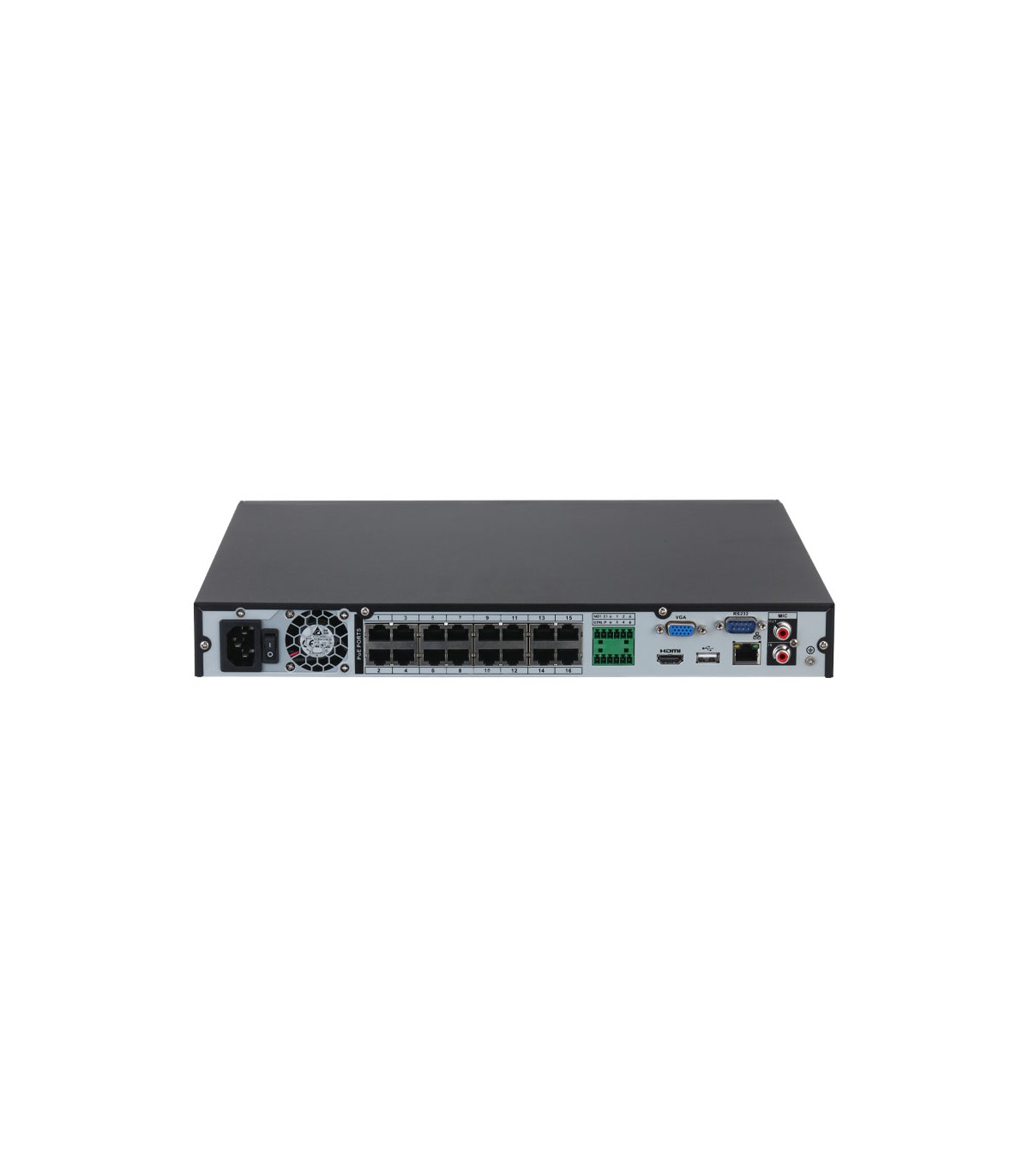

4K HDMI and VGA outputs

The recorder features 1 HDMI output and 1 VGA output. In simultaneous output mode, HDMI supports resolutions up to 3840 × 2160 (4K), while VGA supports up to 1920 × 1080. Multi-screen display supports up to 16 channels.

Simultaneous playback of up to 16 channels

The NVR4216-16P-4KS3 supports simultaneous playback of up to 16 channels. Recording modes include general, motion detection, intelligent and alarm recording, while playback options include instant, general, event, tag and smart playback.

ONVIF and multi-brand integration

The NVR4216-16P-4KS3 supports ONVIF 24.12 Profile T, Profile S and Profile G, CGI and SDK. It also supports integration with compatible third-party cameras, including Panasonic, Sony, Axis, Arecont, Pelco, Canon and Hanwha.

Gigabit network and remote access

The NVR features 1 RJ-45 10/100/1000 Mbps Ethernet port and supports access through iOS and Android devices. Supported network protocols include HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP and P2P.

Alarm inputs and outputs

The NVR4216-16P-4KS3 features 4 alarm inputs and 2 alarm outputs, including one 12 V / 1 A output. Supported alarm linkage actions include recording, snapshot, IPC external alarm output, audio, buzzer, log, preset and email.

Audio, USB and RS-232

The recorder includes 1 RCA audio input and 1 RCA audio output, 2 USB 2.0 ports and 1 RS-232 interface, providing different options for connection, configuration and backup.

Professional 1U design

The NVR4216-16P-4KS3 features a 1U design with dimensions of 375 × 327.9 × 53 mm. It uses a direct 100–240 VAC, 50/60 Hz power supply. NVR power consumption is less than 10 W without HDD, while the total available PoE power budget is 130 W.
