EASY-P EP-IPD320A-8 - 8MP AI IP Dome Camera with 2.8 mm lens and vandal-resistant protection:
- 1/2.8" CMOS sensor and 8MP: Up to 8 Megapixel resolution (3864x2192) for high-definition images with excellent detail.
- Fixed 2.8 mm lens: Wide field of view with H: 96°, V: 52° and D: 114° viewing angles, suitable for monitoring different areas.
- Night vision: Infrared illumination with a range of up to 30 metres for effective surveillance even in complete darkness.
- Artificial Intelligence: Intelligent intrusion and motion detection based on people and/or vehicles, helping to reduce false alarms.
- PoE, audio and IP67 + IK10 protection: Integrated microphone, PoE IEEE802.3af power supply and metal housing resistant to water, dust and impacts.

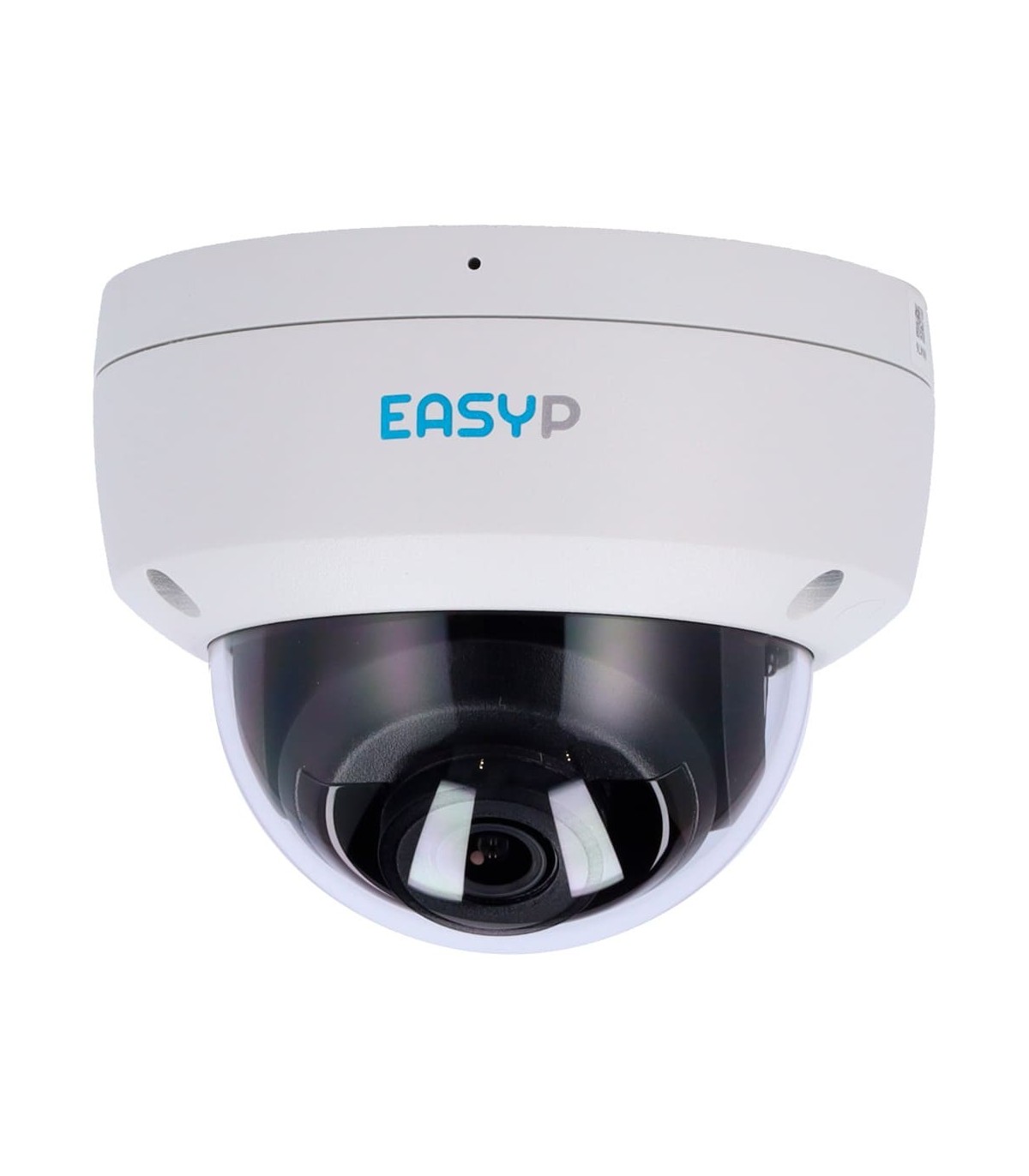

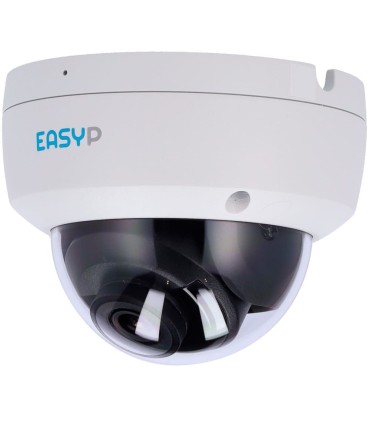

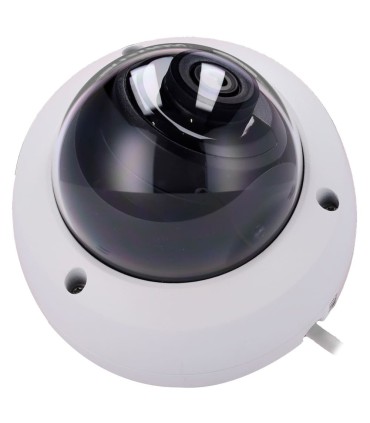

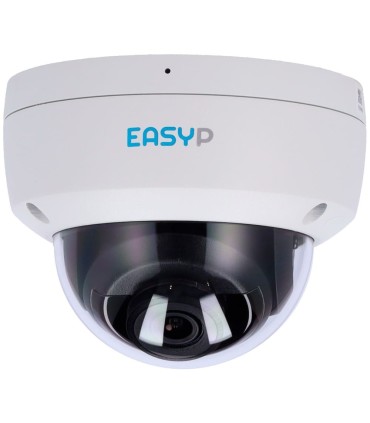

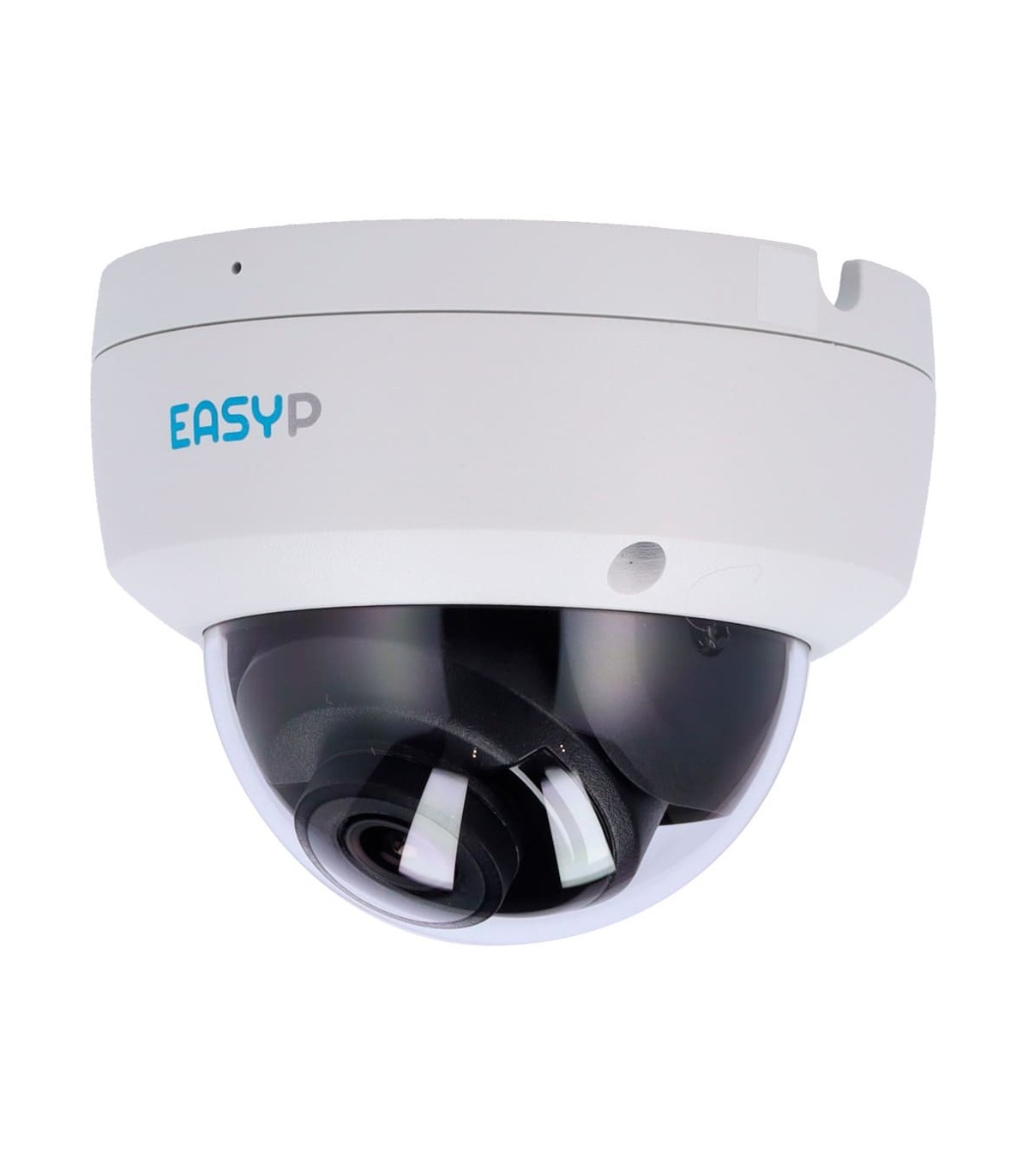

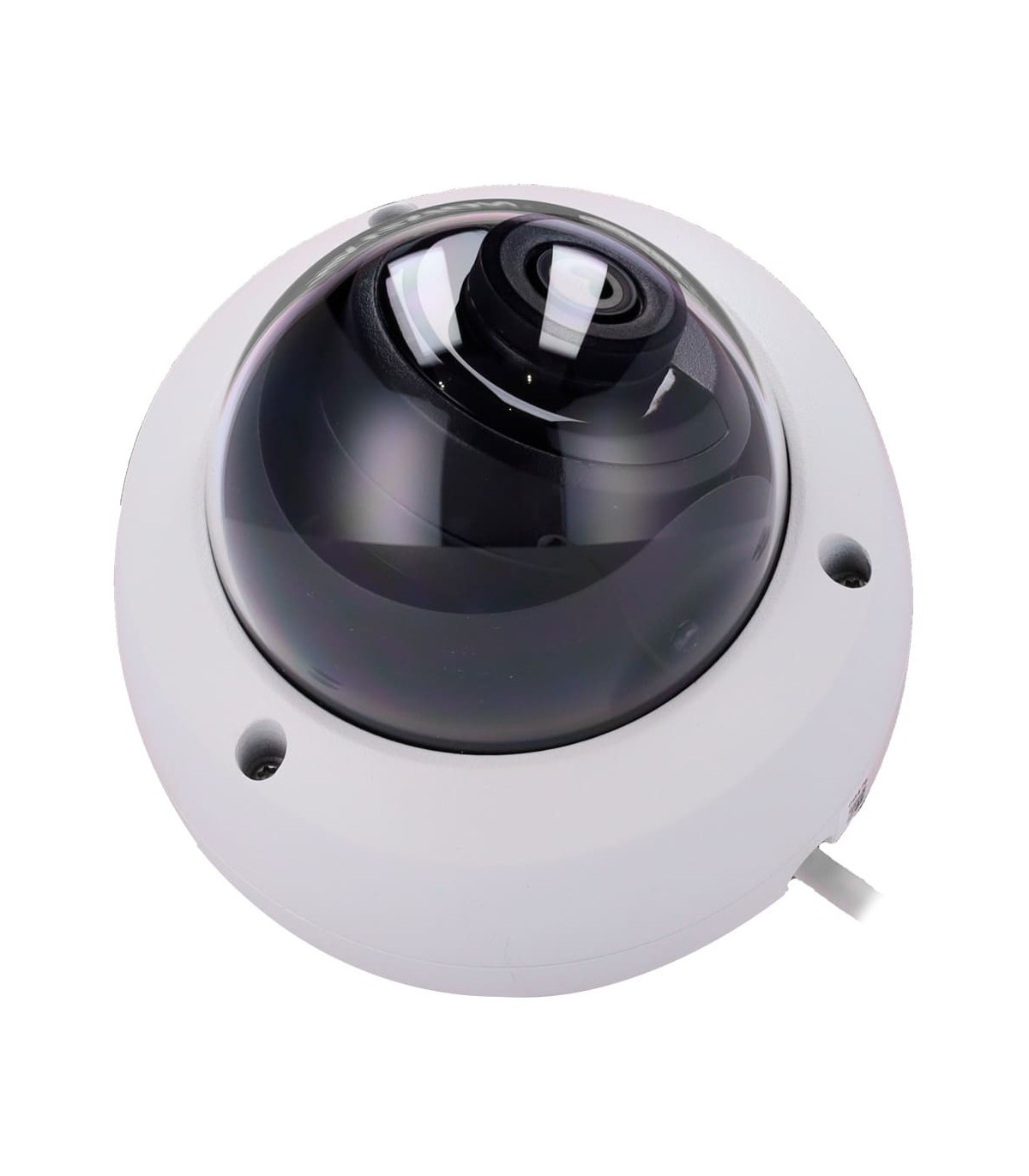

EASY-P EP-IPD320A-8 8MP AI IP Dome Camera with IP67 and IK10
The EASY-P EP-IPD320A-8 is a professional 8MP IP Dome camera designed for video surveillance systems requiring high image quality, intelligent analysis and robust protection for professional installations. EASY-P technology combines 8 Megapixel resolution, a 2.8 mm wide-angle lens, infrared illumination, Artificial Intelligence, integrated audio and PoE power in a compact and robust solution.
EASY-P EP-IPD320A-8 with 8MP resolution and 2.8 mm lens
Equipped with a 1/2.8" Progressive Scan CMOS sensor, the EASY-P EP-IPD320A-8 provides a maximum resolution of 8MP (3864x2192), delivering detailed images for monitoring areas where visual identification is important. The fixed 2.8 mm lens provides a wide field of view of H: 96°, V: 52° and D: 114°.
Night vision with infrared up to 30 metres
The EASY-P integrates infrared illumination with a range of up to 30 metres, enabling effective surveillance at night and in low-light environments. The mechanical ICR filter allows automatic switching between day and night modes.
Artificial Intelligence for more accurate detection
The integrated AI technology enables intelligent intrusion and motion detection through the identification of people and/or vehicles. The EASY-P EP-IPD320A-8 improves video analysis accuracy and helps significantly reduce false alarms caused by irrelevant movements.
PoE, integrated microphone and IP67 and IK10 protection
The camera features an integrated microphone for audio capture and supports PoE IEEE802.3af power, allowing data and power to be transmitted through a single network cable. Its metal housing with IP67 protection provides resistance to water and dust, while the IK10 certification ensures a high level of resistance against impacts and vandalism.
| Parameter | Detailed technical specifications |
|---|---|
| Brand / Manufacturer | EASY-P |
| Model / Reference | EP-IPD320A-8 |
| Camera type | IP Dome Camera with Artificial Intelligence |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3864x2192) |
| Minimum illumination | Colour: 0.05 Lux @(F1.6, AGC ON); 0 Lux with IR |
| Illumination range | IR up to 30 m |
| Day / Night | Removable mechanical ICR filter |
| Electronic shutter | 1/3~1/100000 s |
| Optics | Fixed 2.8 mm |
| Viewing angle (FOV) | H: 96°, V: 52°, D: 114° |
| Main Stream | 3840x2160@20fps; 2560x1440@20fps; 1920x720@20fps; 1280x720@20fps |
| Extra Stream | 1280x720@20fps; 720x480@20fps |
| Video compression | H.264 / H.264+ / H.265 / H.265+ / JPEG / AVI / MJPEG |
| Bitrate | 64 Kbps ~ 6 Mbps |
| Image enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, mirror function and privacy mask |
| Motion detection and UMD | Supports both functions |
| Smart functions | Native support for Motion Detect 2.0 and UMD |
| Artificial Intelligence | Intrusion and motion detection based on people and/or vehicles; false alarm reduction |
| Audio | Integrated microphone |
| Audio compression | G711A / U, AAC |
| Network interface | Ethernet 10 / 100M BaseT |
| Remote access | Web Browser, APP |
| Interoperability | ONVIF, Plug & Play with Uniview and Hikvision |
| P2P technology | Yes |
| Power supply | DC 12 V / 9 W max. / PoE IEEE802.3af |
| Protection rating | IP67, waterproof |
| Vandal resistance | IK10 |
| Material | Metal |
| Operating temperature | -20 ºC ~ +60 ºC |
| Dimensions | 70 x 67.5 x 169 mm; 87.1 (H) mm - 111 Φ mm |
| Weight | 600 g |
