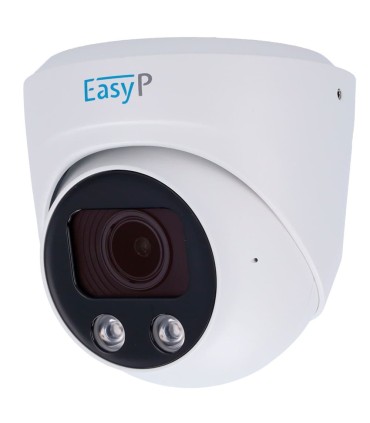

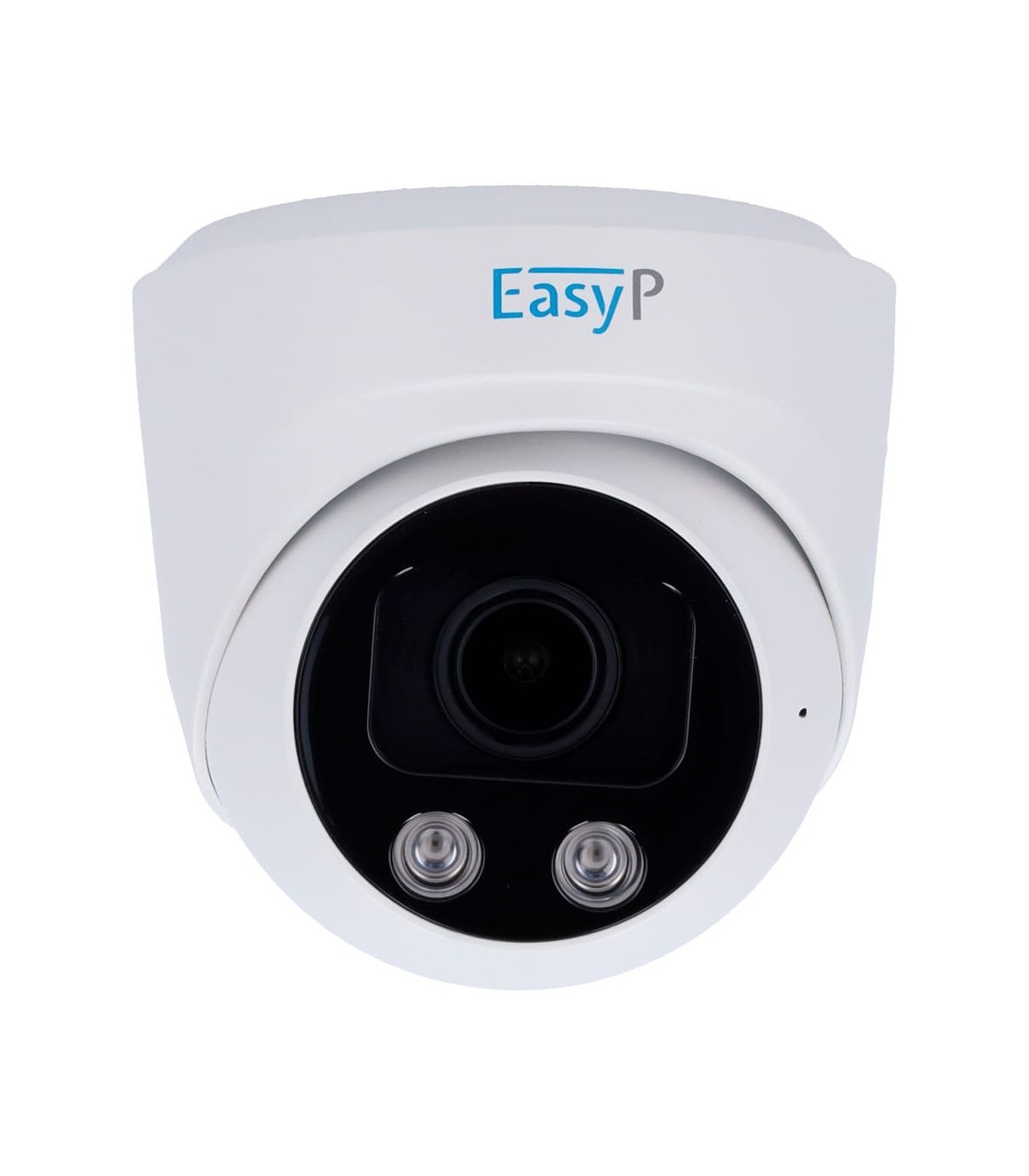

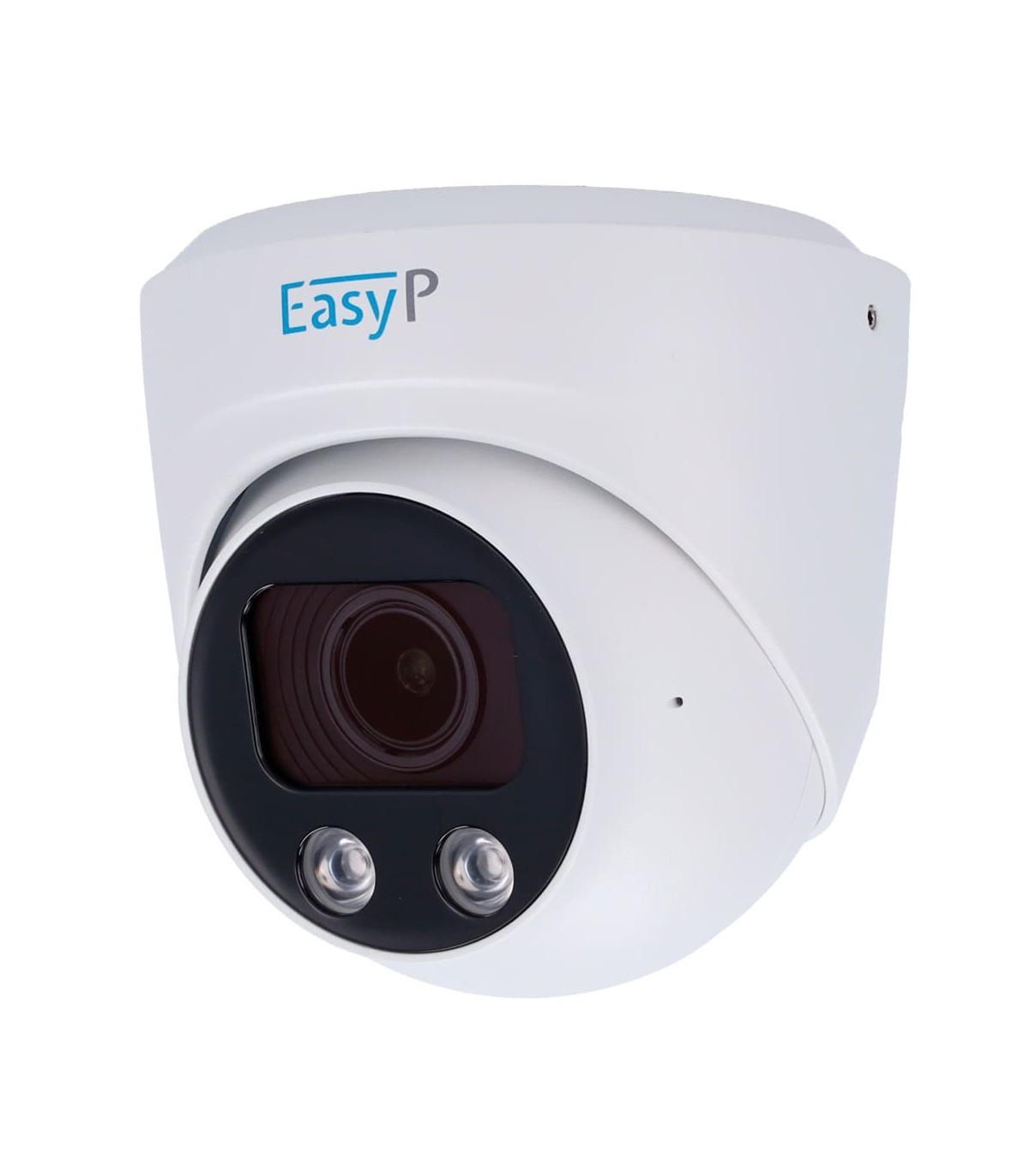

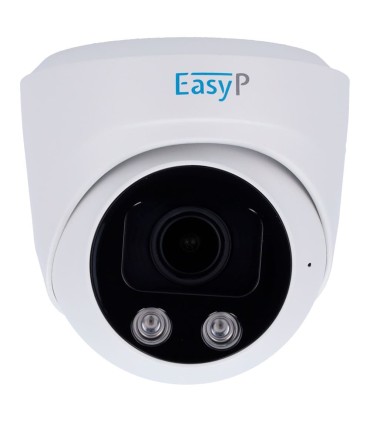

EASY-P EP-IPT230ZA-4 - 4 MP Turret IP Camera with Motorized 2.7-13.5 mm Lens and Artificial Intelligence:
The EASY-P EP-IPT230ZA-4 is a professional Turret IP camera equipped with a 1/3" CMOS sensor and 4 Megapixel (2688x1512) resolution, delivering detailed images for demanding video surveillance applications.
The EASY-P EP-IPT230ZA-4 features a motorized varifocal 2.7 to 13.5 mm lens, allowing remote adjustment of the framing and field of view according to the installation requirements.
The AI system supports Motion Detect 2.0 and UMD, providing intelligent analysis based on people and/or vehicles. This technology helps significantly reduce false alarms and improve security system efficiency.
The camera provides infrared illumination up to 25 meters, a removable mechanical ICR filter and an integrated microphone. IEEE802.3af PoE simplifies installation by providing power and data through a single network cable.
With a metal housing and IP67 protection, the EASY-P EP-IPT230ZA-4 is designed for demanding environments. It supports ONVIF and Plug & Play integration with Uniview and Hikvision systems.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand / Manufacturer | EASY-P |
| Model / Reference | EP-IPT230ZA-4 |
| Camera Type | Turret IP Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1512) |
| Minimum Illumination | Colour: 0.03 Lux @(F1.6, AGC ON); 0 Lux with IR |
| Lens | Motorized 2.7~13.5 mm |
| Viewing Angle (FOV) | H: 98~28°, V: 52~16°, D: 118~32° |
| IR Illumination Range | Up to 25 m |
| Day / Night | Removable mechanical ICR filter |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / JPEG / AVI / MJPEG |
| Bitrate | 64 Kbps ~ 6 Mbps |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask |
| Smart Functions | Motion Detect 2.0 and UMD; AI for people and/or vehicles |
| Audio | Integrated microphone; G711A / U, AAC |
| Network Interface | Ethernet 10 / 100M BaseT |
| Remote Access | Web Browser, APP |
| Interoperability | ONVIF, Plug & Play with Uniview and Hikvision |
| P2P | Yes |
| Power Supply | DC 12 V / 9 W max. / IEEE802.3af PoE |
| Protection Rating | IP67 |
| Material | Metal |
| Operating Temperature | -20 ºC ~ +60 ºC |
| Dimensions | 115 (Ø) x 113 (H) mm |
| Device Weight | 800 g |
