EASY-P EP-IPT220A-5-DL - 5MP IP Turret Camera with 2.8mm Lens, AI and Dual Illumination:
- 1/2.7" CMOS Sensor and 5MP: The EASY-P EP-IPT220A-5-DL provides 2960x1666 resolution for detailed images and professional video surveillance.
- Fixed 2.8mm Lens: The EASY-P EP-IPT220A-5-DL provides a wide field of view, making it suitable for monitoring large areas.
- Artificial Intelligence AI: Intelligent motion detection and UMD with person and vehicle classification, reducing false alarms.
- Night Vision and 5MP: IR illumination up to 40 metres and white light up to 30 metres for effective surveillance in low-light conditions.
- PoE and IP67 Protection: PoE power supply, integrated microphone, metal construction and IP67 protection for indoor and outdoor installations.

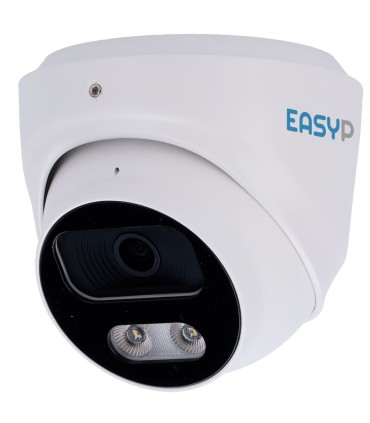

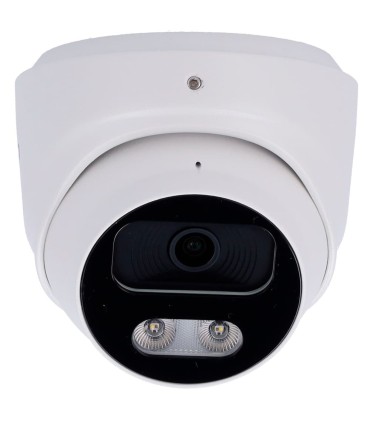

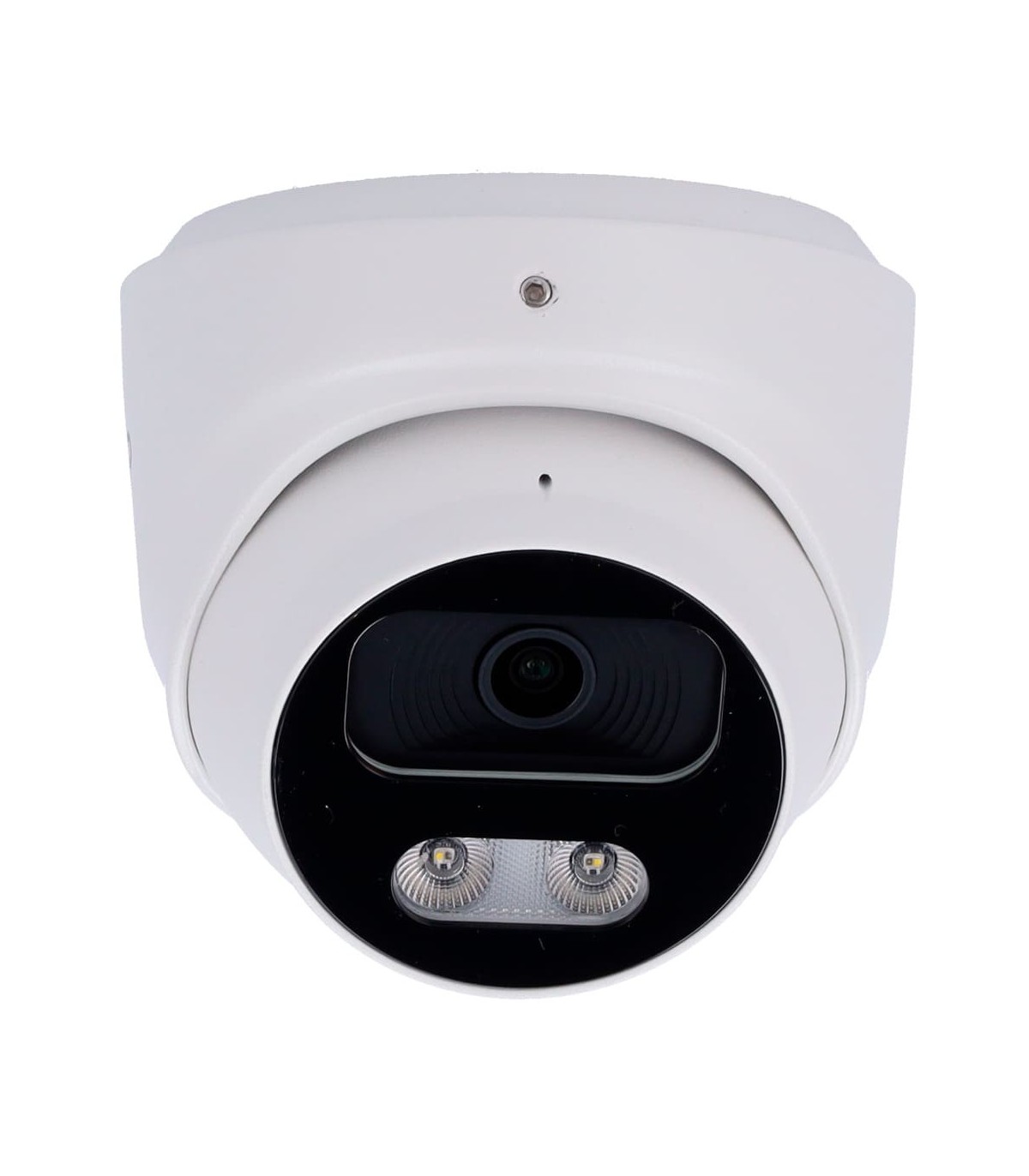

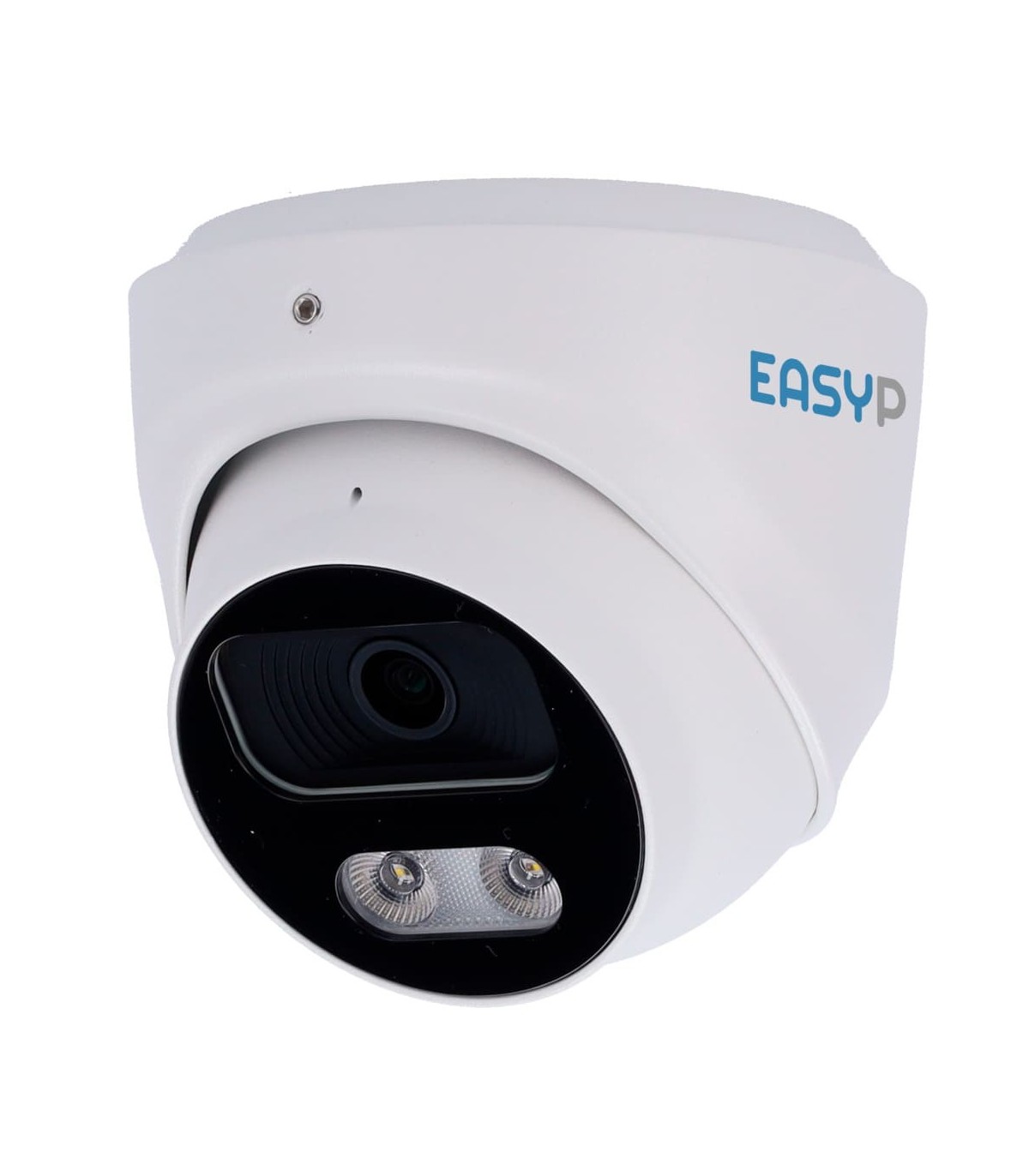

EASY-P EP-IPT220A-5-DL 5MP 2.8mm IP Turret Camera with AI
The EASY-P EP-IPT220A-5-DL is a professional 5MP IP Turret camera designed for video surveillance systems requiring high image quality, intelligent analysis and reliable operation in different environments.
EASY-P EP-IPT220A-5-DL with 5MP Image and 2.8mm Lens
Equipped with a 1/2.7" CMOS sensor and a maximum resolution of 5MP (2960x1666), the EASY-P EP-IPT220A-5-DL delivers detailed, high-definition images. Its fixed 2.8mm lens provides a wide field of view of H: 109°, V: 58° and D: 129°, making it suitable for monitoring large areas.
AI for Intelligent Detection and False Alarm Reduction
The integrated AI technology enables intelligent motion detection and UMD, with classification based on people and vehicles. This feature significantly reduces false alarms and improves the efficiency of video analysis.
5MP and Dual Illumination for Night Surveillance
The EASY-P EP-IPT220A-5-DL combines infrared illumination with a range of up to 40 metres and white light up to 30 metres. This combination maintains good image quality at night while complementing the performance of the 5MP sensor.

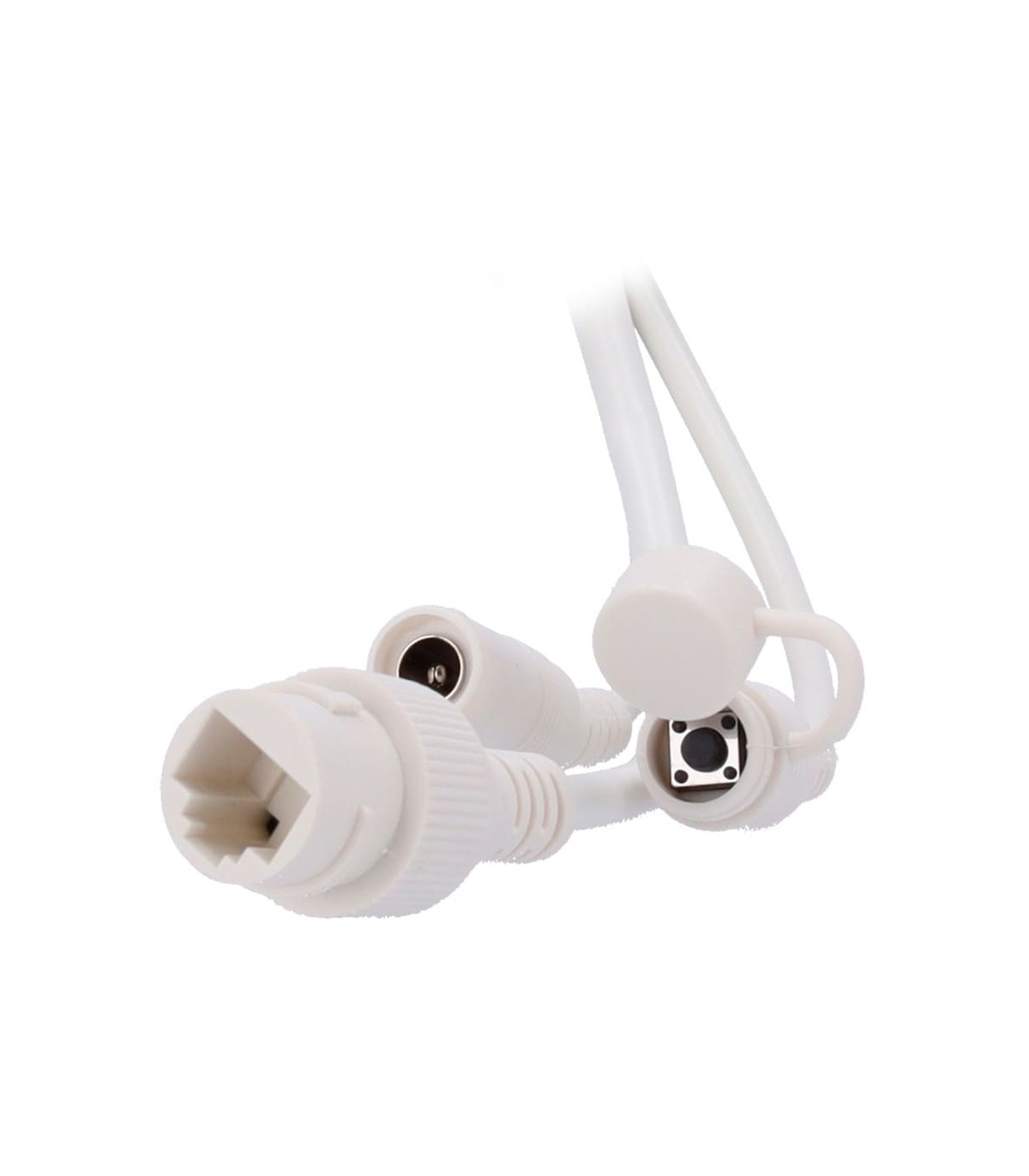

PoE, Audio and IP67 Protection
The camera features an integrated microphone for audio capture and supports PoE power, simplifying installation and integration into professional systems. Its metal construction with IP67 protection provides resistance to water and dust, making it suitable for indoor and outdoor installations.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand / Manufacturer | EASY-P |
| Model / Reference | EP-IPT220A-5-DL |
| Camera Type | IP Turret Camera with Artificial Intelligence |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 5 Megapixels (2960x1666) |
| Minimum Illumination | Colour: 0.01 Lux @(F1.6, AGC ON) |
| Illumination Range | IR up to 40 m; white light up to 30 m |
| Day/Night Switching | Removable mechanical ICR filter |
| Electronic Shutter | 1/3 ~ 1/100000 s |
| Main Stream | 2880x1620@30fps; 2560x1440@30fps; 1920x1080@30fps; 1280x720@30fps |
| Extra Stream | 1280x720@30fps; 720x480@30fps |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / JPEG / AVI / MJPEG |
| Optics / Lens | Fixed 2.8 mm lens |
| Viewing Angle (FOV) | H: 109°, V: 58°, D: 129° |
| Image Enhancements | WDR, BLC, 3D-DNR, AWB, ROI, mirror function, privacy mask |
| Motion Detection and UMD | Supports both functions |
| Smart Functions | Motion Detection 2.0 and UMD with person and/or vehicle classification |
| Audio | Built-in microphone |
| Audio Compression | G711A / U, AAC |
| Network Interface | Ethernet 10 / 100M BaseT |
| Remote Access | Web Browser, APP |
| Interoperability | ONVIF, Plug & Play with Uniview and Hikvision |
| P2P Technology | Yes |
| Power Supply | DC 12 V / 9 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 |
| Construction Material | Metal |
| Operating Temperature | -20 ºC to +60 ºC |
| Physical Dimensions | Ø96 x 91 mm |
| Device Weight | 430 g |
