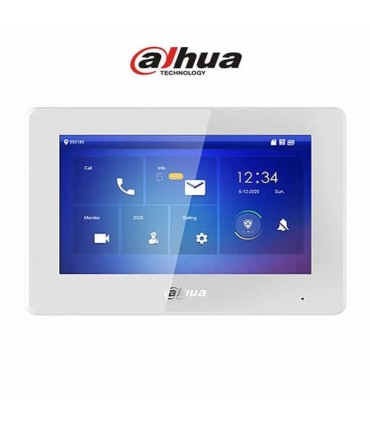

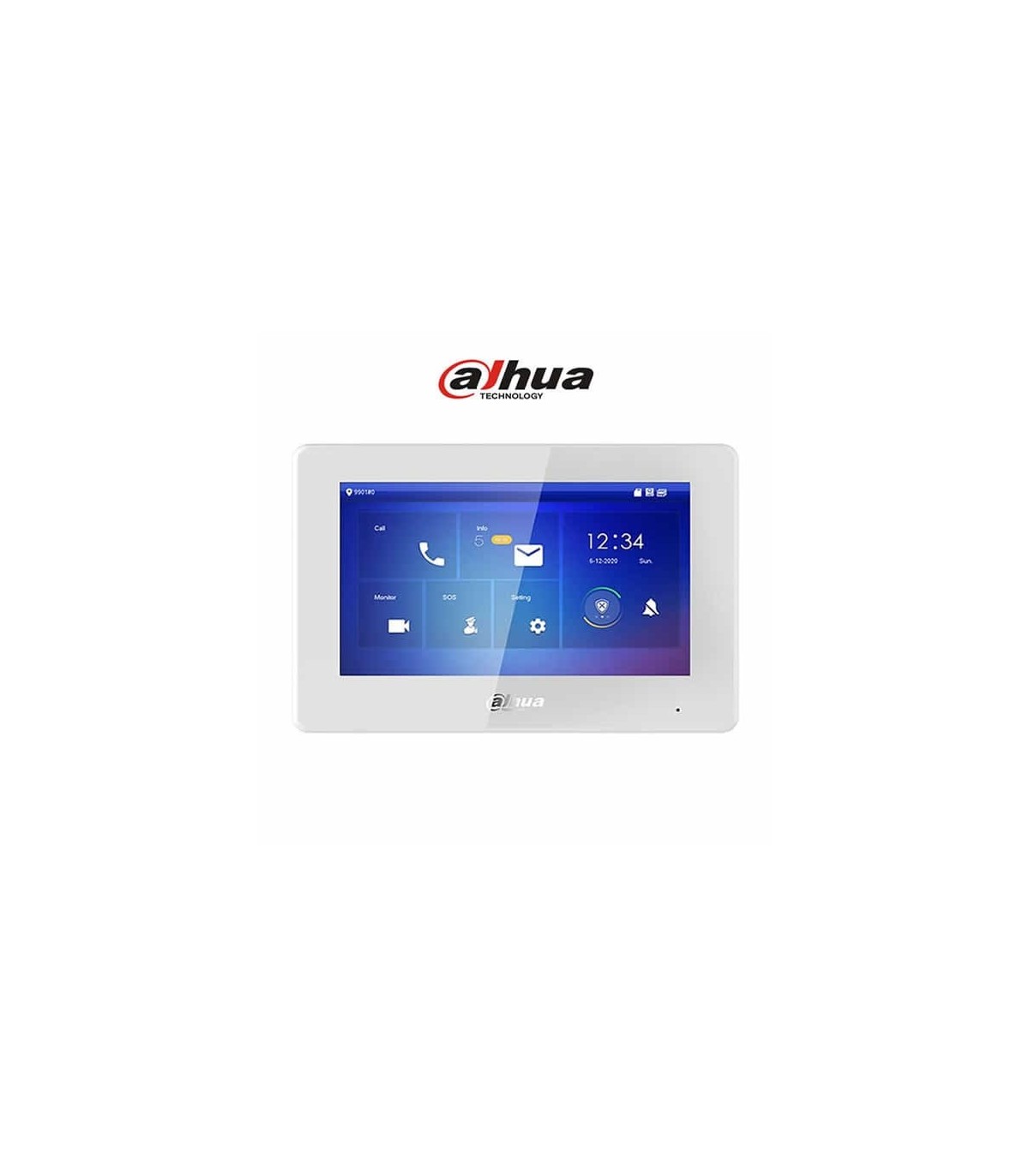

VTH5422HW-W – 7" 2-wire IP indoor monitor Wi-Fi white Dahua:
The VTH5422HW-W is a Dahua 2-wire IP indoor monitor from the Pro Series, designed for professional video intercom systems. It features a 7-inch TFT capacitive touchscreen with 1024 × 600 resolution and 2.5D glass, providing a clear and intuitive interface for everyday operation.
The 2-wire IP technology allows the monitor to be integrated into compatible installations using simplified infrastructure. The device also features IEEE 802.11b/g/n Wi-Fi on the 2.4 GHz band and a 10/100 Mbps Ethernet port, providing different connectivity options for the system.
The VTH5422HW-W supports Wi-Fi with WPA/WPA2 and WPA-PSK/WPA2-PSK security, as well as ONVIF interoperability and SDK. Two-way audio enables communication with compatible outdoor stations, while echo suppression helps improve communication quality.
The monitor supports Micro SD cards up to 64 GB for storage and video recording functions. It also provides 6 alarm inputs, 1 alarm output, an RS485 interface and a 12 V / 200 mA power output, expanding integration possibilities in professional installations.
With its white finish, surface mounting and support for 2-wire digital communication, Wi-Fi and Ethernet, the Dahua VTH5422HW-W is a versatile solution for residential and professional IP video intercom systems.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand | Dahua |
| Model | VTH5422HW-W |
| Product type | 2-wire IP indoor monitor with Wi-Fi |
| Main processor | Embedded processor |
| Operating system | Embedded Linux |
| Interoperability | ONVIF; SDK |
| Network protocols | RTSP; RTP; SIP; DNS; SSH |
| Screen type | Capacitive touchscreen |
| Display | 7-inch TFT |
| Resolution | 1024 × 600 |
| Glass | 2.5D |
| Audio compression | G.711a; G.711u; PCM |
| Audio input | 1 channel |
| Audio output | Built-in speaker |
| Audio mode | Two-way audio |
| Audio enhancement | Echo suppression |
| Audio specification | 16 kHz; 16 bit |
| Communication mode | 2-wire digital |
| Information release | Receives and displays text information sent by the management center |
| Video recording | Yes; with SD card inserted in the indoor monitor |
| Do Not Disturb mode | Yes; allows a Do Not Disturb period to be configured |
| Number of extensions | Villa: 3; Apartment: 2; Wi-Fi intercom: 1 main monitor + 2 extension monitors |
| Wi-Fi | Yes |
| Wi-Fi standard | IEEE 802.11b/g/n |
| Wi-Fi frequency | 2412–2472 MHz |
| Wi-Fi security | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Storage | Micro SD card up to 64 GB |
| Housing material | PC + ABS |
| RS485 | 1 channel |
| Alarm inputs | 6 channels |
| Alarm output | 1 channel |
| Power output | 1 × 12 V / 200 mA |
| Doorbell | Yes; uses any alarm input port |
| Network | 1 × 2-wire port and 1 × 10/100 Mbps Ethernet port; one connection can be selected |
| Color | White |
| Power supply | 48 VDC / 1.25 A |
| Installation | Surface mount |
| Certifications | CE; FCC |
| Dimensions | 189.0 × 130.0 × 26.9 mm |
| Operating temperature | -10 °C to +55 °C |
| Operating humidity | 10%–95% RH, non-condensing |
| Operating altitude | Below 3000 m |
| Power consumption | Standby ≤2 W; operation ≤6 W |
| Net weight | 0.35 kg |
| Gross weight | 0.56 kg |
