KTP01L(F) - Dahua IP Video Intercom Kit 2MP 7" PoE Flush Mount:

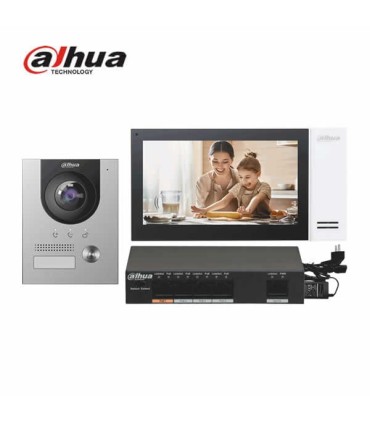

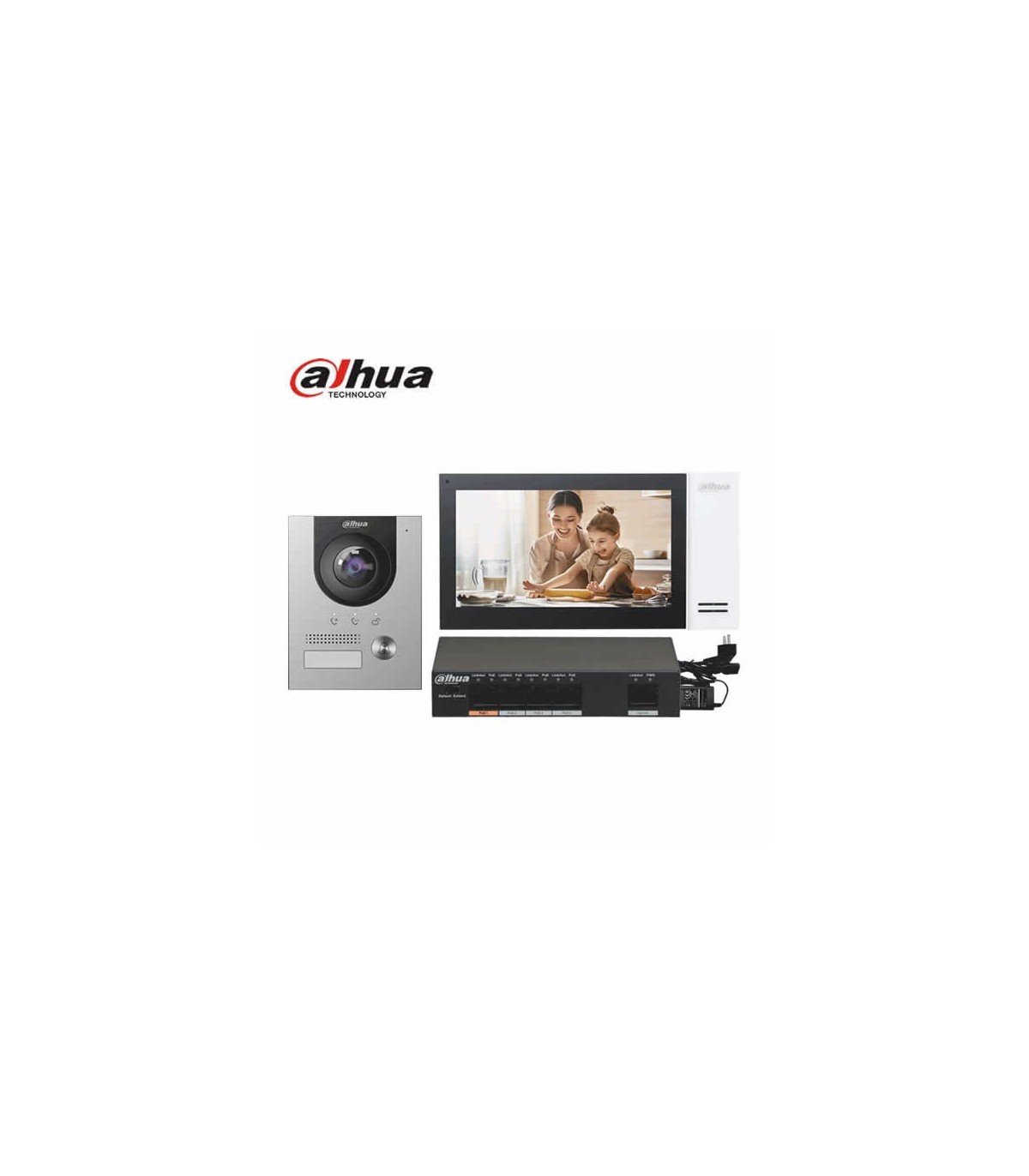

The KTP01L(F) is a Dahua IP video intercom kit designed for residential and professional installations. It includes the VTO2201F-P outdoor station, 7" VTH2421FW-P indoor monitor and PFS3006-4ET-36 PoE switch.
This version of the KTP01L(F) is designed for flush mounting of the outdoor station, allowing it to be recessed into the wall for a discreet and professional finish.
The VTO2201F-P integrates a 1/2.9" 2MP CMOS sensor with 120 dB WDR, providing clear visitor images under different lighting conditions.
The camera provides a field of view of 168.6° horizontal, 87.1° vertical and 176.7° diagonal, together with automatic IR illumination and ICR day/night operation.
The VTH2421FW-P features a 7" capacitive TFT touch screen with 1024 × 600 resolution for visitor viewing and system management.
The system supports two-way audio, echo suppression and digital noise reduction. The outdoor station also supports remote door unlocking, lock control and door status detection.
PoE technology allows power and data to be transmitted over the network infrastructure. The outdoor station supports IEEE 802.3af/at, while the indoor monitor can also be powered via PoE.
The included PFS3006-4ET-36 features 4 × 10/100 Mbps PoE ports and 2 × 10/100 Mbps uplink ports.
The KTP01L(F) supports management through a mobile application. The outdoor station supports a Micro SD card up to 256 GB, while the indoor monitor includes 8 GB built-in storage and supports up to 9 extensions.
The aluminium outdoor station features IP65 and IK08 protection, making it suitable for outdoor use when installed according to the manufacturer's recommendations.
The outdoor station supports ONVIF and CGI, together with SIP, TCP, RTP, UPnP, P2P, DNS, UDP, RTSP and IPv4 network protocols.
With a 2MP camera, 7" touch monitor, PoE, two-way audio, remote unlocking, App management and included PoE switch, the KTP01L(F) provides a complete solution for flush-mounted IP video intercom installations.
| Parameter | Detailed Technical Specifications |
|---|---|
| Brand | Dahua |
| Model | KTP01L(F) |
| Type | IP video intercom kit |
| Installation | Flush mounting |
| Kit Contents | VTO2201F-P + VTH2421FW-P + PFS3006-4ET-36 |
| VTO2201F-P Outdoor Station | |
| Processor | Embedded processor |
| Operating System | Embedded Linux |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocols | SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4 |
| Camera | 1/2.9" CMOS, 2MP |
| Field of View | H: 168.6°; V: 87.1°; D: 176.7° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.265; H.264 |
| Video Resolution | Main stream: 720p, WVGA, D1, CIF; sub stream: 1080p, WVGA, D1, QVGA, CIF |
| Frame Rate | 25 fps |
| Video Bitrate | 256 kbps–8 Mbps |
| Illumination | Automatic IR |
| Day/Night | Auto (ICR) / Colour / Black and white |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression and digital noise reduction |
| Communication Mode | Fully digital |
| Unlock Mode | Remote |
| Video Messages | Yes, with SD card installed in the indoor monitor or outdoor station |
| VTO Storage | Micro SD up to 256 GB |
| Web Configuration | Yes |
| RS-485 | 1 |
| Alarm Output | 1 |
| Power Output | 1 × 12 V, 600 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network | 1 × RJ-45 10/100 Mbps |
| Tamper Alarm | Yes |
| Material | Aluminium |
| Colour | Silver |
| Power Supply | 48 VDC, 0.4 A; IEEE 802.3af/at PoE |
| Mounting | Flush mount |
| Protection | IP65; IK08 |
| VTO Dimensions | 200 × 98 × 35.4 mm |
| Operating Temperature | -40 °C to +60 °C |
| Operating Humidity | 10%–95% RH, non-condensing |
| VTO Power Consumption | ≤5 W standby; ≤7 W operating |
| VTH2421FW-P Indoor Monitor | |
| Processor | Embedded processor |
| Operating System | Embedded Linux |
| Display | 7" TFT |
| Display Type | Capacitive touch screen |
| Resolution | 1024 × 600 |
| Microphone | 1 × omnidirectional microphone |
| Speaker | Built-in, 1.5 W |
| Audio | Two-way; G.711a, G.711u, PCM; echo suppression and digital noise reduction |
| DND Mode | Yes; configurable Do Not Disturb period |
| Number of Extensions | Up to 9 |
| Storage | 8 GB built-in |
| Alarm Inputs | 6 channels |
| Alarm Output | 1 channel |
| SOS Alarm | Yes |
| Network | 1 × RJ-45 |
| Material | PC + ABS |
| Colour | Black |
| Power Supply | 12 VDC, 1 A; PoE |
| Installation | Surface mounting |
| VTH Dimensions | 119.6 × 221.5 × 23.5 mm |
| Operating Temperature | -10 °C to +55 °C |
| VTH Power Consumption | ≤4 W standby; ≤6 W operating |
| PFS3006-4ET-36 PoE Switch | |
| PoE Ports | 4 × 10/100 Mbps Base-TX |
| Uplink Ports | 2 × 10/100 Mbps Base-TX |
| Power Supply | Integrated power supply, 100–240 VAC |
| Dimensions | 194 × 108.1 × 35 mm |
| Operating Temperature | -10 °C to +55 °C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Power Consumption | 0.5 W no load; 36 W full load |
| Certifications | VTO: CE; VTH: CE, FCC, UL; Switch: CE, FCC |
