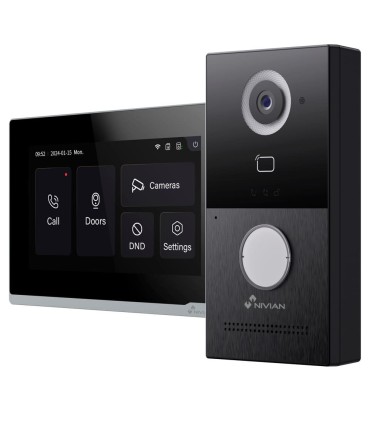

Outdoor panel 2 wires + WiFi Monitor
Outer plate IP65 / Camera 1080P
MF card reader / 2 relay outputs
Wall-mounted 7" touchscreen monitor
Tuya App / Remote opening and calling
| Brand | Nivian |
| Operating System | Linux |
| Screen | 7" TFT Touch LCD |
| Resolution | 1024 X 600 |
| Audio | Two-way audio with microphone and speaker with noise reduction |
| Connection to the outdoor panel | 2-hilos wired technology (the board does not need power cable) |
| Internet connection | WiFi 2.4Ghz |
| Remote management | Tuya Smart App - Call notification and remote opening |
| CCTV Management | Supports up to 8 IP cameras using ONVIF support |
| Image recording | MicroSD card up to 128 GB (Not included) |
| Power | 24V/2ADC Power supply - Consumption 9.5W / Rest 5W |
| Working temperature | -10ºC ~ +55ºC |
| Material | Aluminum, Methacrylate and ABS Plastic |

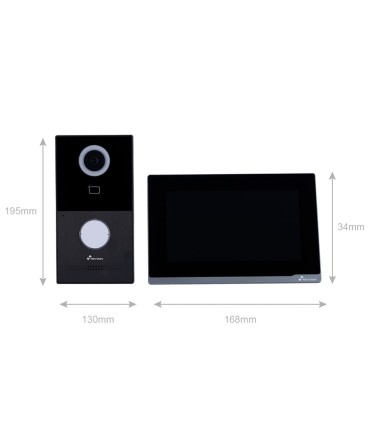

| Dimensions | 195 x 130 x 17.6 mm |
| Weight | 342 g |
| Brand | Nivian |
| System | Linux |
| Camera | 2 MP CMOS |
| Resolution | 1080P |
| Lens | Viewing angle 110º (diagonal) |
| Audio | Bidirectional with microphone and speaker with noise reduction |
| Communication | 2 Technology - wires (the plate does not need a power supply) The maximum distance from the monitor to the plate is 100 m Recommended cable diameter (0.75mm) |
| Power | Powered from indoor monitor |
| Door opening | 2 electric lock relay outputs: 1 relay (de-energized) for already powered locks (existing) 1 live relay for powering a new lock without a power supply nearby |
| Environmental protection | Exterior (waterproof IP65)) |
| Working temperature | -40ºC ~ +55ºC |
| Dimensions | 168 x 88 x 34 mm |
| Weight | 340 g |
